Excel Export using XML Spreadsheet

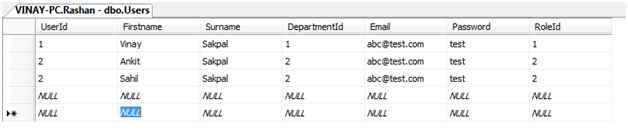

Table:

table

Script for creating table:

  1. CREATE TABLE [dbo].[Users](
  2.     [UserId] [int] NOT NULL,
  3.     [Firstname] [varchar](50) NOT NULL,
  4.     [Surname] [varchar](50) NOT NULL,
  5.     [DepartmentId] [nchar](10) NOT NULL,
  6.     [Email] [nvarchar](50) NOT NULL,
  7.     [Password] [nvarchar](50) NOT NULL,
  8.     [RoleId] [int] NOT NULL
  9. ) ON [PRIMARY]
Stored Procedure to get the data:
  1. CREATE PROCEDURE p_GetUsersData
  2.
  3. AS
  4. BEGIN
  5.     -- SET NOCOUNT ON added to prevent extra result sets from
  6.     -- interfering with SELECT statements.
  7.     SET NOCOUNT ON;
  8.
  9.     -- Insert statements for procedure here
  10.     SELECT Firstname, Surname,Email
  11.     FROM Users
  12. END
  13. GO
Now create ASP.NET Web Project and add a page then add Grid inside page and then bind the data to Griview.

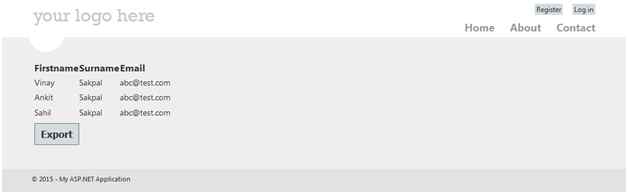

Run

Below is the template that we will use to export the data.
  1. <?xml version="1.0"?>
  2. <?mso-application progid="Excel.Sheet"?>
  3. <Workbook xmlns="urn:schemas-microsoft-com:office:spreadsheet"
  4.  xmlns:o="urn:schemas-microsoft-com:office:office"
  5.  xmlns:x="urn:schemas-microsoft-com:office:excel"
  6.  xmlns:ss="urn:schemas-microsoft-com:office:spreadsheet"
  7.  xmlns:html="http://www.w3.org/TR/REC-html40">
  8.  <DocumentProperties xmlns="urn:schemas-microsoft-com:office:office">
  9.   <Author>Vinay</Author>
  10.   <LastAuthor>Vinay</LastAuthor>
  11.   <Created>2015-09-26T06:14:39Z</Created>
  12.   <LastSaved>2015-09-26T11:36:29Z</LastSaved>
  13.   <Version>12.00</Version>
  14.  </DocumentProperties>
  15.  <ExcelWorkbook xmlns="urn:schemas-microsoft-com:office:excel">
  16.   <WindowHeight>4680</WindowHeight>
  17.   <WindowWidth>7635</WindowWidth>
  18.   <WindowTopX>480</WindowTopX>
  19.   <WindowTopY>75</WindowTopY>
  20.   <ProtectStructure>False</ProtectStructure>
  21.   <ProtectWindows>False</ProtectWindows>
  22.  </ExcelWorkbook>
  23.  <Styles>
  24.   <Style ss:ID="Default" ss:Name="Normal">
  25.    <Alignment ss:Vertical="Bottom"/>
  26.    <Borders/>
  27.    <Font ss:FontName="Calibri" x:Family="Swiss" ss:Size="11" ss:Color="#000000"/>
  28.    <Interior/>
  29.    <NumberFormat/>
  30.    <Protection/>
  31.   </Style>
  32.   <Style ss:ID="s16">
  33.    <Borders>
  34.     <Border ss:Position="Bottom" ss:LineStyle="Continuous" ss:Weight="1"/>
  35.     <Border ss:Position="Left" ss:LineStyle="Continuous" ss:Weight="1"/>
  36.     <Border ss:Position="Right" ss:LineStyle="Continuous" ss:Weight="1"/>
  37.     <Border ss:Position="Top" ss:LineStyle="Continuous" ss:Weight="1"/>
  38.    </Borders>
  39.    <Interior ss:Color="#FFFF00" ss:Pattern="Solid"/>
  40.   </Style>
  41.  </Styles>
  42.  <Worksheet ss:Name="Sheet1">
  43.   <Table ss:ExpandedColumnCount="6" ss:ExpandedRowCount="17" x:FullColumns="1"
  44.    x:FullRows="1" ss:DefaultRowHeight="15">
  45.     <Column ss:Index="1" ss:Width="50"></Column>
  46.     <Column  ss:Width="50"></Column>
  47.     <Column  ss:Width="150"></Column>
  48.    <!--Insert Data Here-->
  49.   </Table>
  50.   <WorksheetOptions xmlns="urn:schemas-microsoft-com:office:excel">
  51.    <PageSetup>
  52.     <Header x:Margin="0.3"/>
  53.     <Footer x:Margin="0.3"/>
  54.     <PageMargins x:Bottom="0.75" x:Left="0.7" x:Right="0.7" x:Top="0.75"/>
  55.    </PageSetup>
  56.    <Selected/>
  57.    <Panes>
  58.     <Pane>
  59.      <Number>3</Number>
  60.      <ActiveRow>20</ActiveRow>
  61.      <ActiveCol>5</ActiveCol>
  62.     </Pane>
  63.    </Panes>
  64.    <ProtectObjects>False</ProtectObjects>
  65.    <ProtectScenarios>False</ProtectScenarios>
  66.   </WorksheetOptions>
  67.  </Worksheet>
  68.  <Worksheet ss:Name="Sheet2">
  69.   <Table ss:ExpandedColumnCount="1" ss:ExpandedRowCount="1" x:FullColumns="1"
  70.    x:FullRows="1" ss:DefaultRowHeight="15">
  71.   </Table>
  72.   <WorksheetOptions xmlns="urn:schemas-microsoft-com:office:excel">
  73.    <PageSetup>
  74.     <Header x:Margin="0.3"/>
  75.     <Footer x:Margin="0.3"/>
  76.     <PageMargins x:Bottom="0.75" x:Left="0.7" x:Right="0.7" x:Top="0.75"/>
  77.    </PageSetup>
  78.    <ProtectObjects>False</ProtectObjects>
  79.    <ProtectScenarios>False</ProtectScenarios>
  80.   </WorksheetOptions>
  81.  </Worksheet>
  82.  <Worksheet ss:Name="Sheet3">
  83.   <Table ss:ExpandedColumnCount="1" ss:ExpandedRowCount="1" x:FullColumns="1"
  84.    x:FullRows="1" ss:DefaultRowHeight="15">
  85.   </Table>
  86.   <WorksheetOptions xmlns="urn:schemas-microsoft-com:office:excel">
  87.    <PageSetup>
  88.     <Header x:Margin="0.3"/>
  89.     <Footer x:Margin="0.3"/>
  90.     <PageMargins x:Bottom="0.75" x:Left="0.7" x:Right="0.7" x:Top="0.75"/>
  91.    </PageSetup>
  92.    <ProtectObjects>False</ProtectObjects>
  93.    <ProtectScenarios>False</ProtectScenarios>
  94.   </WorksheetOptions>
  95.  </Worksheet>
  96. </Workbook>
Method to Export the data:
  1. protected void btnExcel_Click(object sender, EventArgs e)
  2. {
  3.     string templateString = string.Empty;
  4.     StringBuilder sb = new StringBuilder();
  5.     try
  6.     {
  7.         templateString = GetTemplateString();
  8.
  9.         if (!string.IsNullOrEmpty(templateString))
  10.         {
  11.             if (Session["Data"] != null)
  12.             {
  13.                 DataSet ds = Session["Data"] as DataSet;
  14.
  15.                 if (ds != null && ds.Tables.Count > 0)
  16.                 {
  17.                     sb.Append("<Row>");
  18.                     sb.Append("<Cell><Data ss:Type=\"String\">Firstname</Data></Cell>");
  19.                     sb.Append("<Cell><Data ss:Type=\"String\">Surname</Data></Cell>");
  20.                     sb.Append("<Cell><Data ss:Type=\"String\">Email</Data></Cell>");
  21.                     sb.Append("</Row>");
  22.
  23.                     foreach (DataRow r in ds.Tables[0].Rows)
  24.                     {
  25.                         sb.Append("<Row>");
  26.                         sb.Append("<Cell><Data ss:Type=\"String\">" + r["Firstname"].ToString() + "</Data></Cell>");
  27.                         sb.Append("<Cell><Data ss:Type=\"String\">" + r["Surname"].ToString() + "</Data></Cell>");
  28.                         sb.Append("<Cell><Data ss:Type=\"String\">" + r["Email"].ToString() + "</Data></Cell>");
  29.                         sb.Append("</Row>");
  30.                     }
  31.
  32.                   templateString =  templateString.Replace("<!--Insert Data Here-->", sb.ToString());
  33.
  34.                 }
  35.
  36.                 byte[] temp = Encoding.UTF8.GetBytes(templateString);
  37.
  38.                 if (temp != null)
  39.                 {
  40.
  41.
  42.                    Response.ClearContent();
  43.                    Response.AppendHeader("content-disposition", "attachment; filename=ListeRue.xls");
  44.                    Response.ContentType = "application/excel";
  45.
  46.                    Response.Charset = "";
  47.
  48.                    Response.BinaryWrite(temp);
  49.                    Response.Flush();
  50.                    Response.End();
  51.
  52.                 }
  53.
  54.             }
  55.         }
  56.
  57.     }
  58.     catch (Exception ex)
  59.     {
  60.     }
  61.
  62. }
