List Joined Teams Using Graph API In SharePoint Framework

In this article, you will see how to list joined Teams using Graph API in SharePoint Framework by performing the following tasks,
  • Prerequisites
  • Create SPFx solution
  • Implement SPFx solution
  • Deploy the solution
  • Approve Graph API Permissions
  • Test the webpart

List joined Teams


Get the teams in Microsoft Teamsof which the user is a direct member.

Note
Each team redirects to the respective team.

List Joined Teams Using Graph API In SharePoint Framework

Prerequisites

Create SPFx solution


Open Node.js command prompt.

Create a new folder.

>md spfx-list-joinedteams

Navigate to the folder.

>cd spfx-list-joinedteams

Execute the following command to create SPFx webpart.

>yo @microsoft/sharepoint

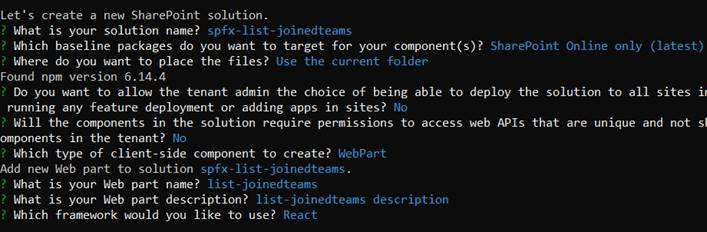

Enter all the required details to create a new solution as shown below.

List Joined Teams Using Graph API In SharePoint Framework

Yeoman generator will perform the scaffolding process and once it is completed, lock down the version of project dependencies by executing the following command.

>npm shrinkwrap

Execute the following command to open the solution in the code editor.

>code .


Implement SPFx solution


Execute the following command to install Microsoft Graph Typings.

> npm install @microsoft/microsoft-graph-types

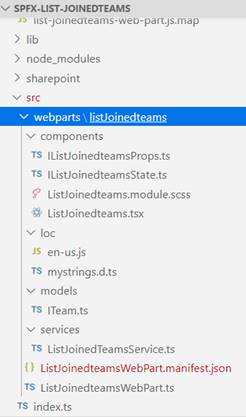

Folder Structure

List Joined Teams Using Graph API In SharePoint Framework

Open package-solution.json “config\package-solution.json” file and update the code as shown below.
  1. {
  2.   "$schema": "https://developer.microsoft.com/json-schemas/spfx-build/package-solution.schema.json",
  3.   "solution": {
  4.     "name": "spfx-list-joinedteams-client-side-solution",
  5.     "id": "2a4704fa-f387-4680-9b54-fe2003b78844",
  6.     "version": "1.0.0.0",
  7.     "includeClientSideAssets": true,
  8.     "isDomainIsolated": false,
  9.     "webApiPermissionRequests": [
  10.       {
  11.         "resource": "Microsoft Graph",
  12.         "scope": "User.Read.All"
  13.       },
  14.       {
  15.         "resource": "Microsoft Graph",
  16.         "scope": "User.ReadWrite.All"
  17.       }
  18.     ]
  19.   },
  20.   "paths": {
  21.     "zippedPackage": "solution/spfx-list-joinedteams.sppkg"
  22.   }
  23. }
Create a new folder named as “models” inside src\webparts\listJoinedteams folder. Create a new file named as ITeam.ts. Open “src\webparts\listJoinedteams\models\ITeam.ts” file and update the code as shown below.
  1. import { Guid } from '@microsoft/sp-core-library';
  2.
  3. export interface ITeam {
  4.     teamId: Guid;
  5.     displayName: string;
  6.     webUrl?: string;
  7. }
  8.
  9. export interface ITeamCollection {
  10.     value: ITeam[];
  11. }
Create a new file named as IListJoinedteamsState.ts under components folder. Open “src\webparts\listJoinedteams\components\IListJoinedteamsState.ts” file and update the code as shown below.
  1. import { ITeam } from '../models/ITeam';
  2.
  3. export interface IListJoinedteamsState {
  4.     joinedTeams?: ITeam[];
  5. }
Create a new folder named as “services” inside src\webparts\listJoinedteams folder. Create a new file named as ListJoinedTeamsService.ts. Open “src\webparts\listJoinedteams\services\ListJoinedTeamsService.ts” file and update the code as shown below.
  1. import { MSGraphClient } from "@microsoft/sp-http";
  2. import { WebPartContext } from "@microsoft/sp-webpart-base";
  3. import { ITeam, ITeamCollection } from '../models/ITeam';
  4.
  5. export class ListJoinedTeamsService {
  6.   public context: WebPartContext;
  7.
  8.   public setUp(context: WebPartContext): void {
  9.     this.context = context;
  10.   }
  11.
  12.   public getJoinedTeams(): Promise<ITeam[]> {
  13.     return new Promise<ITeam[]>((resolve, reject) => {
  14.       try {
  15.         // Prepare the output array
  16.         var teams: Array<ITeam> = new Array<ITeam>();
  17.
  18.         this.context.msGraphClientFactory
  19.           .getClient()
  20.           .then((client: MSGraphClient) => {
  21.             client
  22.               .api("/me/joinedTeams")
  23.               .select('id,displayName')
  24.               .get((error: any, teamColl: ITeamCollection, rawResponse: any) => {
  25.                 // Map the response to the output array
  26.                 teamColl.value.map((item: any) => {
  27.                   teams.push({
  28.                     teamId: item.id,
  29.                     displayName: item.displayName
  30.                   });
  31.                 });
  32.                 resolve(teams);
  33.               });
  34.           });
  35.       } catch (error) {
  36.         console.error(error);
  37.       }
  38.     });
  39.   }
  40.
  41.   public getTeamWebUrl(teams: ITeam): Promise<any> {
  42.     return new Promise<any>((resolve, reject) => {
  43.       try {
  44.         this.context.msGraphClientFactory
  45.           .getClient()
  46.           .then((client: MSGraphClient) => {
  47.             client
  48.               .api(`/teams/${teams.teamId}`)
  49.               .select('webUrl')
  50.               .get((error: any, team: any, rawResponse: any) => {
  51.                 resolve(team);
  52.               });
  53.           });
  54.       } catch (error) {
  55.         console.error(error);
  56.       }
  57.     });
  58.   }
  59. }
  60.
  61. const listJoinedTeamsService = new ListJoinedTeamsService();
  62. export default listJoinedTeamsService;
Open “src\webparts\listJoinedteams\ListJoinedteamsWebPart.ts” file and update the following.
  • Import modules
  • Update the OnInit method
Import modules,
  1. import listJoinedTeamsService, {ListJoinedTeamsService} from './services/ListJoinedTeamsService';
Update the OnInit method,
  1. protected onInit():Promise<void>{
  2.   return super.onInit().then(() => {
  3.     listJoinedTeamsService.setUp(this.context);
  4.   });
  5. }
Update the React component (src\webparts\listJoinedteams\components\ListJoinedteams.tsx),
  1. import * as React from 'react';
  2. import styles from './ListJoinedteams.module.scss';
  3. import { IListJoinedteamsProps } from './IListJoinedteamsProps';
  4. import { IListJoinedteamsState } from './IListJoinedteamsState';
  5. import { escape } from '@microsoft/sp-lodash-subset';
  6. import { ITeam, ITeamCollection } from '../models/ITeam';
  7. import listJoinedTeamsService, { ListJoinedTeamsService } from '../services/ListJoinedTeamsService';
  8. import { List } from 'office-ui-fabric-react/lib/List';
  9. import { FocusZone, FocusZoneDirection } from 'office-ui-fabric-react/lib/FocusZone';
  10. import { TextField } from 'office-ui-fabric-react/lib/TextField';
  11. import { ITheme, mergeStyleSets, getTheme, getFocusStyle } from 'office-ui-fabric-react/lib/Styling';
  12.
  13. interface IGroupListClassObject {
  14.   itemCell: string;
  15.   itemImage: string;
  16.   itemContent: string;
  17.   itemName: string;
  18.   itemIndex: string;
  19.   chevron: string;
  20. }
  21.
  22. const theme: ITheme = getTheme();
  23. const { palette, semanticColors, fonts } = theme;
  24.
  25. const classNames: IGroupListClassObject = mergeStyleSets({
  26.   itemCell: [
  27.     getFocusStyle(theme, { inset: -1 }),
  28.     {
  29.       minHeight: 54,
  30.       padding: 10,
  31.       boxSizing: 'border-box',
  32.       borderBottom: `1px solid ${semanticColors.bodyDivider}`,
  33.       display: 'flex',
  34.       selectors: {
  35.         '&:hover': { background: palette.neutralLight }
  36.       }
  37.     }
  38.   ],
  39.   itemImage: {
  40.     flexShrink: 0
  41.   },
  42.   itemContent: {
  43.     marginLeft: 10,
  44.     overflow: 'hidden',
  45.     flexGrow: 1
  46.   },
  47.   itemName: [
  48.     fonts.xLarge,
  49.     {
  50.       whiteSpace: 'nowrap',
  51.       overflow: 'hidden',
  52.       textOverflow: 'ellipsis'
  53.     }
  54.   ],
  55.   itemIndex: {
  56.     fontSize: fonts.small.fontSize,
  57.     color: palette.neutralTertiary,
  58.     marginBottom: 10
  59.   },
  60.   chevron: {
  61.     alignSelf: 'center',
  62.     marginLeft: 10,
  63.     color: palette.neutralTertiary,
  64.     fontSize: fonts.large.fontSize,
  65.     flexShrink: 0
  66.   }
  67. });
  68.
  69. export default class ListJoinedteams extends React.Component<IListJoinedteamsProps, IListJoinedteamsState> {
  70.   private _originalItems: ITeam[] = [];
  71.   constructor(props: IListJoinedteamsProps) {
  72.     super(props);
  73.     this.state = {
  74.       joinedTeams: []
  75.     };
  76.   }
  77.
  78.   public componentDidMount(): void {
  79.     this._getJoinedTeams();
  80.   }
  81.
  82.   public render(): React.ReactElement<IListJoinedteamsProps> {
  83.     const { joinedTeams = [] } = this.state;
  84.     return (
  85.       <FocusZone direction={FocusZoneDirection.vertical}>
  86.         <h1>My Teams</h1>
  87.         <List items={joinedTeams} onRenderCell={this._onRenderCell} />
  88.       </FocusZone>
  89.     );
  90.   }
  91.
  92.   public _getJoinedTeams = (): void => {
  93.     listJoinedTeamsService.getJoinedTeams().then(result => {
  94.       this.setState({
  95.         joinedTeams: result
  96.       });
  97.       this._getTeamWebUrl(result);
  98.     });
  99.   }
  100.
  101.   public _getTeamWebUrl = (teams: any): void => {
  102.     teams.map(teamItem => (
  103.       listJoinedTeamsService.getTeamWebUrl(teamItem).then(teamUrl => {
  104.         if (teamUrl !== null) {
  105.           this.setState(prevState => ({
  106.             joinedTeams: prevState.joinedTeams.map(team => team.teamId === teamItem.teamId ? { ...team, webUrl: teamUrl.webUrl } : team)
  107.           }));
  108.         }
  109.       })
  110.     ));
  111.   }
  112.
  113.   private _onRenderCell(team: ITeam, index: number | undefined): JSX.Element {
  114.     return (
  115.       <div className={classNames.itemCell} data-is-focusable={true}>
  116.         <div className={classNames.itemContent}>
  117.           <div className={classNames.itemName}>
  118.             <a href={team.webUrl} target="_blank">{team.displayName}</a>
  119.           </div>
  120.         </div>
  121.       </div>
  122.     );
  123.   }
  124. }

Deploy the solution


Execute the following commands to bundle and package the solution.

>gulp bundle --ship
>gulp package-solution --ship

Navigate to tenant app catalog – Example: https://c986.sharepoint.com/sites/appcatalog/SitePages/Home.aspx

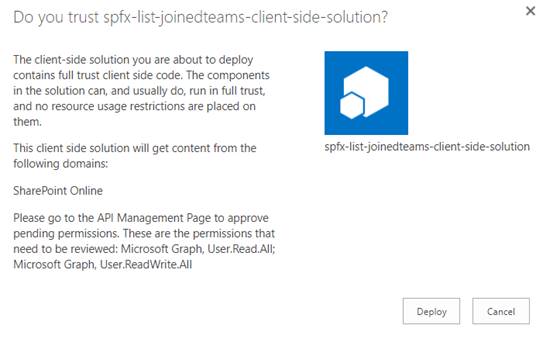

Upload the package file (sharepoint\solution\spfx-list-joinedteams.sppkg). Click Deploy.

List Joined Teams Using Graph API In SharePoint Framework


Approve Graph API permission

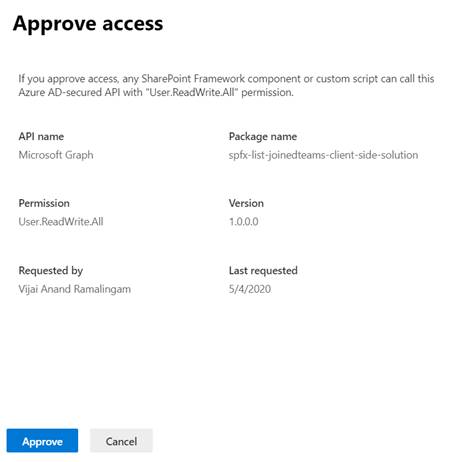

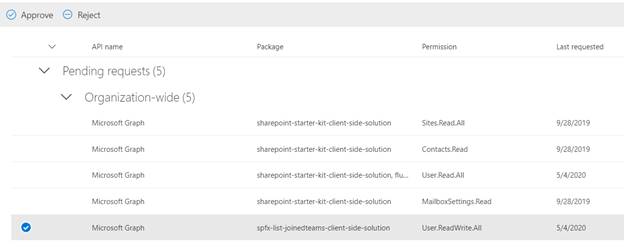

Navigate to SharePoint Admin center, click API access in the left navigation. Select the permission requested and click Approve.

List Joined Teams Using Graph API In SharePoint Framework

List Joined Teams Using Graph API In SharePoint Framework


Test the webpart

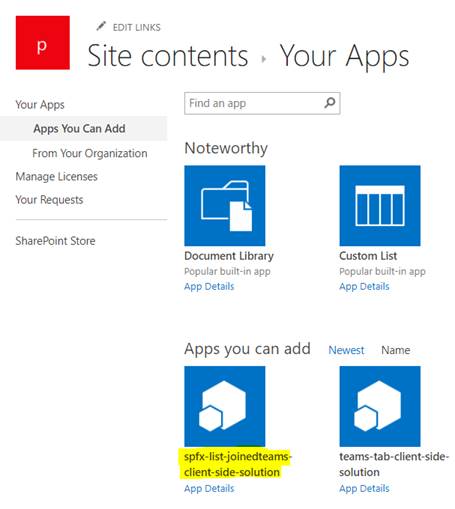

Navigate to the SharePoint site and add the app.

List Joined Teams Using Graph API In SharePoint Framework

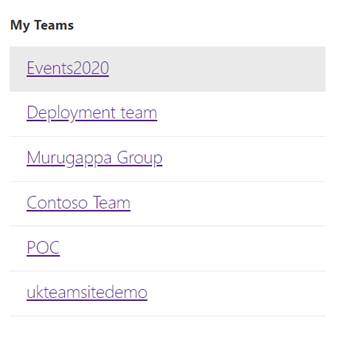

Navigate to the page and add the webpart.

List Joined Teams Using Graph API In SharePoint Framework


Summary


Thus, in this article, you saw how to list joined Teams using Graph API in SharePoint Framework.
