Turn WiFi On and Off Using Android App

In this article you will learn how to turn WiFi On and Off using an Android app. See the following procedure.

Step 1

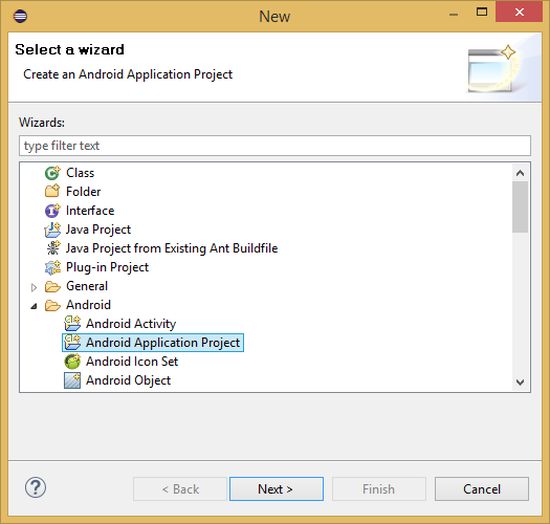

First create an Andorid Application Project.

Andorid Application Project

Step 2

Provide a name for the project and select SDK Requirements.

select SDK Requirement

Step 3

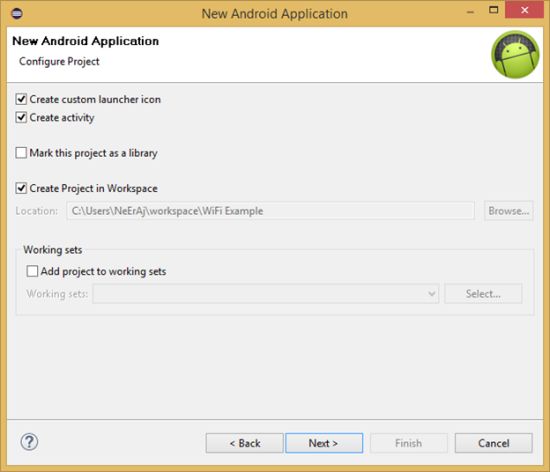

Now configure the Android project as you choose.

Configure Android Project

Step 4

Create an icon for the Android project.

Create Icon

Step 5

Select Activity for Android Project.

blank activity

Step 6

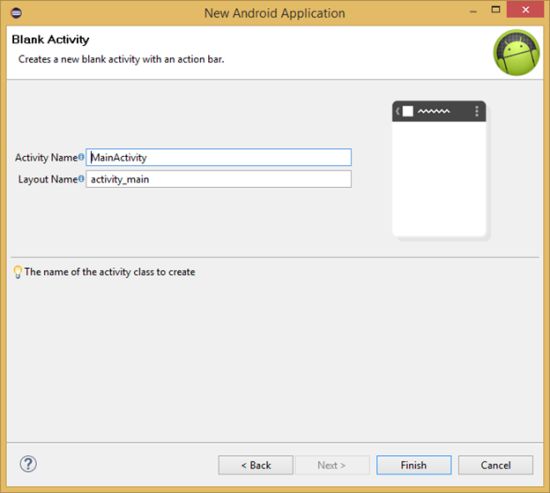

Select an Activity name and Layout name.

finish

Step 7

Then open the activity_main.xml file.

Drag a Switch Element and one TextView Element to the Graphical Layout of activity_main.xml.

Activity_main.xml file code

  1.
  2. <RelativeLayout
  3.     xmlns:android="http://schemas.android.com/apk/res/android"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.     android:paddingBottom="@dimen/activity_vertical_margin"
  8.     android:paddingLeft="@dimen/activity_horizontal_margin"
  9.     android:paddingRight="@dimen/activity_horizontal_margin"
  10.     android:paddingTop="@dimen/activity_vertical_margin"
  11.     tools:context="com.example.wifiexample.MainActivity" >
  12.     <Switch
  13.     android:id="@+id/switch1"
  14.     android:layout_width="wrap_content"
  15.     android:layout_height="wrap_content"
  16.     android:layout_marginLeft="27dp"
  17.     android:layout_marginTop="72dp"
  18.     android:text="Switch" />
  19.     <TextView
  20.     android:id="@+id/textView1"
  21.     android:layout_width="wrap_content"
  22.     android:layout_height="wrap_content"
  23.     android:layout_alignRight="@+id/switch1"
  24.     android:layout_below="@+id/switch1"
  25.     android:layout_marginRight="49dp"
  26.     android:layout_marginTop="88dp"
  27.     android:text="TextView" />
  28. </RelativeLayout>
Step 8

Now go to the AndroidManifest.xml file and add two user permissions as in the following:
  1. <uses-permission android:name="android.permission.ACCESS_WIFI_STATE"/>
  2. <uses-permission android:name="android.permission.CHANGE_WIFI_STATE"/>
Step 9

Then open the MainActivity.java file and write some code:
  1. package com.example.wifiexample;
  2.
  3. import android.app.Activity;
  4. import android.content.Context;
  5. import android.net.wifi.WifiInfo;
  6. import android.net.wifi.WifiManager;
  7. import android.os.Bundle;
  8. import android.view.Menu;
  9. import android.view.View.OnClickListener;
  10. import android.view.MenuItem;
  11. import android.view.View;
  12. import android.widget.Switch;
  13. import android.widget.TextView;
  14. import android.widget.Toast;
  15.
  16. public class MainActivity extends Activity {
  17.     Switch s;
  18.     WifiManager wm;
  19.     TextView t;
  20.
  21.     @Override
  22.     protected void onCreate(Bundle savedInstanceState) {
  23.         super.onCreate(savedInstanceState);
  24.         setContentView(R.layout.activity_main);
  25.         wm=(WifiManager)getSystemService(Context.WIFI_SERVICE);
  26.         s=(Switch)findViewById(R.id.switch1);
  27.         t=(TextView)findViewById(R.id.textView1);
  28.         s.setOnClickListener(new OnClickListener() {
  29.
  30.             @Override
  31.             public void onClick(View v) {
  32.                 // TODO Auto-generated method stub
  33.                 if(s.isChecked())
  34.                 {
  35.                     wm.setWifiEnabled(true);
  36.                     getwifi();
  37.                     Toast.makeText(MainActivity.this"WIFI is ON"3000).show();
  38.                 }
  39.                 else{
  40.                     wm.setWifiEnabled(false);
  41.                     getwifi();
  42.                     Toast.makeText(MainActivity.this"WIFI is OFF"3000).show();
  43.                 }
  44.             }
  45.         });
  46.         getwifi();
  47.
  48.     }
  49.     public void getwifi()
  50.     {
  51.         if(wm.isWifiEnabled()){
  52.             s.setChecked(true);
  53.             Toast.makeText(this"WIFI is ON"3000).show();
  54.             WifiInfo w = wm.getConnectionInfo();
  55.             t.setText("BSSID : " + w.getBSSID() + "\n");
  56.             t.append("RSSID : " + w.getRssi() + "\n");
  57.             t.append("SIGNAL : " + w.getLinkSpeed() + "\n");
  58.             t.append("SSID : " + w.getSSID() + "\n");
  59.         }
  60.         else
  61.         {
  62.             t.setText("Not Connected");
  63.         }
  64.     }
  65.
  66.     @Override
  67.     public boolean onCreateOptionsMenu(Menu menu) {
  68.         // Inflate the menu; this adds items to the action bar if it is present.
  69.         getMenuInflater().inflate(R.menu.main, menu);
  70.         return true;
  71.     }
  72.
  73.     @Override
  74.     public boolean onOptionsItemSelected(MenuItem item) {
  75.         // Handle action bar item clicks here. The action bar will
  76.         // automatically handle clicks on the Home/Up button, so long
  77.         // as you specify a parent activity in AndroidManifest.xml.
  78.         int id = item.getItemId();
  79.         if (id == R.id.action_settings) {
  80.             return true;
  81.         }
  82.         return super.onOptionsItemSelected(item);
  83.     }
  84. }
Step 10

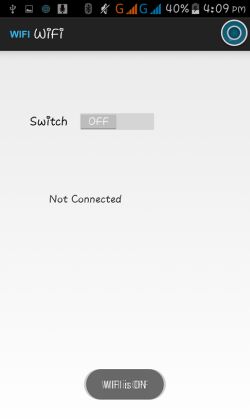

Now run the app in a real Andorid phone because the AVD does not support this app.

Run the App

Run the App In Andorid Phone

Enjoy.
