Table Tag in HTML5

Introduction


A simple HTML table consists of the table element. A table is divided into rows and each row is divided into data cells. The tr element defines a table row, the th element defines a table header, and the td element defines a table cell. A <td> tag can contain text, links, images, lists, forms, other tables, etc.

For Example
  1. <table border="1">
  2.     <tr>
  3.         <td>row 1, cell 1</td>
  4.         <td>row 1, cell 2</td>
  5.     </tr>
  6.     <tr>
  7.         <td>row 2, cell 1</td>
  8.         <td>row 2, cell 2</td>
  9.     </tr>
  10.     <tr>
  11.         <td>row 3, cell 1</td>
  12.         <td>row 3, cell 2</td>
  13.     </tr>
  14. </table>

Attributes


HTML tags can contain one or more attributes. Attributes are added to a tag to provide the browser with more information about how the tag should appear or behave. Attributes consist of a name and a value separated by an equals (=) sign, with the value surrounded by double-quotes.

There are 3 kinds of attributes that you can add to your HTML tags: Element-specific, global, and event handler content attributes.


Element-Specific Attributes


The following table shows the attributes that are specific to this tag/element.

Attributes Introduced by HTML5

Attributes Description
none


Global Attributes


The following attributes are standard across all HTML 5 tags.

HTML5 Global Attributes
accesskey draggable style
class hidden tabindex
dir spellcheck
contenteditable id title
contextmenu lang



Event Handler Content Attributes


Here are the standard HTML 5 event handler content attributes.

onabort onerror* onmousewheel
onblur* onfocus* onpause
oncanplay onformchange onplay
oncanplaythrough onforminput onplaying
onchange oninput onprogress
onclick oninvalid onratechange
oncontextmenu onkeydown onreadystatechange
ondblclick onkeypress onscroll
ondrag onkeyup onseeked
ondragend onload* onseeking
ondragenter onloadeddata onselect
ondragleave onloadedmetadata onshow
ondragover onloadstart onstalled
ondragstart onmousedown onsubmit
ondrop onmousemove onsuspend
ondurationchange onmouseout ontimeupdate
onemptied onmouseover onvolumechange
onended onmouseup onwaiting

An HTML table may also include the below tag.
  1. HTML <caption> Tag
  2. HTML <thead> Tag
  3. HTML <tfoot> Tag
  4. HTML<tbody> Tag
  5. HTML <colgroup> Tag
  6. HTML <tr> Tag
  7. HTML <td> Tag
  8. HTML <th> Tag

1. <caption> Tag

  • The HTML <caption> tag is used for creating table captions.
  • It is used in conjunction with the <table> tag and represents the title of the table.
  • The <caption> tag must be inserted immediately after the <table> tag.
  • A table should have no more than one caption.
  1. <table border="1">
  2.     <caption>
  3.         <strong>Table caption</strong>
  4.     </caption>
  5.     <tr>
  6.         <td>row 1, cell 1</td>
  7.         <td>row 1, cell 2</td>
  8.     </tr>
  9.     <tr>
  10.         <td>row 2, cell 1</td>
  11.         <td>row 2, cell 2</td>
  12.     </tr>
  13.     <tr>
  14.         <td>row 3, cell 1</td>
  15.         <td>row 3, cell 2</td>
  16.     </tr>
  17. </table>
Internet Explorer



HTML <thead> Tag, HTML <tfoot> Tag  and HTML<tbody> Tag



HTML <thead> Tag


The HTML <tfoot> tag is used for adding a header to a table. The <thead> tag is used in conjunction with the <tbody> tag and the <tfoot> tag in determining each part of the table (header, footer, body).


HTML <tfoot> Tag


The HTML <tfoot> tag is used for adding a footer to a table. The <tfoot> tag is used in conjunction with the <thead> tag and the <tbody> tag in determining each part of the table (header, footer, body).


HTML<tbody> Tag


The HTML <tbody> tag is used for grouping table rows. The <tbody> tag is used in conjunction with the <thead> tag and the <tfoot> tag in determining each part of the table (header, footer, body).

For Example

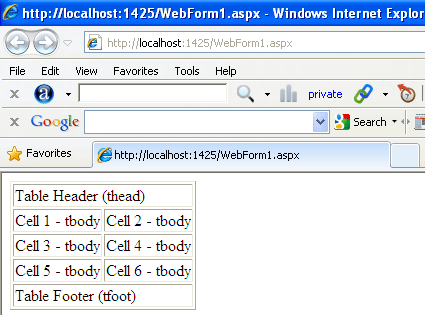

The below example defines the <thead>, <tfoot> and <tbody> tag.
  1. <table border = "1">
  2.     <thead>
  3.         <TR>
  4.             <td >Table Header (thead)</td>
  5.         </tr>
  6.     </thead>
  7.     <tfoot>
  8.         <TR>
  9.             <td>Table Footer (tfoot)</td>
  10.         </tr>
  11.     </tfoot>
  12.     <tbody>
  13.         <tr>
  14.             <td>Cell 1 -  tbody</td>
  15.             <td>Cell 2 -  tbody</td>
  16.         </tr>
  17.         <tr>
  18.             <td>Cell 3 -  tbody</td>
  19.             <td>Cell 4 -  tbody</td>
  20.         </tr>
  21.         <tr>
  22.             <td>Cell 5 -  tbody</td>
  23.             <td>Cell 6 -  tbody</td>
  24.         </tr>
  25.     </tbody>
  26. </table>
Internet Explorer



HTML <colgroup> Tag


The HTML <colgroup> tag is used for specifying properties for a group of columns within a table.
  1. <table border="1">
  2.     <colgroup span="3" style="background-color:orange"></colgroup>
  3.     <tr>
  4.         <td>column 1</td>
  5.         <td>column 2</td>
  6.         <td>column 3</td>
  7.         <td>column 4</td>
  8.     </tr>
  9.     <tr>
  10.         <td>column 1</td>
  11.         <td>column 2</td>
  12.         <td>column 3</td>
  13.     </tr>
  14.     <tr>
  15.         <td>column 1</td>
  16.         <td>column 2</td>
  17.     </tr>
  18. </table>
Internet Explorer
