How to Create a Search Screen in LightSwitch Using Visual Studio 2012

Here you will see how to create a search screen in a LightSwitch application using Visual Studio 2012.

The following is the procedure for creating a search screen.

As I have described in my previous article (http://www.c-sharpcorner.com/uploadfile/18ddf7/adding-more-records-at-run-time-in-lightswitch-application-u/).

Step 1

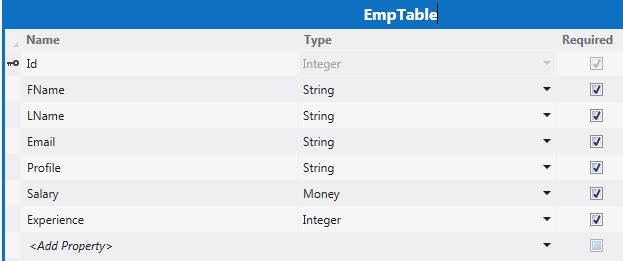

Open the Table (EmpTable) from the Solution Explorer.


Step 2

In the Solution Explorer, right-click on the Screens and choose "Add Screen".

add screen.jpg

Or we can also click on the Screen Button as shown.


Step 3

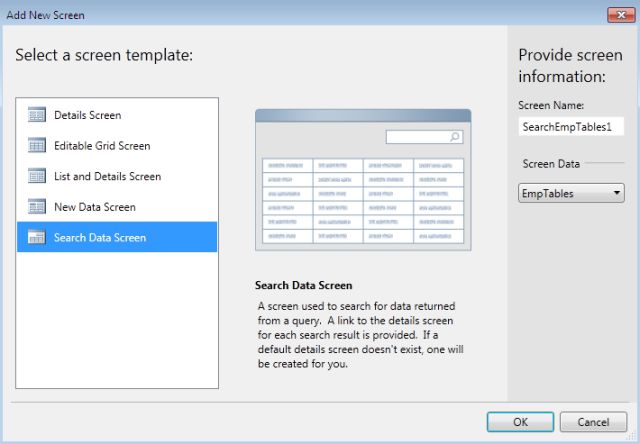

Since we are going to create a Search Screen, choose the "Search Data Screen" template. Under Screen Information we provide the Screen Name and select any Screen Data and then click OK.

search src.jpg

Step 4

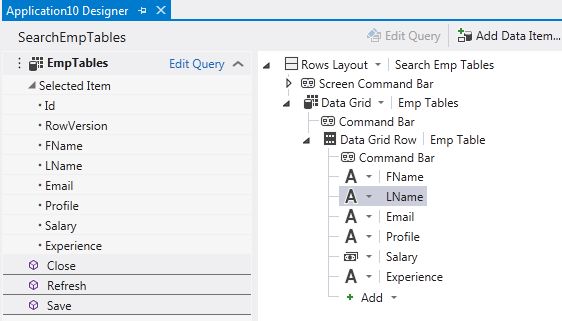

This will generate Search Screen Application Designer.

search app desi.jpg

Step 5

Press F5 to run the application.

empty output.jpg

Step 6

Click on the Tasks option in the menu and choose the Search Emp Tables.

search Tasks.jpg

Step 7

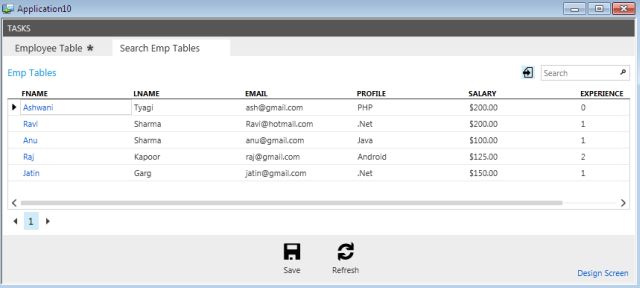

This will open the "Search Emp Tables" screen as a new Tab. In the same screen you will see a "Save" and "Refresh" button, a "Search Panel" and a button called "Export to Excel".

search output.jpg

Step 8

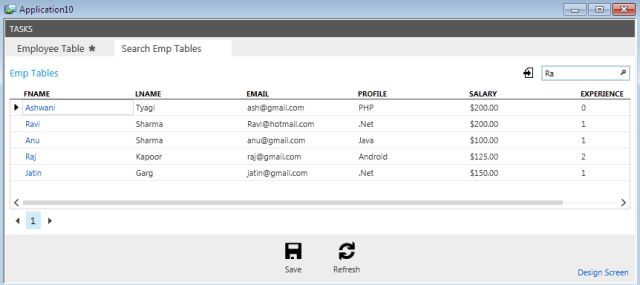

Click inside the Search TextBox and type some Query and after that click on the Search button.

search ra.jpg

Step 9

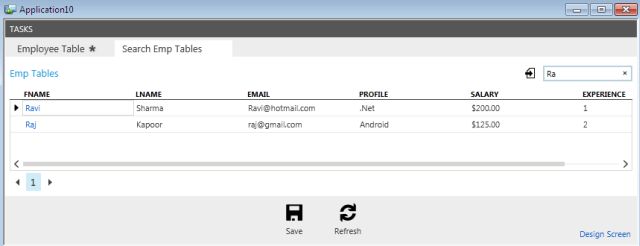

On the basis of the search term the data will be filtered out as shown.

output of ra search.jpg
