Xamarin.Forms Custom Underline Label

I came under the task of underline on a label in the design of a login and I also needed the underline label, that's why I have created a custom underline label today.

So let's start friends,

Firstly we create a ContentView whose name is under UnderLineLabel.xaml and then set the Label and Boxview.

<ContentView.Content>
    <StackLayout  Grid.Row="0" Padding="0" VerticalOptions="Center">
        <Label x:Name="customLabel" Text="{Binding Text, Mode=TwoWay}" TextColor="{Binding TextColor,Mode=TwoWay}"/>
        <BoxView x:Name="customBox"
                 BackgroundColor="{Binding LineColor,Mode=TwoWay}"
                 HeightRequest="1"
                 Margin="0,-8,0,0" />
    </StackLayout>
</ContentView.Content>

Then we are using the BindableProperty to the code behind.

public partial class UnderLineLabel : ContentView
{
    public UnderLineLabel ()
    {
        InitializeComponent ();
    }
    public string Text
    {
        get { return (string)GetValue(TextProperty); }
        set { SetValue(TextProperty, value); }
    }
    public static BindableProperty TextProperty = BindableProperty.Create(nameof(Text),
                                              typeof(string),
                                              typeof(UnderLineLabel),
                                              defaultBindingMode: BindingMode.TwoWay,
                                              propertyChanged: (bindable, oldVal, newVal) =>
                                              {
                                                  var matEntry = (UnderLineLabel)bindable;
                                                  matEntry.customLabel.Text = (string)newVal;
                                              });
    public Color LineColor
    {
        get { return (Color)GetValue(LineColorProperty); }
        set { SetValue(LineColorProperty, value); }
    }
    public static BindableProperty LineColorProperty = BindableProperty.Create(nameof(LineColor),
                                              typeof(Color),
                                              typeof(UnderLineLabel),
                                               Color.Default,
                                              defaultBindingMode: BindingMode.TwoWay,
                                              propertyChanged: (bindable, oldVal, newVal) =>
                                              {
                                                  var matEntry = (UnderLineLabel)bindable;
                                                  matEntry.customBox.BackgroundColor= (Color)newVal;
                                              });

    public static readonly BindableProperty TextColorProperty =
      BindableProperty.Create(
          nameof(TextColor),
          typeof(Color),
          typeof(UnderLineLabel),
          Color.Default,
          defaultBindingMode: BindingMode.TwoWay,
        propertyChanged: (bindable, oldVal, newVal) =>
        {
            var matEntry = (UnderLineLabel)bindable;
            matEntry.customLabel.TextColor= (Color)newVal;
        });

    public Color TextColor
    {
        get { return (Color)GetValue(TextColorProperty); }
        set { SetValue(TextColorProperty, value); }
    }
}

Please make sure to add view reference.....

xmlns:local="clr-namespace:MyNewApp"
<local:UnderLineLabel Text="Forget Password" TextColor="Brown" LineColor="Orange" HorizontalOptions="EndAndExpand"/>
TADAAA!

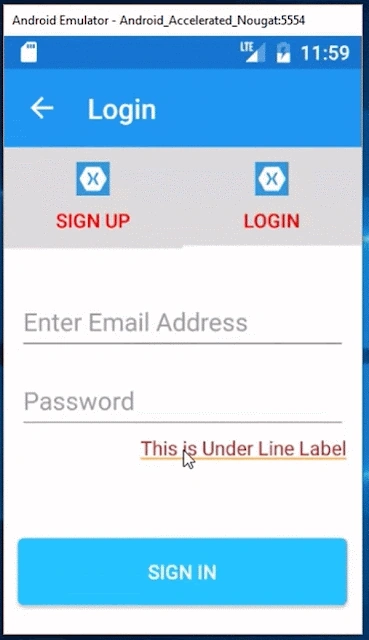

Xamarin.Forms Custom Underline Label

You should have your Custom UnderLine working!!

Features of Custom UnderLine controls.

  1. Text Color Property= ( TextColor="BlueViolet")
  2. Text Property = (Text="Xamarin Skills")
  3. Line Color Property=( LineColor="Orange")
