WPF - File Browse With File Icon And Export To A File

This post is about how to make a File Browser in C# using ListView to contain the file name with icons.

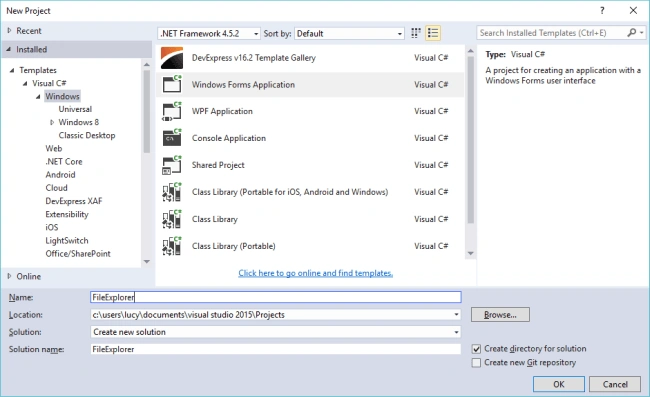

Step 1

Click New Project, then select Visual C# on the left, then Windows and then select Windows Forms Application. Name your project "FileBrowser" and then click OK
WPF

Step 2

Design your file browser form as below.
  1. <Window
  2.         xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3.         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4.         xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d" x:Class="DocumentIconDemo.MainWindow"
  5.         Title="MainWindow" Height="500" Width="1000">
  6.     <Grid>
  7.         <Grid.ColumnDefinitions>
  8.             <ColumnDefinition Width="1000*"/>
  9.             <ColumnDefinition Width="89*"/>
  10.         </Grid.ColumnDefinitions>
  11.         <Grid.RowDefinitions>
  12.             <RowDefinition Height="31*"/>
  13.             <RowDefinition Height="288*"/>
  14.         </Grid.RowDefinitions>
  15.         <Button Content="Folder..."  Grid.Column="1" Click="Button_Click"/>
  16.         <ScrollViewer Grid.ColumnSpan="2" Grid.Row="1">
  17.             <ListBox x:Name="lstBox" HorizontalContentAlignment="Stretch" Grid.ColumnSpan="2" Grid.Row="1"  ScrollViewer.VerticalScrollBarVisibility="Visible" SelectionMode="Multiple" >
  18.                 <ListBox.Template>
  19.                     <ControlTemplate>
  20.                         <DockPanel LastChildFill="True">
  21.                             <Grid DockPanel.Dock="Top" Height="30">
  22.                                 <Grid.ColumnDefinitions>
  23.                                     <ColumnDefinition Width="25"/>
  24.                                     <ColumnDefinition Width="*"/>
  25.                                     <ColumnDefinition Width="*"/>
  26.                                     <ColumnDefinition Width="*"/>
  27.                                     <ColumnDefinition Width="*"/>
  28.                                 </Grid.ColumnDefinitions>
  29.
  30.                                 <Label Grid.Column="1">Path</Label>
  31.                                 <Label Grid.Column="2">Last Creation</Label>
  32.                                 <Label Grid.Column="3">Last Access</Label>
  33.                                 <Label Grid.Column="4">Last Modification</Label>
  34.                             </Grid>
  35.                             <ItemsPresenter></ItemsPresenter>
  36.                         </DockPanel>
  37.                     </ControlTemplate>
  38.                 </ListBox.Template>
  39.                 <ListBox.ItemTemplate>
  40.                     <DataTemplate>
  41.                         <Grid d:DesignWidth="372" d:DesignHeight="46" Margin="0,2">
  42.                             <Grid.ColumnDefinitions>
  43.                                 <ColumnDefinition Width="25"/>
  44.                                 <ColumnDefinition Width="*"/>
  45.                                 <ColumnDefinition Width="*"/>
  46.                                 <ColumnDefinition Width="*"/>
  47.                                 <ColumnDefinition Width="*"/>
  48.                             </Grid.ColumnDefinitions>
  49.                             <Image Source="{Binding ItemIcon}" />
  50.                             <Label Content="{Binding ItemText, UpdateSourceTrigger=PropertyChanged,IsAsync=True}" Grid.Column="1"/>
  51.                             <Label Content="{Binding LastCreation, UpdateSourceTrigger=PropertyChanged,IsAsync=True}" Grid.Column="2"/>
  52.                             <Label Content="{Binding LastAccess, UpdateSourceTrigger=PropertyChanged,IsAsync=True}" Grid.Column="3"/>
  53.                             <Label Content="{Binding LastModification, UpdateSourceTrigger=PropertyChanged,IsAsync=True}" Grid.Column="4"/>
  54.                         </Grid>
  55.                     </DataTemplate>
  56.                 </ListBox.ItemTemplate>
  57.             </ListBox>
  58.         </ScrollViewer>
  59.         <TextBlock x:Name="textField" TextWrapping="Wrap" Height="21"  Text="TextBlock"/>
  60.     </Grid>
  61. </Window>

Step 3

Add code to handle your form.

  1. using System;
  2. using System.Linq;
  3. using System.Windows;
  4. using System.Windows.Controls;
  5. using System.Windows.Media.Imaging;
  6. using System.IO;
  7. using System.Threading;
  8. using System.ComponentModel;
  9. using System.Reflection;
  10. using System.Collections.ObjectModel;
  11.
  12. namespace DocumentIconDemo
  13. {
  14.     /// <summary>
  15.     /// Interaction logic for MainWindow.xaml
  16.     /// </summary>
  17.     public partial class MainWindow : Window, INotifyPropertyChanged
  18.     {
  19.         class ListBoxData : INotifyPropertyChanged
  20.         {
  21.             public event PropertyChangedEventHandler PropertyChanged;
  22.             public void NotifyPropertyChanged(string txt)
  23.             {
  24.
  25.                 if (PropertyChanged != null)
  26.                 {
  27.                     PropertyChanged(this, new PropertyChangedEventArgs(txt));
  28.                     PropertyChanged(this, new PropertyChangedEventArgs("DisplayMember"));
  29.                 }
  30.             }
  31.             public BitmapSource ItemIcon { get; set; }
  32.             private string itemtext;
  33.             public string ItemText
  34.             {
  35.                 get { return itemtext; }
  36.                 set
  37.                 {
  38.                     itemtext = value;
  39.                     NotifyPropertyChanged("ItemText");
  40.                 }
  41.             }
  42.             private string lastaccess;
  43.             public string LastAccess {
  44.                 get { return lastaccess; }
  45.                 set
  46.                 {
  47.                     lastaccess = value;
  48.                     NotifyPropertyChanged("LastAccess");
  49.                 }
  50.             }
  51.             private string lastcreation;
  52.             public string LastCreation {
  53.                 get { return lastcreation; }
  54.                 set
  55.                 {
  56.                     lastcreation = value;
  57.                     NotifyPropertyChanged("LastCreation");
  58.                 }
  59.             }
  60.             private string lastmodification;
  61.             public string LastModification {
  62.                 get { return lastmodification; }
  63.                 set
  64.                 {
  65.                     lastmodification = value;
  66.                     NotifyPropertyChanged("LastModification");
  67.                 }
  68.             }
  69.         }
  70.         ObservableCollection<ListBoxData> data = new ObservableCollection<ListBoxData>();
  71.         public MainWindow()
  72.         {
  73.             InitializeComponent();
  74.             Loaded += MainWindow_Loaded;
  75.         }
  76.
  77.         void MainWindow_Loaded(object sender, RoutedEventArgs e)
  78.         {
  79.             textField.Text = "";
  80.         }
  81.         private Thread _thread; string[] dir; // List<ListBoxData> data;
  82.         private void Button_Click(object sender, RoutedEventArgs e)
  83.         {
  84.             var dialog = new System.Windows.Forms.FolderBrowserDialog();
  85.             System.Windows.Forms.DialogResult result = dialog.ShowDialog();
  86.
  87.             if (result == System.Windows.Forms.DialogResult.OK)
  88.             {
  89.                 textField.Text = dialog.SelectedPath;
  90.
  91.                 if (textField.Text == "")
  92.                     return;
  93.
  94.                 dir = Directory.GetFiles(textField.Text, "*", SearchOption.AllDirectories);
  95.                 _thread = new Thread(() => showSomePeople(lstBox));
  96.                 _thread.Start();
  97.             }
  98.             else
  99.                 textField.Text = "";
  100.         }
  101.
  102.         private async void showSomePeople(ListBox lstBox)
  103.         {
  104.             data = GenerateItems();
  105.             await Dispatcher.BeginInvoke(new Action(delegate ()
  106.             {
  107.                 lstBox.ItemsSource = data;
  108.             }));
  109.         }
  110.         public event PropertyChangedEventHandler PropertyChanged;
  111.         private void NotifyPropertyChanged(string property)
  112.         {
  113.             if (PropertyChanged != null)
  114.             {
  115.                 PropertyChanged(this, new PropertyChangedEventArgs(property));
  116.             }
  117.         }
  118.         private ObservableCollection<ListBoxData> GenerateItems()
  119.         {
  120.
  121.             foreach (var filePath in dir)
  122.             {
  123.                 var sysicon = System.Drawing.Icon.ExtractAssociatedIcon(filePath);
  124.                 var bmpSrc = System.Windows.Interop.Imaging.CreateBitmapSourceFromHIcon(
  125.                             sysicon.Handle,
  126.                             System.Windows.Int32Rect.Empty,
  127.                             System.Windows.Media.Imaging.BitmapSizeOptions.FromEmptyOptions());
  128.                 if (bmpSrc.CanFreeze)
  129.                 {
  130.                     bmpSrc.Freeze();  /*otherwise we get error - Must create DependencySource on same Thread as the DependencyObject*/
  131.                 }
  132.                 sysicon.Dispose();
  133.                 DateTime creation = File.GetCreationTime(filePath);
  134.                 DateTime access = File.GetLastAccessTime(filePath);
  135.                 DateTime writeT = File.GetLastWriteTime(filePath);
  136.                 data.Add(new ListBoxData() { ItemIcon = bmpSrc, ItemText = filePath, LastCreation = creation.ToString(), LastAccess = access.ToString(), LastModification = writeT.ToString() });
  137.
  138.             }
  139.             CreateCSVFromGenericList<ListBoxData>(data, "D:\\s.txt");
  140.             return data;
  141.         }
  142.         public static void CreateCSVFromGenericList<T>(ObservableCollection<T> list, string csvCompletePath)
  143.         {
  144.             if (list == null || list.Count == 0) return;
  145.
  146.             //get type from 0th member
  147.             Type t = list[0].GetType();
  148.             string newLine = Environment.NewLine;
  149.             if (!Directory.Exists(System.IO.Path.GetDirectoryName(csvCompletePath))) Directory.CreateDirectory(System.IO.Path.GetDirectoryName(csvCompletePath));
  150.             if (!File.Exists(csvCompletePath)) File.Create(csvCompletePath).Close();
  151.
  152.             using (var sw = new StreamWriter(csvCompletePath))
  153.             {
  154.                 //make a new instance of the class name we figured out to get its props
  155.                 object o = Activator.CreateInstance(t);
  156.                 //gets all properties
  157.                 PropertyInfo[] props = o.GetType().GetProperties();
  158.                 //foreach of the properties in class above, write out properties
  159.                 //this is the header row
  160.                 sw.Write(string.Join(",", props.Where(d => d.Name != "ItemIcon").Select(d => d.Name).ToArray()) + newLine);
  161.                 //this acts as datarow
  162.                 foreach (T item in list)
  163.                 {
  164.                     //this acts as datacolumn
  165.                     var row = string.Join("$", props.Where(d => d.Name != "ItemIcon").Select(d => item.GetType()
  166.                                                                      .GetProperty(d.Name)
  167.                                                                      .GetValue(item, null)
  168.                                                                      .ToString())
  169.                                                             .ToArray());
  170.                     sw.Write(row + newLine);
  171.                 }
  172.             }
  173.         }
  174.     }
  175. }
