WPF Color Picker In C#

By using WPF Extended Toolkit, store color to database and retrieve from database to C# Application

WPF Color Picker



Here, I am going to demonstrate how to use WPF Extended Toolkit color picker and how to store colors in the database.



Step 1- Add Reference to your program



To enable color picker to your program, you need to install WPF Extended Toolkit from NuGet Package Manager.

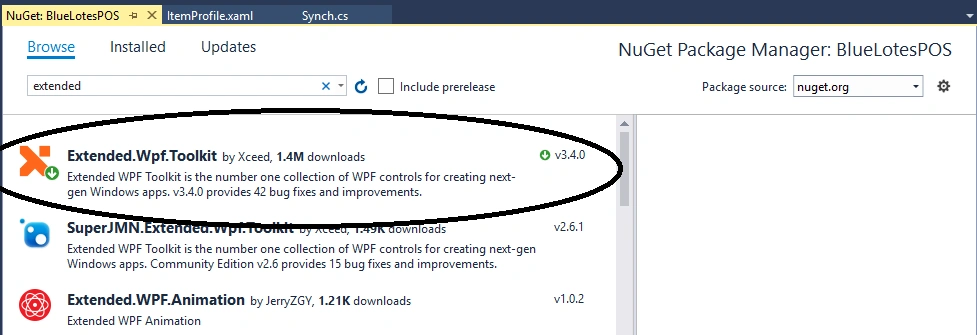

Right click on your Project >> select Manage NuGet Packages >> search for Extended WpfTool kit.







Step 2

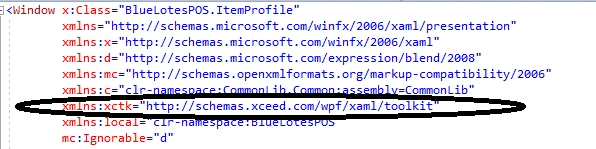

Include xmlns:xctk="http://schemas/xceed.com/wpf/xaml/toolkit" reference in your XAML file.

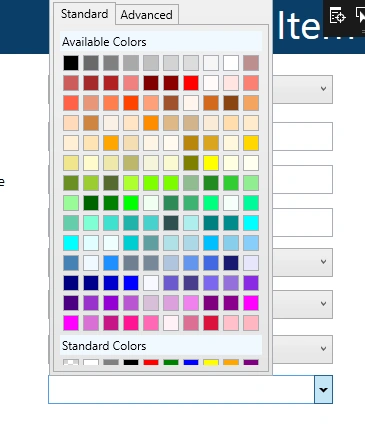

Step 3 - Create Color Picker.

<xctk:ColorPicker Name="cp" Grid.Column="1" Margin="161,377,563,33" DisplayColorAndName="True" SelectedColorChanged="cp_SelectedColorChanged_1" AvailableColorsSortingMode="HueSaturationBrightness" ></xctk:ColorPicker>



Step 4 - Convert hex value to long

private void cp_SelectedColorChanged_1(object sender, RoutedPropertyChangedEventArgs<Color?> e)
        {
            if (cp.SelectedColor.HasValue)
            {
                Color C = cp.SelectedColor.Value;
                Red = C.R;
                Green = C.G;
                Blue = C.B;
               long colorVal = Convert.ToInt64(Blue * (Math.Pow(256, 0)) + Green * (Math.Pow(256, 1)) + Red * (Math.Pow(256, 2)));
            }

        }

Store this colorVal to the database.



Step 5 - Retrive from Database

byte[] bytes = BitConverter.GetBytes(ItmMasModelList[i - 2].ColorKy);//ItmMasModelList[i - 2].ColorKy coming from database
 leftBtn.Background = new SolidColorBrush(Color.FromRgb(bytes[2], bytes[1], bytes[0]));
leftBtn.Style = ItemNewButtonStyle;
