Winform Chart Control in C# Using MS Access Database

In this blog you will learn how to chart control in C# using MS Access Database.

Today I am going to show you how to chart control in C# using MS Access Database



Your database is shown below:







Now create a new project.

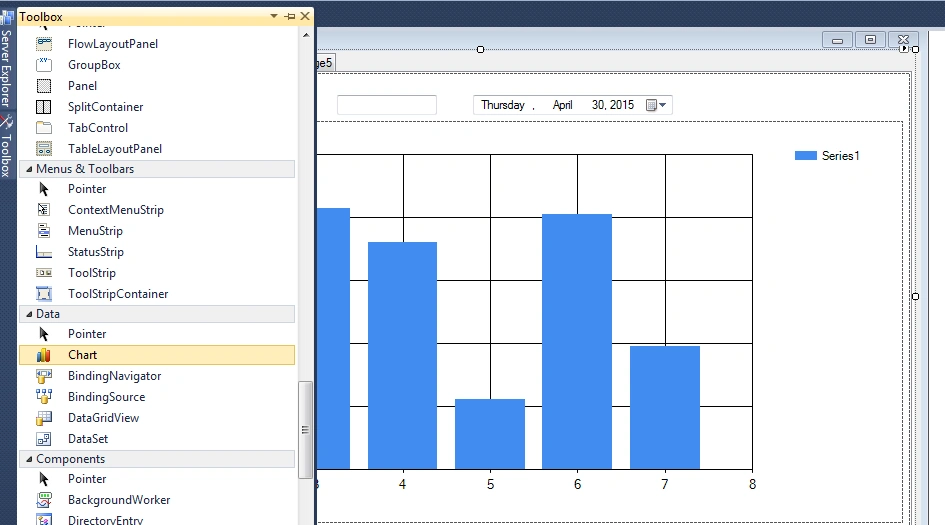

Select chart

View Top 5 Record

private void chartcon1()
{
    if (connectiondb.State == ConnectionState.Closed)
    {
        connectiondb.Open();
    }
    str3 = "select top 5 SName,mark from tbl_result";
    com3 = new OleDbCommand(str3, connectiondb);
    OleDbDataAdapter da = new OleDbDataAdapter(com3);
    DataTable dt = new DataTable();
    da.Fill(dt);
    connectiondb.Close();
    string[] N = new string[dt.Rows.Count];
    int[] M = new int[dt.Rows.Count];
    for (int i = 0; i < dt.Rows.Count; i++)
    {
        N[i] = dt.Rows[i][0].ToString();
        M[i] = Convert.ToInt32(dt.Rows[i][1]);
    }
    chart1.Series[0].Points.DataBindXY(N, M);
}

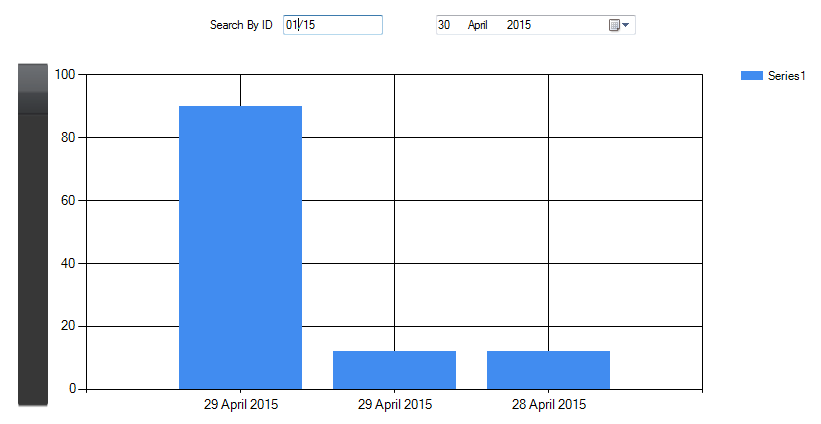

View chart By Id

private void chart_by_id()
{
    if (connectiondb.State == ConnectionState.Closed)
    {
        connectiondb.Open();
    }
    str3 = "select Exam_date,mark from tbl_result where S_id='" + textBox5.Text.Trim() + "'";
    com3 = new OleDbCommand(str3, connectiondb);
    OleDbDataAdapter da = new OleDbDataAdapter(com3);
    DataTable dt = new DataTable();
    da.Fill(dt);
    connectiondb.Close();
    string[] N = new string[dt.Rows.Count];
    int[] M = new int[dt.Rows.Count];
    for (int i = 0; i < dt.Rows.Count; i++)
    {
        N[i] = dt.Rows[i][0].ToString();
        M[i] = Convert.ToInt32(dt.Rows[i][1]);
    }
    chart1.Series[0].Points.DataBindXY(N, M);
}

And View Chart By Date change Event

private void result_by_date()
{
    if (connectiondb.State == ConnectionState.Closed)
    {
        connectiondb.Open();
    }
    str3 = "select SName,mark from tbl_result where Exam_date='" + dateTimePicker2.Text.Trim() + "'";
    com3 = new OleDbCommand(str3, connectiondb);
    OleDbDataAdapter da = new OleDbDataAdapter(com3);
    DataTable dt = new DataTable();
    da.Fill(dt);
    connectiondb.Close();
    string[] N = new string[dt.Rows.Count];
    int[] M = new int[dt.Rows.Count];
    for (int i = 0; i < dt.Rows.Count; i++)
    {
        N[i] = dt.Rows[i][0].ToString();
        M[i] = Convert.ToInt32(dt.Rows[i][1]);
    }
    chart1.Series[0].Points.DataBindXY(N, M);
}



This is my simple attempt at understanding chart control. Full code is shown below.

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Data.OleDb;
using System.Windows.Forms.DataVisualization.Charting;
namespace Result_GRP
{
    public partial class Form1: Form
    {
        OleDbConnection connectiondb = new OleDbConnection(@
        "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\Users\DIPANKAR\Google Drive\resultDB.accdb");
        OleDbCommand com3;
        string str3;
        public Form1()
        {
            InitializeComponent();
            chartcon1();
        }
        private void Form1_Load(object sender, EventArgs e)
        {
        }
        private void chartcon1()
        {
            if (connectiondb.State == ConnectionState.Closed)
            {
                connectiondb.Open();
            }
            str3 = "select top 5 SName,mark from tbl_result";
            com3 = new OleDbCommand(str3, connectiondb);
            OleDbDataAdapter da = new OleDbDataAdapter(com3);
            DataTable dt = new DataTable();
            da.Fill(dt);
            connectiondb.Close();
            string[] N = new string[dt.Rows.Count];
            int[] M = new int[dt.Rows.Count];
            for (int i = 0; i < dt.Rows.Count; i++)
            {
                N[i] = dt.Rows[i][0].ToString();
                M[i] = Convert.ToInt32(dt.Rows[i][1]);
            }
            chart1.Series[0].Points.DataBindXY(N, M);
        }
        private void result_chart_by_date()
        {
            if (connectiondb.State == ConnectionState.Closed)
            {
                connectiondb.Open();
            }
            str3 = "select SName,mark from tbl_result where Exam_date='" + dateTimePicker2.Text.Trim() + "'";
            com3 = new OleDbCommand(str3, connectiondb);
            OleDbDataAdapter da = new OleDbDataAdapter(com3);
            DataTable dt = new DataTable();
            da.Fill(dt);
            connectiondb.Close();
            string[] N = new string[dt.Rows.Count];
            int[] M = new int[dt.Rows.Count];
            for (int i = 0; i < dt.Rows.Count; i++)
            {
                N[i] = dt.Rows[i][0].ToString();
                M[i] = Convert.ToInt32(dt.Rows[i][1]);
            }
            chart1.Series[0].Points.DataBindXY(N, M);
        }
        private void chart_by_id()
        {
            if (connectiondb.State == ConnectionState.Closed)
            {
                connectiondb.Open();
            }
            str3 = "select Exam_date,mark from tbl_result where S_id='" + textBox5.Text.Trim() + "'";
            com3 = new OleDbCommand(str3, connectiondb);
            OleDbDataAdapter da = new OleDbDataAdapter(com3);
            DataTable dt = new DataTable();
            da.Fill(dt);
            connectiondb.Close();
            string[] N = new string[dt.Rows.Count];
            int[] M = new int[dt.Rows.Count];
            for (int i = 0; i < dt.Rows.Count; i++)
            {
                N[i] = dt.Rows[i][0].ToString();
                M[i] = Convert.ToInt32(dt.Rows[i][1]);
            }
            chart1.Series[0].Points.DataBindXY(N, M);
        }
        private void textBox5_TextChanged(object sender, EventArgs e)
        {
            chart_by_id();
        }
        private void button1_Click(object sender, EventArgs e)
        {
        }
        private void button2_Click(object sender, EventArgs e)
        {
        }
        private void textBox1_TextChanged(object sender, EventArgs e)
        {
        }
        private void dateTimePicker2_ValueChanged_1(object sender, EventArgs e)
        {
            result_chart_by_date();
        }
    }
}

Thanks
