Up Down Extender
In this article,
I will show you step by step procedure, how to use a Up Down Extender
In ASP.NET using Visual Studio 2005 or Visual
Studio 2008.
The use of Up
Down Extender it that you are not require to type any number of character you
have to just select from the up down button…it will change dynamically when you
click the button,
To follow this code sample, you must use Visual Studio 2005 or Visual Studio
2008.
I have used <! – –> to comment HTML part of the code.
Note: Up
Down Extender is a part of
AjaxControlToolkit.
To attach right click on the toolbox under Ajax Extensions and select
Choose Items - > Browse Button - > select the AjaxControlToolkit.dll. If
you are using Visual Studio 2008, you may not need AJAX Toolkit but if you are
using Visual Studio 2005, you will need to download it from http://www.msdn.com/ or http://www.asp.net/.
Step 1. Start -> All Programs -> Visual Studio 2005
or Visual Studio 2008
Step 2. Now go to File Menu -> New -> Web Site
Step 3.
Under Visual Studio Installed Template-> Choose ASP.NET WEB SITE ->
Choose File System from the location combo box -> Set the
path by the browse button - > Choose the language from the Language ComboBox
(Visual C# , Visual Basic , J #)
Choose Visual C#
Step 4. Click on the OK Button.
This is the source code window and in this page you will se this code.
<%@ Page Language=”C#” AutoEventWireup=”true” CodeFile=”Default.aspx.cs” Inherits=”_Default” %>
<!DOCTYPE html PUBLIC “-//W3C//DTD XHTML 1.0 Transitional//EN” “http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd”>
<html xmlns=”http://www.w3.org/1999/xhtml”>
<head runat=”server”>
<title>Type your
webpage title here</title> <!– Here you can specify your page title in between title tag ->
</head>
<body>
<form id=”form1? runat=”server”>
<div>
<!– In between
div tags you can manage your web controls like buttons, labels, picture Box, ImageMap etc
–>
</div>
</form>
</body>
</html>
|
See here is a tab named Design in the bottom of this page.
Step 5. Click on this tab and you will see a blank web page where you can drag any control from the
toolbox (which is in the left side of this window).
Step 6. Now drag
some controls under the AJAX Extensions.
First control you are going to drag and drop on the page is - Script
Manager.
first add a tag on the top of your source code window:
<%
@
Register Assembly="AjaxControlToolkit"
Namespace="AjaxControlToolkit"
TagPrefix="cc1"
%>
Under the form tag,
Don’t
be frustrate on seeing this code please read carefully it’s very simple.
<asp:ScriptManager ID="ScriptManager1"
runat="server">
</asp:ScriptManager>
<div>
<br />
Enter/Select the Text requested below
and see the usage of NumericUpDown control
<br />
<br />
<asp:Label ID="Label1" runat="server" Text="Enter your roll number"></asp:Label>
<asp:TextBox ID="TextBox1"
runat="server"
Height="18px"
nabled="False"></asp:TextBox>
<br />
<br />
<asp:Label ID="Label2"
runat="server"
Text="Select
your month of joining"></asp:Label>
<asp:TextBox ID="TextBox2" runat="server" Height="18px"></asp:TextBox>
<br />
<br />
<asp:Button ID="Button1" runat="server" Text="Submit" />
<cc1:NumericUpDownExtender ID="NumericUpDownExtender1"
runat="server"
TargetControlID="Textbox1" Width="150" Step="1" Minimum="1" Maximum="100">
</cc1:NumericUpDownExtender>
<cc1:NumericUpDownExtender ID="NumericUpDownExtender2" runat="server"
Step="1"
TargetControlID="TextBox2" Width="150" RefValues="January; February; March;
April; May;
Jun; July; August; September; October; November; December">
</cc1:NumericUpDownExtender>
</div>
|
Step 7. Now run your web site by Ctrl + F5
OUT PUT

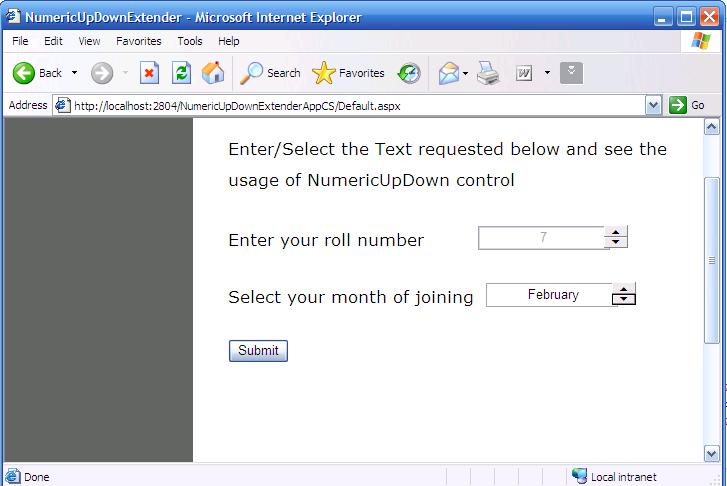

Step 8. When you run the Up Down Extender will seem like
this...
Now when you click the up or down arrow the value will
change itself there is no need of typing…
Step 9. Close Browser
Step 10. Close Visual Studio…
Thanks!
--Nikhil
Kumar
