Simple Animation using WPF - I

Description:

As I'm newbie to Windows Presentation Foundation (WPF), I like to start WPF by learning some Animation Techniques first. So here I put my first code showing simple animation with FontSize Property.

About Classes used -

#1: DoubleAnimation class allows animate between two targeted values of type System.Double.

Namespace Required         -           System.Windows.Media.Animation

Controls Used           -

            1. Button Control (btnAnimate)

Here I implemented a Code for simple animation of FontSize Property of using DoubleAnimation class.

(Important Note: - Here I only include a portion of code that is required understand the concept of Animation Class)

The Code:

1. XAML Code for Creating Button Control.

<Grid Height="142">

      <Button Margin="24,20,26,26" Name="btnAnimate"

                  Content="Animation" Click="AnimateOnClick"/>

      </Grid>



Listing 1

2. C# Code to Animate FontSize of Button Control.



DoubleAnimation animate;    // Declare an object for animation

//Check FontSize of Button Control & Define Animation Parameters

if (btnAnimate.FontSize == 40.0)

      animate = new DoubleAnimation(40.0, 10.0, TimeSpan.Parse("0:0:1"));

else

      animate = new DoubleAnimation(10.0, 40.0, TimeSpan.Parse("0:0:1"));

// Apply Animation to Button Control

btnAnimate.BeginAnimation(FontSizeProperty, animate);

Listing 2

3. Now execute the Application and see the result (Figure 1).

Intended Result:

New Picture.png    New Picture (1).png

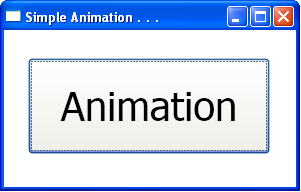

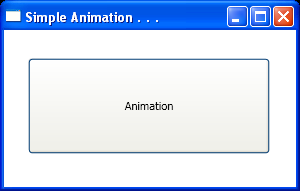

Figure 1: First Run                                                     Figure 2: After Click the Button

Summary:

In this writing, using C# & XAML, we have seen how to simply animate any property of control at runtime.

Reference:

Illustrated WPF, by Daniel M. Solis, Publisher – Apress
