SharePoint PnP PowerShell - How To Add And Set Master Page In SharePoint Online Using Powershell

Introduction

SharePointPnP.PowerShell solution contains a library of PowerShell commands, which allows you to perform complex provisioning and artifact management actions towards SharePoint. The commands use CSOM and can work against both SharePoint Online as SharePoint On-Premises.

Prerequisites

Install SharePointPnPPowerShellOnline.msi for SharePoint Online.

Add and set master page

Open Notepad and paste XML given below. Save the text file as Inputs.xml.

  1. <?    xml version="1.0" encoding="utf-8"?>
  2. <Inputs>
  3.   <ConnectSPOnline SiteURL="https://c986.sharepoint.com/sites/vijai" UserName="[email protected]" Password="xxxxxxxx"></ConnectSPOnline>
  4.   <MasterPage SourceFolder=".\MasterPage" FileName="demo.master" Title="demo" Description="demo" Default="yes"></MasterPage>
  5. </Inputs>

Open Notepad and paste the script given below. Save the text file as masterpage.ps1.

  1. ############################################################## Logging #########################################
  2.
  3. $date= Get-Date -format MMddyyyyHHmmss
  4. start-transcript -path .\Log_$date.doc
  5.
  6. ################################################### Get input parameters from XML ##############################
  7.
  8. # Get content from XML file
  9. [xml]$xmlData=Get-Content ".\Inputs.xml"
  10.
  11. # ConnectSPOnline node
  12. [System.Xml.XmlElement]$connectSPOnline = $xmlData.Inputs.ConnectSPOnline
  13. $siteURL=$connectSPOnline.SiteURL
  14. $userName=$connectSPOnline.UserName
  15. $password=$connectSPOnline.Password
  16.
  17. # MasterPage node
  18. [System.Xml.XmlElement]$masterPage = $xmlData.Inputs.MasterPage
  19. $masterSourceFolder=$masterPage.SourceFolder
  20. $masterFileName=$masterPage.FileName
  21. $masterTitle=$masterPage.Title
  22. $masterDescription=$masterPage.Description
  23. $masterDefault=$masterPage.Default
  24.
  25. ########################################################## Get Credentials #####################################
  26.
  27. function GetCredentials()
  28. {
  29.     write-host -ForegroundColor Green "Get Credentials and connect to SP Online site: " $siteURL
  30.     # Convert password to secure string
  31.     $secureStringPwd = ConvertTo-SecureString -AsPlainText $Password -Force
  32.
  33.     # Get the credentials
  34.     $credentials = New-Object -TypeName System.Management.Automation.PSCredential -ArgumentList $userName,$secureStringPwd
  35.
  36.     # Connect to SP online site
  37.     Connect-PnPOnline –Url $siteURL –Credentials $credentials
  38. }
  39.
  40. ###################################################### Add and Set Master Page #################################
  41.
  42. function AddandSetMasterPage()
  43. {
  44.     write-host -ForegroundColor Green "Add and set master page: " $masterFileName
  45.
  46.     # Get source file path for master page
  47.     $sourceFilePath=$masterSourceFolder+"\"+$masterFileName
  48.
  49.     # Add master page to catalogs folder
  50.     Add-PnPMasterPage -SourceFilePath $sourceFilePath -Title $masterTitle -Description $masterDescription
  51.
  52.     # Check if the master page has to be set as default master page
  53.     if($masterDefault="yes")
  54.     {
  55.         # Set default master page
  56.         $masterPageSiteRelativeUrl="_catalogs/masterpage/"+$masterFileName
  57.         $customMasterPageSiteRelativeUrl="_catalogs/masterpage/"+$masterFileName
  58.         Set-PnPMasterPage -MasterPageSiteRelativeUrl $masterPageSiteRelativeUrl -CustomMasterPageSiteRelativeUrl $customMasterPageSiteRelativeUrl
  59.     }
  60. }
  61.
  62. #################################################################  Initiate #####################################
  63.
  64. function Initiate()
  65. {
  66.      write-host -ForegroundColor Green "Initiating the script.................. "
  67.
  68.      # Get Credentials and connect to SP Online site
  69.      GetCredentials
  70.
  71.      # Call the required functions
  72.      AddandSetMasterPage
  73.
  74.      # Disconnect from the server
  75.      Disconnect-PnPOnline
  76.
  77.      write-host -ForegroundColor Green "Completed!!!!"
  78. }
  79.
  80. ################################################################################################################
  81.
  82. Initiate
  83. Stop-Transcript

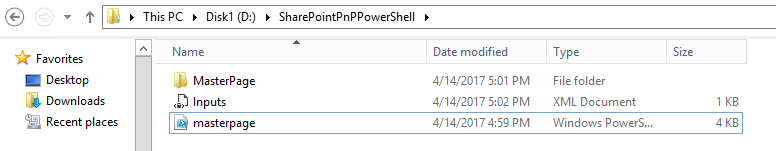

Create a folder named MasterPage and add the master page file to the folder.



Run Windows PowerShell as an administrator.

Navigate to the folder, where XML and ps1 files are available.

Type .\masterpage.ps1 and click enter.

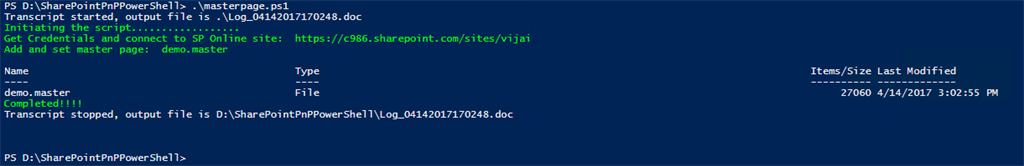

Result

Master page needs to be added and set as default in SharePoint Online site. In this blog, you have seen how to add and set master page in SharePoint Online, using PowerShell.

Reference

  • https://github.com/SharePoint/PnP-PowerShell/blob/master/Documentation/AddPnPMasterPage.md
  • https://github.com/SharePoint/PnP-PowerShell/blob/master/Documentation/SetPnPMasterPage.md
