Retrieve Data From MongoDB Using Web API And Angular 6

In this article we will learn how we fetch data from MongoDB using ASP.NET Web API and bind data using Angular 6. First, we are going to create a web API for retrieving data.

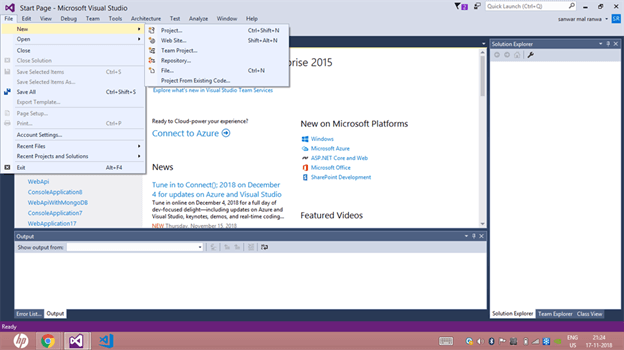

Open Visual Studio and create a new project.

Retrieve Data From MongoDB Using Web API And Angular 6

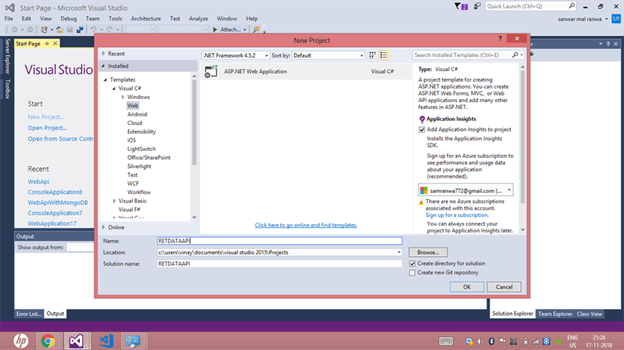

Create a new project and rename it as 'RETDATAAPI'

Retrieve Data From MongoDB Using Web API And Angular 6

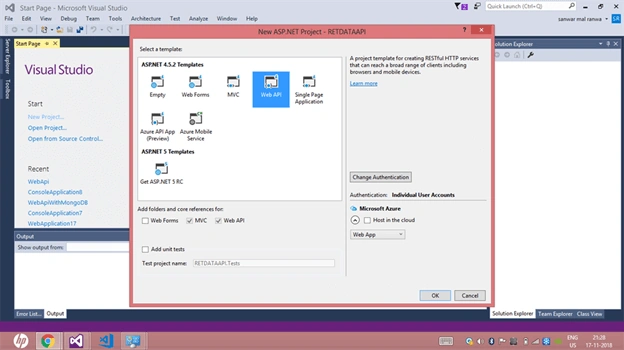

Choose Web API Template

Retrieve Data From MongoDB Using Web API And Angular 6

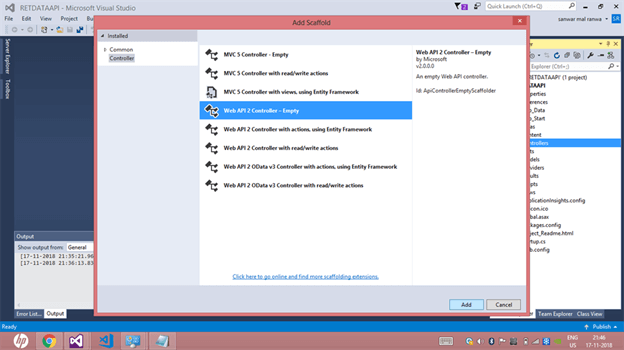

Now, click on the controller folder and select the Web API 2 controller.

Retrieve Data From MongoDB Using Web API And Angular 6

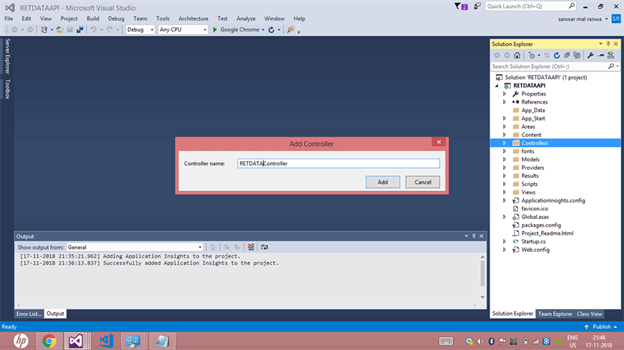

 Rename it as RETDATA

Retrieve Data From MongoDB Using Web API And Angular 6

Step 2

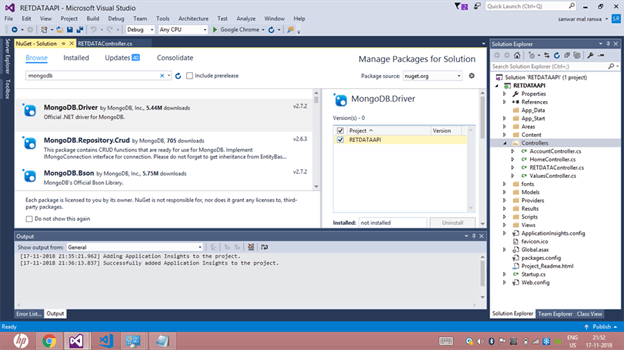

Add MongoDB Drivers for C# using NuGet Package Manager.

Retrieve Data From MongoDB Using Web API And Angular 6

Add the required namespaces for MongoDB.
  1. using MongoDB.Driver;
  2. using MongoDB.Bson;

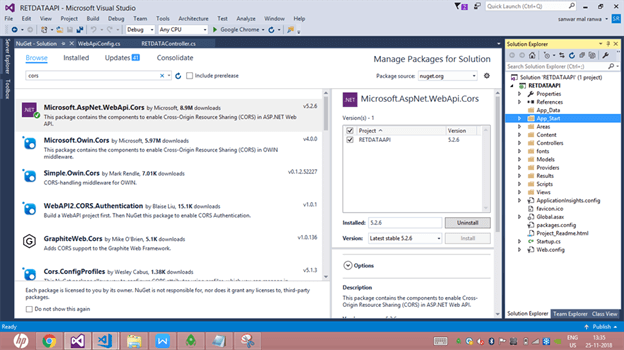

Add CORS from NuGet Package Manager.

Retrieve Data From MongoDB Using Web API And Angular 6

Now, open Web Apiconfig.cs and add the following lines.
  1. EnableCorsAttribute cors = new EnableCorsAttribute("*""*""*");
  2. config.EnableCors(cors);
Complete code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net.Http;
  5. using System.Web.Http;
  6. using Microsoft.Owin.Security.OAuth;
  7. using Newtonsoft.Json.Serialization;
  8. using System.Web.Http.Cors;
  9.
  10. namespace RETDATAAPI
  11. {
  12.     public static class WebApiConfig
  13.     {
  14.         public static void Register(HttpConfiguration config)a
  15.         {
  16.             // Web API configuration and services
  17.             // Configure Web API to use only bearer token authentication.
  18.             config.SuppressDefaultHostAuthentication();
  19.             config.Filters.Add(new HostAuthenticationFilter(OAuthDefaults.AuthenticationType));
  20.
  21.             // Web API routes
  22.             config.MapHttpAttributeRoutes();
  23.
  24.             config.Routes.MapHttpRoute(
  25.                 name: "DefaultApi",
  26.                 routeTemplate: "api/{controller}/{id}",
  27.                 defaults: new { id = RouteParameter.Optional }
  28.             );
  29.             EnableCorsAttribute cors = new EnableCorsAttribute("*""*""*");
  30.             config.EnableCors(cors);
  31.         }
  32.     }
  33. }
Now, click on the Model folder and add a new class and rename it as EmployeeDetails and add the following namespace and fields.
  1. using MongoDB.Bson;
  2. using MongoDB.Bson.Serialization.Attributes;
  3. public class EmployeeDetails
  4.    {
  5.        [BsonId]
  6.        public ObjectId Id { get; set; }
  7.        public string Name { get; set; }
  8.        public string Department { get; set; }
  9.        public string Address { get; set; }
  10.        public string City { get; set; }
  11.        public string Country { get; set; }
  12.
  13.    }
Now, add a method in the controller and add the following code.
  1. public object Getemp()
  2.         {
  3.             var Mongodbconnection = "mongodb://localhost";
  4.             var Client = new MongoClient(Mongodbconnection);
  5.             var DB = Client.GetDatabase("Employee");
  6.             var collection = DB.GetCollection<EmployeeDetails>("EmployeeDetails").Find(new BsonDocument()).ToList();
  7.             return Json(collection);
  8.         }
Complete Controller.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Net.Http;
  6. using System.Web.Http;
  7. using MongoDB.Driver;
  8. using MongoDB.Bson;
  9. using RETDATAAPI.Models;
  10.
  11. namespace RETDATAAPI.Controllers
  12. {
  13.     public class RETDATAController : ApiController
  14.     {
  15.         public object Getemp()
  16.         {
  17.             var Mongodbconnection = "mongodb://localhost";
  18.             var Client = new MongoClient(Mongodbconnection);
  19.             var DB = Client.GetDatabase("Employee");
  20.             var collection = DB.GetCollection<EmployeeDetails>("EmployeeDetails").Find(new BsonDocument()).ToList();
  21.             return Json(collection);
  22.         }
  23.     }
  24. }
Run the Project and check the result of API.

Retrieve Data From MongoDB Using Web API And Angular 6

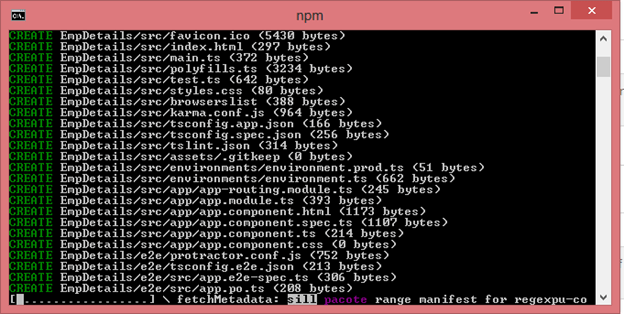

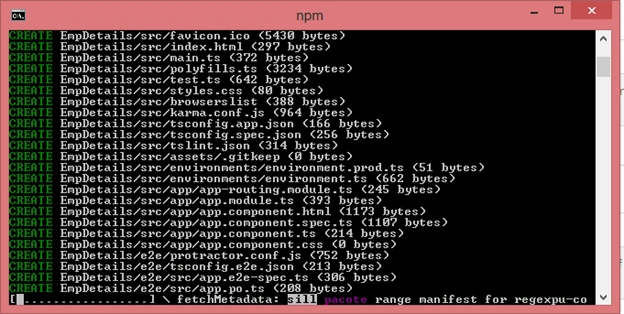

Now, we want to display this data using Angular 6 into a HTML Table, for this first create a new Angular Project by using Cmd using the command,

ng new EmpDetails

Retrieve Data From MongoDB Using Web API And Angular 6

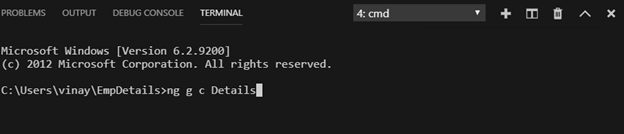

Open the project in Vs code and add a component by using the command,

ng new c Details

Retrieve Data From MongoDB Using Web API And Angular 6

Add bootstarp in the project to add some styles.

Now open app.module.ts file and import these modules.

  1. import {HttpClientModule, HttpClient} from '@angular/common/http';
Complete app.module.ts
  1. import { BrowserModule } from '@angular/platform-browser';
  2. import { NgModule } from '@angular/core';
  3. import {HttpClientModule, HttpClient} from '@angular/common/http';
  4. import { AppRoutingModule } from './app-routing.module';
  5. import { AppComponent } from './app.component';
  6. import { DetailsComponent } from './details/details.component';
  7.
  8. @NgModule({
  9.   declarations: [
  10.     AppComponent,
  11.     DetailsComponent
  12.   ],
  13.   imports: [
  14.     BrowserModule,
  15.     AppRoutingModule,HttpClientModule
  16.   ],
  17.   providers: [],
  18.   bootstrap: [AppComponent]
  19. })
  20. export class AppModule { }
Now, open Details.component.ts and add the following lines,
  1. import { Component, OnInit } from '@angular/core';
  2. import {HttpClientModule,HttpClient} from '@angular/common/http';
  3. @Component({
  4.   selector: 'app-details',
  5.   templateUrl: './details.component.html',
  6.   styleUrls: ['./details.component.css']
  7. })
  8. export class DetailsComponent implements OnInit {
  9.
  10.   constructor(private httpservice:HttpClient) { }
  11.   Emp:string[];
  12.   ngOnInit() {
  13.     this.httpservice.get('http://localhost:2338/api/RETDATA/Getemp').subscribe(data=>
  14.       {
  15.         this.Emp = data as string [];
  16.       });
  17.   }
  18. }
 Now, open details.component.Html and add the following lines,
  1. <div class="container">
  2.   <table class="table table-bordered  thead-dark ">
  3.       <thead class="thead-dark">
  4.           <tr class="text-center text-uppercase">
  5.
  6.               <th>Name</th>
  7.               <th>Department</th>
  8.               <th>Address</th>
  9.               <th>City</th>
  10.               <th>Country</th>
  11.
  12.             </tr>
  13.       </thead>
  14.       <tbody>
  15.         <tr class="text-center" *ngFor="let Emp of Emp">
  16.
  17.           <td>{{Emp.Name}}</td>
  18.           <td>{{Emp.Department}}</td>
  19.           <td>{{Emp.Address}}</td>
  20.           <td>{{Emp.City}}</td>
  21.           <td>{{Emp.Country}}</td>
  22.
  23.         </tr>
  24.       </tbody>
  25.     </table>
  26. </div>

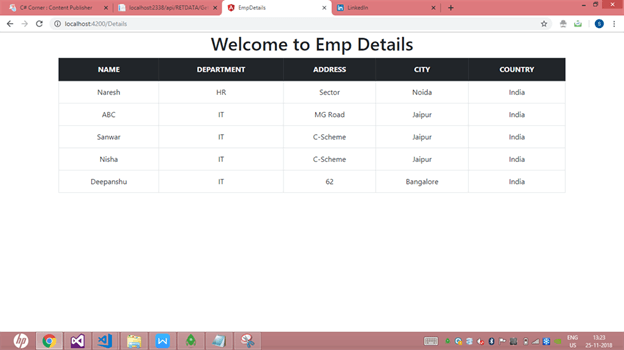

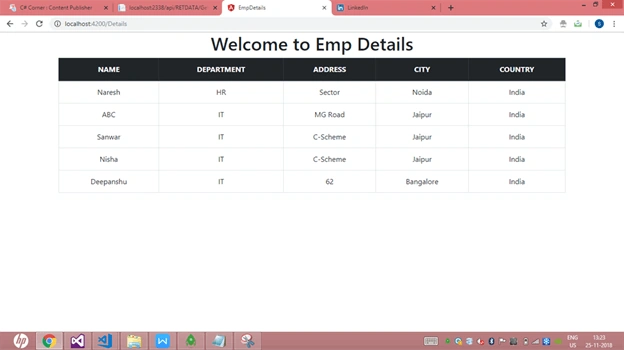

Now, run the project by using this command,

ng serve -o

Retrieve Data From MongoDB Using Web API And Angular 6

Summary

In this article, we learned how we fetch data from the database using Web API and display it using Angular 6.
