Recover Deleted Data On SQL Server

In this blog, you will learn how to recover the deleted data on SQL Server.

Today, I will tell you how to recover the data, in the case of accidental deletion of the data. This operation is tested on Enterprise Edition 2012.

Please follow the steps and execute the next step only when the previous step is finished.

Step 1

Create a new fresh database and a table inside this database.

USE master
GO

CREATE DATABASE TestDb
GO

USE TestDb
GO

CREATE TABLE TestTable (
 id INT identity(1, 1)
 ,NAME VARCHAR(50)
 ,Value INT
 ,ValueAt DATETIME DEFAULT(GetDate())
 )
GO

Step 2

Create a full backup of this database.

BACKUP DATABASE TestDb TO DISK = 'D:\TestDb_Full.bak'
WITH init
 ,format
 ,stats = 10
GO

Step 3

Follow the below DML on table dbo.TestTable.

USE TestDb
GO

INSERT INTO TestTable ( NAME,Value)
SELECT 'Vimal' ,50
UNION
SELECT 'Kamal' ,250
UNION
SELECT 'Raj' ,1200
UNION
SELECT 'Swastika',150
UNION
SELECT 'Sibin' ,125
UNION
SELECT 'Manas' ,560
UNION
SELECT 'Amit' ,3200
GO

SELECT * FROM TestTable
GO

DELETE FROM TestTable WHERE id > 5
GO

SELECT * FROM TestTable
GO



Step 4

As the data has been deleted, now it's time to recover that data.

Note - Here, database is new, so is the table. It is easy to recover. If you know the time of the deleted data or approximate time, you can recover the data easily. But, you will find it difficult if the time range is too long or you have forgotten the time.

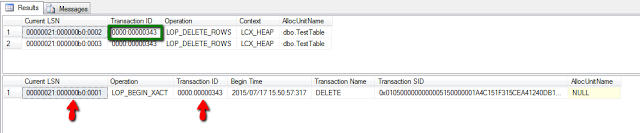

SELECT [Current LSN]
 ,[Transaction ID]
 ,[Operation]
 ,[Context]
 ,[AllocUnitName]
FROM fn_dblog(NULL, NULL)
WHERE [Operation] = 'LOP_DELETE_ROWS'
 AND [AllocUnitName] = 'dbo.TestTable'

SELECT [Current LSN]
 ,[Operation]
 ,[Transaction ID]
 ,[Begin Time]
 ,[Transaction Name]
 ,[Transaction SID]
 ,[AllocUnitName]
FROM fn_dblog(NULL, NULL)
WHERE [Transaction ID] = '0000:00000343'--<<Paste the TransactionID
 AND [Operation] = 'LOP_BEGIN_XACT'

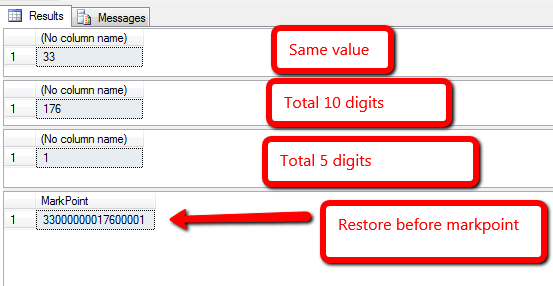

--Copy CurrentLSN 00000021:000000b0:0001
SELECT CONVERT(INT, CONVERT(VARBINARY, '0x00000021', 1)) --Same Value
SELECT CONVERT(INT, CONVERT(VARBINARY, '0x000000b0', 1)) --Total 10 digit preceeded by 0
SELECT CONVERT(INT, CONVERT(VARBINARY, '0x0001', 1)) --Total 5 digit preceeded by 0

-->33000000017600001
SELECT Cast(CONVERT(INT, CONVERT(VARBINARY, '0x00000021', 1)) AS VARCHAR(5)) + RIGHT('0000000000' + CAST(CONVERT(INT, CONVERT(VARBINARY, '0x000000b0', 1)) AS NVARCHAR), 10) + RIGHT('00000' + CAST(CONVERT(INT, CONVERT(VARBINARY, '0x0001', 1)) AS NVARCHAR), 5) AS 'MarkPoint'
GO

Step 5

Take a log backup now. For this, the recovery model of database should be Full or Bulk-logged (Right click on Database>>Properties>>Options>>Recovery Model).

BACKUP log TestDb TO DISK = 'D:\TestDb_log.trn'
GO

Step 6

Restore Full backup of database.

-- Starting first with restoring the FULL BACKUP with NORECOVERY
RESTORE filelistonly
FROM DISK = 'D:\TestDb_Full.bak';

RESTORE DATABASE [TestDb_New]
FROM DISK = 'D:\TestDb_Full.bak'
WITH MOVE 'TestDb' TO 'C:\TestDb.mdf'
 ,MOVE 'TestDb_log' TO 'C:\TestDb_log.ldf'
 ,REPLACE
 ,NORECOVERY;
GO

Step 7

Restore log backup of database, like below.

RESTORE LOG TestDb_New
FROM DISK = 'D:\TestDb_log.trn'
WITH STOPBEFOREMARK = 'lsn:33000000017600001'
GO

Step 8

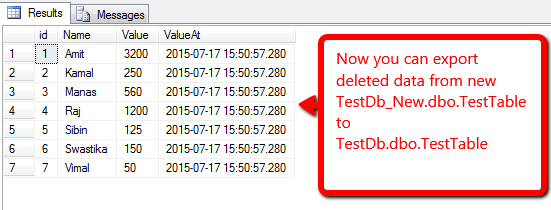

Check the table data.

USE TestDb_New
GO
SELECT * FROM dbo.TestTable
--Export the deleted rows from this table to original table

Step 9

Drop tables.

USE master
GO
DROP DATABASE TestDb
DROP DATABASE TestDb_New
-->The End<--

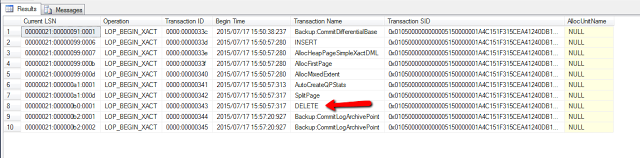

Step for time range.

SELECT [Current LSN]
 ,[Operation]
 ,[Transaction ID]
 ,[Begin Time]
 ,[Transaction Name]
 ,[Transaction SID]
 ,[AllocUnitName]
FROM fn_dblog(NULL, NULL)
WHERE --[Operation] = 'LOP_BEGIN_XACT'
 --and
 [Begin Time] BETWEEN '2015/07/17 15:30:00:000'
  AND '2015/07/17 16:00:00:000'
