List Picker
In this part, we are going to see the Windows Phone 8 toolkit controls. First, we will see the most important control List picker. Write the below xaml code in your MainPage.xaml.
<Grid x:Name="ContentPanel" Margin="10,138,14,23" Grid.RowSpan="2">
<toolkit:ListPicker x:Name="Listpickername" Margin="37,42,149,430" ExpansionMode="ExpansionAllowed" Background="#FFF7EBEB">
</toolkit:ListPicker>
<toolkit:ListPicker x:Name="Listpicker2" Margin="37,182,149,358" ExpansionMode="FullScreenOnly" SelectionMode="Multiple" Background="#FFF7EBEB"/>
<toolkit:DatePicker x:Name="Datepickername" Margin="10,249,294,289"></toolkit:DatePicker>
<toolkit:TimePicker x:Name="Timepickername" Margin="176,249,128,288"></toolkit:TimePicker>
<toolkit:ToggleSwitch x:Name="Togglename" Click="Togglename_Click_1" IsChecked="true" Margin="27,324,210,171" SwitchForeground="#FFF1220E"></toolkit:ToggleSwitch>
</Grid>
Add the below XAML namespace in your "MainPage.xaml"
xmlns:toolkit="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls.Toolkit"

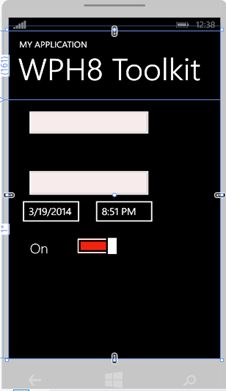

Now your design looks like below screen.
Next add items to list picker using below code.
C# Code
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Navigation;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Shell;
using Wph8ToolkitDemo.Resources;
namespace Wph8ToolkitDemo
{
public partial class MainPage : PhoneApplicationPage
{
public MainPage()
{
InitializeComponent();
Listpickername.Items.Add("Item1");
Listpickername.Items.Add("Item2");
Listpicker2.Items.Add("List1");
Listpicker2.Items.Add("List2");
Listpicker2.Items.Add("List3");
}
private void Togglename_Click_1(object sender, RoutedEventArgs e)
{
if (Togglename.IsChecked == true)
MessageBox.Show("Switch is on");
else
MessageBox.Show("Switch is of");
}
}
}

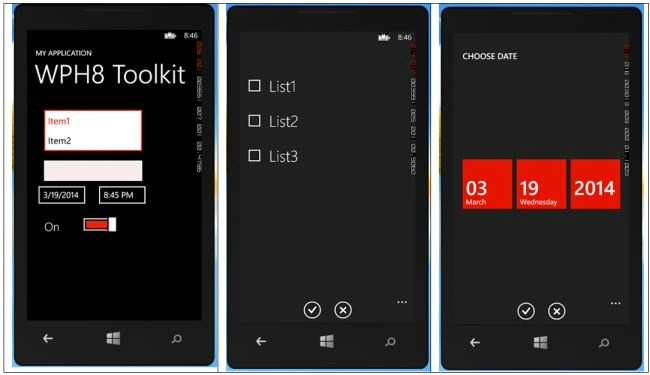

Run your app and see the output as shown below.
