Insert Data Into Master And Detail Table Using Single Store Procedure and C#

In this blog, you will learn, how to insert data into master and detail table, using single store procedure and C#.

Here, I will explain how to insert data into master and detail table in C# using single store procedure.

Generally people create a separate store procedure for each table like master and detail table.

But say you execute a store procedure from C# code for master table (salemaster) and it  executes successfully, and again you execute store procedure from C# code for the second table (saledetail) table, but what if the second execution  fails for any reason like data mistmatch, run time error occured, sql server connection timeout etc.?



Your master table(salemaster) executed successfully but detail table (saledetail) did not. So there is a problem of relationship because your master table has rows (data) but detail table does not. So how to control this? That's why I am demonstrating this solution for said problem.

First, you need to create a sample database with the two tables, Salemaster and Saledetail, with the following fields and store procedure:

SaleMaster

Create Table SaleMaster
(ID Int NOT NULL identity,
SaleDate Datetime,
CustomerName varchar (50)
)

SaleDetail

Create Table SaleDetail
(ID Int NOT NULL identity,
SalesMasterID Int NOT NULL,
ProdName varchar (50),
Qty decimal (14,2),
Rate decimal (14,2)
)


Create Procedure ADD_SALE_MASTER_DETAIL_TABLE
@SaleDate date,
@Customername varchar (50),
@StrProduct TEXT,
@StrQty TEXT,
@StrRate TEXT,
@Gridcount smallint
AS
Declare
@Product varchar (50),
@Qty decimal(14,2),
@Rate decimal(14,2),
@C1 int,
@C2 int,
@C3 int,

@COUNT INT,
@MAXSRNO INT


SET NOCOUNT ON;
BEGIN TRAN

SET @MAXSRNO=(SELECT ISNULL(MAX(ID),0)+1 FROM SaleMaster)

Insert into SaleMaster(Saledate,customerName)
Values(@Saledate,@Customername)

-------------------Prdouct grid-------------------
SET @C1 = 1
SET @C2 = 1
SET @C3 = 1
SET @COUNT=1

While @Count<=@Gridcount
Begin
SET @Product=CONVERT(CHAR(50),SUBSTRING(@StrProduct ,@C1,20))
SET @Qty =Convert(DECIMAL(14,2),Substring(@StrQty,@C2,14))
SET @Rate =Convert(DECIMAL(14,2),Substring(@StrRate,@C3,14))
Insert Into SaleDetail(SalesMasterID,ProdName,Qty,Rate)
Values(@MaxSrNo,@Product,@Qty,@Rate)
SET @Count=@Count+1
SET @C1=@C1+20
SET @C2=@C2+14
SET @C3=@C3+14
End
-------------------End grid-------------------

COMMIT TRAN
RETURN 0

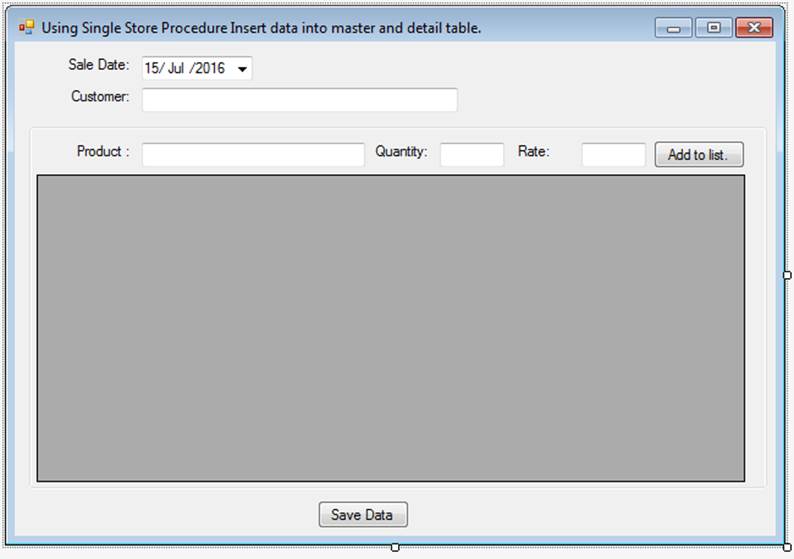

Now, create the simple Windows Application in Visual Studio.



Set the controls name as follows:



1. Datetimepicker
2. txtCustomer
3. txtProduct
4. txtQty
5. txtRate
6. dataGridView
7. btnAdd

Source code

private void btnAdd_Click(object sender, EventArgs e)
        {
            int add = dataGridView.Rows.Add();
            dataGridView.Rows[add].Cells["Product"].Value = txtProduct.Text;
            dataGridView.Rows[add].Cells["Qty"].Value = txtQuantity.Text;
            dataGridView.Rows[add].Cells["Rate"].Value = txtRate.Text;

            txtProduct.Text = "";
            txtQuantity.Text = "";
            txtRate.Text = "";

if (MessageBox.Show("Add more details", "Message", MessageBoxButtons.YesNo, MessageBoxIcon.Question)==DialogResult.Yes )
            {
                txtProduct.Focus ();
            }
            else
                btnSaveData.Focus ();
        }


private void btnSaveData_Click(object sender, EventArgs e)
        {
            //product grid
            string product = "";
            string qty = "";
            string rate = "";
            int prodcount = 0;

            for (int i = 0; i <= dataGridView.Rows.Count - 1; i++)
            {
                product = product + Convert.ToString(dataGridView.Rows[i].Cells["Product"].Value).PadRight(20);
                qty = qty + Convert.ToString(dataGridView.Rows[i].Cells["Qty"].Value).PadRight(14);
                rate = rate + Convert.ToString(dataGridView.Rows[i].Cells["Rate"].Value).PadRight(14);
                prodcount += 1;
            }

            SaveData(dateTimePicker.Value, txtCustomer.Text, product, qty, rate, prodcount);
        }


  private void SaveData(DateTime _saledate, string _customer, string _product, string _qty, string _rate, int _productcount)
        {
            var connection = new SqlConnection("data source=(local); initial catalog=SampleData; integrated security=SSPI");
            var command = new SqlCommand("ADD_SALE_MASTER_DETAIL_TABLE", connection);
            command.Parameters .Add (new SqlParameter("@Saledate",_saledate ));
            command.Parameters .Add (new SqlParameter("@customername",_customer ));
            command.Parameters .Add (new SqlParameter("@StrProduct",_product ));
            command.Parameters .Add (new SqlParameter("@StrQty",_qty));
            command.Parameters .Add (new SqlParameter("@StrRate",_rate));
            command.Parameters.Add(new SqlParameter ("@Gridcount",_productcount));
            command.CommandType = CommandType.StoredProcedure;
            connection.Open ();
            try
            {
                int result = command.ExecuteNonQuery();

                if (Convert.ToBoolean (result))
                {
                    MessageBox.Show("Record has been successfully saved..");
                }

            }
             catch   (Exception ex)
            {
                 MessageBox.Show (ex.Message ,"Message",MessageBoxButtons.OK,MessageBoxIcon.Error );
            }
            finally
            {
                connection.Close ();
            }
        }
