Implementation Of Remote Method Invocation Concept In Java

Remote Method Invocation


RMI (Remote Method Invocation) is a way that a programmer, using the Java programming language and development environment, can write object-oriented programming in which objects on different computers can interact in a distributed network.


Working with RMI

  1. Interface program
  2. Implementation program
  3. Server program
  4. Client program
Example: Calculating the factorial of a given number using the RMI concept.


Step 1: Interface Program


Declare the Methods only.

Open the first note pad, type the following program, and save the file as “rint.java”.

Interface Program (rint.java)
  1. import java.rmi.*;
  2. public interface rint extends Remote {
  3.  double fact(double x) throws RemoteException;
  4.

Step 2: Implementation Program


Define Methods only.

Open the second note pad, type the following program, and save the file as “rimp.java”.

Implementation Program (rimp.java)
  1. import java.rmi.*;
  2. import java.rmi.server.*;
  3. public class rimp extends UnicastRemoteObject implements rint {
  4.  public rimp() throws RemoteException {}
  5.  public double fact(double x) throws RemoteException {
  6.   if (x <= 1return (1);
  7.   else return (x * fact(x - 1));
  8.  }
  9. }

Step 3: Server Program


It is the main program.

Open the third note pad, type the following program, and save the file as “rser.java”.

Server Program (rser.java)
  1. import java.rmi.*;
  2. import java.net.*;
  3. public class rser {
  4.  public static void main(String arg[]) {
  5.   try {
  6.    rimp ri = new rimp();
  7.    Naming.rebind("rser", ri);
  8.   } catch (Exception e) {
  9.    System.out.println(e);
  10.   }
  11.  }
  12. }

Step 4: Client Program


It is the data send (request) to the Server program.

Open the fourth note pad, type the following program, and save the file as “rcli.java”.

Client Program (rcli.java)
  1. import java.rmi.*;
  2. public class rcli {
  3.  public static void main(String arg[]) {
  4.   try {
  5.    rint rr = (rint) Naming.lookup("rmi://172.16.13.2/rser");
  6.    double s = rr.fact(5);
  7.    System.out.println("Factorial value is… : " + s);
  8.   } catch (Exception e) {
  9.    System.out.println(e);
  10.   }
  11.  }
  12. }
Explanation

Compile
and Execute the Program.

In a single system, let us assume that we can open two command prompts. One command prompt is called Server while the other one is called Client.

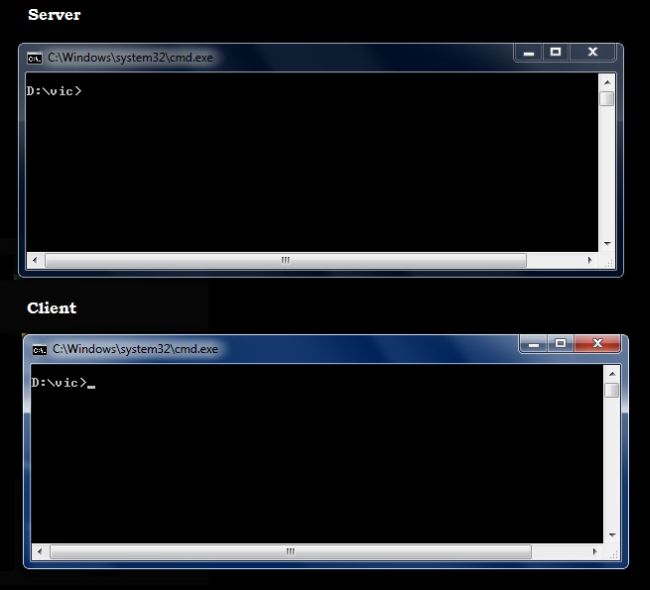

Step 1

Step

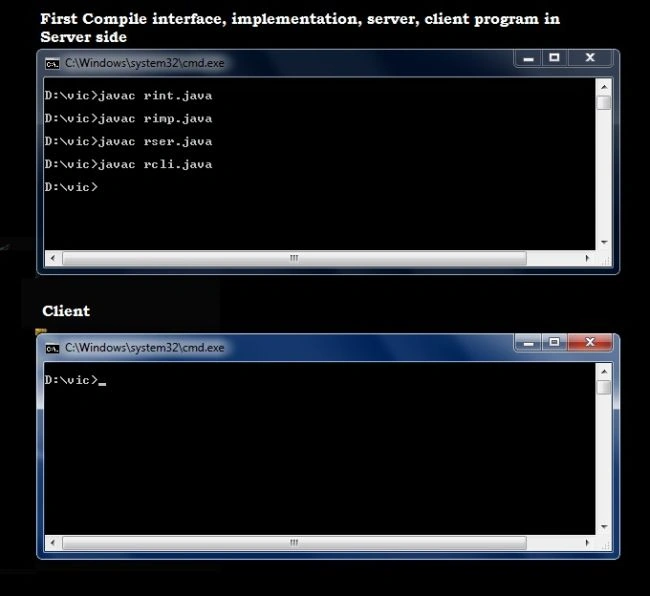

Step 2

Step

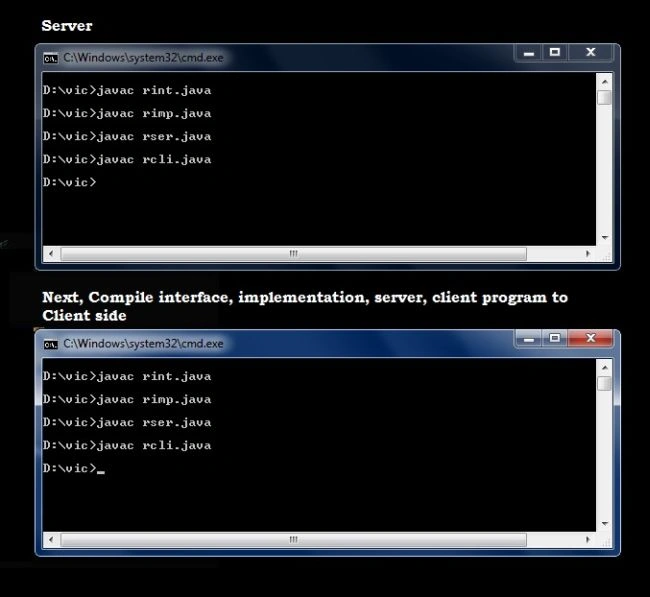

Step 3

Step

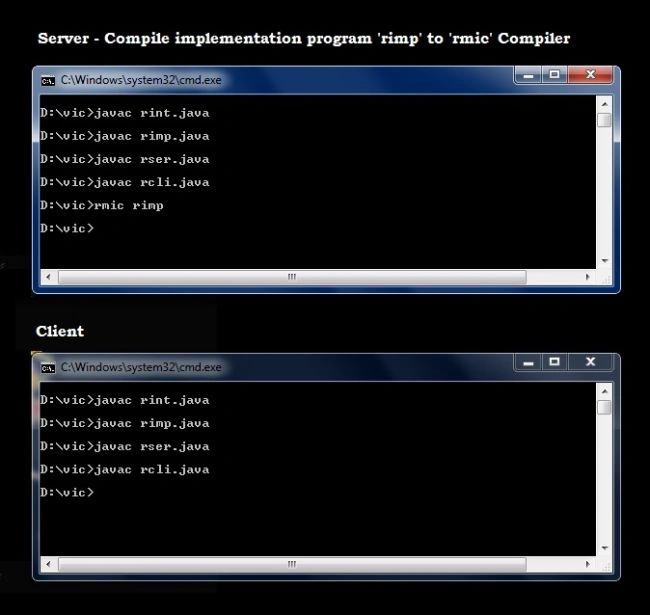

Step 4

Step

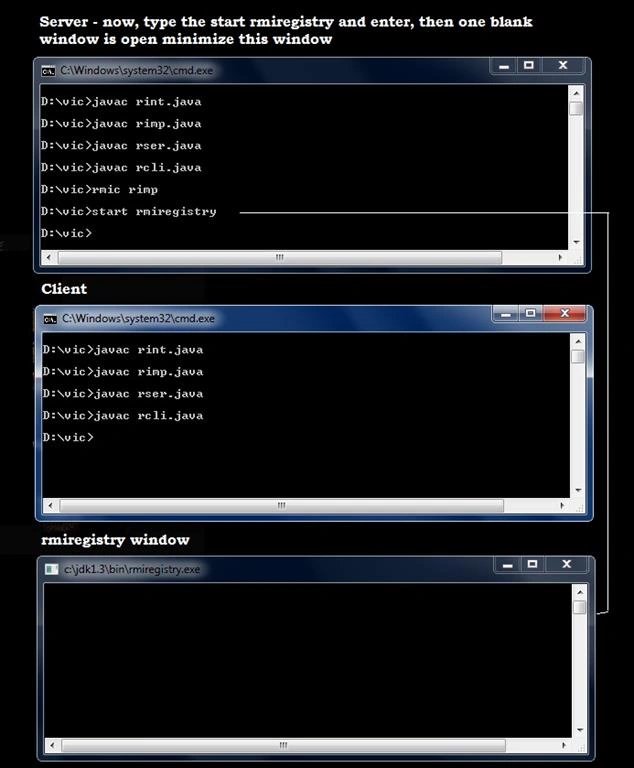

Step 5

Step

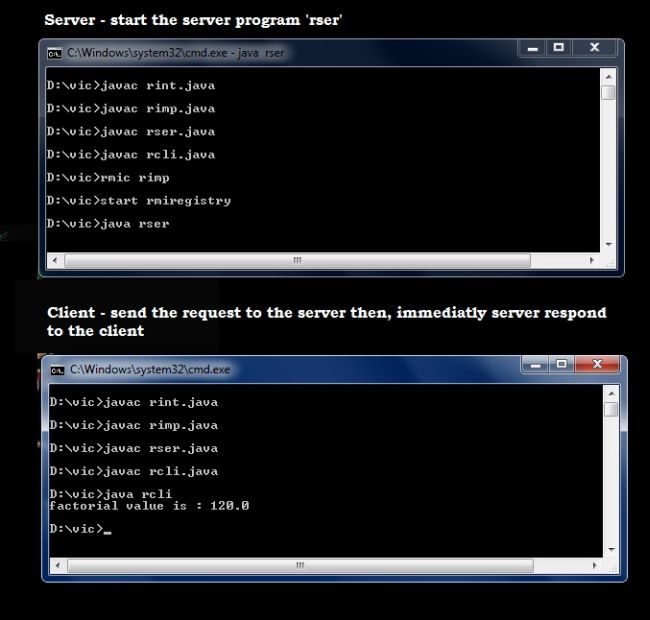

 Step 6

Step


Summary


 In the above blog, the remote method invocation concept has been implemented successfully.
