How to Create Barcode using Power Automate and Scan using Power App

In this article, we will learn how we can create bar code with the help of Power Automate and have bar code in SharePoint list as attachment and scan barcodes with the help of Power Apps.

Create Barcode using Power Automate

Step 1

First, we have to go to https://sharepoint.com/, and then we must create a team site as preferable.

Now, create a SharePoint list with the following columns.

Create Barcode using Power Automate

Step 2

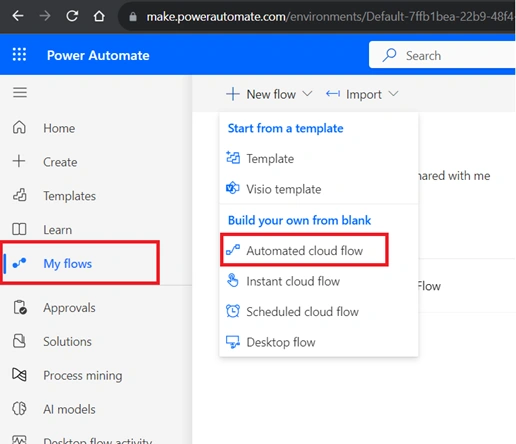

Now go to https://make.powerautomate.com/ and click on My Flows on the left navigation. You will be able to see new flow on top ribbon from there select automated cloud flow, as shown in the below screen.

Create Barcode using Power Automate

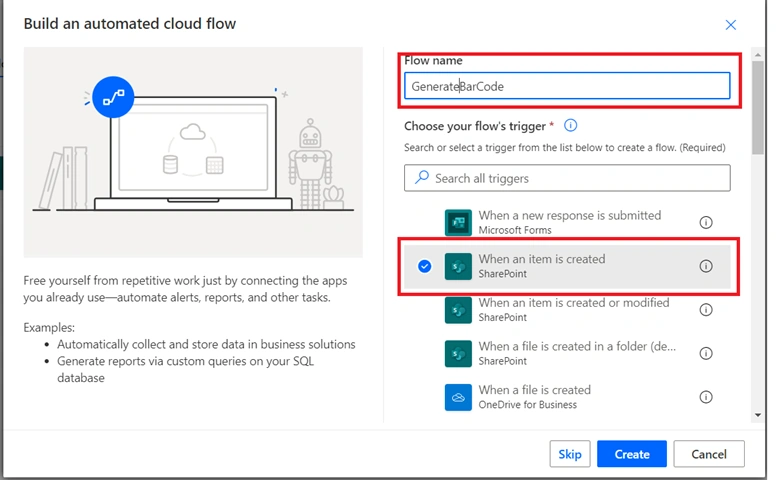

Next, give the flow name as preferable and choose flow trigger as when an item is created in SharePoint. Refer below screen.

Create Barcode using Power Automate

Step 3

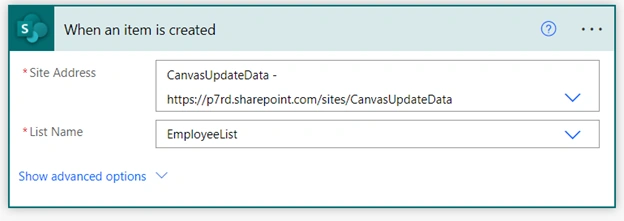

In the "When an item is created" box, provide the site URL and select the list name as "Employeelist".

Create Barcode using Power Automate

Step 4

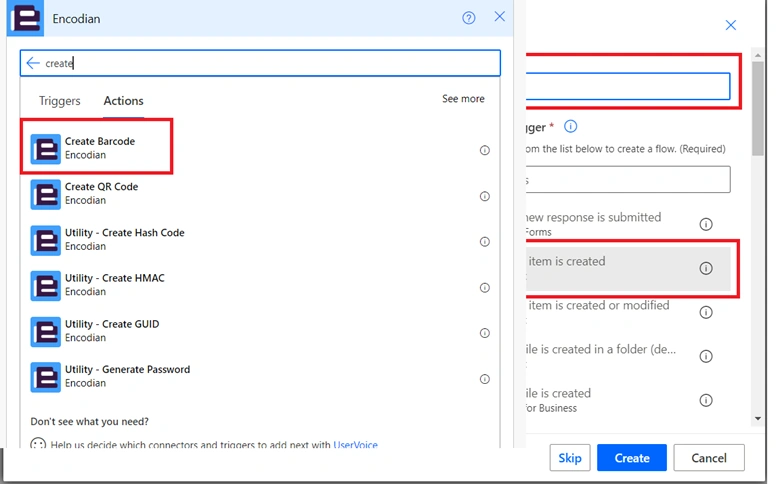

Next, click on "Add an action" then search for "Encodian" and select it.

After that, search for "Create BarCode" and select it.

Create Barcode using Power Automate

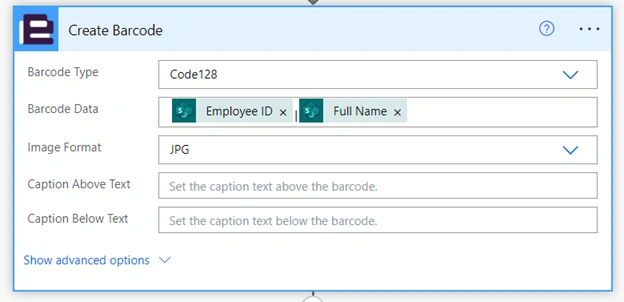

Next, select "BarCode Type" like code128 or as preferable.

Add "Employee ID" then a separator like "|" and "Full Name" SharePoint Dynamic Values in BarCode Data box as shown in the below screen.

Create Barcode using Power Automate

Step 5

Next, click on "Add an action".

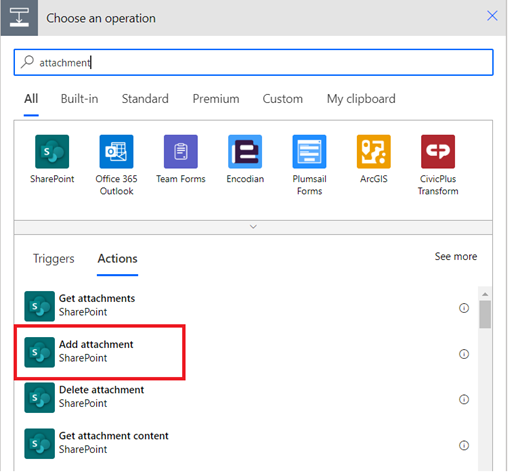

Search for "SharePoint". Then search for "Add attachment" and select it.

Create Barcode using Power Automate



Step 6

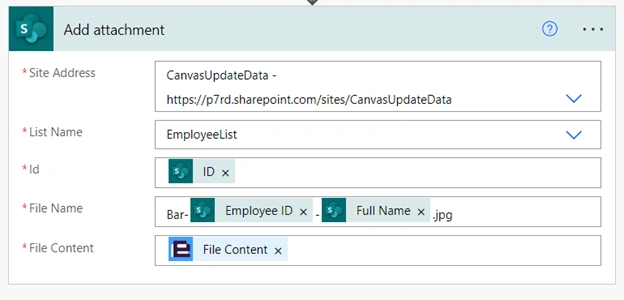

Then add "Site Address", "List Name" and "ID" SharePoint dynamic value.

In "File Name" section, set the file name as preferable as here "Bar-EmployeeID-Name.jpg" With dynamic value.

Create Barcode using Power Automate

Step 7

Click on Save Flow.

To test the flow, click on the Test button from the right side of the top menu and click the Run flow button.

Step 8

Now go to "Employeelist" in SharePoint.

Added a name here, The Barcode has been generated as below.

Create Barcode using Power Automate

Scan Barcode using Power App

Now go to https://make.powerapps.com/

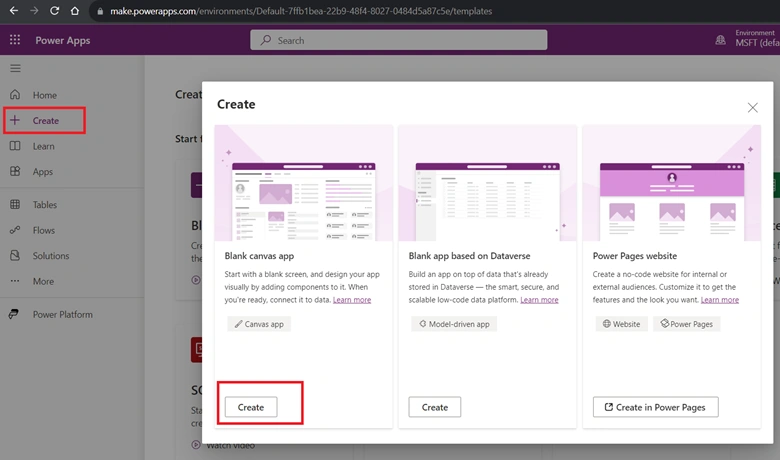

Next, click on "Create" and select start from Blank canvas app. Give the name of your app and click on create.

Blank Canvas App

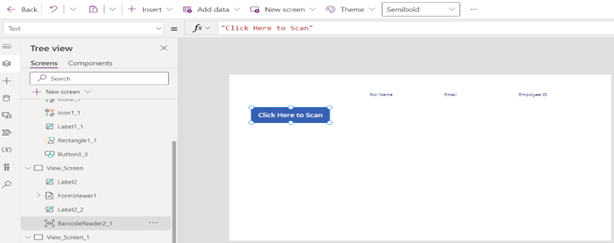

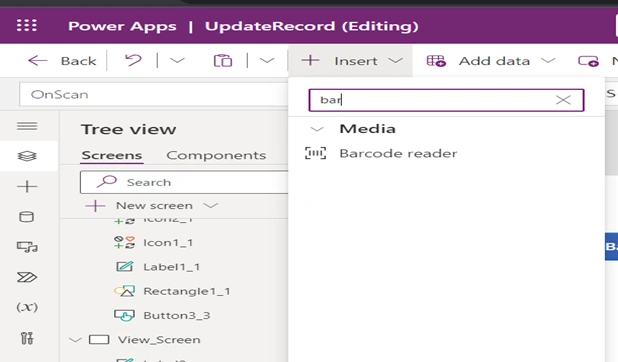

Add a Barcode Reader control to the Power Apps screen and give a text to this control (i.e., Click Here to Scan)

Barcode Reader

Add a Barcode Reader control to the Power Apps screen and give a text to this control (i.e., Click Here to Scan)

Barcode Reader control

Next, add a Power Apps Display Form to the Power Apps screen.

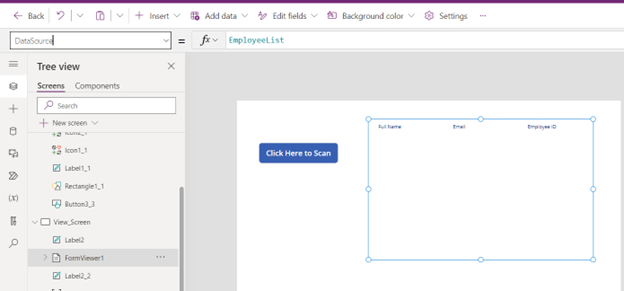

Connect that Display form to the SharePoint data source (i.e., Employee List). Go to the right-side Properties Panel > Fileds > Add fields.

Add all the fields to the Display Form. As a result, the form will appear as shown below:

Scan Barcode using Power Apps

By default, we don't want to display the above data fields when the app is visible.

The data fields will be visible only when the user scans a valid barcode. To implement this, I have created a variable in the Barcode reader’s OnScan property.

OnScan = Set(VarOnScan, true)

Scan Barcode using Power Apps

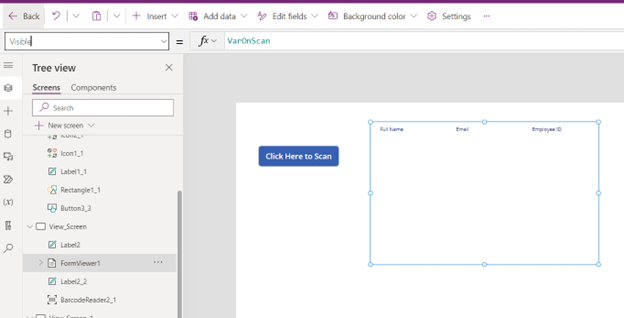

Use the variable “ VarOnScan” on the display form’s Visible property.

Scan Barcode using Power Apps

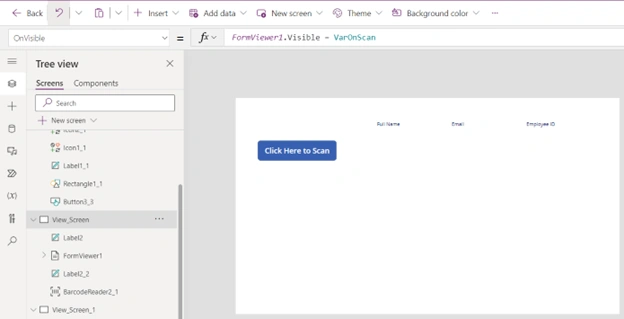

Again, insert the below expression on the Screen’s OnVisible control as shown in the below screen.

OnVisible = FormViewer1.Visible = VarOnScan

Scan Barcode using Power Apps

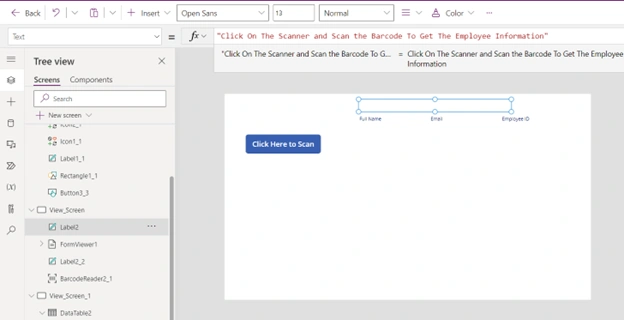

Next, add a Power Apps text label control and place it on the display form and add texts to the label control, i.e., "Click on The Scanner and Scan the Barcode To Get The Employee Information"

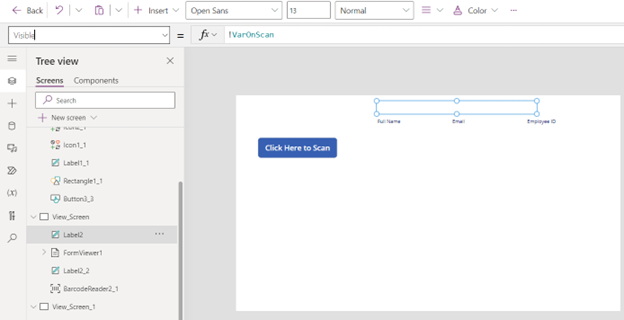

Insert the below expression on the label’s Visible property.

Visible = !VarOnScan

Scan Barcode using Power Apps

Next, add a Power Apps text label control and place it on the display form and add texts to the label control, i.e., "Click on The Scanner and Scan the Barcode To Get The Employee Information"

Insert the below expression on the label’s Visible property.

Visible = !VarOnScan

Scan Barcode using Power Apps

Scan Barcode using Power Apps

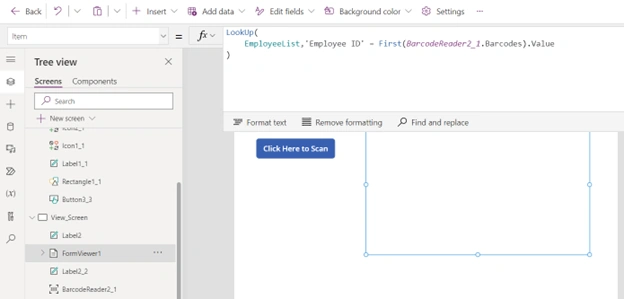

To display the scanned item’s information, insert the below expression on the Display Form’s Item property.

LookUp(
    EmployeeList,'Employee ID' = First(BarcodeReader2_1.Barcodes).Value
)

Scan Barcode using Power Apps



Save and publish the app.

Navigate to SharePoint list and create a new item in the list.

Now Open the "Employee list". Click on one of the attachments you can able to find bar code.

Scan Barcode using Power Apps

Now download the “Power Apps” Mobile Application to test the app you have created.

Now, Open the canvas app you have created via mobile application.

Scan the Barcode.

After scanning the barcode, the Employee information is visible in the display form in your app, as shown in the below screen.

Scan Barcode using Power Apps
