How To Compress Large Size Image Without Losing Image Quality Using ASP.NET

SQL Database

  • Create Database Sample
  • Create Table

You can create a table using the following query -

create table tblImageInfo(id int identity(1,1) primary key,Name nvarchar(30),Content nvarchar(200));

Now, let's go ahead and start the process of compressing the images.

Step 1 - Open Visual Studio -> select New Project -> select Empty ASP.NET Web application

Step 2 - Create a folder named Images.

Step 3 - Here is the code for Default.aspx page.

output
  1. <body>
  2.     <form id="form1" runat="server">
  3.     <div align="center">
  4.         <br />
  5.         Name:<asp:TextBox ID="txtname" runat="server"></asp:TextBox>
  6.         <br />
  7.         <br />
  8.
  9.     UploadImage :<asp:FileUpload ID="fileupload1" runat="server" />
  10.         <br />
  11.         <br />
  12. <asp:Button ID="btnupload" runat="server" Text="Upload" OnClick="btnupload_Click"  />
  13.          <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns = "false"
  14.        Font-Names = "Arial" >
  15.     <Columns>
  16.        <asp:BoundField DataField = "id" HeaderText = "ID" Visible="false" />
  17.        <asp:BoundField DataField = "Name" HeaderText = "Image Name" />
  18.        <asp:TemplateField>
  19.            <ItemTemplate>
  20.                <img src="<%#Eval("Content")%>" alt="<%#Eval("Name")%>" width="125px" height="150px"/>
  21.            </ItemTemplate>
  22.        </asp:TemplateField>
  23.     </Columns>
  24.     </asp:GridView>
  25.
  26.
  27.     </div>
  28.     </form>
  29. </body>
Step 4 - This is the code for default.aspx.cs file.
  1. public partial class Default : System.Web.UI.Page
  2.   {
  3.       SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["ConStr"].ConnectionString);
  4.       protected void Page_Load(object sender, EventArgs e)
  5.       {
  6.           if (!IsPostBack)
  7.           {
  8.               BindGridView();
  9.           }
  10.       }
  11.
  12.       protected void btnupload_Click(object sender, EventArgs e)
  13.       {
  14.           string filename = Path.GetFileName(fileupload1.PostedFile.FileName);
  15.           string storedb = "Images/" + filename + "";
  16.           string targetPath = Server.MapPath("Images/" + filename);
  17.           Stream strm = fileupload1.PostedFile.InputStream;
  18.           var targetFile = targetPath;
  19.
  20.           ReduceImageSize(0.5, strm, targetFile);
  21.           //insert reduced size image in db
  22.           con.Open();
  23.           SqlCommand cmd = new SqlCommand("Insert into tblImageInfo(Name,Content)values('"+txtname.Text+"','"+storedb+"')", con);
  24.           cmd.ExecuteNonQuery();
  25.
  26.       }
  27.
  28.       protected void BindGridView()
  29.       {
  30.           DataTable dt = new DataTable();
  31.           string strQuery = "select * from tblImageInfo order by id desc";
  32.           SqlCommand cmd = new SqlCommand(strQuery);
  33.           SqlDataAdapter da = new SqlDataAdapter();
  34.           cmd.CommandType = CommandType.Text;
  35.           cmd.Connection = con;
  36.           try
  37.           {
  38.               con.Open();
  39.               da.SelectCommand = cmd;
  40.               da.Fill(dt);
  41.               GridView1.DataSource = dt;
  42.               GridView1.DataBind();
  43.           }
  44.           catch (Exception ex)
  45.           {
  46.               Response.Write(ex.Message);
  47.           }
  48.           finally
  49.           {
  50.               con.Close();
  51.               da.Dispose();
  52.               con.Dispose();
  53.           }
  54.
  55.       }
  56.       private void ReduceImageSize(double scaleFactor, Stream sourcePath, string targetPath)
  57.       {
  58.           using (var image = System.Drawing.Image.FromStream(sourcePath))
  59.           {
  60.               var newWidth = (int)(image.Width * scaleFactor);
  61.               var newHeight = (int)(image.Height * scaleFactor);
  62.               var thumbnailImg = new Bitmap(newWidth, newHeight);
  63.               var thumbGraph = Graphics.FromImage(thumbnailImg);
  64.               thumbGraph.CompositingQuality = CompositingQuality.HighQuality;
  65.               thumbGraph.SmoothingMode = SmoothingMode.HighQuality;
  66.               thumbGraph.InterpolationMode = InterpolationMode.HighQualityBicubic;
  67.               var imageRectangle = new Rectangle(0, 0, newWidth, newHeight);
  68.               thumbGraph.DrawImage(image, imageRectangle);
  69.               thumbnailImg.Save(targetPath, image.RawFormat);
  70.           }
  71.       }
  72.   }

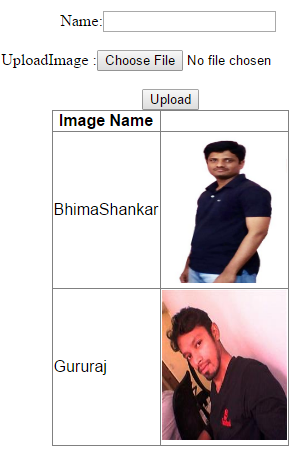

Step 5 - Build and run the application. Upload uncompressed images and get the compressed ones. You can check the image size.
application
