GridView Grouping in Asp.Net

Like

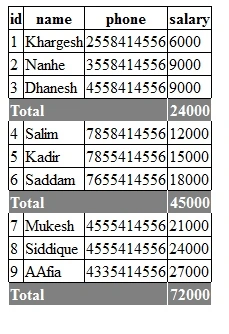

Figure 1 GridView

For this, I will use the following table structure.

Table Name
  1. Department (ID int, DeptName varchar(25) )
  2. Employee (Id int,deptid int,Name varchar(50),Address varchar(50),Phone varchar(15),datecreated datetime )
  3. EmployeeSalary (EmployeeId int,deptid int,Salary double,datecreated)
  • Add three departments in Department table.
  • Add three employees in each Department.
  • Add minimum three month salary of each Employee.
  • And find the three month salary sum of each Employee and also find the sum of all salaries department wise as shown above.

aspx page

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html>
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head runat="server">
  5. <title></title>
  6. </head>
  7.     <body>
  8.         <form id="form1" runat="server">
  9.     <div>
  10.     </div>
  11.         <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="false"      OnRowDataBound="GridView1_RowDataBound" OnRowCreated="GridView1_RowCreated">
  12.     <Columns>
  13.     <asp:BoundField DataField="Id" HeaderText="id" />
  14.     <asp:BoundField DataField="name" HeaderText="name" />
  15.     <asp:BoundField DataField="Phone" HeaderText="phone" />
  16.     <asp:BoundField DataField="tot" HeaderText="salary" />
  17.     <asp:TemplateField Visible="false" ItemStyle-HorizontalAlign="Right">
  18.     <FooterTemplate>
  19.     <div style="text-align: right;">
  20.         <asp:Label ID="lblTotalqty" runat="server" Text='<%# Eval("total") %>' Font-Bold=true />
  21.     </div>
  22.     </FooterTemplate>
  23.     </asp:TemplateField>
  24.     </Columns>
  25.         </asp:GridView>
  26.         </form>
  27.     </body>
  28. </html>
.aspx.cs page
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data.SqlClient;
  8. using System.Data;
  9. using System.Configuration;
  10. public partial class _Default : System.Web.UI.Page
  11. {
  12.     int qtyTotal = 0;
  13.     int grQtyTotal = 0;
  14.     int storid = 0;
  15.     int rowIndex = 1;
  16. protected void Page_Load(object sender, EventArgs e)
  17. {
  18.     SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings    ["conn"].ConnectionString);
  19.     try
  20.     {
  21.     con.Open();
  22.         SqlCommand cmd = new SqlCommand(" select        a.id,a.DeptId,a.Name,a.Phone,a.tot,b.total,b.DeptId from ( select e1.id,        e1.DeptId,e1.Name,e1.Phone,sum(es.Salary) as tot from Department D1 join Employee e1 on         D1.ID=e1.Deptid join EmployeeSalary es on e1.Id = es.EmployeeId group by d1.id              ,e1.Id,e1.deptid,e1.Name,e1.Phone,es.Salary ) a join ( select deptid, SUM(Salary) as total      from EmployeeSalary group by deptid ) b on a.DeptId=b.deptid", con);
  23.         SqlDataAdapter adp = new SqlDataAdapter(cmd);
  24.         DataSet ds = new DataSet();
  25.         adp.Fill(ds);
  26.         GridView1.DataSource = ds;
  27.         GridView1.DataBind();
  28.     }
  29.     catch (SqlException ex)
  30.     {
  31.     //
  32.     }
  33.     finally
  34.     {
  35.     con.Close();
  36.     }
  37. }
  38. protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
  39. {
  40.     if (e.Row.RowType == DataControlRowType.DataRow)
  41.     {
  42.         storid = Convert.ToInt32(DataBinder.Eval(e.Row.DataItem, "deptid").ToString());
  43.         int tmpTotal = Convert.ToInt32(DataBinder.Eval(e.Row.DataItem, "tot").ToString());
  44.         qtyTotal += tmpTotal;
  45.         grQtyTotal += tmpTotal;
  46.     }
  47.     if (e.Row.RowType == DataControlRowType.Footer)
  48.     {
  49.         Label lblTotalqty = (Label)e.Row.FindControl("lblTotalqty");
  50.         lblTotalqty.Text = grQtyTotal.ToString();
  51.     }
  52. }
  53. protected void GridView1_RowCreated(object sender, GridViewRowEventArgs e)
  54. {
  55.     bool newRow = false;
  56.     if ((storid > 0) && (DataBinder.Eval(e.Row.DataItem, "DeptId") != null))
  57.     {
  58.         if (storid != Convert.ToInt32(DataBinder.Eval(e.Row.DataItem, "DeptId").ToString()))
  59.             newRow = true;
  60.     }
  61.         if ((storid > 0) && (DataBinder.Eval(e.Row.DataItem, "DeptId") == null))
  62.         {
  63.             newRow = true;
  64.             rowIndex = 0;
  65.         }
  66.     if (newRow)
  67.     {
  68.         GridView GridView1 = (GridView)sender;
  69.         GridViewRow NewTotalRow = new GridViewRow(0, 0, DataControlRowType.DataRow,         DataControlRowState.Insert);
  70.         NewTotalRow.Font.Bold = true;
  71.         NewTotalRow.BackColor = System.Drawing.Color.Gray;
  72.         NewTotalRow.ForeColor = System.Drawing.Color.White;
  73.         TableCell HeaderCell = new TableCell();
  74.         HeaderCell.Text = "Total";
  75.         HeaderCell.HorizontalAlign = HorizontalAlign.Left;
  76.         HeaderCell.ColumnSpan = 3;
  77.         NewTotalRow.Cells.Add(HeaderCell);
  78.         HeaderCell = new TableCell();
  79.         HeaderCell.HorizontalAlign = HorizontalAlign.Right;
  80.         HeaderCell.Text = qtyTotal.ToString();
  81.         NewTotalRow.Cells.Add(HeaderCell);
  82.         GridView1.Controls[0].Controls.AddAt(e.Row.RowIndex + rowIndex, NewTotalRow);
  83.         rowIndex++;
  84.         qtyTotal = 0;
  85.     }
  86. }
  87. }
I hope this blog is helpful for beginners.
