Grid View With Multiple Rows And Two Columns Xamarin.Android

Introduction

In this article, we are going to learn about how to create a custom grid view in Xamarin Android

Step 1

Create your Xamarin Android solution in Visual Studio/Xamarin Studio

Step 2

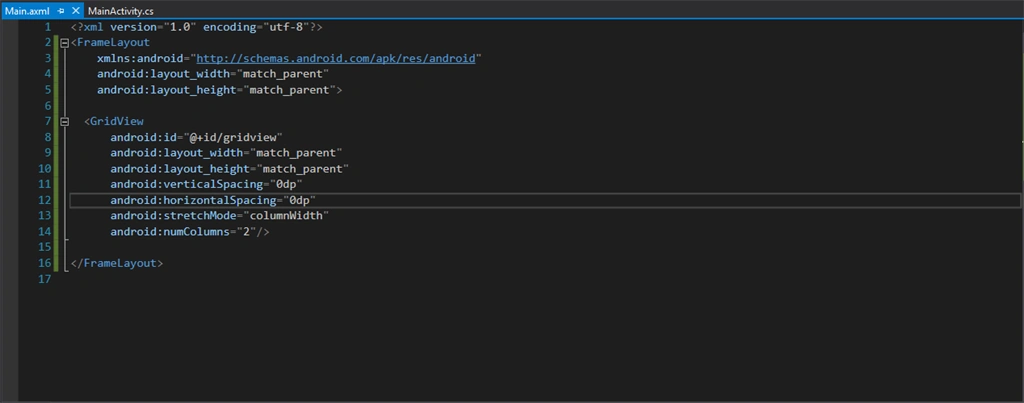

Create a gridview in Main.axml



Step 3

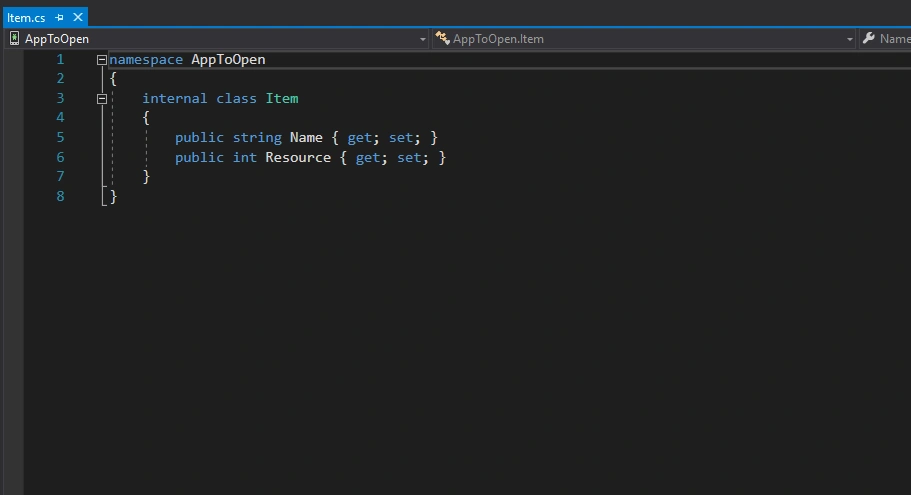

Create a item class that holds name property and resource property


  1. public class Item
  2.     {
  3.         public string Name { getset; }
  4.         public int Resource { getset; }
  5.     }
Step 4

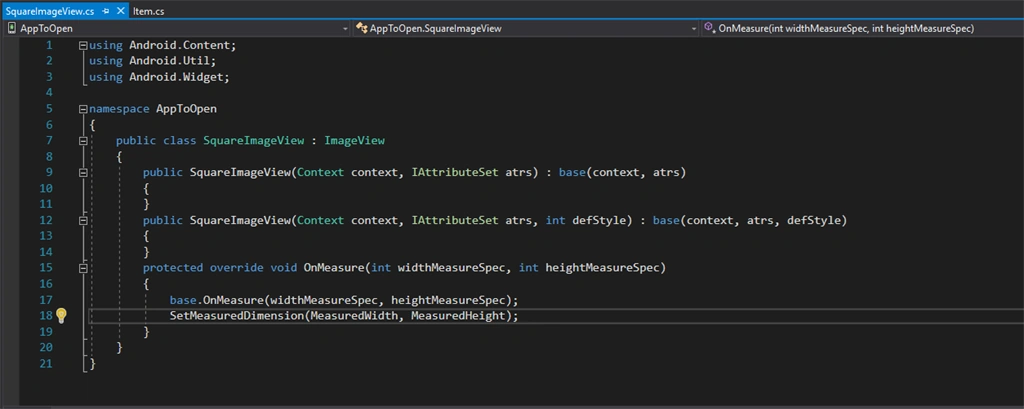

Create a custom image View that display the image in full view.


  1. public class SquareImageView : ImageView
  2. {
  3.     public SquareImageView(Context context, IAttributeSet atrs) : base(context, atrs)
  4.     {
  5.     }
  6.     public SquareImageView(Context context, IAttributeSet atrs, int defStyle) : base(context, atrs, defStyle)
  7.     {
  8.     }
  9.     protected override void OnMeasure(int widthMeasureSpec, int heightMeasureSpec)
  10.     {
  11.         base.OnMeasure(widthMeasureSpec, heightMeasureSpec);
  12.         SetMeasuredDimension(MeasuredWidth, MeasuredHeight);
  13.     }
  14. }
Step 5

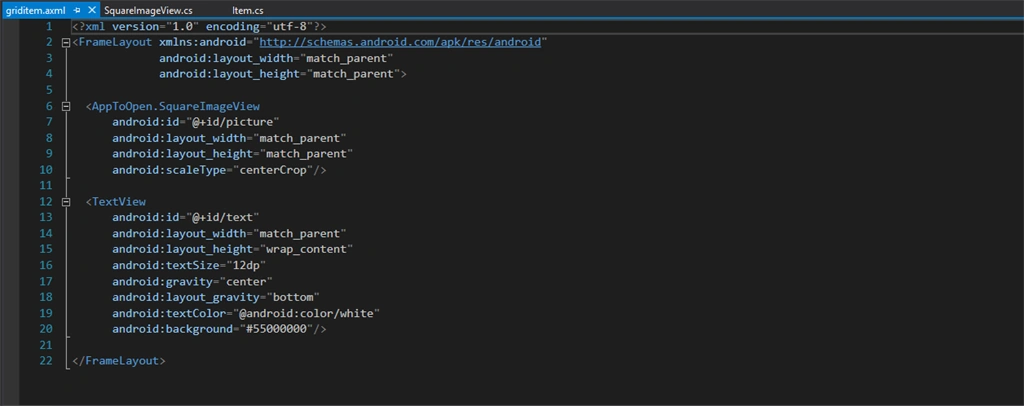

Now create a custom layout griditem.axml  that fits into the grid view created in Main.axml


  1. <FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.              android:layout_width="match_parent"
  3.              android:layout_height="match_parent">
  4.
  5.   <"your-namespace".SquareImageView
  6.       android:id="@+id/picture"
  7.       android:layout_width="match_parent"
  8.       android:layout_height="match_parent"
  9.       android:scaleType="centerCrop"/>
  10.
  11.   <TextView
  12.       android:id="@+id/text"
  13.       android:layout_width="match_parent"
  14.       android:layout_height="wrap_content"
  15.       android:textSize="12dp"
  16.       android:gravity="center"
  17.       android:layout_gravity="bottom"
  18.       android:textColor="@android:color/white"
  19.       android:background="#55000000"/>
  20.
  21. </FrameLayout>
Step 6

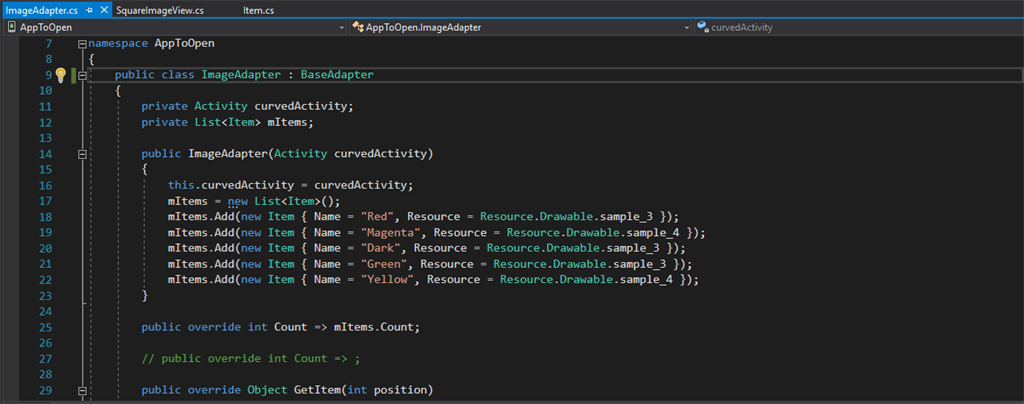

Now create an adapter ImageAdapter class for gridview created in Main.axml. This ImageAdapter inflates griditem.axml and returns the view.
  1. public class ImageAdapter : BaseAdapter
  2.     {
  3.         private Activity curvedActivity;
  4.         private List<Item> mItems;
  5.
  6.         public ImageAdapter(Activity curvedActivity)
  7.         {
  8.             this.curvedActivity = curvedActivity;
  9.             mItems = new List<Item>();
  10.             mItems.Add(new Item { Name = "Red", Resource = Resource.Drawable.sample_3 });
  11.             mItems.Add(new Item { Name = "Magenta", Resource = Resource.Drawable.sample_4 });
  12.             mItems.Add(new Item { Name = "Dark", Resource = Resource.Drawable.sample_3 });
  13.             mItems.Add(new Item { Name = "Green", Resource = Resource.Drawable.sample_3 });
  14.             mItems.Add(new Item { Name = "Yellow", Resource = Resource.Drawable.sample_4 });
  15.         }
  16.
  17.         public override int Count => mItems.Count;
  18.
  19.         // public override int Count => ;
  20.
  21.         public override Object GetItem(int position)
  22.         {
  23.             return null;
  24.         }
  25.
  26.         public override long GetItemId(int position)
  27.         {
  28.             return 0;
  29.         }
  30.
  31.         public override View GetView(int position, View convertView, ViewGroup parent)
  32.         {
  33.             View v = convertView;
  34.             if (v == null)
  35.             {
  36.                 v = curvedActivity.LayoutInflater.Inflate(Resource.Layout.griditem, null);
  37.             }
  38.             v.FindViewById<ImageView>(Resource.Id.picture).SetImageResource(mItems[position].Resource);
  39.             v.FindViewById<TextView>(Resource.Id.text).Text = mItems[position].Name;
  40.             return v;
  41.         }
  42.     }


Step 7

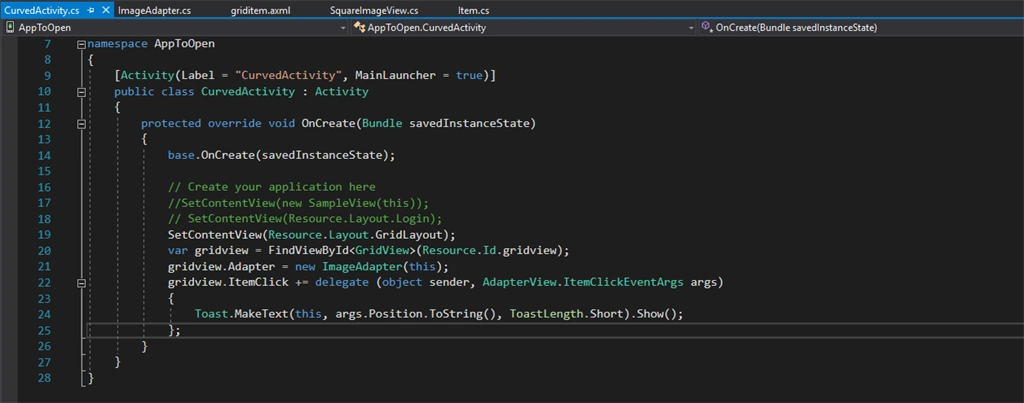

Now we have to set adapter to the gridview created in main.axml
  1. var gridview = FindViewById<GridView>(Resource.Id.gridview);
  2.            gridview.Adapter = new ImageAdapter(this);
  3.            gridview.ItemClick += delegate (object sender, AdapterView.ItemClickEventArgs args)
  4.            {
  5.                Toast.MakeText(this, args.Position.ToString(), ToastLength.Short).Show();
  6.            };


Step 8

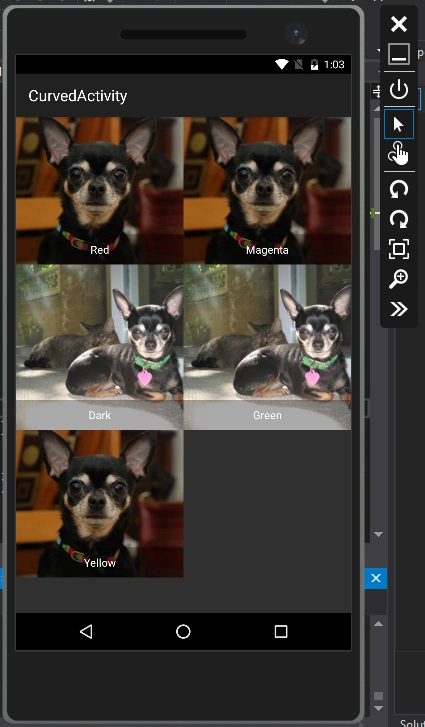

Now run to see the output.
