Google Maps Icon Using Bootstrap In ASP.NET MVC - Part Four

Introduction

You can specify an image instead of the default marker in Google Maps.

Description

Follow my Google Maps Part-1 ,Part-2 and Part-3 blogs before you go through the Part-4.

Steps

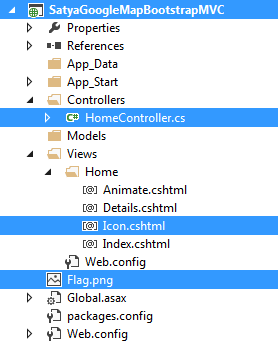

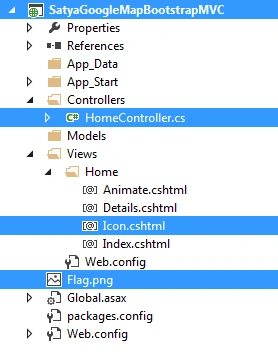

Create a Controller action method named "Icon" in the same Controller class named "HomeController.cs".
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6.
  7. namespace SatyaGoogleMapBootstrapMVC.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         //
  12.         // GET: /Home/
  13.
  14.         public ActionResult Index()
  15.         {
  16.             return View();
  17.         }
  18.         public ActionResult Details()
  19.         {
  20.             return View();
  21.         }
  22.         public ActionResult Animate()
  23.         {
  24.             return View();
  25.         }
  26.         public ActionResult Icon()
  27.         {
  28.             return View();
  29.         }
  30.     }
  31. }
 Then, create a View named "Icon.cshtml".
  1. @{
  2.     ViewBag.Title = "Satyaprakash Google Map Icon";
  3. }
  4.
  5. <title>@ViewBag.Title</title>
  6.
  7. <h2 style="background-color: Yellow;color: Blue; text-align: center; font-style: oblique">Satyaprakash's Google Map Icon Using MVC and BOOTSTRAP</h2>
  8. <fieldset>
  9.     <legend style="font-family: Arial Black; color: blue; font-size: large;">Check Google Map Icon</legend>
  10.     <meta charset="utf-8">
  11.     <meta name="viewport" content="width=device-width, initial-scale=1">
  12.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css">
  13.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js"></script>
  14.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/js/bootstrap.min.js"></script>
  15.
  16.     <div id="map" style="width:100%;height:500px"></div>
  17.     <script>
  18.         function myMap() {
  19.             var mapCanvas = document.getElementById("map");
  20.             var myCenter = new google.maps.LatLng(20.296100, 85.824500);
  21.             var mapOptions = { center: myCenter, zoom: 12 };
  22.             var map = new google.maps.Map(mapCanvas, mapOptions);
  23.             var marker = new google.maps.Marker({
  24.                 position: myCenter,
  25.                 icon: "Flag.png"
  26.             });
  27.             marker.setMap(map);
  28.         }
  29.     </script>
  30.
  31.     <script src="https://maps.googleapis.com/maps/api/js?key=put_your_key&callback=myMap"></script>
  32.
  33. </fieldset>
  34. <footer>
  35.     <p style="background-color: Yellow; font-weight: bold; color:blue; text-align: center; font-style: oblique">© @DateTime.Now.ToLocalTime()</p> @*Add Date Time*@
  36. </footer>
Here, I set my own image file instead of default Google Maps marker.
  1. var marker = new google.maps.Marker({
  2.                 position: myCenter,
  3.                 icon: "Flag.png"
  4.             });

OUTPUT

Url: http://localhost:57237/Home/Icon

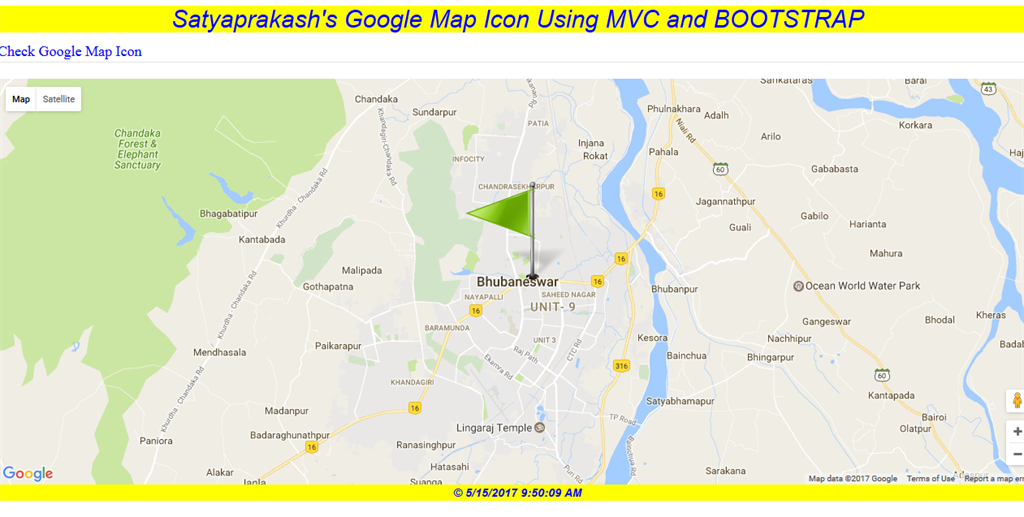

Desktop View

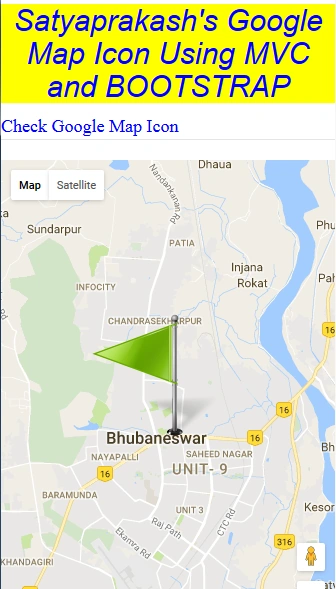

Mobile View



Summary
  1. Use image instead of marker In Google Maps.
  2. Implementing Mvc and Bootstrap.
