Fill The Datagrid View In Even Or Odd Rows

If you want to fill the Gridview in alternate rows diagrammatically then it's used in web form.

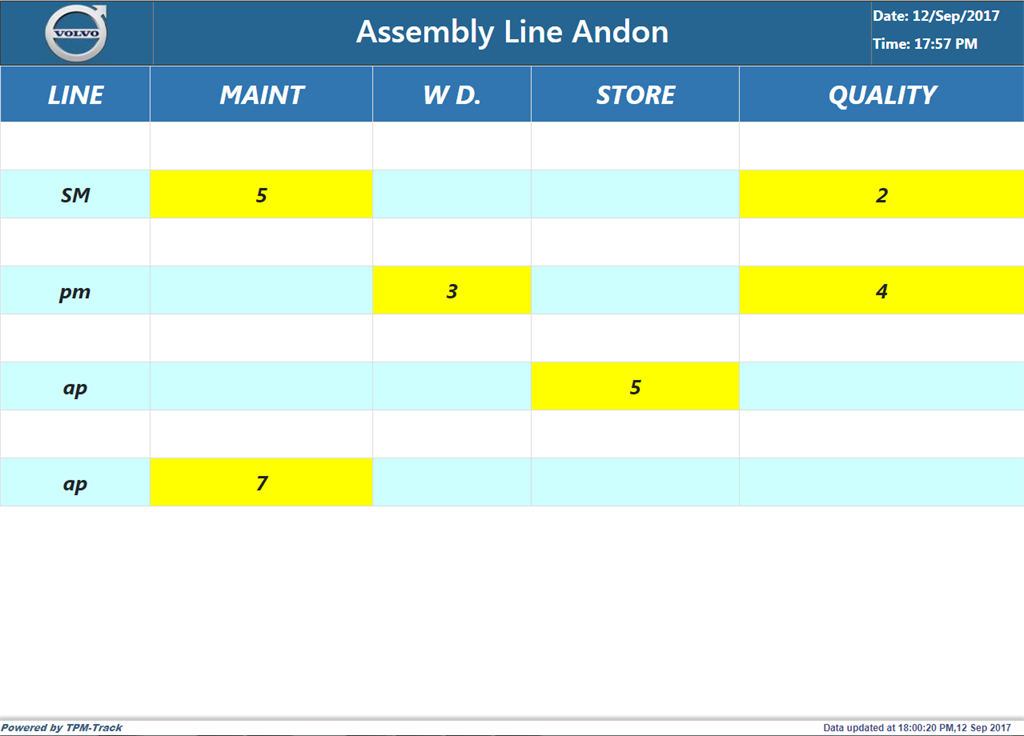

In gridview filling in the data in alternate rows refers to even or odd rows. It's an efficient way to fill a custom gridview. I designed a four-column gridview  in the database and I filled in alternate rows in the web form. If the gridview data is present, then fill in any background color, which is used to show if any data is present .

I used the Datareader control to fill in the grid sample code. Here is a method to fill in the data grid.

protected void getDetails() {
        try {
            SqlConnection connection = new SqlConnection(ConfigurationManager.ConnectionStrings["myconnection"].ToString());
            connection.Open();
            //SqlDataAdapter adt = new SqlDataAdapter("select * from tbl_data ", connection);
            //DataTable dt = new DataTable();
            //adt.Fill(dt);
            SqlCommand cmd = new SqlCommand("select * from tbl_data ", connection);
            SqlDataReader sdr = null;
            sdr = cmd.ExecuteReader();
            DataTable dt = new DataTable();
            DataRow dr = null;
            int i = 0;
            dt.Columns.Add("line");
            dt.Columns.Add("maint");
            dt.Columns.Add("wd");
            dt.Columns.Add("stores");
            dt.Columns.Add("quality");
            if (sdr.HasRows) {
                while (sdr.Read()) {
                    dr = dt.NewRow();
                    dr["line"] = string.Empty;
                    dr["maint"] = string.Empty;
                    dr["wd"] = string.Empty;
                    dr["stores"] = string.Empty;
                    dr["quality"] = string.Empty;
                    dt.Rows.Add(dr);
                    dr = dt.NewRow();
                    dr["line"] = sdr["line"].ToString();
                    dr["maint"] = sdr["maint"].ToString();
                    dr["wd"] = sdr["wd"].ToString();
                    dr["stores"] = sdr["stores"].ToString();
                    dr["quality"] = sdr["quality"].ToString();
                    dt.Rows.Add(dr);
                }
            }
            grd_data.DataSource = dt;
            grd_data.DataBind();
        } catch (Exception ex) {}

Also bind the data in ASP control

<asp:GridView ID="grd_data" runat="server" AutoGenerateColumns="false" Width="100%" Height="100%" AlternatingRowStyle-BackColor="#CDFFFF" HeaderStyle-CssClass="myhdr" HeaderStyle-Font-Italic="true" OnRowDataBound="GridDatabound" RowStyle-CssClass="RowStyle" HeaderStyle-HorizontalAlign="Center" GridLines="Both" CssClass="griedline">
    <HeaderStyle HorizontalAlign="Center" />
    <Columns>
        <asp:BoundField HeaderText="LINE" DataField="line" HeaderStyle-HorizontalAlign="Center" ItemStyle-Height="65" ItemStyle-HorizontalAlign="Center" />
        <asp:BoundField HeaderText="MAINT" DataField="maint" ItemStyle-Height="65" HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center" />
        <asp:BoundField HeaderText="W D." DataField="wd" ItemStyle-Height="65" HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center" />
        <asp:BoundField HeaderText="STORE" DataField="stores" ItemStyle-Height="65" HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center" />
        <asp:BoundField HeaderText="QUALITY" DataField="quality" ItemStyle-Height="65" HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center" /> </column>
        </Asp:griedView>
