Display Single DataTable Data In Different Columns Of DataGridView

Here, I will dispaly the data of a single data table in the different columns of DataGridView in C# WindowsForms application.

This blog is based on the DataTable and DataGridView operations in C# WinForms application.

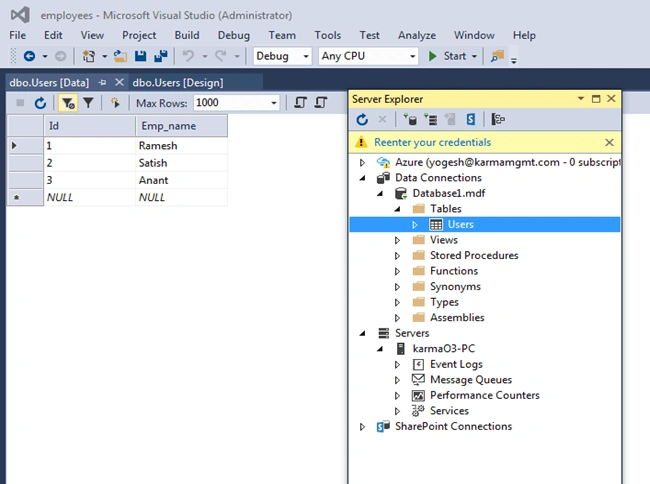

Here, my table name is Users which contains the data of the users of a company stored into the DataTable named as dt3.



no	Emp_name
1	Ramesh
2	Satish
3	Anant



I want to display this data table in GridView like in the following image.



Output



no	company_name	user1	user2	user3
1	TCS	Ramesh	Satish	Anant



Note

Before writing the code, add the "usingsystem.data.sqlclient" namespace to your file.



Step 1



Make a database with a table in SQL Server.



Step 2

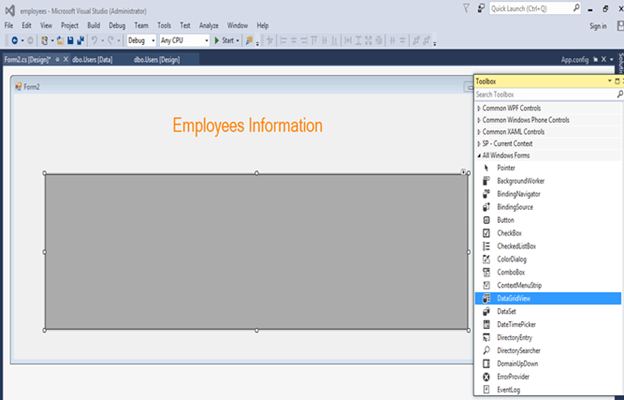

Create a Windows application and add DataGridView on the form. Now, add a DataGridView control to the form by selecting it from the Toolbox and set properties according to your need.



Step 3 - Adding Source Code for GridView

Now, you can add these few lines of code anywhere in your file to load the data from the database. Using the below-mentioned code, you can add a column to the DataGridView manually. Here, I have created a function named as display() to add a column manually and call it at the form load event.

public void display() {
    try {
        DataTable dt2 = new DataTable(); //create datatable to add column to datagridview manually
        dt2.Columns.Add("Id", Type.GetType("System.String"));
        dt2.Columns.Add("company_name", Type.GetType("System.String"));
        dt2.Columns.Add("user1", Type.GetType("System.String"));
        dt2.Columns.Add("user2", Type.GetType("System.String"));
        dt2.Columns.Add("user3", Type.GetType("System.String"));
    } catch (Exception e) {
        MessageBox.Show(e.Message);
    }
}
private void Form2_Load(object sender, EventArgs e) {
    display();
}

Step 4

Here, I am filling the dt3 data table with the employee names.

string str = @"Data Source=(LocalDB)\MSSQLLocalDB;AttachDbFilename=D:\audit\employees\employees\App_data\Database1.mdf;Integrated Security=True";
SqlConnection sc = new SqlConnection(str);
sc.Open();
SqlDataAdapter sda = new SqlDataAdapter("select top 3 Id,Emp_name from Users", sc);
DataTable dt3 = new DataTable();
sda.Fill(dt3); //fill datatable by top3 employee name
sc.Close();

Step 5



After step 4, I am adding the following code to display the datatable data in different columns of DataGridView.

if (dt3.Rows.Count != 0)
{
    DataRow dr = dt2.NewRow();
    dr["Id"] = dt3.Rows[0]["Id"].ToString();
    dr["company_name"] = "TCS";
    int tbl_cnt = dt3.Rows.Count;
    int cnt = 0;
    dr["user1"] = dr["user1"] + dt3.Rows[cnt]["Emp_name"].ToString();
    cnt++;
    if (cnt < tbl_cnt) {
        dr["user2"] = dr["user2"] + dt3.Rows[cnt]["Emp_name"].ToString();
    }
    cnt++;
    if (cnt < tbl_cnt) {
        dr["user3"] = dr["user3"] + dt3.Rows[cnt]["Emp_name"].ToString();
    }
    dt2.Rows.Add(dr);
}
DataTable result = dt2;
result.AcceptChanges();
dataGridView1.DataSource = dt2;

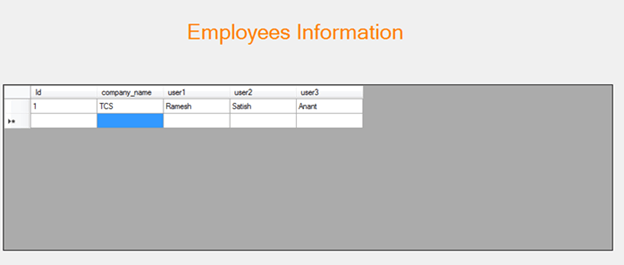

Output
