Configuring Fortinet FortiGate Firewall In Microsoft Azure

Step 1

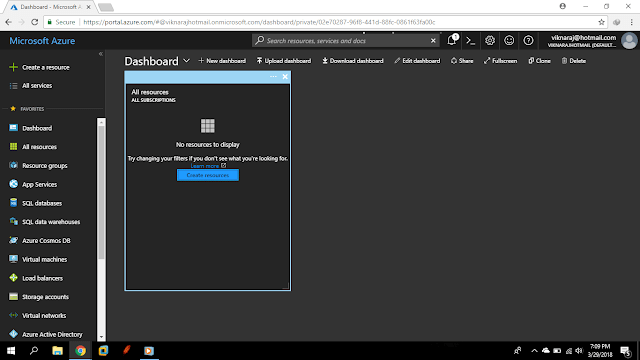

Log on to your Azure Portal, and then click Create a Resource on the top left corner.

Azure

Step 2

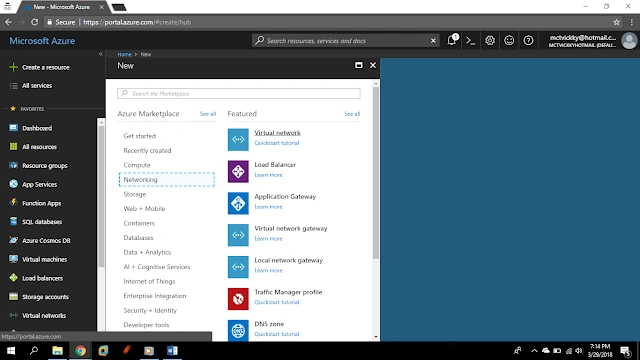

In this window click Networking and then select Virtual Network.

Azure

Step 3

In this window enter the Information as shown on my window and Click Create.



If you want to learn more about this please check my old blog about creating a virtual network in Azure

Azure

Step 4

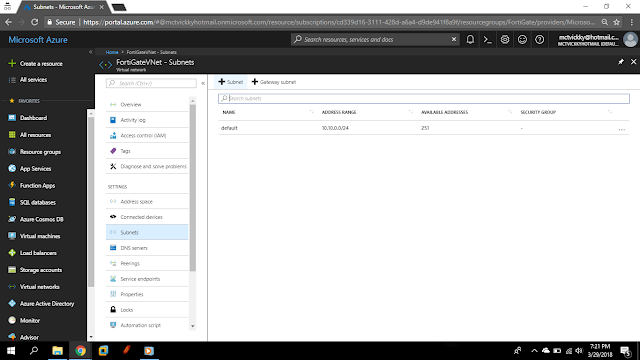

Click your FortiGateVNet Switch on the Dashboard and then click Subnets, and then Click +Subnet.

Azure

Step 5

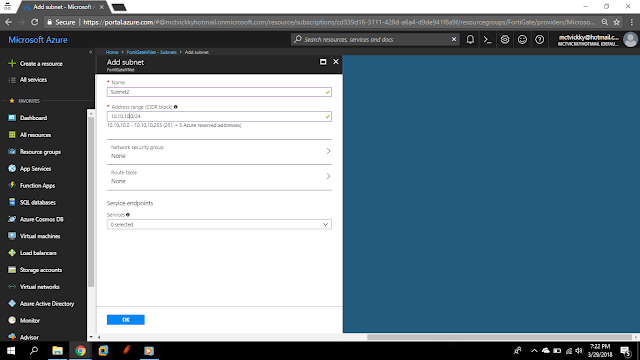

In this window Create the subnet name and the Subnet Address, and then click Ok.

Azure

Virtual Switch Part Successful

In this session I'm going to show you how to configure FortiGate Firewall VM

Step 1

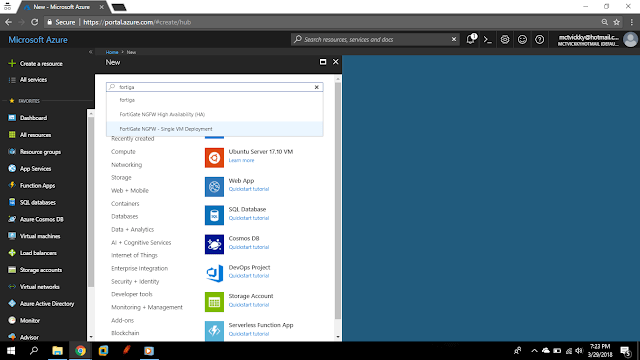

In the Azure Portal, click+ Create a Resource on top of the Left corner, and Type Gortigate, now you can find the FortiGate NGFW - Single VM Deployment, Click the Deployment, and then click Create.

Azure

Azure

Step 2

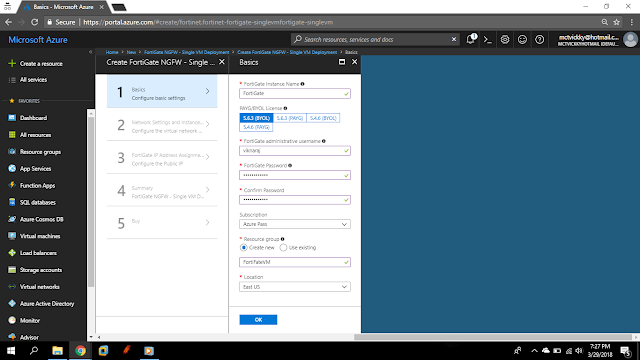

Enter the name and choose 5.6.3 (BYOL), and then Create New Resource Group, and then click Ok.

Azure

Step 3

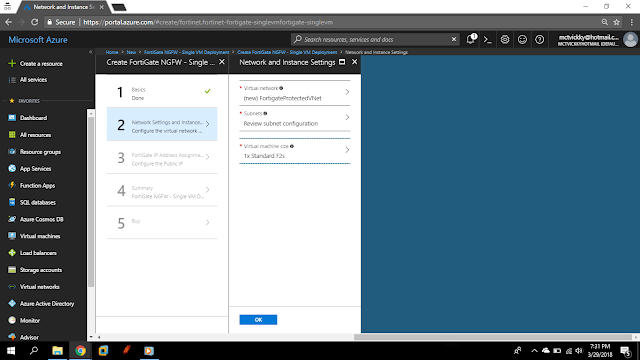

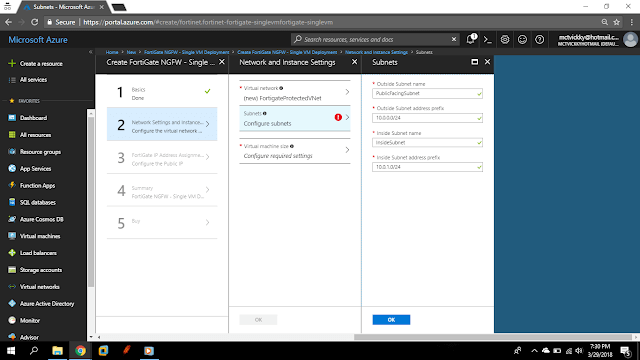

In the Network and Instance Settings Click Subnets and then Click Ok
  • Outside Subnet Name for External Connection / WAN Connection.
  • Inside Subnet Name for Internal Resources / LAN Connection.
Azure

Step 4

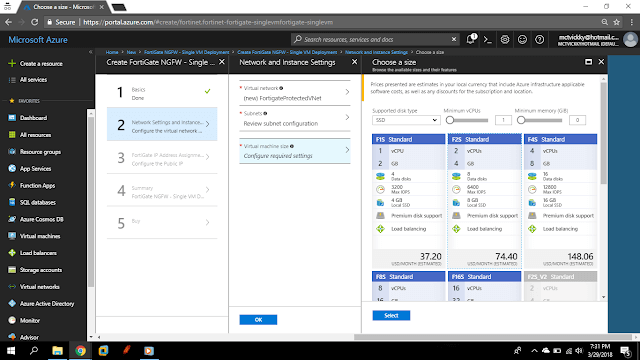

In the Virtual Machine Size choose your Virtual Machine and Click Select and Click Ok.

Azure

Azure

Step 5

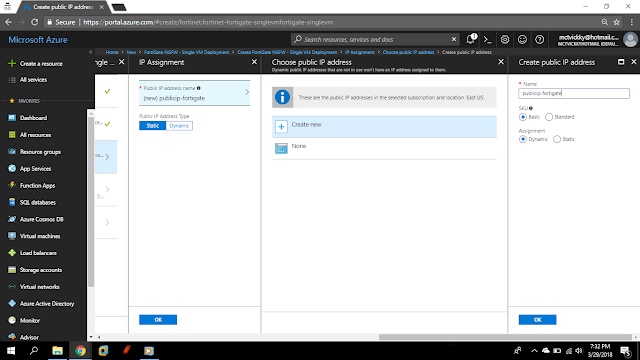

In the Configure the Public IP Click the Public IP address name, and then Click Create New and Type the name and click Ok

Azure

Step 6

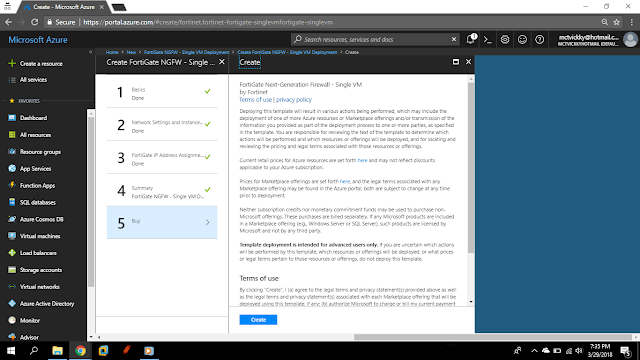

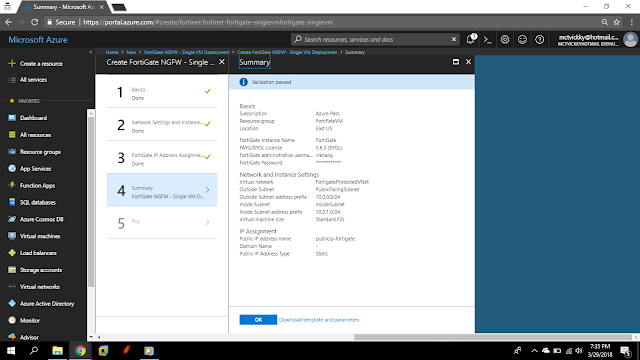

Click Ok, and then Click Buy.

Azure

Azure

Azure

Step 7

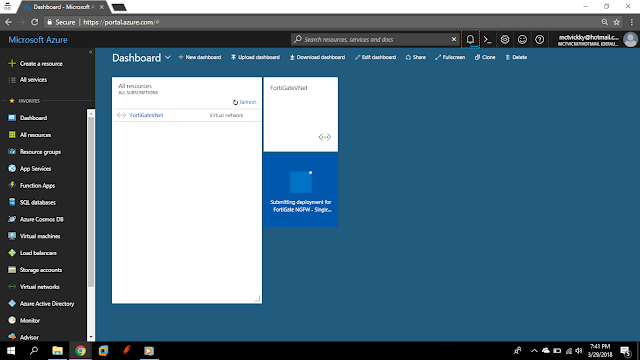

After Deploying ForGate Click FortiGate VM. You will get the following Screen, on this window clickFortiGate-Internal.. (Route table).

Azure

Step 8

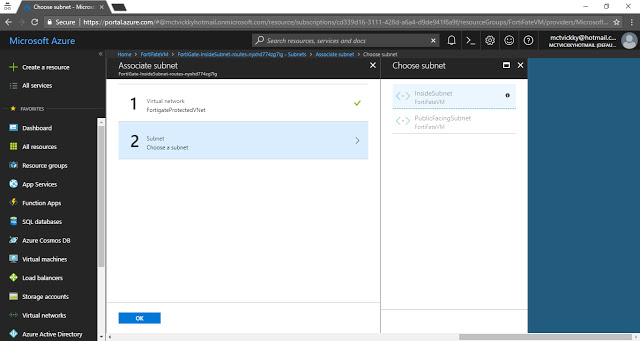

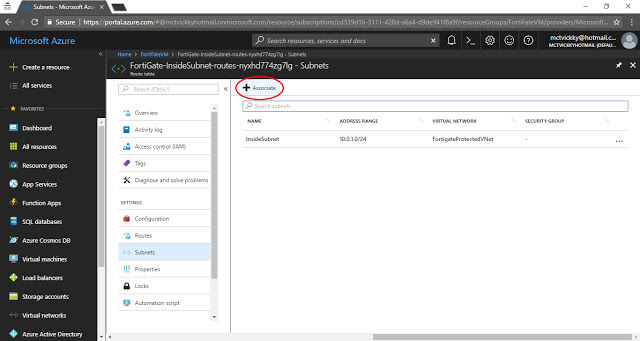

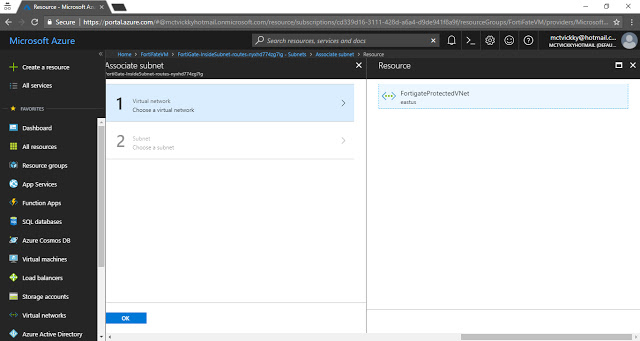

Click Subnet and Click + Associates and Select Virtual Network and Subnet Ok.

Azure

Azure

Azure

Step 9

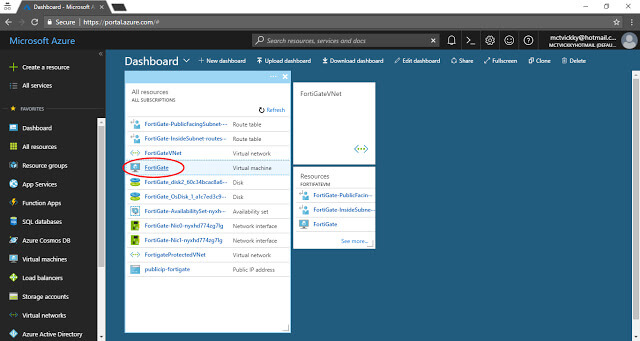

In this Screen Click FortiGate VM.

Azure

Step 10

In the FortiGate VM copy Public IP Address.

Azure

Step 11

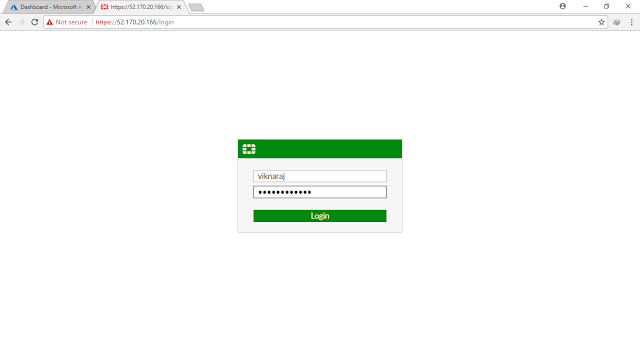

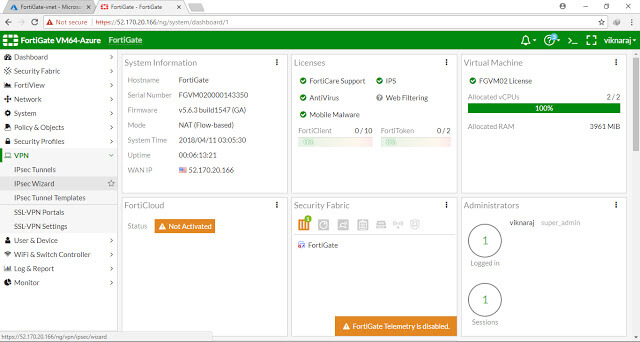

After Coping IP Address Open your Browser and Past the IP Address, and enter your Username and Password, and then click Login.

Azure

Step 12

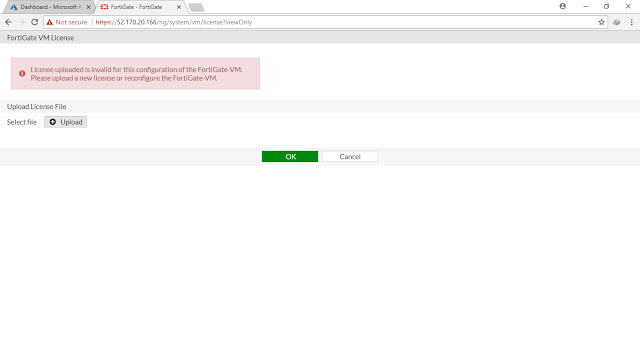

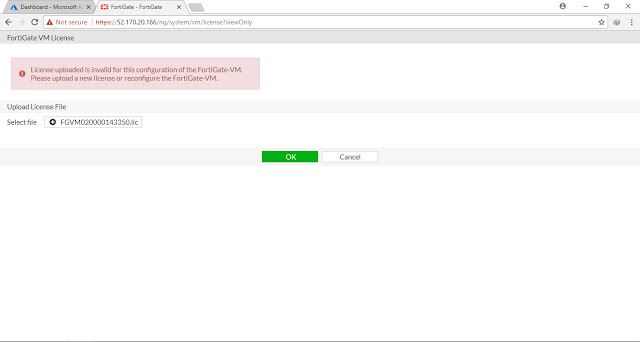

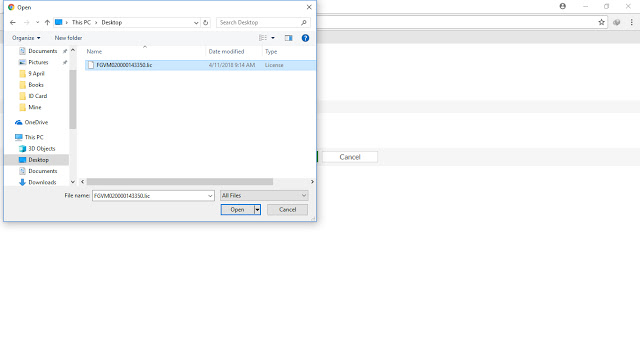

In this Screen Upload your License, Click Browse and Update the License.
  • You can get the the license using your corporate license.

    Azure

    Azure

    Azure

Step 13

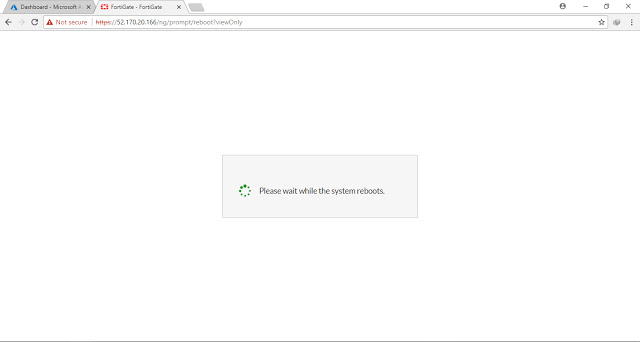

After Rebooting the System again enter your log in Information and Click Ok.

Azure

Azure

Azure
