Configuring Angular In VS Code

Introduction


AngularJs is a client-side TypeScript based framework which is used to create dynamic web applications. By using this we can create Single Page Application(SPA). Currently this is the trend.

AngularJS's data binding and dependency injection eliminates much of the code you would otherwise have to write. And it all happens within the browser, making it an ideal partner with any server technology.

Now we will learn how we can configure AngularJs and how can we work with VS Code.

Step 1

Goto - https://nodejs.org/

Click on 15.8.0 Current, it will automatically download “node-v15.8.0-x64.msi”

Configuring AngularJs In VS Code

Right click “node-v15.8.0-x64.msi” and select Run as Administrator. Otherwise if your account does not have admin access, it won’t allow it to install.

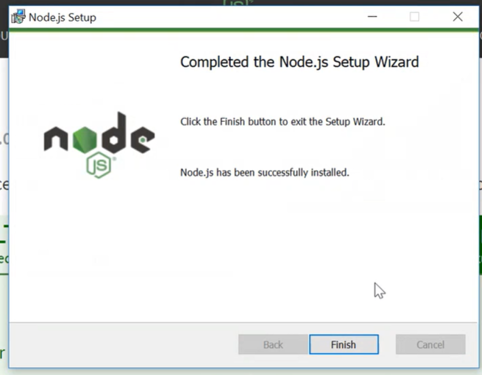

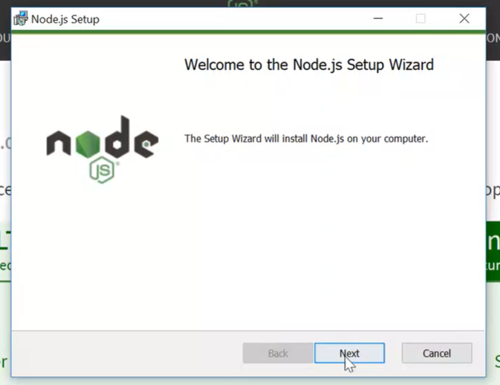

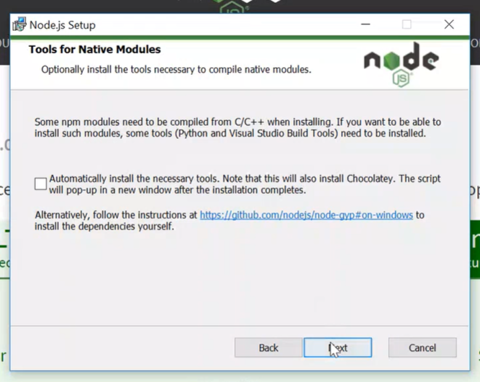

Step 2 - Installation - use the default settings

 Configuring AngularJs In VS Code Configuring AngularJs In VS Code
 Configuring AngularJs In VS Code  Configuring AngularJs In VS Code
 Configuring AngularJs In VS Code  Configuring AngularJs In VS Code
 Configuring AngularJs In VS Code

It will take a while to install it.

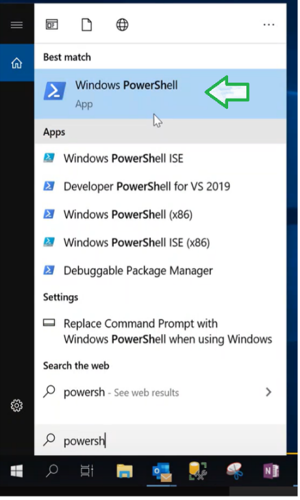

Step 3 - Search for Windows PowerShell

Open Windows Powershell

Configuring AngularJs In VS Code

In Powershell window, type:

node --version for checking Node version (installed version is v15.8.0)

npm --version for checking node package manager version (current version see in the below screen is 7.5.1)

Angular CLI will not work with npm 7.5.1 (Angular CLI is not upgrade npm version to 7).So we need to downgrade to 6.0

The following command will downgrade npm versionnpm i -g npm@6

And run againnpm --version to check vesion is downgraded or not.

Configuring AngularJs In VS Code

Step 4 - Close the PowerShell and open new PowerShell to install Angular CLI

Use this command npm i g @angular/cli

Configuring AngularJs In VS Code

Give "N" for the above question

Once installation is completed run ng --version, to check the Angular CLI version

Step 5 - Installing Visual Studio Code

It is a free editor, this is also an IDE.

Go to here.

Click on Windows - button, will download VSCodeUserSetup-x64-1.53.2.exe

Configuring AngularJs In VS Code

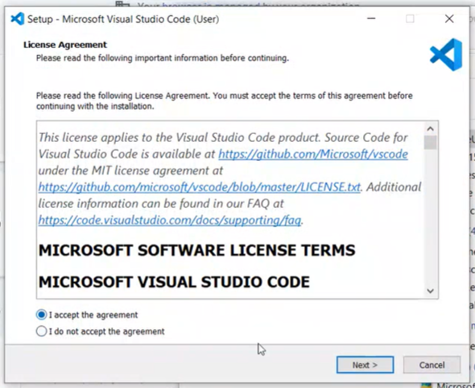

Double click VSCodeUserSetup-x64-1.53.2.exe and install VS Code

 Configuring AngularJs In VS Code  Configuring AngularJs In VS Code
 Configuring AngularJs In VS Code  Configuring AngularJs In VS Code
 Configuring AngularJs In VS Code

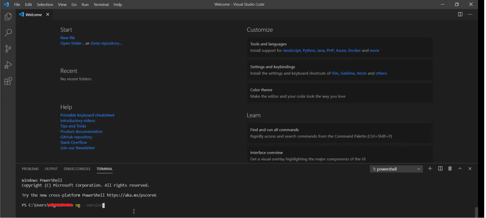

Step 6 - Open VS Code

Goto Terminal > New Terminal (Ctrl + `)

Configuring AngularJs In VS Code

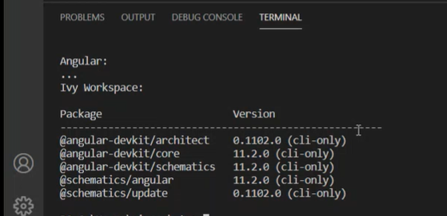

Type : ng --version. If correctly installed all packages (below screenshot), then u will get version. Otherwise you will get this error :

Configuring AngularJs In VS Code

Step 7 - Create new project

Create a new folder, I created folder named "Angular"

Open Windows PowerShell

Configuring AngularJs In VS Code

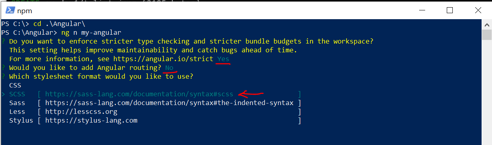

Use ng n my-angular to create new project

Instead of “n”, we can use “new” keyword also. my-angular is the project name I choose.

Once we press enter, we will ask the following questions:

Require more strict type checking..., please give Y

Would you like to add Angular routing, please select N

Press down arrow to select stylesheet as “SCSS”

It will create Project folder structure and it will install all packages from npm. It will take some time to create project.

Step 8 - Open project

Different ways to open the project in VS Code are:

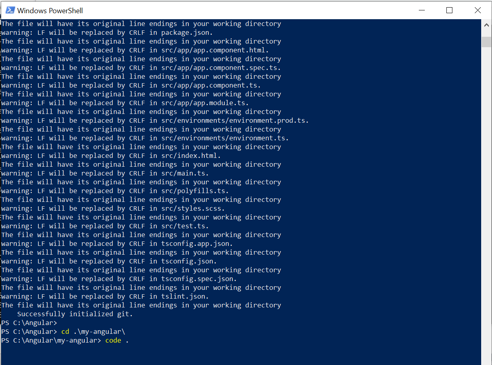

From PowerShell

Configuring AngularJs In VS Code
  • PS C:\Angular> code .\my-angular\
  • PS C:\Angular\my-angular > code.
Dot (.) stands for current folder

Configuring AngularJs In VS Code

From VS Code
  • File > Open Folder > my-angular

Conclusion


This blog will help you to setup the node, npm, angular CLI and VS Code. And also it will help you to create a new project from VS Code
