Configure Relationship in Entity Framework using Fluent API

One-to-zero or one relationship using Fluent API

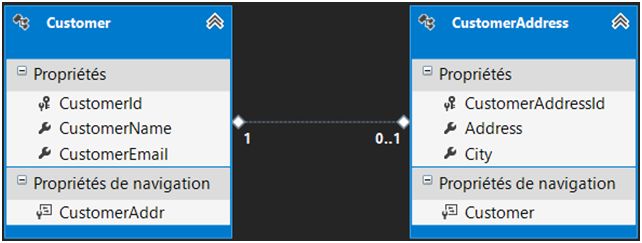

Let’s configure one-to-zero or one relationship using Customer and Customer Address entities.

Customer.cs

  1. public class Customer
  2. {
  3.     publicintCustomerId
  4.     {
  5.         get;
  6.         set;
  7.     }
  8.     public string CustomerName
  9.     {
  10.         get;
  11.         set;
  12.     }
  13.     public string CustomerEmail
  14.     {
  15.         get;
  16.         set;
  17.     }
  18.     public CustomerAddressCustomerAddr
  19.     {
  20.         get;
  21.         set;
  22.     }
  23.     publicCustomer()
  24.     {
  25.     }
  26. }
CustomerAddress.cs
  1. public class CustomerAddress
  2. {
  3.     public int CustomerAddressId
  4.     {
  5.         get;
  6.         set;
  7.     }
  8.     public string Address
  9.     {
  10.         get;
  11.         set;
  12.     }
  13.     public string City
  14.     {
  15.         get;
  16.         set;
  17.     }
  18.     public CustomerCustomer
  19.     {
  20.         get;
  21.         set;
  22.     }
  23.     public CustomerAddress()
  24.     {
  25.     }
  26. }
Now, we can pass to configure one to one or zero relationship using code as shown below:
  1. protected override void OnModelCreating(DbModelBuildermodelBuilder)
  2. {
  3.     // Now, I will configure Customer &CustomerAddress entities
  4.     modelBuilder.Entity < Customer > ()
  5.         .HasOptional(c => c.CustomerAddr)
  6.         .WithRequired(Ad => Ad.Customer);
  7. }
  • HasOptional (c=>c.CustomerAddr) indicates that Address is optional for customer entity.
  • WithRequired (Ad=>Ad.Customer) indicates that Customer property is required for Customer Address entity then you can understand that you cannot save Customer Address without Customer.

Note

One-to-one is not possible in MS SQL Server. EF creates one-to-zero or one relationship on entities not in database.



At this level, I would like to share with you the following question:

If CustomerAddressId does not follow primary key convention (className<Id>), how can we do to handle this problem?

Now, let’s consider the following Customer & CustomerAddress entities.

  1. public class Customer
  2. {
  3.     public int CustomerID
  4.     {
  5.         get;
  6.         set;
  7.     }
  8.     public string CustomerName
  9.     {
  10.         get;
  11.         set;
  12.     }
  13.     public string CustomerEmail
  14.     {
  15.         get;
  16.         set;
  17.     }
  18.     public CustomerAddressCustomerAddr
  19.     {
  20.         get;
  21.         set;
  22.     }
  23.     public Customer()
  24.     {
  25.     }
  26. }
  27. public class CustomerAddress
  28. {
  29.     public int Id
  30.     {
  31.         get;
  32.         set;
  33.     }
  34.     public string Address
  35.     {
  36.         get;
  37.         set;
  38.     }
  39.     public string City
  40.     {
  41.         get;
  42.         set;
  43.     }
  44.     public CustomerCustomer
  45.     {
  46.         get;
  47.         set;
  48.     }
  49.     public CustomerAddress()
  50.     {
  51.     }
  52. }
So, to overcome this problem, we need to add line which specifies Id property is considered as primary key.
  1. protected override void OnModelCreating(DbModelBuildermodelBuilder)
  2. {
  3.     //Configure Id as primary key for customerAddress entity
  4.     modelBuilder.Entity < CustomerAddress > ().HasKey(CA => CA.Id);
  5.     modelBuilder.Entity < Customer > ()
  6.         .HasOptional(c => c.CustomerAddr)
  7.         .WithRequired(Ad => Ad.Customer);
  8. }
