Clock in Silverlight With C#

In this blog you will learn how to create Clock in Silverlight With c#.

Here is designer code xaml:

<UserControl x:Class="Clock.Page"
    xmlns="http://schemas.microsoft.com/client/2007"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    Width="400" Height="400">
    <Canvas Width="400" Height="400" Loaded="Canvas_Loaded">
        <Canvas.Resources>
            <Storyboard x:Name="clockStoryboard">

                <!-- This animation targets the hour hand transform -->
                <DoubleAnimation x:Name="hourAnimation"
     Storyboard.TargetName="hourHandTransform"
     Storyboard.TargetProperty="Angle"
     Duration="12:0:0" RepeatBehavior="Forever"/>

                <!-- This animation targets the minute hand transform -->
                <DoubleAnimation x:Name="minuteAnimation"
     Storyboard.TargetName="minuteHandTransform"
     Storyboard.TargetProperty="Angle"
     Duration="1:0:0" RepeatBehavior="Forever"/>

                <!-- This animation targets the second hand transform  -->
                <DoubleAnimation x:Name="secondAnimation"
     Storyboard.TargetName="secondHandTransform"
     Storyboard.TargetProperty="Angle"
     Duration="0:1:0" RepeatBehavior="Forever"/>
            </Storyboard>
        </Canvas.Resources>

        <!-- Clock Shadow -->
        <!--<Ellipse Width="330" Height="330" Canvas.Left="40"
         Canvas.Top="40" Fill="Black" Opacity="0.5"/>-->

        <!-- Outer rim -->
        <Ellipse Stroke="#FF000000" x:Name="outerCircle" Width="330" Height="330"
         Canvas.Left="32" Canvas.Top="32">
            <Ellipse.Fill>
                <!--This linear gradient creates a subtle shadow effect on the outer rim. -->
                <LinearGradientBrush EndPoint="0.196,0.127" StartPoint="0.852,0.814">
                    <GradientStop Color="#FFC0C0C0" Offset="0.788"/>
                    <GradientStop Color="#FFE4E5F4" Offset="0.995"/>
                </LinearGradientBrush>
            </Ellipse.Fill>
        </Ellipse>

        <!-- Bevel -->
        <Ellipse Stroke="#FF000000" Width="290" Height="281" Canvas.Left="52"
         Canvas.Top="57">
            <Ellipse.Fill>
                <!-- This linear gradient creates a subtle shadow effect on
         the outer rim. -->
                <LinearGradientBrush EndPoint="0.867,0.848" StartPoint="0.232,0.126">
                    <GradientStop Offset="0.1"/>
                    <GradientStop Color="#FFE4E5F4" Offset="0.995"/>
                </LinearGradientBrush>
            </Ellipse.Fill>
        </Ellipse>

        <!-- Clock Face -->
        <!--<Ellipse Stroke="#FF000000" Width="273" Height="265"
         Canvas.Left="60" Canvas.Top="65" Fill="#FF000000"/>-->

        <!-- Central Clock Circle -->
        <Ellipse StrokeThickness="7"
         Width="32" Height="31" Canvas.Left="180" Canvas.Top="190">
            <Ellipse.Stroke>
                <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
                    <GradientStop Color="Black" Offset="0" />
                    <GradientStop Color="White" Offset="1" />
                </LinearGradientBrush>
            </Ellipse.Stroke>
            <Ellipse.Fill>
                <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
                    <GradientStop Color="Black" Offset="1" />
                    <GradientStop Color="White" Offset="0" />
                </LinearGradientBrush>
            </Ellipse.Fill>
        </Ellipse>
        <!-- Minute Hand -->
        <Rectangle Fill="Gray" Width="8" Height="80" Canvas.Left="192.5" Canvas.Top="226"
           RenderTransformOrigin="0.41,-0.26" x:Name="MinutedHand">
            <Rectangle.RenderTransform>
                <RotateTransform x:Name="minuteHandTransform"/>
            </Rectangle.RenderTransform>
        </Rectangle>

        <!-- Hour Hand -->
        <Rectangle Fill="Gray" Width="10" Height="60" Canvas.Left="192.5" Canvas.Top="226"
           RenderTransformOrigin="0.35,-0.35" x:Name="HourHand">
            <Rectangle.RenderTransform>
                <RotateTransform x:Name="hourHandTransform"/>
            </Rectangle.RenderTransform>
        </Rectangle>

        <!-- Second Hand -->
        <Rectangle Fill="Gray" Width="5" Height="80" Canvas.Left="192.5" Canvas.Top="226"
           RenderTransformOrigin="0.65,-0.26" x:Name="SecondHand" >
            <Rectangle.RenderTransform>
                <RotateTransform x:Name="secondHandTransform"/>
            </Rectangle.RenderTransform>
        </Rectangle>

    </Canvas>
</UserControl>

Now go to view code in C#:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;

namespace Clock
{
    public partial class Page : UserControl
    {
        public Page()
        {
            InitializeComponent();
        }


        public void Canvas_Loaded(object sender, EventArgs e)
        {

            // The current date and time.
            System.DateTime date = DateTime.Now;

            // Find the appropriate angle (in degrees) for the hour hand
            // based on the current time.
            double hourangle = (((float)date.Hour) / 12) * 360 + date.Minute / 2;

            // The transform is already rotated 116.5 degrees to make the hour hand be
            // in the 12 o'clock position. You must build this already existing angle
            // into the hourangle.
            hourangle += 180;

            // The same as for the hour angle.
            double minangle = (((float)date.Minute) / 60) * 360;
            minangle += 180;

            // The same for the hour angle.
            double secangle = (((float)date.Second) / 60) * 360;
            secangle += 180;

            // Set the beginning of the animation (From property) to the angle
            // corresponging to the current time.
            hourAnimation.From = hourangle;

            // Set the end of the animation (To property)to the angle
            // corresponding to the current time PLUS 360 degrees. Thus, the
            // animation will end after the clock hand moves around the clock
            // once. Note: The RepeatBehavior property of the animation is set
            // to "Forever" so the animation will begin again as soon as it completes.
            hourAnimation.To = hourangle + 360;

            // Same as with the hour animation.
            minuteAnimation.From = minangle;
            minuteAnimation.To = minangle + 360;

            // Same as with the hour animation.
            secondAnimation.From = secangle;
            secondAnimation.To = secangle + 360;

            // Start the storyboard.
            clockStoryboard.Begin();

        }

    }

}

Canvas and StoryBoard controls are main part of this.

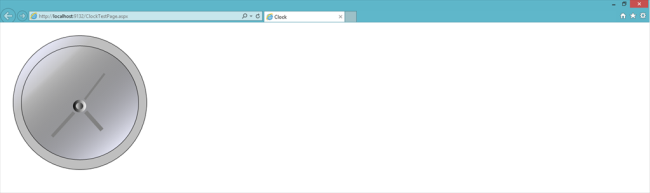

Here is 3D Clock in silverlight with C#.
