Cascading Dropdowns Using PowerApps

Introduction


In this blog, we will see how to apply a cascade dropdown to a list field using Power Apps.

Step 1

We need to create two SharePoint generic lists named “Country” and “City”. The SharePoint generic list “Country” holds a column of type “single text line” showing country names and the SharePoint generic list “City” contains two columns. The first column name is “country,” which is of “look up” field type, inherited from the parent list “Country”. The second field is “City”, which is a single text line field with country names.

Cascading Dropdowns Using PowerApps

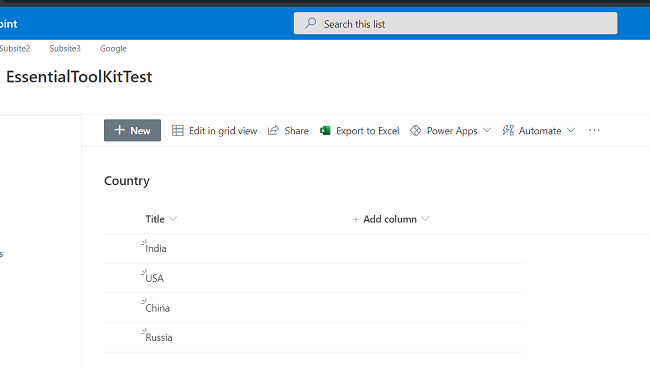

Img1. First custom list “Country”

Cascading Dropdowns Using PowerApps

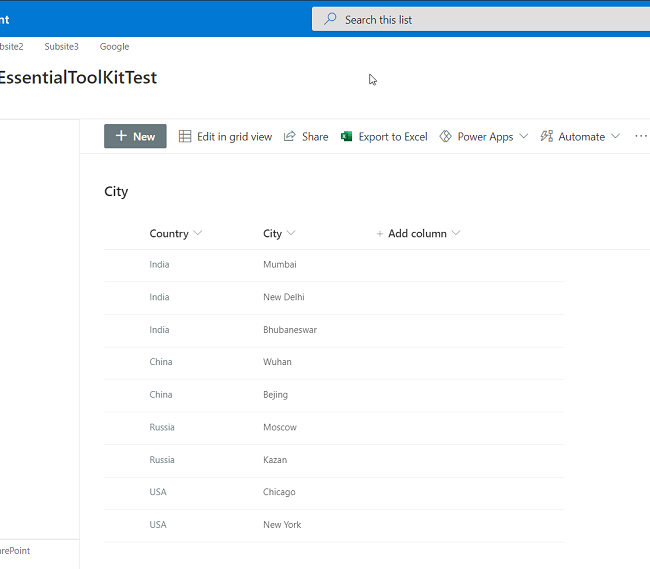

Img2. Second custom list “City”

Step 2

Now we will create a list where we will apply power apps cascading. I have created a SharePoint generic list with the name “Employee Details”. I have created three columns in it. ”Emp_id” column is a type of “single line of text”, “Country” column is “look up” field type, it inherits values from “Country” list “Title” field, “City” column is “look up” field type that inherits the value from “City” list “City” field.

Cascading Dropdowns Using PowerApps

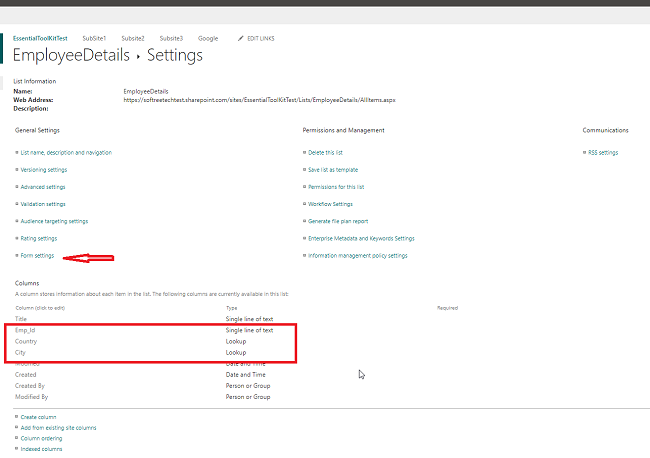

Img3. Custom list ”Employee Details”

Step 3

Go to the "Employee Details” list to the modern view. Now when inserting the new items, we can see after inserting country values in the “Country” field when we change the “City” field index, it shows all cities’ names. We will apply Cascading on “City” field. Cascading is nothing but apply filter conditions to show city names based on data selected on the “Country” field.

Cascading Dropdowns Using PowerApps

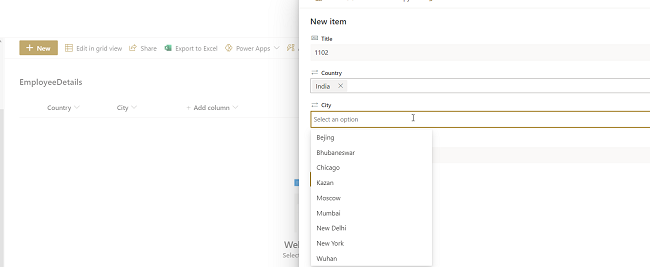

Img4. Before cascading apply all city names shows for selected country

Step 4

Now we will start Power Apps implementations. Go to list setting, Click on “Form Settings”. Now click on the “Customize in Power Apps” URL. It will open power app’s window. You can remove any fields just clicking on it and pressing the delete button.

Cascading Dropdowns Using PowerApps

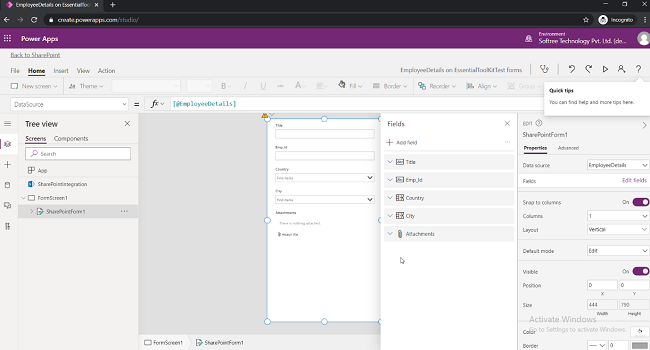

Img5. Power Apps window

Step 5

Now we will need to add our list to a database. In our example, we are adding cascaded to “City” column. In our list “City” we had provided the all countries and its cities. Now we need to add our SharePoint generic list “City” to the database. Follow the below image to add the list to a database.

Cascading Dropdowns Using PowerApps

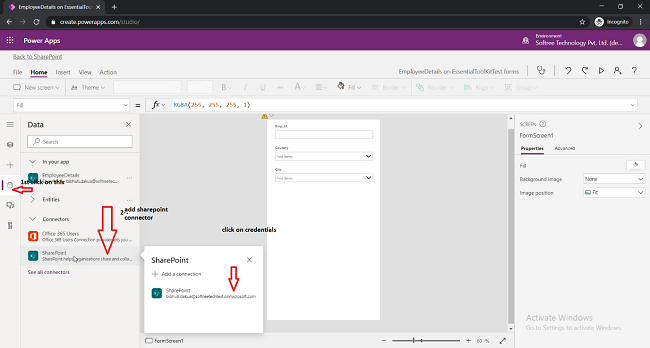

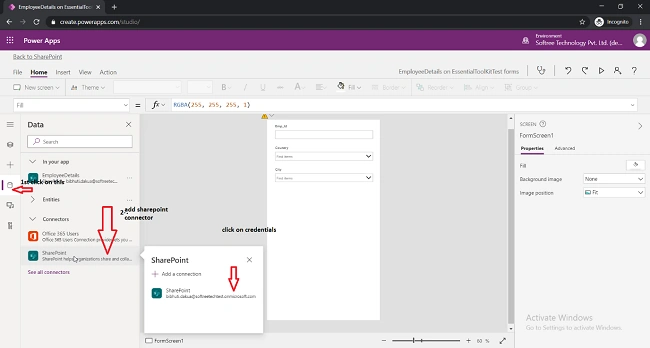

Img5. Steps to add a list to the database

Cascading Dropdowns Using PowerApps

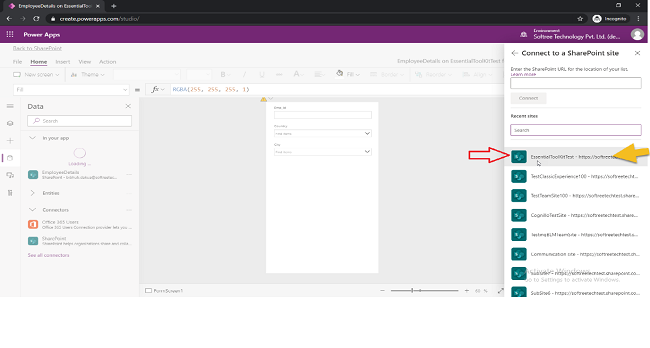

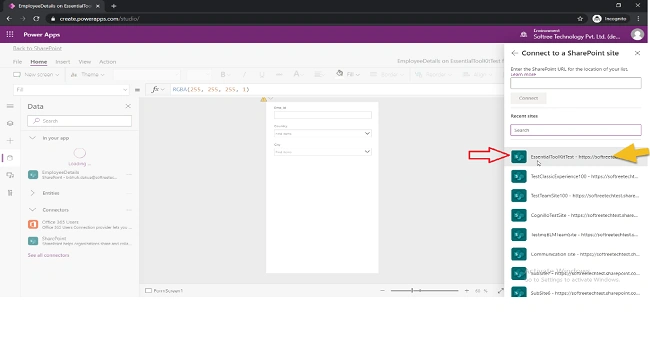

Img6. Click on site URL links where list present

Cascading Dropdowns Using PowerApps

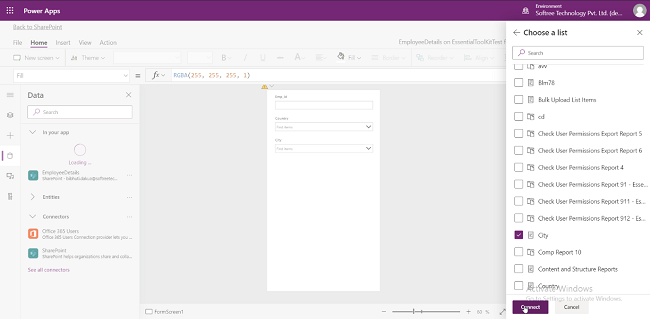

Img7. Click on list which you want to add

Step 6

Once the list is added to the database, we need to apply the filter formula. Just click on a field and unlock it.

Cascading Dropdowns Using PowerApps

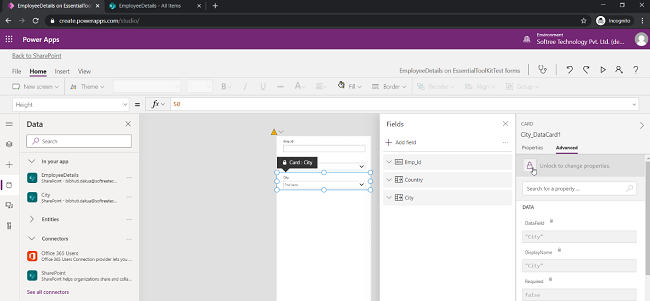

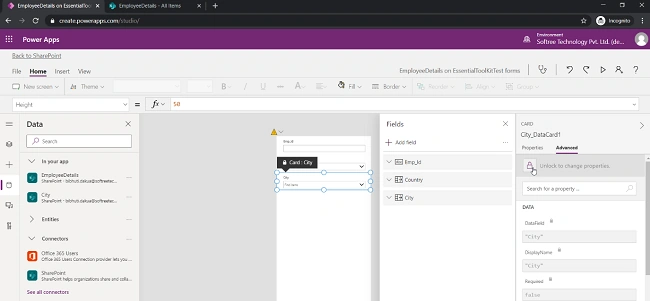

Img7. Unlock field to apply the formula on formula bar

Step 7

Now we will add a formula on the “City” field to apply cascading.

Cascading Dropdowns Using PowerApps

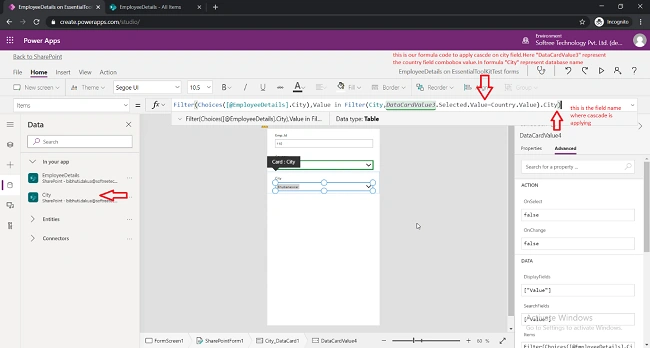

Img8. Add formula on formula bar

Step 8

Click on F5 button or arrow mark on the toolbar tab to check the changes.

Cascading Dropdowns Using PowerApps

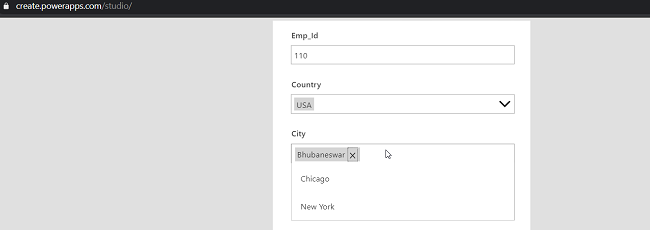

Img9. Now changing Country field value to USA shows cities name of USA

Step 9

Now we need to save our changes and publish them so that they can be worked on the list. To publish, click on the File tab, then goes to Save, add a version note then publish to SharePoint.

Cascading Dropdowns Using PowerApps

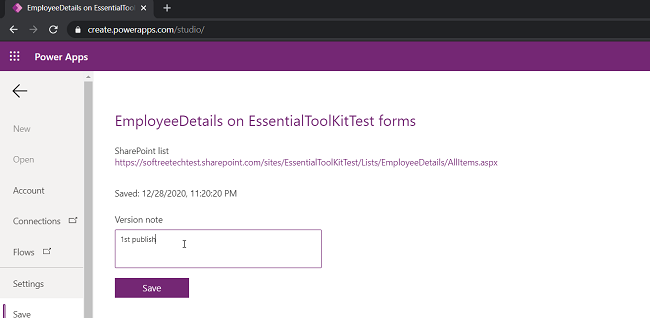

Img10. Add a version note

Cascading Dropdowns Using PowerApps

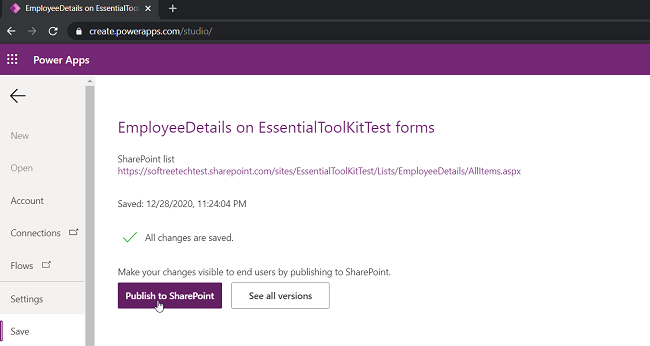

Img11. Publish to SharePoint

Step 10

Go to SharePoint list to see the results. Add new item. You can see changes are applied to the SharePoint list also.

Cascading Dropdowns Using PowerApps

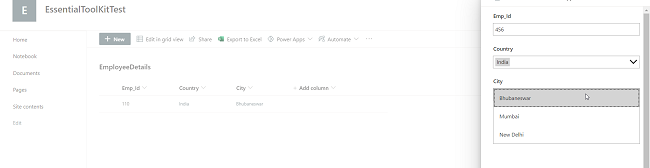

Img12. Changes are applied to the SharePoint list
