Bind GridView from 1 page to another with session

Introduction

This article demonstrates one of interesting and most useful concept in asp.net gridview control

Question: What is bind gridView from 1 page to another with session?

In simple terms "It enables to bind gridview data of one page to another page gridview with session variable".

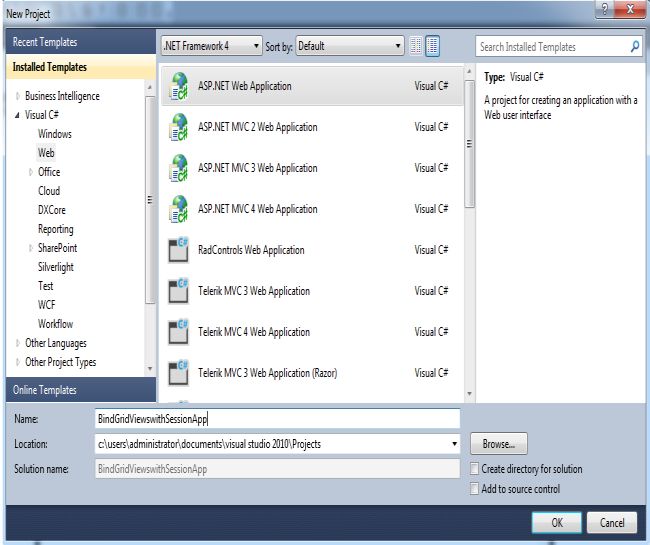

Step 1: Create a web application


Step 2: The complete code of WebForm1.aspx looks as below

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="BindGridViewswithSessionApp.WebForm1" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Label ID="Label1" runat="server" Text="Send Data From 1 Grid to Another Grid of Next Page"

                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Button ID="Button1" runat="server" Text="Pass Data to Second Page" Font-Names="Verdana"

                            Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" Style="height: 26px" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"

                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None"

                            AutoGenerateColumns="false">

                            <AlternatingRowStyle BackColor="PaleGoldenrod" />

                            <FooterStyle BackColor="Tan" />

                            <HeaderStyle BackColor="Tan" Font-Bold="True" />

                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />

                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />

                            <SortedAscendingCellStyle BackColor="#FAFAE7" />

                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />

                            <SortedDescendingCellStyle BackColor="#E1DB9C" />

                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />

                            <Columns>

                                <asp:TemplateField HeaderText="FirstName">

                                    <ItemTemplate>

                                        <asp:Label runat="server" ID="lblFName" Text='<%# Bind("FirstName") %>'>

                                        </asp:Label></ItemTemplate>

                                </asp:TemplateField>

                                <asp:TemplateField HeaderText="LastName">

                                    <ItemTemplate>

                                        <asp:Label runat="server" ID="lblLName" Text='<%# Bind("LastName") %>'>

                                        </asp:Label></ItemTemplate>

                                </asp:TemplateField>

                            </Columns>

                        </asp:GridView>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>

</html>

Step 3: The complete code of WebForm1.aspx.cs looks as below


using System;

using System.Collections.Generic;

using System.Data.SqlClient;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Data;

namespace BindGridViewswithSessionApp

{

    public partial class WebForm1 : System.Web.UI.Page

    {

        SqlConnection con = new SqlConnection("Data Source=WIN-KV3BO1RQQF7;Initial Catalog=Company;Integrated Security=True");

        protected void Page_Load(object sender, EventArgs e)

        {

            if (!IsPostBack)

            {

                Bind();

            }

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            SendGridInfo();

        }

        private void Bind()

        {

            con.Open(); SqlCommand cmd = new SqlCommand("select FirstName, LastName from Employee", con);

            SqlDataAdapter da = new SqlDataAdapter(cmd);

            DataSet ds = new DataSet(); da.Fill(ds); con.Close();

            GridView1.DataSource = ds; GridView1.DataBind();

        }

        private void SendGridInfo()

        {

            DataTable dt = new DataTable();

            DataRow dr; dt.Columns.Add(new System.Data.DataColumn("FirstName", typeof(String)));

            dt.Columns.Add(new System.Data.DataColumn("LastName", typeof(String)));

            foreach (GridViewRow row in GridView1.Rows)

            {

                Label lblFName = (Label)row.FindControl("lblFName");

                Label lblLName = (Label)row.FindControl("lblLName");

                dr = dt.NewRow(); dr[0] = lblFName.Text; dr[1] = lblLName.Text; dt.Rows.Add(dr);

            }

            Session["GridData"] = dt; Response.Redirect("WebForm2.aspx");

        }

    }

}

Step 4: The complete code of WebForm2.aspx looks as below


<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm2.aspx.cs" Inherits="BindGridViewswithSessionApp.WebForm2" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2" align="center">

                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"

                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">

                            <AlternatingRowStyle BackColor="PaleGoldenrod" />

                            <FooterStyle BackColor="Tan" />

                            <HeaderStyle BackColor="Tan" Font-Bold="True" />

                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />

                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />

                            <SortedAscendingCellStyle BackColor="#FAFAE7" />

                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />

                            <SortedDescendingCellStyle BackColor="#E1DB9C" />

                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />

                        </asp:GridView>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>

</html>


Step 5: The complete code of WebForm2.aspx.cs looks as below


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

namespace BindGridViewswithSessionApp

{

    public partial class WebForm2 : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {

            if (!IsPostBack)

            {

                if (Session["GridData"] != null)

                {

                    GridView1.DataSource = Session["GridData"]; GridView1.DataBind();

                }

            }

        }

    }

}

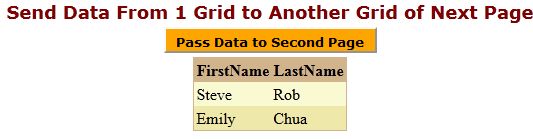

Step 6: The output for the application are shown below:

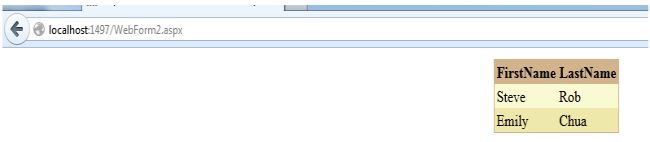

Step 7: Binding gridview of another page output for the application to are shown below:
