3-tier Architecture: Conceptual to Actual Implementation

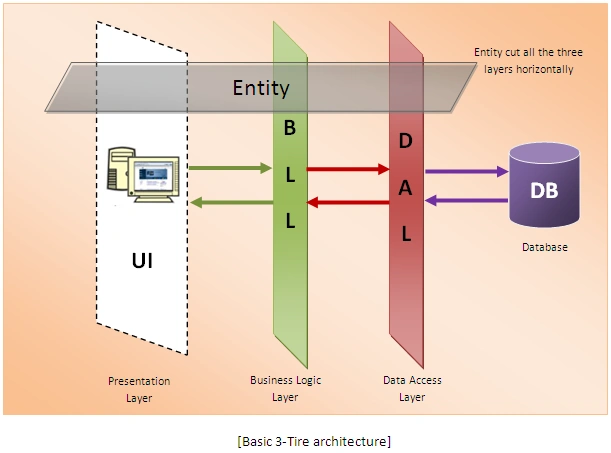

Although the basic 3-Tier approach is obsolete, still it is the base for any advance design pattern. So it is very much essential to learn and know the pattern. Here we can see the fundamental diagram of 3-Tier architecture.

The above describe a very simple architecture of a 3-tier model.

1.	DAL (Data Access Layer) interacts with Database directly, so all the SQL operation are being done within DAL only.
2.	BLL (Business Logic Layer) works like a mediator between DAL and the Presentation Tire.
3.	No direct communication is allowed between DAL and Presentation Layer.
4.	Although there is no physical presence of the Entity Layer, but Entity encapsulates all the information/data and passes it from one layer to the other.
5.	So all the Database object name and the Database Schema is being restricted inside the DAL which gives an extra security layer to the application.
6.	As Business rules/logics are being defined inside BLL, any update to business logic will not impact the DAL and the presentation layer.

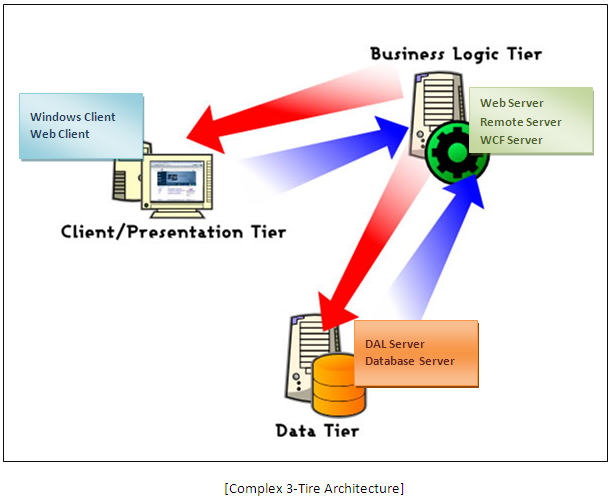

This diagram describes an actual implementation of a 3-tier model.

1.	Data Access Service and the Database Server can be hosted in single Server.
2.	Mostly SQL Server 2000/2005/2008 or Oracle can be hosted on Windows 2000/2003 Server.
3.	Business Server exposes all the operation through Web Service /Remoting/WCF.
4.	A highly configured server with Windows 2000/2003 can be used to host the Business Service, or else Microsoft BizTalk Server also can be used for this.
5.	Presentation Tier or the Client Consumes the Service exposed at Business Server by using the Proxy through http:// pipeline.
6.	Client can be any standalone machine with the application is being installed in case of Desktop Application (Win-Form or Console Application), or having a Browser to run Web Application.
7.	Data/Information are being encapsulated by entity and transferred from one location to another over network followed by all the network protocol.

For More Information please visit http://www.c-sharpcorner.com/UploadFile/bf6d89/2893/
