Xamarin.Forms - Validation Using Xamarin Community Toolkit

Introduction

Xamarin.Forms code runs on multiple platforms - each of which has its own filesystem. This means that reading and writing files are most easily done using the native file APIs on each platform. Alternatively, embedded resources are a simpler solution to distribute data files with an app.

Xamarin Community Toolkit

Xamarin Community Toolkit is a collection of reusable elements for mobile development with Xamarin.Forms, including animations, behaviors, converters, effects, and helpers. It simplifies and demonstrates common developer tasks when building iOS, Android, macOS, WPF, and UWP apps using Xamarin.Forms.

The Xamarin Community Toolkit is available as a Visual Studio NuGet package for new or existing Xamarin.Forms projects.

Validation Behaviours

  1. CharactersValidationBehavior
  2. EmailValidationBehavior
  3. MultiValidationBehavior
  4. NumericValidationBehavior
  5. RequiredStringValidationBehavior
  6. TextValidationBehavior
  7. UriValidationBehavior

References

  • https://docs.microsoft.com/en-us/xamarin/community-toolkit/behaviors/
  • https://github.com/xamarin/XamarinCommunityToolkit

Prerequisites

  • Visual Studio 2017 or later (Windows or Mac)

Let's Start,

Setting up a Xamarin.Forms Project

Start by creating a new Xamarin.Forms project. You will learn more by going through the steps yourself.

Create a new or existing Xamarin forms(.Net standard) Project. With Android and iOS Platform.

Xamarin.Forms - Validation Using Xamarin Community Toolkit

Install Xamarin.CommunityToolkit NuGet

Install the following Nuget from Nuget Manager in your Visual Studio.

  • Xamarin.CommunityToolkit

CharactersValidation

CharactersValidationBehavior is a behavior that allows the user to validate text input depending on specified parameters.

Following CharacterType you can validate,

public enum CharacterType
{
    /// <summary>Lowercase characters are allowed.</summary>
    LowercaseLetter = 1,
    /// <summary>Uppercase characters are allowed.</summary>
    UppercaseLetter = 2,
    /// <summary>Either lowercase characters or uppercase characters are allowed.</summary>
    Letter = LowercaseLetter | UppercaseLetter,
    /// <summary>Digits are allowed.</summary>
    Digit = 4,
    /// <summary>Characters and digits are allowed.</summary>
    Alphanumeric = Letter | Digit,
    /// <summary>Whitespace is allowed.</summary>
    Whitespace = 8,
    /// <summary>Non-alphanumeric symbols are allowed.</summary>
    NonAlphanumericSymbol = 16,
    /// <summary>Lowercase latin characters are allowed.</summary>
    LowercaseLatinLetter = 32,
    /// <summary>Uppercase latin characters are allowed.</summary>
    UppercaseLatinLetter = 64,
    /// <summary>Either latin lowercase characters or latin uppercase characters are allowed.</summary>
    LatinLetter = LowercaseLatinLetter | UppercaseLatinLetter,
    /// <summary>Any type of character or digit either lowercase or uppercase, latin or non-latin is allowed.</summary>
    Any = Alphanumeric | NonAlphanumericSymbol | Whitespace
}

Xaml Code

Here the sample is validating Numeric with 5 characters.

<Entry.Behaviors>
    <xct:CharactersValidationBehavior
        InvalidStyle="{StaticResource InvalidEntryStyle}"
        CharacterType="Digit"
        MaximumCharacterCount="5"
    />
</Entry.Behaviors>

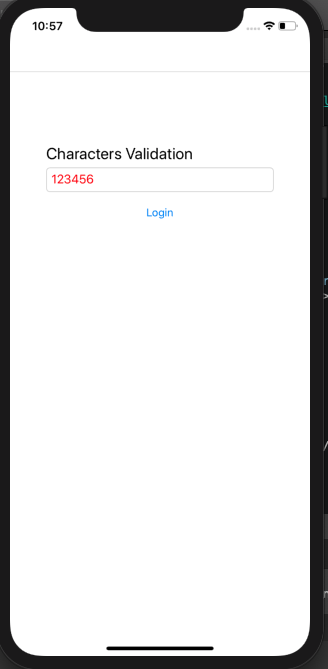

Result



The value should below 5 char only if it's greater than 5 it's shows error when you submit.

More info

https://docs.microsoft.com/en-us/xamarin/community-toolkit/behaviors/charactersvalidationbehavior

EmailValidation

EmailValidationBehavior is a behavior that allows users to determine whether or not text input is a valid email address.

XAML code

<Entry Placeholder="Email">
     <Entry.Behaviors>
        <xct:EmailValidationBehavior
            DecorationFlags="Trim"
            InvalidStyle="{StaticResource InvalidEntryStyle}"
         />
    </Entry.Behaviors>
</Entry>

Regex validation

You can validate email using rejex also.

<Entry Placeholder="Email">
    <Entry.Behaviors>
        <xct:EmailValidationBehavior
           RegexPattern="^([\w\.\-]+)@([\w\-]+)((\.(\w){2,3})+)$"
           InvalidStyle="{StaticResource InvalidEntryStyle}"
        />
    </Entry.Behaviors>
</Entry>

More info

https://docs.microsoft.com/en-us/xamarin/community-toolkit/behaviors/emailvalidationbehavior

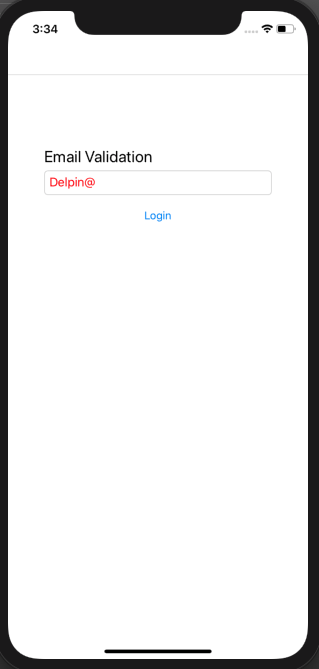

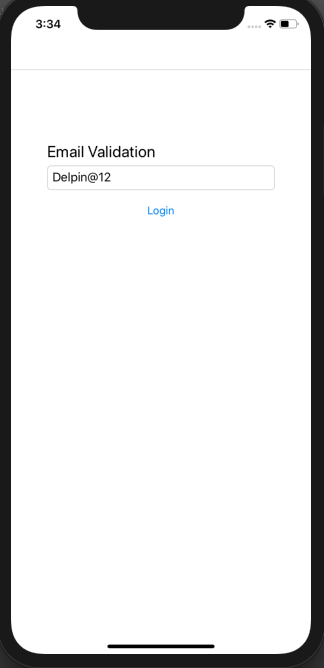

Result



MultiValidation

MultiValidationBehavior is a behavior that allows the user to combine multiple validators to validate text input depending on specified parameters. For example, an Entry control can be styled differently depending on whether a valid or an invalid text input is provided.

Xaml code

<Entry Placeholder="Password">
    <Entry.Behaviors>
    <xct:MultiValidationBehavior
                   InvalidStyle="{StaticResource InvalidEntryStyle}">
          <xct:TextValidationBehavior
                       MinimumLength="6" />
          <xct:CharactersValidationBehavior
                       CharacterType="Digit"
                       MinimumCharacterCount="1" />
          <xct:CharactersValidationBehavior
                       CharacterType="LowercaseLetter"
                       MinimumCharacterCount="1" />
          <xct:CharactersValidationBehavior
                       CharacterType="UppercaseLetter"
                       MinimumCharacterCount="1" />
          <xct:CharactersValidationBehavior
                       CharacterType="NonAlphanumericSymbol"
                       MinimumCharacterCount="1" />
          <xct:CharactersValidationBehavior
                       CharacterType="Whitespace"
                       MaximumCharacterCount="0" />
         </xct:MultiValidationBehavior>
    </Entry.Behaviors>
</Entry>

More info

https://docs.microsoft.com/en-us/xamarin/community-toolkit/behaviors/multivalidationbehavior

Result



Conclusion

I hope you have understood how to validate XAML elements using Xamarin Community Toolkit in Xamarin.Forms App.

Thanks for reading. Please share your comments and feedback. Happy Coding :)
