Xamarin.Forms - Support Dark Mode

Introduction


Xamarin.Forms code runs on multiple platforms - each of which has its own filesystem. This means that reading and writing files is most easily done using the native file APIs on each platform. Alternatively, embedded resources are a simpler solution to distribute data files with an app.


Dark Mode


Nowadays iOS and Android apps should support both Dark and Light Theme.


Prerequisites
  • Visual Studio 2017 or later (Windows or Mac)

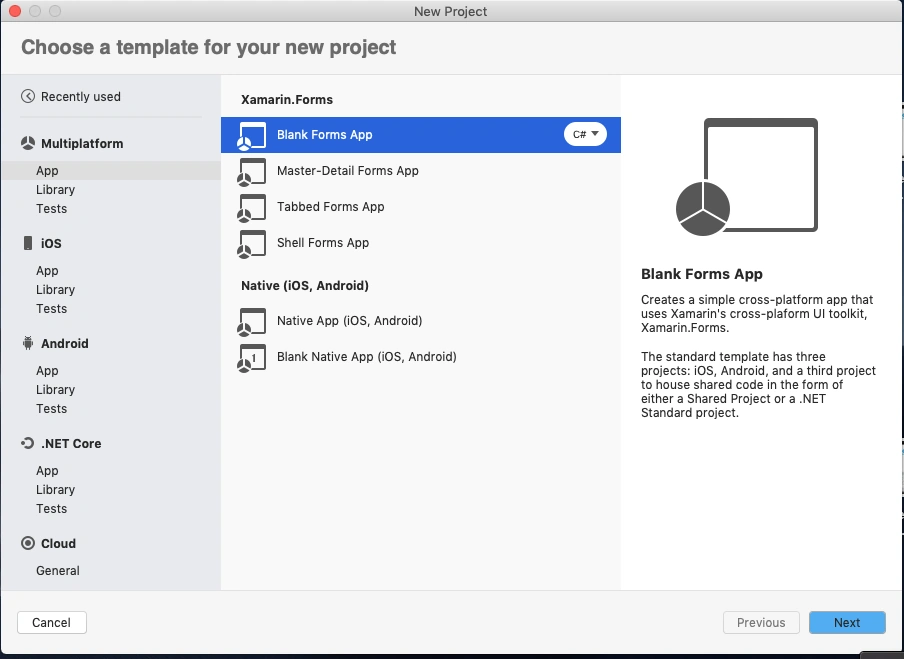

Setting up a Xamarin.Forms Project


Start by creating a new Xamarin.Forms project. You wíll learn more by going through the steps yourself.

Create a new or existing Xamarin forms(.Net standard) Project. With Android and iOS Platform.



Create a Theme


Create a ResourceDictionary for both Light and Dark Theme.

DarkTheme.xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ResourceDictionary xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              x:Class="DarkModePOC.Common.Styles.DarkTheme">
  5.
  6.     <Color x:Key="BackgroundColor">#FF000000</Color>
  7.     <Color x:Key="FrameColor">#FF1f1f1f</Color>
  8.     <Color x:Key="TextPrimaryColor">#B0FFFFFF</Color>
  9.     <Color x:Key="TextSecondaryColor">#eFeFeF</Color>
  10.
  11.     <Style x:Key="Title" TargetType="Label">
  12.         <Setter Property="TextColor" Value="{StaticResource TextPrimaryColor}"/>
  13.         <Setter Property="FontAttributes" Value="Bold"/>
  14.         <Setter Property="FontSize" Value="Large"/>
  15.     </Style>
  16. </ResourceDictionary>
LightTheme.xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ResourceDictionary xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              x:Class="DarkModePOC.Common.Styles.LightTheme">
  5.
  6.     <Color x:Key="BackgroundColor">#FFe0e0e0</Color>
  7.     <Color x:Key="FrameColor">#FFFFFFFF</Color>
  8.     <Color x:Key="TextPrimaryColor">#B0000000</Color>
  9.     <Color x:Key="TextSecondaryColor">#858585</Color>
  10.     <Style x:Key="Title" TargetType="Label">
  11.         <Setter Property="TextColor" Value="{StaticResource TextPrimaryColor}"/>
  12.         <Setter Property="FontSize" Value="Large"/>
  13.     </Style>
  14. </ResourceDictionary>

Set App Theme


In app.xaml you can set the default theme.

App.xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <Application xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  5.              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.              mc:Ignorable="d"
  7.              x:Class="DarkModePOC.App">
  8.     <Application.Resources>
  9.         <ResourceDictionary Source="Common/Styles/LightTheme.xaml" />
  10.     </Application.Resources>
  11. </Application>
Now, Create a Enum in App.xaml.cs
  1. public partial class App : Application
  2.     {
  3.         public static Theme AppTheme { getset; }
  4.         public App()
  5.         {
  6.             InitializeComponent();
  7.
  8.             MainPage = new NavigationPage(new MainPage());
  9.         }
  10.         protected override void OnStart()
  11.         {
  12.         }
  13.
  14.         protected override void OnSleep()
  15.         {
  16.         }
  17.
  18.         protected override void OnResume()
  19.         {
  20.         }
  21.         public enum Theme
  22.         {
  23.             Light,
  24.             Dark
  25.         }
  26.     }

Create a Interface


Create a interface for set Theme at runtime.
  1. public interface IAppTheme
  2.     {
  3.         void SetAppTheme(Theme theme);
  4.     }
iOS Implementation

Below code to change the Theme at runtime.

ThemeHelper.cs
  1. [assembly:Dependency(typeof(DarkModePOC.iOS.ThemeHelper))]
  2. namespace DarkModePOC.iOS
  3. {
  4.     public class ThemeHelper : IAppTheme
  5.     {
  6.         public void SetAppTheme(App.Theme theme)
  7.         {
  8.             SetTheme(theme);
  9.         }
  10.         void SetTheme(Theme mode)
  11.         {
  12.
  13.             if (mode == Theme.Dark)
  14.             {
  15.                 if (App.AppTheme == Theme.Dark)
  16.                     return;
  17.                 App.Current.Resources = new DarkTheme();
  18.             }
  19.             else
  20.             {
  21.                 if (App.AppTheme != Theme.Dark)
  22.                     return;
  23.                 App.Current.Resources = new LightTheme();
  24.             }
  25.             App.AppTheme = mode;
  26.         }
  27.
  28.     }
  29. }
Android Implementation

Below code to change the Theme at runtime.

ThemeHelper.cs
  1. [assembly: Dependency(typeof(DarkModePOC.Droid.ThemeHelper))]
  2. namespace DarkModePOC.Droid
  3. {
  4.     public class ThemeHelper : IAppTheme
  5.     {
  6.         public void SetAppTheme(App.Theme theme)
  7.         {
  8.
  9.             SetTheme(theme);
  10.         }
  11.         void SetTheme(Theme mode)
  12.         {
  13.             if (mode == Theme.Dark)
  14.             {
  15.                 if (App.AppTheme == Theme.Dark)
  16.                     return;
  17.                 App.Current.Resources = new DarkTheme();
  18.             }
  19.             else
  20.             {
  21.                 if (App.AppTheme != Theme.Dark)
  22.                     return;
  23.                 App.Current.Resources = new LightTheme();
  24.             }
  25.             App.AppTheme = mode;
  26.         }
  27.     }
  28. }
Consuming the Styles

Now, you can use the resource "DynamicResource BackgroundColor" like this.
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  5.              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.              mc:Ignorable="d"
  7.              BackgroundColor="{DynamicResource BackgroundColor}"
  8.              x:Class="DarkModePOC.MainPage">
  9.
  10.     <StackLayout HorizontalOptions="Center" VerticalOptions="Center">
  11.         <!-- Place new controls here -->
  12.         <Switch x:Name="themeToggle" IsToggled="False" Toggled="Switch_Toggled"/>
  13.         <Label TextColor="{DynamicResource TextSecondaryColor}" Text=" sample"/>
  14.         <Button HorizontalOptions="Center" VerticalOptions="Center" TextColor="Red" Text="Next Page" Clicked="Button_Clicked" />
  15.     </StackLayout>
  16.
  17. </ContentPage>
MainPage.Xaml.cs
  1. private void Switch_Toggled(object sender, ToggledEventArgs e)
  2.         {
  3.             var toggleStatus = themeToggle.IsToggled;
  4.             SetTheme(toggleStatus);
  5.
  6.         }
  7.
  8.         void SetTheme(bool status)
  9.         {
  10.             Theme themeRequested;
  11.             if (status)
  12.             {
  13.                  themeRequested = Theme.Dark;
  14.             }
  15.             else
  16.             {
  17.                 themeRequested = Theme.Light;
  18.             }
  19.
  20.             DependencyService.Get<IAppTheme>().SetAppTheme(themeRequested);
  21.         }

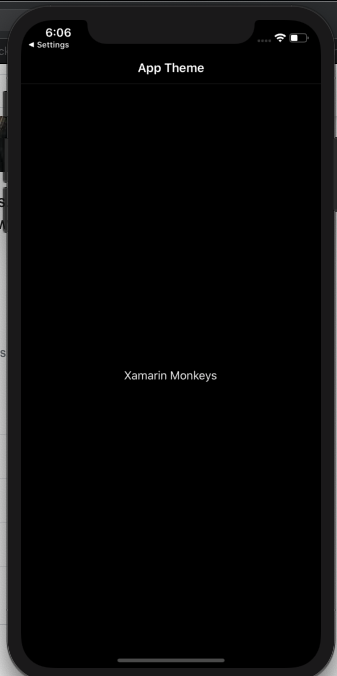

Run - DarkMode

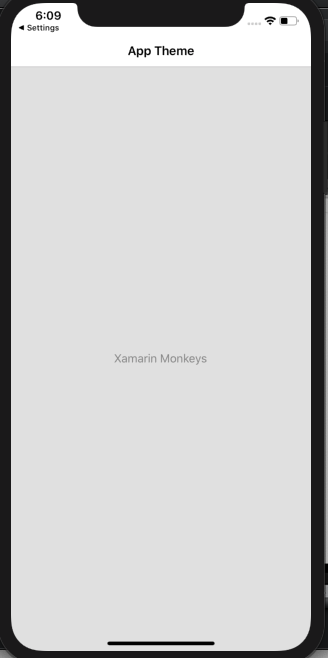

LightMode


I hope you have understood  how to support Dark Mode in Xamarin.Forms..

Thanks for reading. Please share your comments and feedback.

Happy Coding :)
