Xamarin.Forms - Custom TitleView

Introduction


Xamarin.Forms code runs on multiple platforms - each of which has its own filesystem. This means that reading and writing files is most easily done using the native file APIs on each platform. Alternatively, embedded resources are a simpler solution to distribute data files with an app.

Xamarin.Forms - Custom TitleView

Prerequisites
  • Visual Studio 2017 or later (Windows or Mac)

Setting up a Xamarin.Forms Project


Start by creating a new Xamarin.Forms project. You wíll learn more by going through the steps yourself.

Create a new or existing Xamarin forms(.Net standard) Project. with Android or iOS Platform.

Xamarin.Forms - Custom TitleView

Simple Title
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  5.              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.              mc:Ignorable="d"
  7.              x:Class="XamarinApp.MainPage"
  8.              Title="My Page">
  9.
  10.     <StackLayout Margin="0,100,0,0" VerticalOptions="StartAndExpand">
  11.         <Image VerticalOptions="Center" Source="xamarinmonkeysbanner.png"/>
  12.     </StackLayout>
  13. </ContentPage>
Xamarin.Forms - Custom TitleView


Simple TitleView with NavigationView


App.Xaml.cs

Your page must be a Navigation Page
  1. public App()
  2.        {
  3.            InitializeComponent();
  4.            MainPage = new NavigationPage(new MainPage());
  5.        }
Here, we are going to use NavigationPage,TitleView. You can use this for Custom TitleView.

MainPage.Xaml
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms" xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml" xmlns:d="http://xamarin.com/schemas/2014/forms/design" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d" x:Class="XamarinApp.MainPage">
  3.
  4.     <NavigationPage.TitleView>
  5.         <StackLayout HorizontalOptions="Center" VerticalOptions="Center"  Orientation="Horizontal">
  6.             <Label HorizontalOptions="Center" VerticalTextAlignment="Center" Text="MyPage" FontSize="Small"/>
  7.
  8.         </StackLayout>
  9.     </NavigationPage.TitleView>
  10.
  11.
  12.     <StackLayout Margin="0,100,0,0" VerticalOptions="StartAndExpand">
  13.         <Image VerticalOptions="Center" Source="xamarinmonkeysbanner.png"/>
  14.     </StackLayout>
  15. </ContentPage>
Xamarin.Forms - Custom TitleView

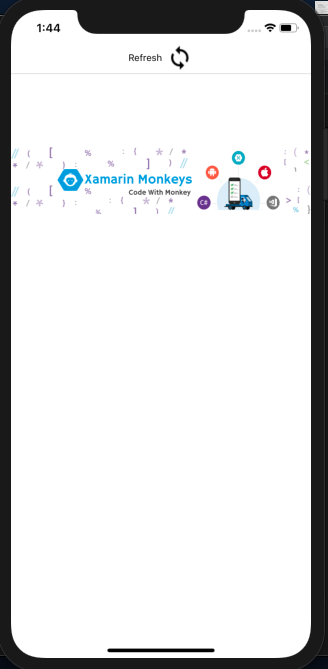

Title with Icon

Now, added Title with Image in TitleView
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms" xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml" xmlns:d="http://xamarin.com/schemas/2014/forms/design" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d" x:Class="XamarinApp.MainPage">
  3.
  4.     <NavigationPage.TitleView>
  5.         <StackLayout HorizontalOptions="Center" VerticalOptions="Center"  Orientation="Horizontal">
  6.             <Label HorizontalOptions="Center" VerticalTextAlignment="Center" Text="Refresh" FontSize="Small"/>
  7.             <Image VerticalOptions="Center"  HorizontalOptions="End" Source="sync.png"/>
  8.         </StackLayout>
  9.     </NavigationPage.TitleView>
  10.
  11.
  12.     <StackLayout Margin="0,100,0,0" VerticalOptions="StartAndExpand">
  13.         <Image VerticalOptions="Center" Source="xamarinmonkeysbanner.png"/>
  14.     </StackLayout>
  15. </ContentPage>
Xamarin.Forms - Custom TitleView

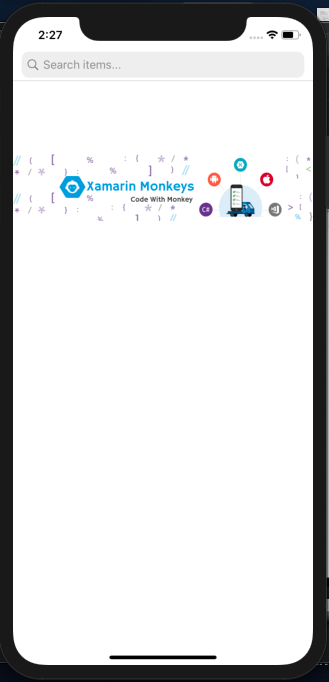

TitleView with SearchView

You can add SearchBar also in the TitleView
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  5.              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.              mc:Ignorable="d" x:Class="XamarinApp.MainPage">
  7.
  8.     <NavigationPage.TitleView>
  9.        <SearchBar Placeholder="Search items..."
  10.            HorizontalTextAlignment="Center"
  11.            FontSize="Medium"
  12.            />
  13.     </NavigationPage.TitleView>
  14.     <StackLayout Margin="0,100,0,0" VerticalOptions="StartAndExpand">
  15.
  16.         <Image VerticalOptions="Center" Source="xamarinmonkeysbanner.png"/>
  17.     </StackLayout>
  18. </ContentPage>
Xamarin.Forms - Custom TitleView

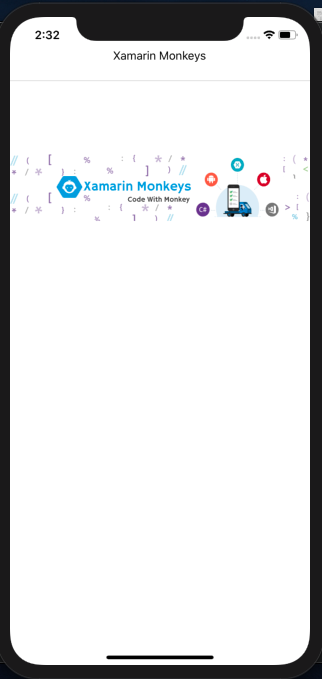

Custom TitleView

Here, we are going to create a common TitleView, you can reuse your Content pages.

TitleView.Xaml
  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <ContentView xmlns="http://xamarin.com/schemas/2014/forms" xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml" x:Class="XamarinApp.CustomView.TitleView">
  3.     <ContentView.Content>
  4.         <Label HorizontalOptions="Center" Text="Xamarin Monkeys"/>
  5.     </ContentView.Content>
  6. </ContentView>
Consume TitleView

Now, Consume the TitleView from your custom files folder.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  5.              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.              xmlns:TitleView="clr-namespace:XamarinApp.CustomView"
  7.              mc:Ignorable="d" x:Class="XamarinApp.MainPage">
  8.
  9.     <NavigationPage.TitleView>
  10.       <TitleView:TitleView/>
  11.     </NavigationPage.TitleView>
  12.
  13.
  14.     <StackLayout Margin="0,100,0,0" VerticalOptions="StartAndExpand">
  15.
  16.         <Image VerticalOptions="Center" Source="xamarinmonkeysbanner.png"/>
  17.     </StackLayout>
  18. </ContentPage>
Xamarin.Forms - Custom TitleView

I hope you have understood  how to create a custom TitleView in Xamarin.Forms.

Thanks for reading. Please share your comments and feedback.

Happy Coding :)
