Access and Display Instagram Feed In Xamarin.Forms

Let's start.

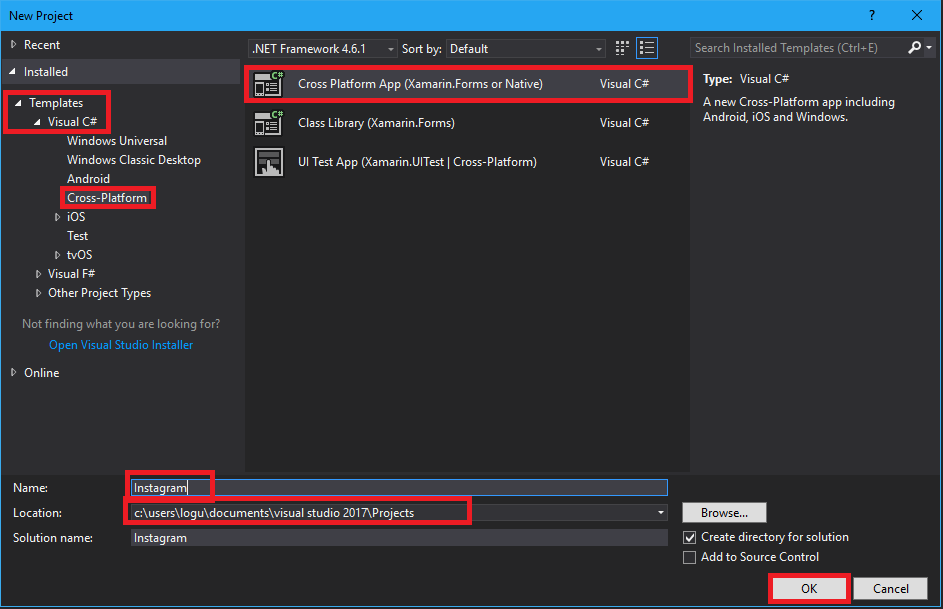

Step 1

Open Visual Studio.

Go to File >> New>> Project.

Select Templates >> Visual C#>> Cross Platform.

Select Cross Platform App (Xamarin.Forms or Native) and give your application a suitable name, such as - Instagram.

 Now, choose project location and click OK.



Step 2

Create Models folder; For that, go to Solution Explorer >> right click on Instagram (PCL) app >>  Add >> New Folder. Give the folder name such as Models.

Create a class named InstagramItems inside the Models folder. For that, go to Solution Explorer >> Instagram(PCL) >> right click and select new item. In the popup window, select Cross platform >> class. Give the class name Instagramitem. Double click to get into its design view and insert the code given below.

  1. namespace XamarinForms.Models
  2. {
  3.     public class InstagramItem
  4.     {
  5.
  6.         public string UserName { get; set; }
  7.
  8.         public string FullName { get; set; }
  9.
  10.         public string ProfilePicture { get; set; }
  11.
  12.         public string LowResolutionUrl { get; set; }
  13.
  14.         public string ThumbnailUrl { get; set; }
  15.
  16.         public string StandardResolutionUrl { get; set; }
  17.
  18.         public string Text { get; set; }
  19.
  20.         public string CreatedTime { get; set; }
  21.
  22.         public int LikesCount { get; set; }object
  23.
  24.         public int CommentsCount { get; set; }
  25.     }
  26. }

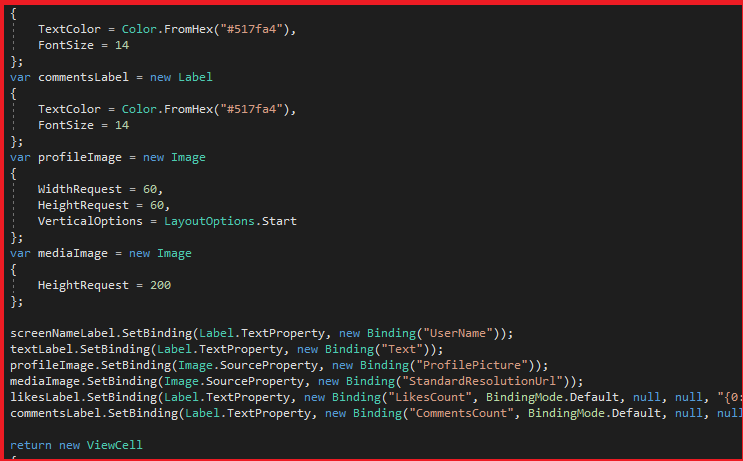

Step 3

Similarly, create a Views folder and Instagramviewpage class inside it. Here is the code for this class. This page is your application UI.

  1. using Xamarin.Forms;
  2. using XamarinForms.ViewModels;
  3.
  4. namespace XamarinForms.Views
  5. {
  6.     public class InstagramViewPage : ContentPage
  7.     {
  8.
  9.         public InstagramViewPage()
  10.         {
  11.
  12.             BackgroundColor = Color.White;
  13.
  14.             var twitterViewModel = new InstagramViewModel();
  15.
  16.             BindingContext = twitterViewModel;
  17.
  18.             var label = new Label
  19.             {
  20.                 Text = "Instagram",
  21.                 TextColor = Color.Gray,
  22.                 FontSize = 24
  23.             };
  24.
  25.             var dataTemplate = new DataTemplate(() =>
  26.             {
  27.                 var screenNameLabel = new Label
  28.                 {
  29.                     TextColor = Color.FromHex("#1c5380"),
  30.                     FontSize = 22
  31.                 };
  32.                 var textLabel = new Label
  33.                 {
  34.                     TextColor = Color.Black,
  35.                     FontSize = 14
  36.                 };
  37.                 var likesLabel = new Label
  38.                 {
  39.                     TextColor = Color.FromHex("#517fa4"),
  40.                     FontSize = 14
  41.                 };
  42.                 var commentsLabel = new Label
  43.                 {
  44.                     TextColor = Color.FromHex("#517fa4"),
  45.                     FontSize = 14
  46.                 };
  47.                 var profileImage = new Image
  48.                 {
  49.                     WidthRequest = 60,
  50.                     HeightRequest = 60,
  51.                     VerticalOptions = LayoutOptions.Start
  52.                 };
  53.                 var mediaImage = new Image
  54.                 {
  55.                     HeightRequest = 200
  56.                 };
  57.
  58.                 screenNameLabel.SetBinding(Label.TextProperty, new Binding("UserName"));
  59.                 textLabel.SetBinding(Label.TextProperty, new Binding("Text"));
  60.                 profileImage.SetBinding(Image.SourceProperty, new Binding("ProfilePicture"));
  61.                 mediaImage.SetBinding(Image.SourceProperty, new Binding("StandardResolutionUrl"));
  62.                 likesLabel.SetBinding(Label.TextProperty, new Binding("LikesCount", BindingMode.Default, null, null, "{0:n0} likes |"));
  63.                 commentsLabel.SetBinding(Label.TextProperty, new Binding("CommentsCount", BindingMode.Default, null, null, "{0:n0} likes"));
  64.
  65.                 return new ViewCell
  66.                 {
  67.                     View = new StackLayout
  68.                     {
  69.                         Orientation = StackOrientation.Horizontal,
  70.                         Padding = new Thickness(0, 5),
  71.                         Children =
  72.                         {
  73.                             profileImage,
  74.                             new StackLayout
  75.                             {
  76.                                 Orientation = StackOrientation.Vertical,
  77.                                 Children =
  78.                                 {
  79.                                     screenNameLabel,
  80.                                     new StackLayout
  81.                                     {
  82.                                         Orientation = StackOrientation.Horizontal,
  83.                                         Children =
  84.                                         {
  85.                                             likesLabel,
  86.                                             commentsLabel,
  87.                                         }
  88.                                     },
  89.                                     textLabel,
  90.                                     mediaImage,
  91.                                 }
  92.                             }
  93.                         }
  94.                     }
  95.                 };
  96.             });
  97.
  98.             var listView = new ListView
  99.             {
  100.                 HasUnevenRows = true
  101.             };
  102.
  103.             listView.SetBinding(ListView.ItemsSourceProperty, "InstagramItems");
  104.
  105.             listView.ItemTemplate = dataTemplate;
  106.
  107.             Content = new StackLayout
  108.             {
  109.                 Padding = new Thickness(5, 10),
  110.                 Children =
  111.                 {
  112.                     label,
  113.                     listView
  114.                 }
  115.             };
  116.         }
  117.     }
  118. }

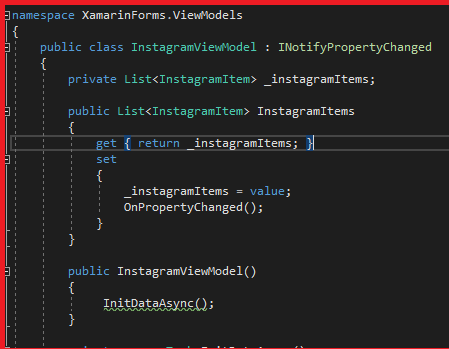

Step 4.1

Create another folder named ViewModels and create InstagramViewModels class inside it. Here is the code.


  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Diagnostics;
  5. using System.Net.Http;
  6. using System.Runtime.CompilerServices;
  7. using System.Threading.Tasks;
  8. using Newtonsoft.Json;
  9. using Newtonsoft.Json.Linq;
  10. using XamarinForms.Models;
  11.
  12. namespace XamarinForms.ViewModels
  13. {
  14.     public class InstagramViewModel : INotifyPropertyChanged
  15.     {
  16.         private List<InstagramItem> _instagramItems;
  17.
  18.         public List<InstagramItem> InstagramItems
  19.         {
  20.             get { return _instagramItems; }
  21.             set
  22.             {
  23.                 _instagramItems = value;
  24.                 OnPropertyChanged();
  25.             }
  26.         }
  27.
  28.         public InstagramViewModel()
  29.         {
  30.              InitDataAsync();
  31.         }
  32.
  33.         private async Task InitDataAsync()
  34.         {
  35.             var httpClient = new HttpClient();
  36.
  37.             var json = await httpClient.GetStringAsync(
  38.                 "https://www.instagram.com/xamarinhq/media/"
  39.                         //"https://api.instagram.com/v1/users/469744406/media/recent?client_id=88a92ed981d74235a5a2be3cf549cb59"
  40.                         );
  41.
  42.             JObject response = JsonConvert.DeserializeObject<dynamic>(json);
  43.
  44.             var items = response.Value<JArray>("items");
  45.
  46.             try
  47.             {
  48.
  49.                 var instagramItems = new List<InstagramItem>();
  50.
  51.                 foreach (var item in items)
  52.                 {
  53.                     var instagramItem = new InstagramItem
  54.                     {
  55.                         UserName = item.Value<JObject>("user").Value<string>("username"),
  56.                         FullName = item.Value<JObject>("user").Value<string>("full_name"),
  57.                         ProfilePicture = item.Value<JObject>("user").Value<string>("profile_picture"),
  58.                         LowResolutionUrl = item.Value<JObject>("images").Value<JObject>("low_resolution").Value<string>("url"),
  59.                         StandardResolutionUrl = item.Value<JObject>("images").Value<JObject>("standard_resolution").Value<string>("url"),
  60.                         ThumbnailUrl = item.Value<JObject>("images").Value<JObject>("thumbnail").Value<string>("url"),
  61.                         Text = item.Value<JObject>("caption").Value<string>("text"),
  62.                         CreatedTime = item.Value<JObject>("caption").Value<string>("created_time"),
  63.                         LikesCount = item.Value<JObject>("likes").Value<int>("count"),
  64.                         CommentsCount = item.Value<JObject>("comments").Value<int>("count"),
  65.                     };
  66.
  67.                     instagramItems.Add(instagramItem);
  68.                 }
  69.
  70.                 InstagramItems = instagramItems;
  71.             }
  72.             catch (Exception exception)
  73.             {
  74.
  75.             }
  76.         }
  77.
  78.         public event PropertyChangedEventHandler PropertyChanged;
  79.
  80.         protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
  81.         {
  82.             if (PropertyChanged != null)
  83.             {
  84.                 PropertyChanged.Invoke(this, new PropertyChangedEventArgs(propertyName));
  85.             }
  86.         }
  87.     }
  88. }
Step 4.2

Now, we need to add namespaces. For that, go to Solution Explorer >> Instagram(PCL) >> click open InstagramViewModels page design view and add the following namespaces.


  1. using System.Collections.Generic;
  2. using System.ComponentModel;
  3.
  4. using System.Net.Http;
  5. using System.Runtime.CompilerServices;
  6. using System.Threading.Tasks;
  7. using Newtonsoft.Json;
  8. using Newtonsoft.Json.Linq;
  9. using Instagram.Models;
  10. using XamarinForms.Models;

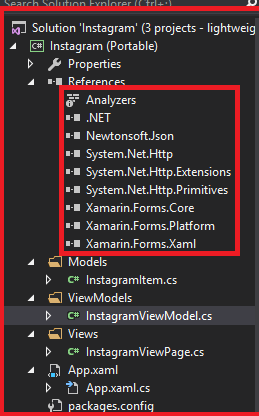

Step 5

Add References now. For that, go to Solution Explorer >> Instagram(PCL)app >> right click on References >> Add References. Add the given references.


  1. Newtonsoft.Json
  2. System.Net.Http
  3. System.Net.Http.Extensions
  4. System.Net.Http.Primitivies
Step 6

After design view creation, go to Solution Explorer >> Instagram(PCL) >> click open App.xaml.cs file and declare that the Main page is InstagramViewPage. The code is given below.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5.
  6. using Xamarin.Forms;
  7. using XamarinForms.Views;
  8.
  9. using XamarinForms.Models;
  10. using XamarinForms.ViewModels;
  11.
  12. namespace Instagram
  13. {
  14.     public partial class App : Application
  15.     {
  16.         public App()
  17.         {
  18.             InitializeComponent();
  19.
  20.             MainPage = new InstagramViewPage();
  21.         }
  22.
  23.         protected override void OnStart()
  24.         {
  25.             // Handle when your app starts
  26.         }
  27.
  28.         protected override void OnSleep()
  29.         {
  30.             // Handle when your app sleeps
  31.         }
  32.
  33.         protected override void OnResume()
  34.         {
  35.             // Handle when your app resumes
  36.         }
  37.     }
  38. }
Step 7

Now, go to Build menu and click "Configure Manager". Here, you can configure your startup projects. Click F5 or start Build and Run your application.

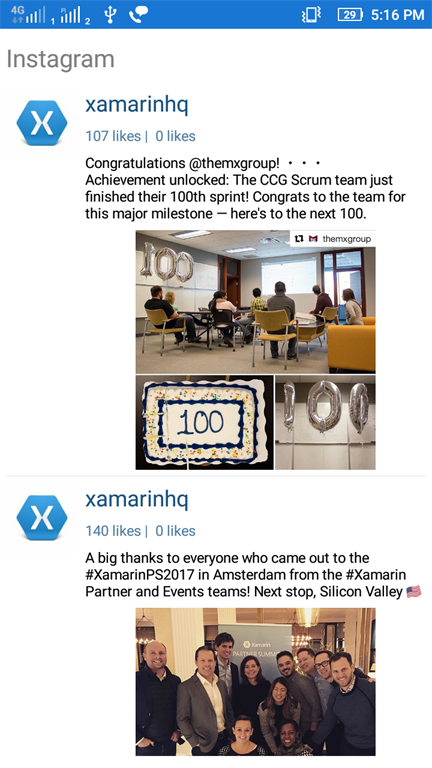

Finally, we have successfully created a Xamarin.Forms Instagram application.

Conclusion

I hope you have learned how to create an Instagram application using MVVM pattern.
