Xamarin.Android - QR Code Reader By Mobile Camera

Introduction

Today, I shall show you how to create a QR Code Reader app in Xamarin, that uses a mobile camera.

The Prerequisites
  • Android Support Library v7 AppCompat
  • Xamarin Android Support v4
  • Google Play Services - Vision
The steps given below are required to be followed in order to create a QR code reader app by a mobile camera in Xamarin.Android, using Visual Studio.

Step 1 - Create Android Project

Create your Android solution in Visual Studio or Xamarin Studio. Select Android and from the list, choose Android Blank App. Give it a name, like QrReaderByCamera.

(ProjectName: QrReaderByCamera)

Step 2 - Add Android.Support.v7.AppCompat Library

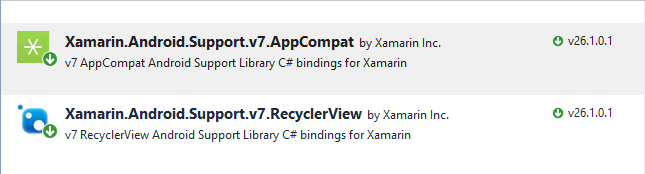

First of all, in References, add a reference to Android.Support.v7.AppCompat using NuGet Package Manager, as shown below.


Step 3 - Add Xamarin Android Support v4

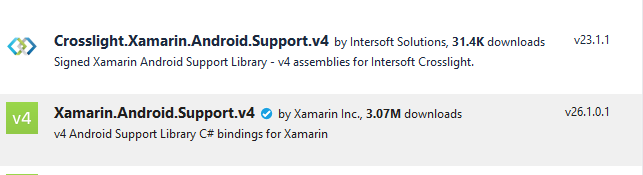

Similarly, install Xamarin Android Support v4 Library.

Step 4 - Add Xamarin Google Play Services - Vision

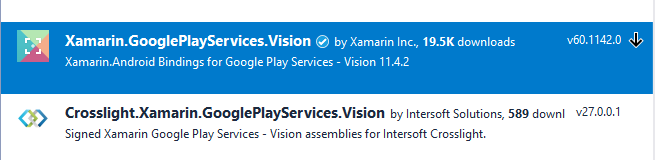

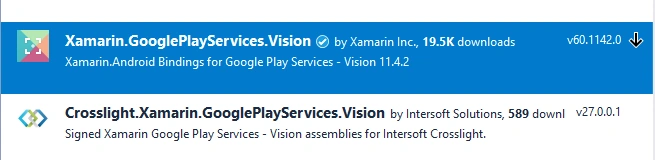

Next in References, add another reference to Xamarin GooglePlayServices Vision using NuGet Package Manager, as shown below.



Step 5 - Layout

Open Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml and add the following code. The layout will have a SurfaceView in order to display the preview frames captured by the camera. I also added a TextView to display the contents of the QR Code.

(FileName: Main.axml)

XML Code
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent">
  5.     <SurfaceView
  6.         android:id="@+id/cameraView"
  7.         android:layout_width="match_parent"
  8.         android:layout_height="480dp"
  9.         android:layout_centerInParent="true" />
  10.     <TextView
  11.         android:layout_centerInParent="true"
  12.         android:gravity="center_horizontal"
  13.         android:id="@+id/txtResult"
  14.         android:layout_below="@+id/cameraView"
  15.         android:layout_width="match_parent"
  16.         android:layout_height="wrap_content"
  17.         android:text="Please focus Camera to QR Code"
  18.         android:textSize="20sp"
  19.         android:layout_marginTop="20dp" />
  20. </RelativeLayout>
Step 6 - Main Activity Class

Now, go to Solution Explorer-> Project Name-> MainActivity and add the following code with appropriate namespaces.

(FileName: MainActivity)

C# Code
  1. using Android;
  2. using Android.App;
  3. using Android.Content;
  4. using Android.Content.PM;
  5. using Android.Gms.Vision;
  6. using Android.Gms.Vision.Barcodes;
  7. using Android.Graphics;
  8. using Android.OS;
  9. using Android.Runtime;
  10. using Android.Support.V4.App;
  11. using Android.Support.V7.App;
  12. using Android.Util;
  13. using Android.Views;
  14. using Android.Widget;
  15. using System;
  16. using static Android.Gms.Vision.Detector;
  17. namespace QrReaderByCamera
  18. {
  19.     [Activity(Label = "QrReaderByCamera", MainLauncher = true , Theme ="@style/Theme.AppCompat.Light.NoActionBar")]
  20.     public class MainActivity : AppCompatActivity , ISurfaceHolderCallback, IProcessor
  21.     {
  22.         SurfaceView surfaceView;
  23.         TextView txtResult;
  24.         BarcodeDetector barcodeDetector;
  25.         CameraSource cameraSource;
  26.         const int RequestCameraPermisionID = 1001;
  27.         public override void OnRequestPermissionsResult(int requestCode, string[] permissions, [GeneratedEnum] Permission[] grantResults)
  28.         {
  29.             switch (requestCode)
  30.             {
  31.                 case RequestCameraPermisionID:
  32.                     {
  33.                         if(grantResults[0] == Permission.Granted)
  34.                         {
  35.                             if (ActivityCompat.CheckSelfPermission(ApplicationContext, Manifest.Permission.Camera) != Android.Content.PM.Permission.Granted)
  36.                             {
  37.                                 //Request Permision
  38.                                 ActivityCompat.RequestPermissions(thisnew string[]
  39.                                 {
  40.                     Manifest.Permission.Camera
  41.                                 }, RequestCameraPermisionID);
  42.                                 return;
  43.                             }
  44.                             try
  45.                             {
  46.                                 cameraSource.Start(surfaceView.Holder);
  47.                             }
  48.                             catch (InvalidOperationException)
  49.                             {
  50.                             }
  51.                         }
  52.                     }
  53.                     break;
  54.             }
  55.         }
  56.         protected override void OnCreate(Bundle savedInstanceState)
  57.         {
  58.             base.OnCreate(savedInstanceState);
  59.             // Set our view from the "main" layout resource
  60.             SetContentView(Resource.Layout.Main);
  61.             surfaceView = FindViewById<SurfaceView>(Resource.Id.cameraView);
  62.             txtResult = FindViewById<TextView>(Resource.Id.txtResult);
  63.             Bitmap bitMap = BitmapFactory.DecodeResource(ApplicationContext
  64.             .Resources, Resource.Drawable.qrcode);
  65.             barcodeDetector = new BarcodeDetector.Builder(this)
  66.                 .SetBarcodeFormats(BarcodeFormat.QrCode)
  67.                 .Build();
  68.             cameraSource = new CameraSource
  69.                 .Builder(this, barcodeDetector)
  70.                 .SetRequestedPreviewSize(640, 480)
  71.                 .Build();
  72.             surfaceView.Holder.AddCallback(this);
  73.             barcodeDetector.SetProcessor(this);
  74.         }
  75.         public void SurfaceChanged(ISurfaceHolder holder, [GeneratedEnum] Format format, int width, int height)
  76.         {
  77.         }
  78.         public void SurfaceCreated(ISurfaceHolder holder)
  79.         {
  80.             if(ActivityCompat.CheckSelfPermission(ApplicationContext, Manifest.Permission.Camera) != Android.Content.PM.Permission.Granted)
  81.             {
  82.                 //Request Permision
  83.                 ActivityCompat.RequestPermissions(thisnew string[]
  84.                 {
  85.                     Manifest.Permission.Camera
  86.                 }, RequestCameraPermisionID);
  87.                 return;
  88.             }
  89.             try
  90.             {
  91.                 cameraSource.Start(surfaceView.Holder);
  92.             }
  93.             catch (InvalidOperationException)
  94.             {
  95.             }
  96.         }
  97.         public void SurfaceDestroyed(ISurfaceHolder holder)
  98.         {
  99.             cameraSource.Stop();
  100.         }
  101.         public void ReceiveDetections(Detections detections)
  102.         {
  103.             SparseArray qrcodes = detections.DetectedItems;
  104.             if (qrcodes.Size() != 0)
  105.             {
  106.                 txtResult.Post(() => {
  107.                     Vibrator vibrator = (Vibrator)GetSystemService(Context.VibratorService);
  108.                     vibrator.Vibrate(1000);
  109.                     txtResult.Text = ((Barcode)qrcodes.ValueAt(0)).RawValue;
  110.                 });
  111.             }
  112.         }
  113.         public void Release()
  114.         {
  115.
  116.         }
  117.     }
  118. }
Step 7 - Permission From Device

We need a permission from the device because we shall be using the device’s camera to capture QR Code. Please add Camera permissions to your AndroidManifest.xml. Open the Solution Explorer-> Properties-> AndroidManifest and let's add the code inside application tags.
  1. <uses-permission android:name="android.permission.CAMERA" />
  2.     <uses-permission android:name="android.permission.VIBRATE" />
  3.     <application android:allowBackup="true" android:label="@string/app_name">
  4.         <meta-data android:name="com.google.android.gms.vision.DEPENDENCIES" android:value="barcode" />
  5.     </application>
OutPut

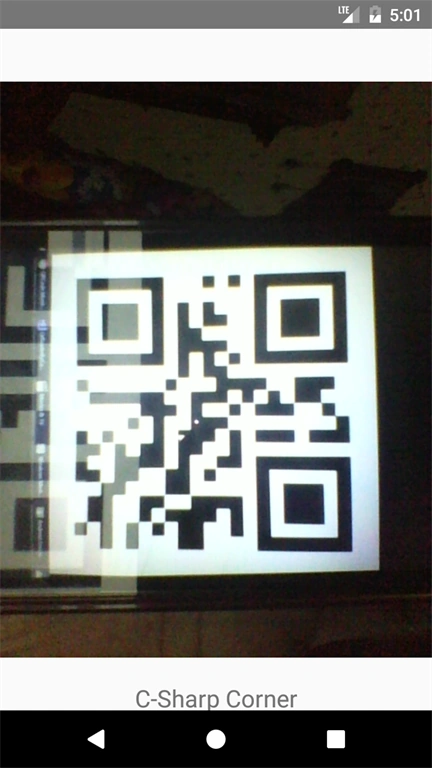

Running this project, and scanning a QR code, you will have the result like below.



Summary

This was the process of creating a QR Code Reader by Mobile Camera app in Xamarin.Android. Please share your comments and feedback.
