Xamarin.Android - Making A Weather App

Introduction

In this article, I shall show you how to make a weather Android app using Open-Weather-Map API by geographic coordinates.

Prerequisites
  • Weather API Key
  • Newtonsoft.json Packages
  • AppCompat Android Library v7
  • Picasso Images Caching Library
Step1

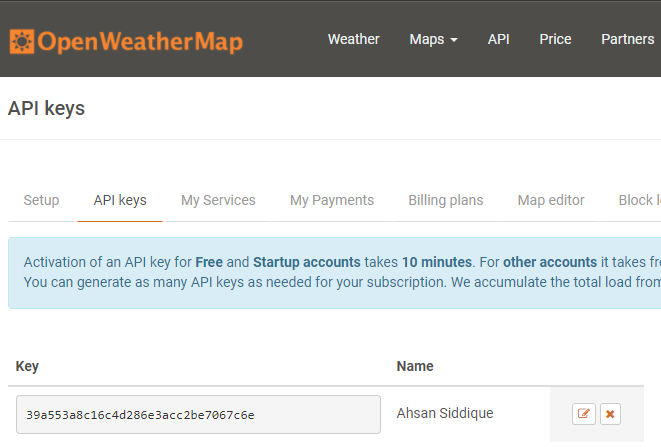

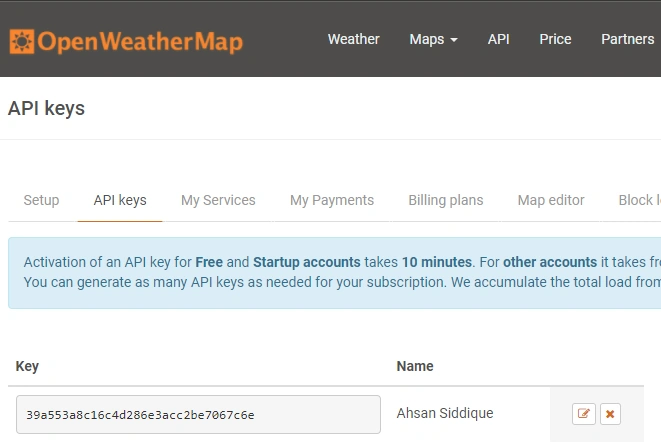

First, we need to open Weather Map API key. Go to https://openweathermap.org create an account and get the API key.



Step2

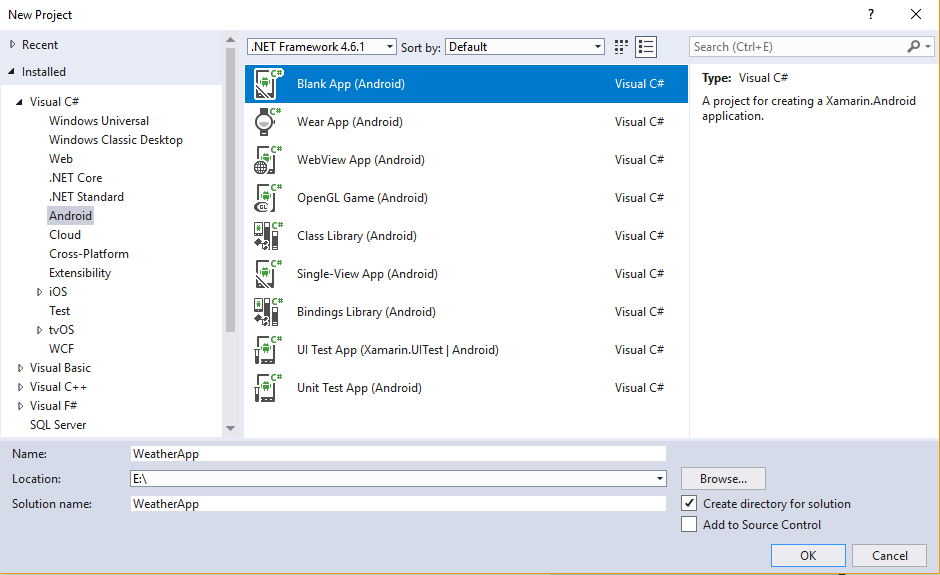

Open Visual Studio and go to New Project-> Templates-> Visual C#-> Android-> Blank app. Give it a name, like WeatherApp.


Step3

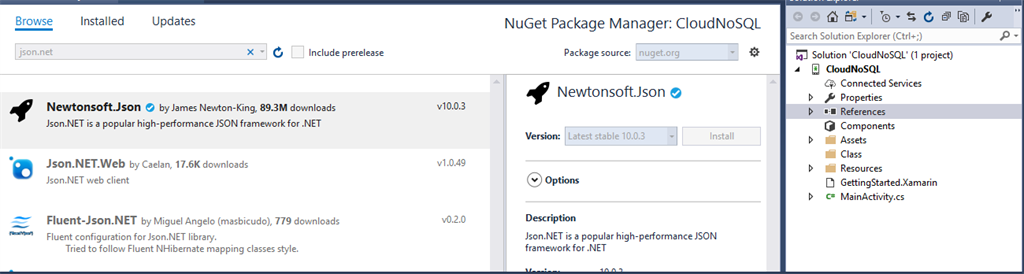

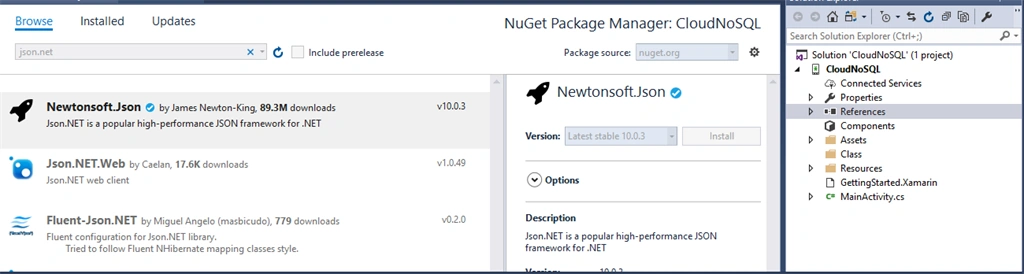

Next, go to Solution Explorer-> Project Name-> References. Then, right-click to "Manage NuGet Packages" and search for JSON. Install the Newtonsoft.Json Packages.



Step4

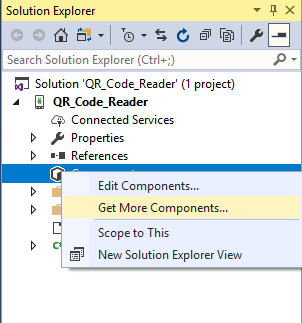

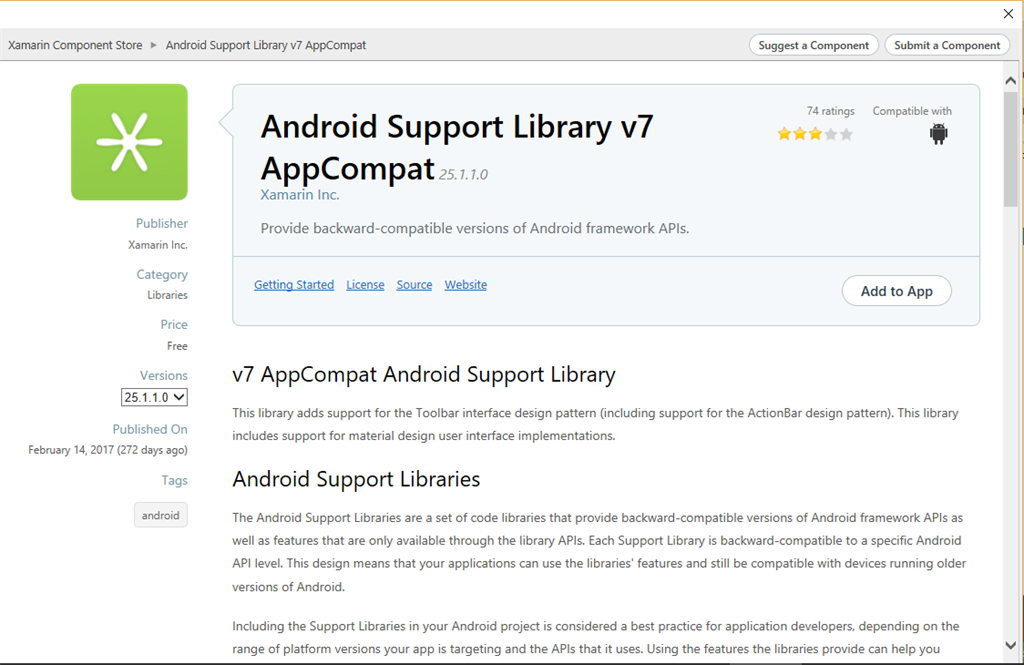

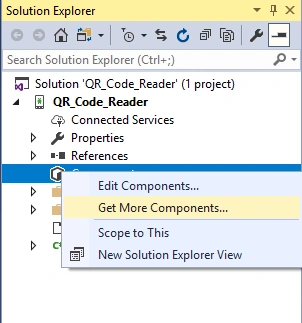

Next, we need to add a component that is required for layout. Open Solution Explorer and go to Components -> Get More Components. In this way, you can move on Xamarin Components Store, then search for AppCompat and click "Add to App".




Step5

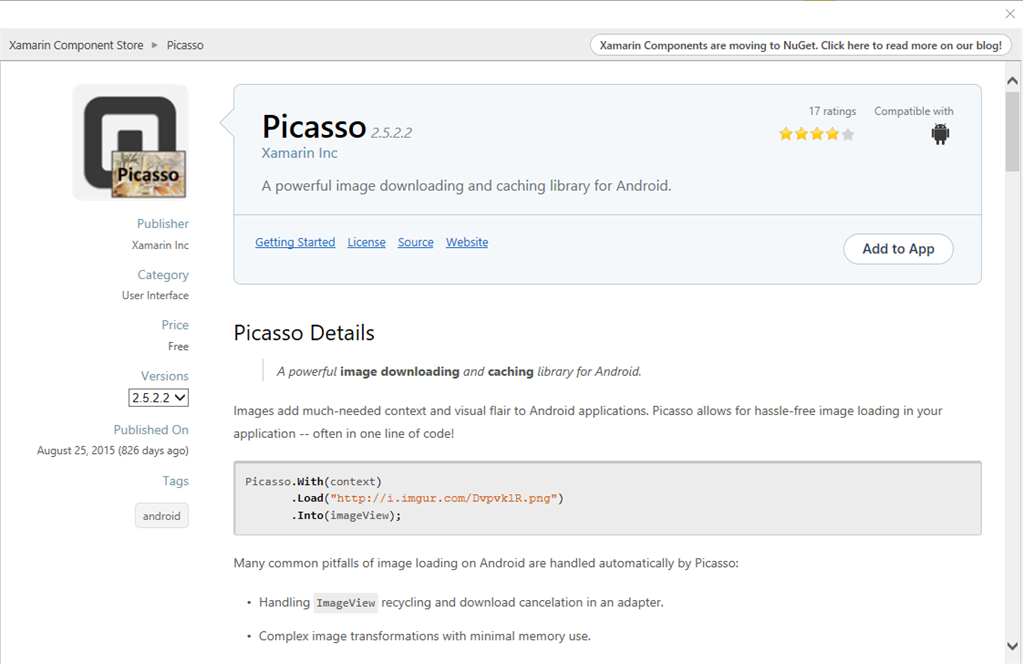

Next, we need to add a more component that is required for caching images from web. Open Solution Explorer and go to Components -> Get More Components. In this way, you can move on Xamarin Components Store, then search for Picasso and click "Add to App".


Step6

Next, go to Solution Explorer-> Project Name and right-click. Select Add -> New Item-> Class. Give it a name, like Common.cs and write the following code with appropriate namespaces.

(Class Name: Common)

Note

Please must change API_KEY of your common class.
  1. using System;
  2. using System.Text;
  3. namespace XamarinWeatherApp.Common {
  4.     class Common {
  5.         public static string API_KEY = "39a553a8c16c4d286e3acc2be7067c6e";
  6.         public static string API_LINK = "https://api.openweathermap.org/data/2.5/weather";
  7.         public static string APIRequest(string lat, string lng) {
  8.             StringBuilder sb = new StringBuilder(API_LINK);
  9.             sb.AppendFormat("?lat={0}&lon={1}&APPID={2}&units=metric", lat, lng, API_KEY);
  10.             return sb.ToString();
  11.         }
  12.         public static DateTime UnixTimeStampToDateTime(double unixTimeStamp) {
  13.             DateTime dt = new DateTime(1970, 1, 1, 0, 0, 0, DateTimeKind.Utc);
  14.             dt = dt.AddSeconds(unixTimeStamp).ToLocalTime();
  15.             return dt;
  16.         }
  17.         public static string GetImage(string icon) {
  18.             return $ "http://openweathermap.org/img/w/{icon}.png";
  19.         }
  20.     }
  21. }
Step7

Similarly, create another class named as OpenWeatherMap.cs and write the following code with appropriate namespaces.

(File Name - OpenWeatherMap)
  1. using System.Collections.Generic;
  2. namespace XamarinWeatherApp.Model {
  3.     public class Coord {
  4.         public double lon {
  5.             get;
  6.             set;
  7.         }
  8.         public double lat {
  9.             get;
  10.             set;
  11.         }
  12.     }
  13.     public class Weather {
  14.         public int id {
  15.             get;
  16.             set;
  17.         }
  18.         public string main {
  19.             get;
  20.             set;
  21.         }
  22.         public string description {
  23.             get;
  24.             set;
  25.         }
  26.         public string icon {
  27.             get;
  28.             set;
  29.         }
  30.     }
  31.     public class Main {
  32.         public double temp {
  33.             get;
  34.             set;
  35.         }
  36.         public double pressure {
  37.             get;
  38.             set;
  39.         }
  40.         public int humidity {
  41.             get;
  42.             set;
  43.         }
  44.         public double temp_min {
  45.             get;
  46.             set;
  47.         }
  48.         public double temp_max {
  49.             get;
  50.             set;
  51.         }
  52.         public double sea_level {
  53.             get;
  54.             set;
  55.         }
  56.         public double grnd_level {
  57.             get;
  58.             set;
  59.         }
  60.     }
  61.     public class Wind {
  62.         public double speed {
  63.             get;
  64.             set;
  65.         }
  66.         public double deg {
  67.             get;
  68.             set;
  69.         }
  70.     }
  71.     public class Clouds {
  72.         public int all {
  73.             get;
  74.             set;
  75.         }
  76.     }
  77.     public class Sys {
  78.         public double message {
  79.             get;
  80.             set;
  81.         }
  82.         public string country {
  83.             get;
  84.             set;
  85.         }
  86.         public int sunrise {
  87.             get;
  88.             set;
  89.         }
  90.         public int sunset {
  91.             get;
  92.             set;
  93.         }
  94.     }
  95.     public class OpenWeatherMap {
  96.         public Coord coord {
  97.             get;
  98.             set;
  99.         }
  100.         public List < Weather > weather {
  101.             get;
  102.             set;
  103.         }
  104.         public string @base {
  105.             get;
  106.             set;
  107.         }
  108.         public Main main {
  109.             get;
  110.             set;
  111.         }
  112.         public Wind wind {
  113.             get;
  114.             set;
  115.         }
  116.         public Clouds clouds {
  117.             get;
  118.             set;
  119.         }
  120.         public int dt {
  121.             get;
  122.             set;
  123.         }
  124.         public Sys sys {
  125.             get;
  126.             set;
  127.         }
  128.         public int id {
  129.             get;
  130.             set;
  131.         }
  132.         public string name {
  133.             get;
  134.             set;
  135.         }
  136.         public int cod {
  137.             get;
  138.             set;
  139.         }
  140.     }
  141. }
Step8

Next, create another class named as Helper.cs and write the following code with appropriate namespaces.

(File Name - Helper)
  1. using Java.IO;
  2. using Java.Net;
  3. using System;
  4. using System.Text;
  5. namespace XamarinWeatherApp.Helper {
  6.     public class Helper {
  7.         static String stream = null;
  8.         public Helper() {}
  9.         public String GetHTTPData(String urlString) {
  10.             try {
  11.                 URL url = new URL(urlString);
  12.                 using(var urlConnection = (HttpURLConnection) url.OpenConnection()) {
  13.                     if (urlConnection.ResponseCode == HttpStatus.Ok) {
  14.                         BufferedReader r = new BufferedReader(new InputStreamReader(urlConnection.InputStream));
  15.                         StringBuilder sb = new StringBuilder();
  16.                         String line;
  17.                         while ((line = r.ReadLine()) != null) sb.Append(line);
  18.                         stream = sb.ToString();
  19.                         urlConnection.Disconnect();
  20.                     }
  21.                 }
  22.             } catch (Exception ex) {
  23.                 System.Diagnostics.Debug.WriteLine(ex.Message);
  24.             }
  25.             return stream;
  26.         }
  27.     }
  28. }
Step9

Now, open Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml. Open this main layout file and add the following code.

(File Name: Main.axml)

(Folder Name: Layout)
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent">
  3.     <TextView android:id="@+id/txtCity" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginTop="40dp" android:text="" android:textSize="36sp" android:gravity="center" />
  4.     <TextView android:id="@+id/txtLastUpdate" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="" android:textSize="16sp" android:gravity="center" />
  5.     <ImageView android:id="@+id/imageView" android:layout_width="100dp" android:layout_height="100dp" android:layout_gravity="center" />
  6.     <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:id="@+id/txtDescription" android:text="" android:textSize="30sp" android:gravity="center" />
  7.     <TextView android:id="@+id/txtHumidity" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="" android:textSize="30sp" android:gravity="center" />
  8.     <TextView android:id="@+id/txtTime" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="" android:textSize="36sp" android:gravity="center" />
  9.     <TextView android:id="@+id/txtCelsius" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="" android:textSize="80sp" android:gravity="center" />
  10. </LinearLayout>
Step10

Next, open Solution Explorer-> Project Name-> MainActivity. Open the main activity file and add the following code using appropriate namespaces.

Main Activity
  1. using Android.App;
  2. using Android.Widget;
  3. using Android.OS;
  4. using Android.Locations;
  5. using XamarinWeatherApp.Model;
  6. using Android.Runtime;
  7. using System;
  8. using Square.Picasso;
  9. using Newtonsoft.Json;
  10. using Android.Content;
  11. namespace XamarinWeatherApp {
  12.     [Activity(Label = "WeatherApp", MainLauncher = true, Icon = "@drawable/icon", Theme = "@style/Theme.AppCompat.Light.NoActionBar")]
  13.     public class MainActivity: Activity, ILocationListener {
  14.         TextView txtCity, txtLastUpdate, txtDescription, txtHumidity, txtTime, txtCelsius;
  15.         ImageView imgView;
  16.         LocationManager locationManager;
  17.         string provider;
  18.         static double lat, lng;
  19.         OpenWeatherMap openWeatherMap = new OpenWeatherMap();
  20.         protected override void OnCreate(Bundle bundle) {
  21.             base.OnCreate(bundle);
  22.             // Set our view from the "main" layout resource
  23.             SetContentView(Resource.Layout.Main);
  24.             locationManager = (LocationManager) GetSystemService(Context.LocationService);
  25.             provider = locationManager.GetBestProvider(new Criteria(), false);
  26.             Location location = locationManager.GetLastKnownLocation(provider);
  27.             if (location == null) System.Diagnostics.Debug.WriteLine("No Location");
  28.         }
  29.         protected override void OnResume() {
  30.             base.OnResume();
  31.             locationManager.RequestLocationUpdates(provider, 400, 1, this);
  32.         }
  33.         protected override void OnPause() {
  34.             base.OnPause();
  35.             locationManager.RemoveUpdates(this);
  36.         }
  37.         public void OnLocationChanged(Location location) {
  38.             lat = Math.Round(location.Latitude, 4);
  39.             lng = Math.Round(location.Longitude, 4);
  40.             new GetWeather(this, openWeatherMap).Execute(Common.Common.APIRequest(lat.ToString(), lng.ToString()));
  41.         }
  42.         public void OnProviderDisabled(string provider) {}
  43.         public void OnProviderEnabled(string provider) {}
  44.         public void OnStatusChanged(string provider, [GeneratedEnum] Availability status, Bundle extras) {}
  45.         private class GetWeather: AsyncTask < string, Java.Lang.Void, string > {
  46.             private ProgressDialog pd = new ProgressDialog(Application.Context);
  47.             private MainActivity activity;
  48.             OpenWeatherMap openWeatherMap;
  49.             public GetWeather(MainActivity activity, OpenWeatherMap openWeatherMap) {
  50.                 this.activity = activity;
  51.                 this.openWeatherMap = openWeatherMap;
  52.             }
  53.             protected override void OnPreExecute() {
  54.                 base.OnPreExecute();
  55.                 pd.Window.SetType(Android.Views.WindowManagerTypes.SystemAlert);
  56.                 pd.SetTitle("Please wait....");
  57.                 pd.Show();
  58.             }
  59.             protected override string RunInBackground(params string[] @params) {
  60.                 string stream = null;
  61.                 string urlString = @params[0];
  62.                 Helper.Helper http = new Helper.Helper();
  63.                 //urlString = Common.Common.APIRequest(lat.ToString(), lng.ToString());
  64.                 stream = http.GetHTTPData(urlString);
  65.                 return stream;
  66.             }
  67.             protected override void OnPostExecute(string result) {
  68.                 base.OnPostExecute(result);
  69.                 if (result.Contains("Error: Not City Found")) {
  70.                     pd.Dismiss();
  71.                     return;
  72.                 }
  73.                 openWeatherMap = JsonConvert.DeserializeObject < OpenWeatherMap > (result);
  74.                 pd.Dismiss();
  75.                 //Controls
  76.                 activity.txtCity = activity.FindViewById < TextView > (Resource.Id.txtCity);
  77.                 activity.txtLastUpdate = activity.FindViewById < TextView > (Resource.Id.txtLastUpdate);
  78.                 activity.txtDescription = activity.FindViewById < TextView > (Resource.Id.txtDescription);
  79.                 activity.txtHumidity = activity.FindViewById < TextView > (Resource.Id.txtHumidity);
  80.                 activity.txtTime = activity.FindViewById < TextView > (Resource.Id.txtTime);
  81.                 activity.txtCelsius = activity.FindViewById < TextView > (Resource.Id.txtCelsius);
  82.                 activity.imgView = activity.FindViewById < ImageView > (Resource.Id.imageView);
  83.                 //Add Data
  84.                 activity.txtCity.Text = $ "{openWeatherMap.name},{openWeatherMap.sys.country}";
  85.                 activity.txtLastUpdate.Text = $ "Last Updated: {DateTime.Now.ToString("
  86.                 dd MMMM yyyy HH: mm ")}";
  87.                 activity.txtDescription.Text = $ "{openWeatherMap.weather[0].description}";
  88.                 activity.txtHumidity.Text = $ "Humidity: {openWeatherMap.main.humidity} %";
  89.                 activity.txtTime.Text = $ "{Common.Common.UnixTimeStampToDateTime(openWeatherMap.sys.sunrise).ToString("
  90.                 HH: mm ")}/{Common.Common.UnixTimeStampToDateTime(openWeatherMap.sys.sunset).ToString("
  91.                 HH: mm ")}";
  92.                 activity.txtCelsius.Text = $ "{openWeatherMap.main.temp} °C";
  93.                 if (!string.IsNullOrEmpty(openWeatherMap.weather[0].icon)) {
  94.                     Picasso.With(activity.ApplicationContext).Load(Common.Common.GetImage(openWeatherMap.weather[0].icon)).Into(activity.imgView);
  95.                 }
  96.             }
  97.         }
  98.     }
  99. }
Step11

We need some permissions from device. Let's open Solution Explorer and go to Properties-> AndroidManifest and add the following code inside application tags.
  1. <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
  2. <uses-permission android:name="android.permission.INTERNET" />
  3. <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
  4. <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
  5. <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
  6. <uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />
  7. <uses-permission android:name="com.google.android.providers.gsf.permission.READ_GSERVICES" />

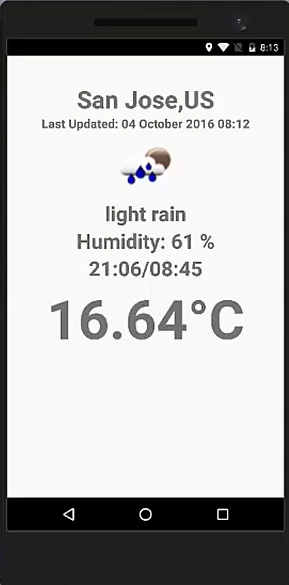

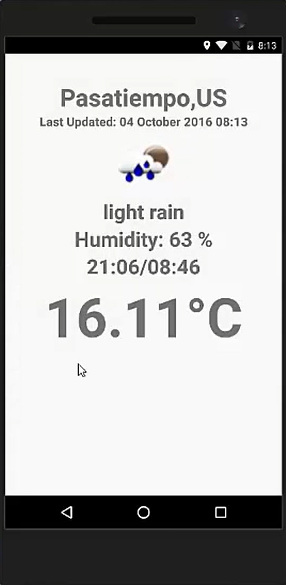

Finally, we have done our Weather app just rebuild and run the project. You will have the result like below.

Output




Similar Articles
