Xamarin Android: Create Android App One Activity To Another Activity Passing Value

Let’s start,

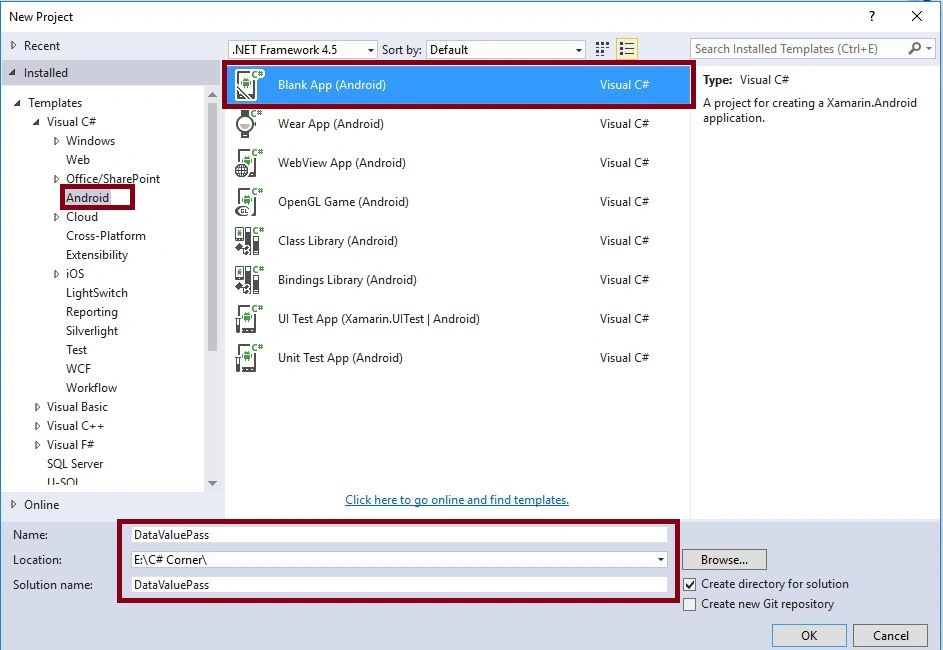

Step 1 - Open Visual Studio, New Project, Templates, Visual C#, Android, Blank App, then select Blank App. Give Project Name and Project Location.



Step 2

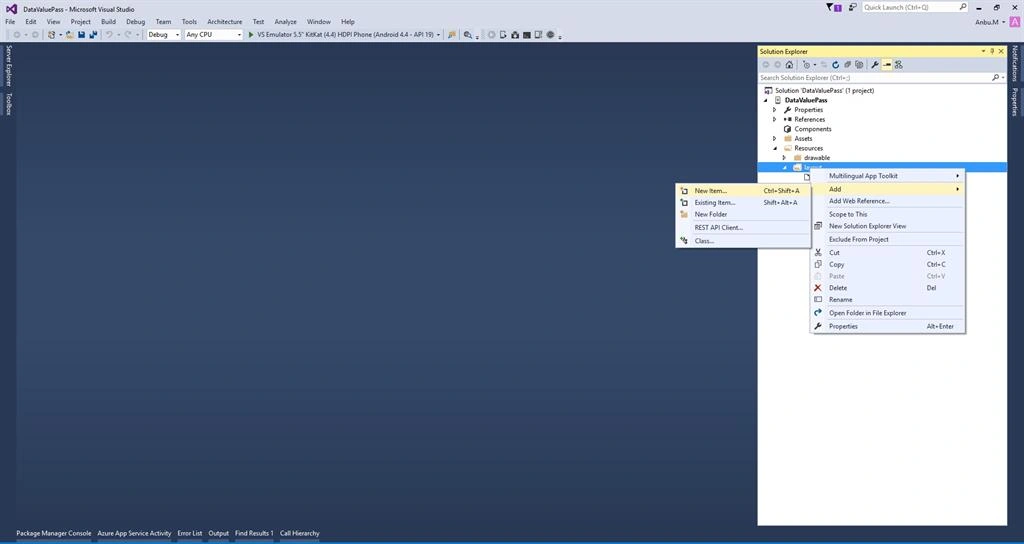

Next we need to create Second page, so go to Solution Explorer, Project Name, Resources, layout. After that right click on Add->New Item, then open new Dialog box.



Step 3 -

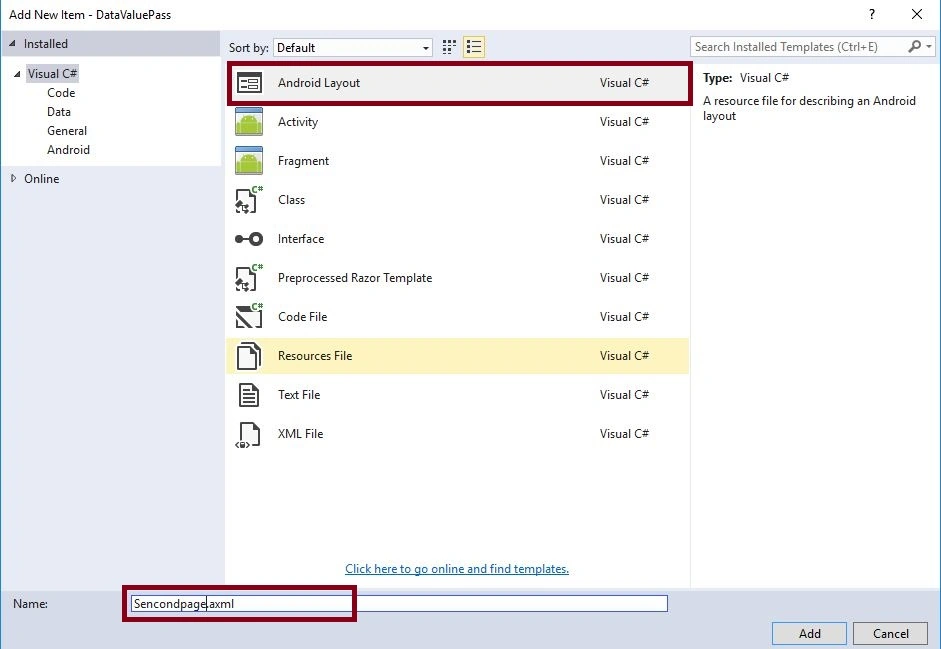

Select Android Layout and give name Secondpage.axml.



Step 4

And then we need to add one more Activity, so again go to Solution Explorer, then Project Name. After that right click to Add->New Item, then open new Dialog box.

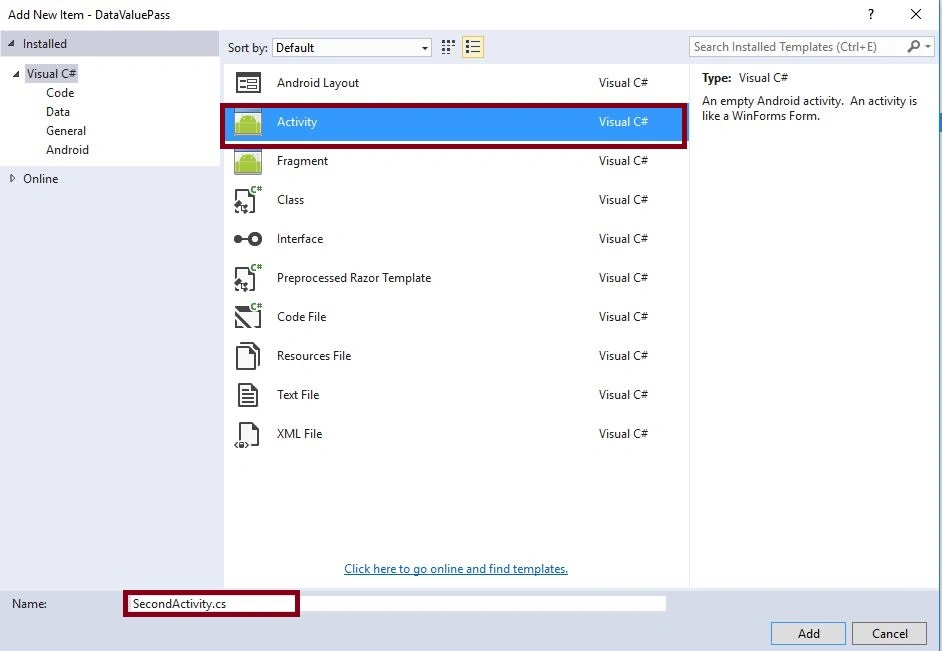

Step 5 - Then select Activity and give name it SecondActivity.cs.



Step 6 -
Next go for Solution Explorer-> Project Name->Resources->layout->Main.axml click to open Design View.

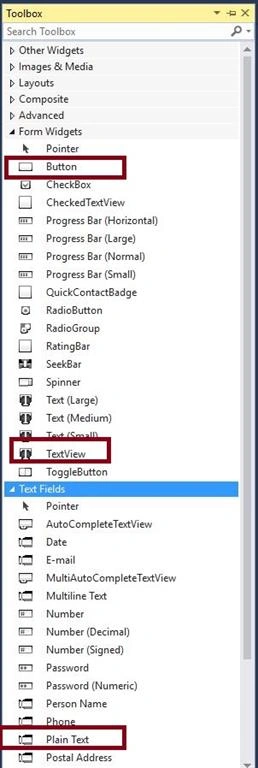

Step 7 - Select Toolbar Drag and Drop  Button, TextView and PlainText.

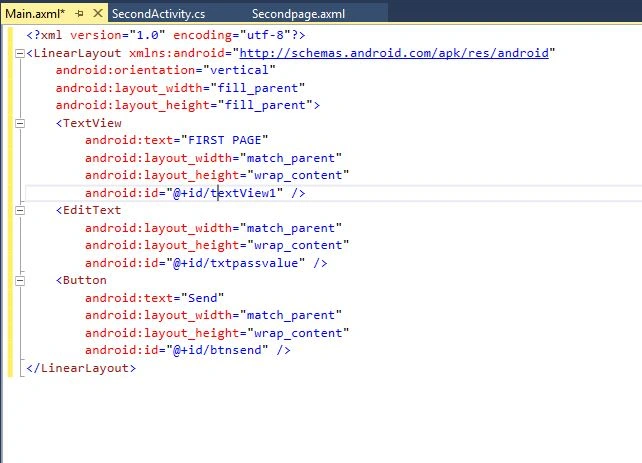

XML Code

  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  4.
  5. android:orientation="vertical"
  6.
  7. android:layout_width="fill_parent"
  8.
  9. android:layout_height="fill_parent">
  10.
  11. <TextView
  12.
  13. android:text="FIRST PAGE"
  14.
  15. android:layout_width="match_parent"
  16.
  17. android:layout_height="wrap_content"
  18.
  19. android:id="@+id/textView1" />
  20.
  21. <EditText
  22.
  23. android:layout_width="match_parent"
  24.
  25. android:layout_height="wrap_content"
  26.
  27. android:id="@+id/txtpassvalue" />
  28.
  29. <Button
  30.
  31. android:text="Send"
  32.
  33. android:layout_width="match_parent"
  34.
  35. android:layout_height="wrap_content"
  36.
  37. android:id="@+id/btnsend" />
  38.
  39. </LinearLayout>

Step 8 - Next open Solution Explorer-> Project Name->Resources->layout->Secondpage.axml click to open Design View.

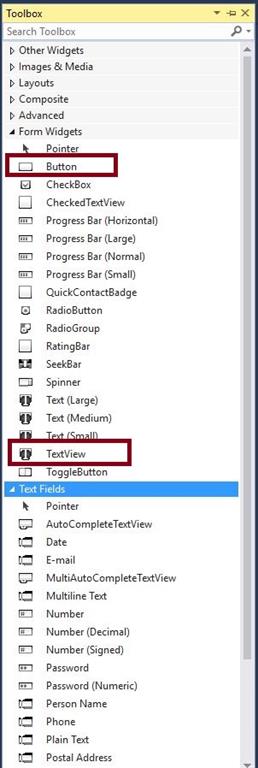

Step 9 - Select Toolbar Drag and Drop, Button  and TextView.

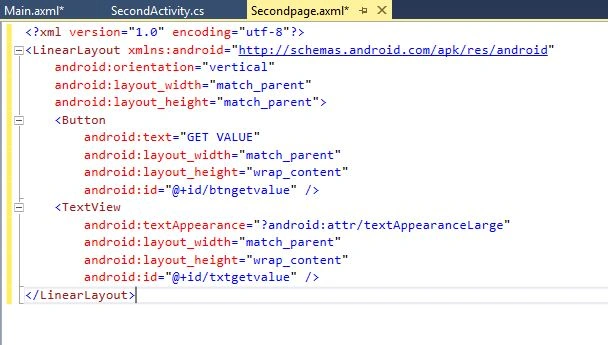

XML Code

  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  4.
  5. android:orientation="vertical"
  6.
  7. android:layout_width="match_parent"
  8.
  9. android:layout_height="match_parent">
  10.
  11. <Button
  12.
  13. android:text="GET VALUE"
  14.
  15. android:layout_width="match_parent"
  16.
  17. android:layout_height="wrap_content"
  18.
  19. android:id="@+id/btngetvalue" />
  20.
  21. <TextView
  22.
  23. android:textAppearance="?android:attr/textAppearanceLarge"
  24.
  25. android:layout_width="match_parent"
  26.
  27. android:layout_height="wrap_content"
  28.
  29. android:id="@+id/txtgetvalue" />
  30.
  31. </LinearLayout>

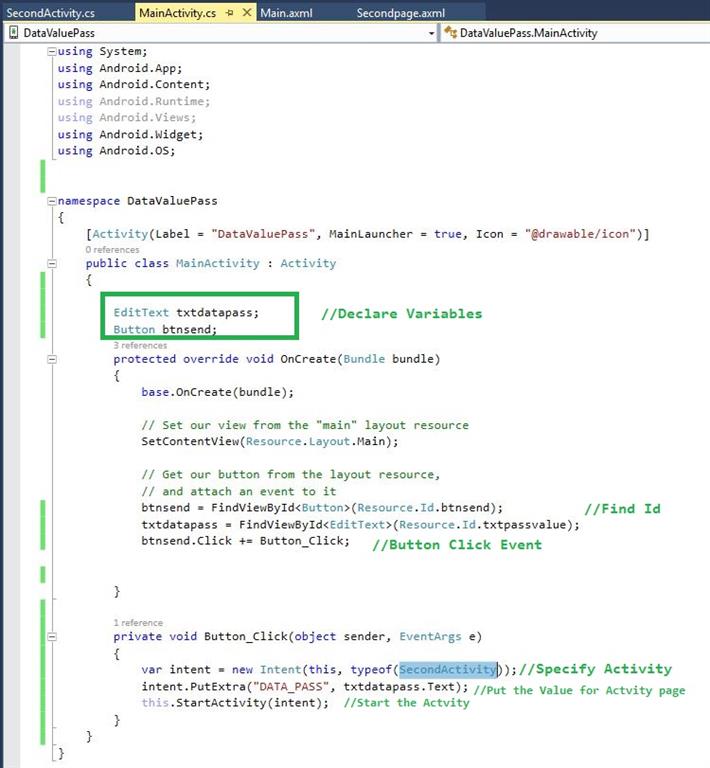

Step 10 - Next open Solution Explorer-> Project Name->MainActivity.cs click to open Code Window, then give following code,



C# Code


  1. using System;
  2. using Android.App;
  3. using Android.Content;
  4. using Android.Runtime;
  5. using Android.Views;
  6. using Android.Widget;
  7. using Android.OS;
  8. namespace DataValuePass
  9. {
  10.     [Activity(Label = "DataValuePass", MainLauncher = true, Icon = "@drawable/icon")]
  11.     public class MainActivity: Activity
  12.     {
  13.         EditText txtdatapass;
  14.         Button btnsend;
  15.         protected override void OnCreate(Bundle bundle)
  16.         {
  17.             base.OnCreate(bundle);
  18.             // Set our view from the "main" layout resource
  19.             SetContentView(Resource.Layout.Main);
  20.             // Get our button from the layout resource,
  21.             // and attach an event to it
  22.             btnsend = FindViewById < Button > (Resource.Id.btnsend);
  23.             txtdatapass = FindViewById < EditText > (Resource.Id.txtpassvalue);
  24.             btnsend.Click += Button_Click;
  25.         }
  26.         private void Button_Click(object sender, EventArgs e)
  27.         {
  28.             var intent = new Intent(thistypeof(SecondActivity));
  29.             intent.PutExtra("DATA_PASS", txtdatapass.Text); //DATA_PASS is Identify the Value Pass variable
  30.             this.StartActivity(intent);
  31.         }
  32.     }
  33. }

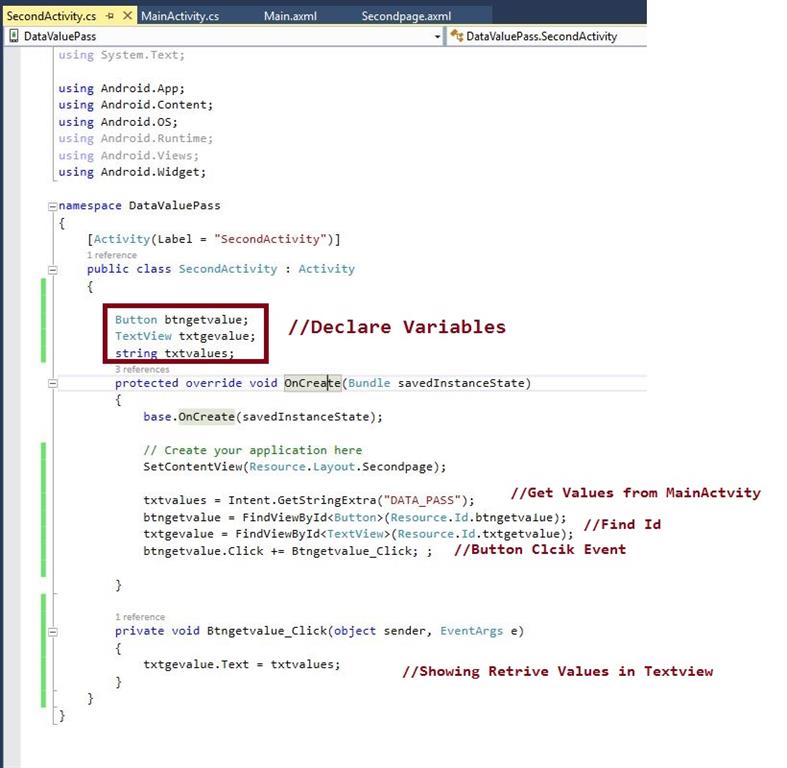

Step 11 - Next to open Solution Explorer-> Project Name->SecondActivity.cs click to open Code Window, then give following code,



C# Code

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using Android.App;
  6. using Android.Content;
  7. using Android.OS;
  8. using Android.Runtime;
  9. using Android.Views;
  10. using Android.Widget;
  11. namespace DataValuePass
  12. {
  13.     [Activity(Label = "SecondActivity")]
  14.     public class SecondActivity: Activity
  15.     {
  16.         Button btngetvalue;
  17.         TextView txtgevalue;
  18.         string txtvalues;
  19.         protected override void OnCreate(Bundle savedInstanceState)
  20.         {
  21.             base.OnCreate(savedInstanceState);
  22.             // Create your application here
  23.             SetContentView(Resource.Layout.Secondpage);
  24.             txtvalues = Intent.GetStringExtra("DATA_PASS"); //Get The Value
  25.             btngetvalue = FindViewById < Button > (Resource.Id.btngetvalue);
  26.             txtgevalue = FindViewById < TextView > (Resource.Id.txtgetvalue);
  27.             btngetvalue.Click += Btngetvalue_Click;;
  28.         }
  29.         private void Btngetvalue_Click(object sender, EventArgs e)
  30.         {
  31.             txtgevalue.Text = txtvalues;
  32.         }
  33.     }
  34. }

Step 12 - Press F5 or Build and Run the Application,

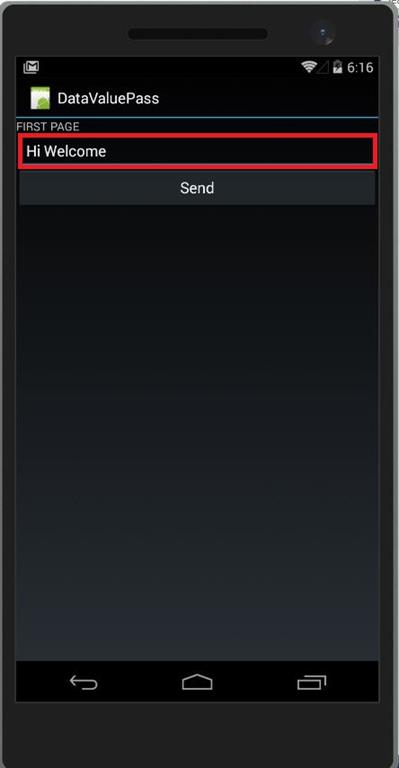

  • First Screen Give the Text Box Value “Hi Welcome" then Click Send Button.Next Move Second Screen.

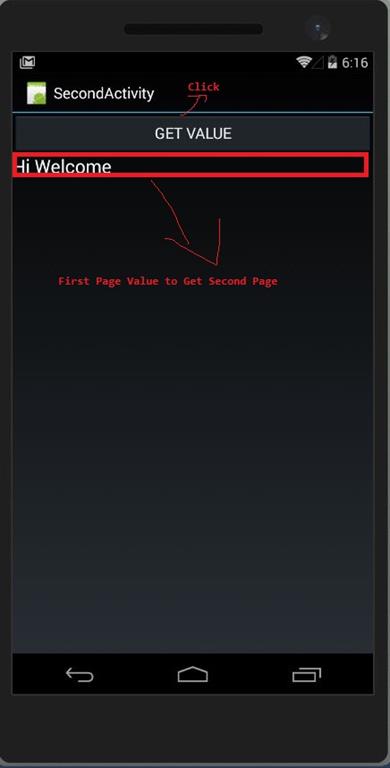

  • Second Screen to Press Get Button to Retrieve the passing value of “Hi Welcome” to display TextView.


Finally, we have successfully created a Xamarin Android one activity to another activity passing value app.
