Waterfall Model Used In Software Development

What is the Waterfall Model?

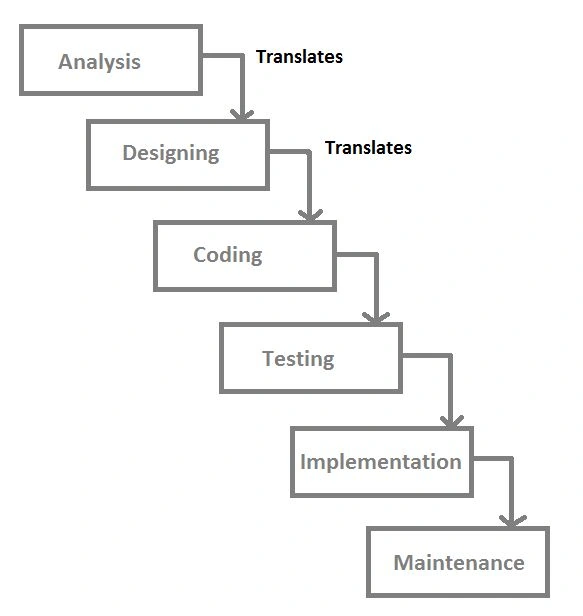

The waterfall model is the first model of SDLC used in software development history. It is also referred to as the Linear sequential life cycle model/. This model is simple to understand and use. In the waterfall model, each phase is completed before moving to the next phase. The waterfall model is the first and earliest approach used in SDLC for the development of software products in this model that does not overlap. The following diagram shows the phases of the waterfall model of SDLC.

Phases in the Waterfall Model

The waterfall model has six phases:

1. Requirements Gathering and Analysis: In this phase, the project requirements are collected, analyzed, and documented in detail.
2. System Design: This phase involves creating the system architecture and design based on the gathered requirements.
3. Implementation: The implementation phase involves coding or developing the software based on the design specifications.
4. Testing: Once the software is developed, it undergoes rigorous testing to identify and fix any defects or issues.
5. Deployment: After successful testing, the software is deployed or released to the end users or customers.
6. Maintenance: The final phase involves ongoing maintenance and support of the software to address any issues, updates, or enhancements that may arise.

1. Requirements Gathering and Analysis

In this phase, the project team interacts with stakeholders, including clients, users, and subject matter experts, to understand and document their requirements. The focus is gathering information about the software system's desired functionality, features, and constraints. The requirements are analyzed, refined, and documented in a comprehensive requirements specification document, which serves as a blueprint for the subsequent phases.

2. System Design

In this phase, the software system's architecture and design are defined based on the requirements gathered in the previous phase.

• The design specifies the system's overall structure, including its modules, components, interfaces, and data flow.
• The design phase also involves making decisions about the programming language, database structure, user interface design, and other technical aspects.
• The output of this phase is a detailed system design document that guides the implementation phase.

3. Implementation

• The implementation phase involves translating the design specifications into actual code or developing the software.
• Programmers or developers write the source code based on the design document and follow coding best practices and coding standards.
• This phase focuses on turning the software design into a working and executable program or system.
• It also involves unit testing, which verifies the functionality and correctness of individual code units or modules.

4. Testing

• The testing phase aims to identify and fix any defects or issues in the software.
• Different types of testing, such as functional, performance, security, and usability, are performed to ensure the software meets the specified requirements and quality standards.
• Test cases are designed, executed, and any bugs or defects found are reported to the development team for resolution.
• The goal is to ensure the software is reliable, robust, and free from major issues before proceeding to deployment.

5. Deployment

• The tested and approved software is deployed or released to the end users or customers in the deployment phase.
• It involves activities such as installation, configuration, and setup of the software in the production environment.
• User training and documentation preparation may also be included to facilitate the adoption and usage of the software.
• Once deployed, the software becomes available for use by its intended users or customers.

6. Maintenance

• The maintenance phase involves ongoing support and maintenance of the software after it has been deployed.
• It includes activities such as bug fixing, performance optimization, security updates, and addressing user feedback or enhancement requests.
• The maintenance phase ensures that the software remains functional, secure, and up-to-date throughout its operational lifespan.
• Each phase in the Waterfall Model is typically executed sequentially, with the completion of one phase leading to the start of the next. The model assumes that requirements are fully understood and defined upfront and that changes to requirements are minimal once the development process has begun.

Advantages of Waterfall models

The Waterfall Model of the SDLC offers several advantages:

• Clear and Well-Defined Structure: The Waterfall Model follows a sequential and structured approach with distinct phases and deliverables. This provides a clear roadmap for the development process, making it easy to understand and manage the project's progress.
• Easy to Understand and Use: The model's linear nature and sequential flow make it relatively simple to comprehend and implement. It is a well-known and widely used model, making finding resources, tools, and expertise aligned with the methodology easier.
• Emphasizes Documentation: The Waterfall Model places significant emphasis on documentation at each stage of the project. This documentation serves as a valuable reference for developers, testers, and stakeholders, ensuring a better understanding and traceability of requirements, design, and implementation decisions.
• Early Detection of Issues: The sequential nature of the Waterfall Model allows for early identification of issues or problems in the requirements or design phases. This enables prompt resolution before proceeding to subsequent stages, reducing the risk of major issues emerging during later phases or in the final product.
• Well-Suited for Stable Requirements: The Waterfall Model works best when the project requirements are well-understood, stable, and unlikely to change significantly. It is effective for projects where there is clarity and certainty regarding the desired outcome, making it suitable for industries with strict regulatory requirements or fixed contracts.
• Milestone-based Progress Evaluation: The Waterfall Model allows for milestone-based progress evaluation, where progress can be measured at the completion of each phase. This makes tracking and reporting progress to stakeholders easier, enabling better project management and decision-making.
• Efficient Resource Utilization: The linear and sequential nature of the Waterfall Model enables efficient resource allocation and utilization. Teams can be structured and staffed based on the specific requirements of each phase, optimizing the allocation of human resources.

While the Waterfall Model has its advantages, it is important to note that it may not be suitable for all projects, particularly those with evolving or uncertain requirements. The rigid nature of the model makes it less adaptable to changes or feedback during the development process, and it can result in longer development cycles if errors or issues are discovered late in the process.

Disadvantages of Waterfall models

While the Waterfall Model has its advantages, it also has several disadvantages that should be considered. Some of the key disadvantages of the Waterfall Model include:

• Limited Flexibility and Adaptability: The Waterfall Model follows a linear and sequential approach, making it less flexible in accommodating changes or feedback once a phase is completed. It assumes that requirements are fully understood and defined upfront, which may not always be realistic in dynamic projects.
• High Risk of Requirement Misalignment: Since the requirements are gathered and defined at the beginning of the project, there is a risk of misalignment with the actual needs of users or customers. This can result in a significant rework or redevelopment if requirements are misunderstood or changed during the development process.
• Late Detection of Defects: Testing and quality assurance activities are typically performed towards the later stages of the Waterfall Model. This means that defects or issues may only be identified during the testing phase, making rectifying them more difficult and costly.
• Limited Stakeholder Involvement: The Waterfall Model often restricts stakeholder involvement, such as end-users or clients, until the later stages of the project. This may lead to a lack of early feedback and potential misalignment between the final product and stakeholder expectations.
• Lengthy Development Cycle: The linear nature of the Waterfall Model can result in a longer overall development cycle. Each phase must be completed before progressing to the next, which can lead to delays in delivering a working product.
• Difficulties in Managing Changes: If changes to requirements or scope arise during the development process, accommodating them in the Waterfall Model can be challenging. It may require going back to earlier phases, disrupting the planned sequence and potentially causing delays and additional costs.
• Limited Prototyping and User Feedback: The Waterfall Model does not inherently emphasize prototyping or early user feedback. This can limit opportunities to validate and refine the software's design and functionality early on, potentially leading to a product that does not fully meet user needs.
• Lack of Incremental Value Delivery: The Waterfall Model typically delivers the final product at the end of the development cycle. This means that stakeholders must wait until the end to realize the software's value, which may not align with today's market demands for faster time-to-market and incremental value delivery.

It's important to consider these disadvantages carefully when deciding whether to adopt the Waterfall Model for a project. Alternative software development methodologies, such as Agile or Iterative approaches, may offer more flexibility and adaptability in situations where requirements are uncertain or likely to change.
