Validate Multiple Tokens with Different Providers in ASP.NET 8 API

Introduction

As the latest iteration of the ASP.NET framework, ASP.NET 8 offers powerful features for building secure and scalable web APIs. One crucial aspect of API development is authentication, which ensures that only authorized users or services can access protected resources. In this article, we will explore how to validate multiple tokens from different authentication providers in an ASP.NET 8 API, leveraging the latest capabilities of the framework.

Core Concepts of Authentication, Authorization, and Authentication Schemes

Authentication

Authentication is the process of verifying the identity of users or services accessing an application. Authentication is responsible for providing the ClaimsPrincipal for authorization to make permission decisions. (If the token not valid then throw Unauthorized 401).

Authorization

Authorization determines what actions an authenticated user or service is allowed to perform within the application. It controls access to resources based on the user's identity and assigned permissions. (If the user doesn't have access then throw Forbidden 403).

Authentication Scheme

An authentication scheme defines the method used to authenticate users or services. ASP.NET 8 supports various authentication schemes, including JWT, OAuth, OpenID Connect, and Custom authentication mechanisms.

Scenario

Consider a scenario where an ASP.NET 8 API interacts with multiple authentication providers, each issuing tokens in a different format or with distinct validation requirements. For example-

IdentityServerA: An identity provider issuing JWT tokens signed with a specific key.
IdentityServerB: Another identity provider issuing JWT tokens with different validation parameters.
Custom Token Provider: A custom authentication service generating tokens in a proprietary format.

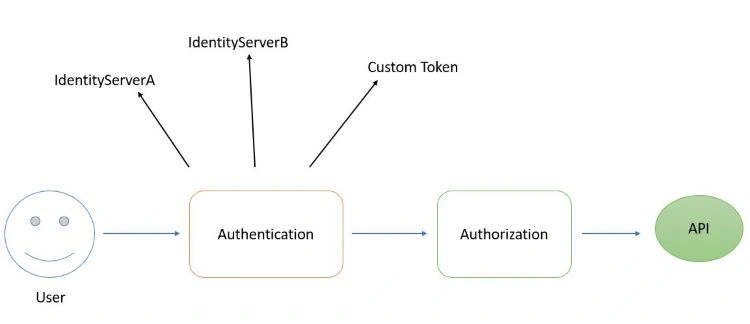

APIAuthentication

Implementing Authentication for Multiple Providers

To validate tokens from different providers in an ASP.NET 8 API, follow these steps-

Configure Authentication: In the Program.cs file, typically within the CreateHostBuilder method, configure authentication services using the ConfigureWebHostDefaults method.

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddAuthentication(options =>
{
    options.DefaultAuthenticateScheme = JwtBearerDefaults.AuthenticationScheme;
    options.DefaultChallengeScheme = JwtBearerDefaults.AuthenticationScheme;
})
.AddJwtBearer("JwtProvider1", options =>
{
    // Configure JWT validation parameters for Provider 1
})
.AddJwtBearer("JwtProvider2", options =>
{
    // Configure JWT validation parameters for Provider 2
});

var app = builder.Build();

// Configure the HTTP request pipeline.
if (!app.Environment.IsDevelopment())
{
    app.UseExceptionHandler("/Home/Error");
    app.UseHsts();
}

app.UseHttpsRedirection();
app.UseStaticFiles();

app.UseRouting();

app.UseAuthentication(); // Enable authentication middleware
app.UseAuthorization();

app.MapControllerRoute(
    name: "default",
    pattern: "{controller=Home}/{action=Index}/{id?}");

app.Run();

Authorize Endpoints: Apply authorization attributes to your controllers or actions to specify which authentication scheme should be used.

[Authorize(AuthenticationSchemes = "JwtProvider1")]
[Route("api/controller1")]
public class Controller1 : ControllerBase
{
    // Controller actions
}

[Authorize(AuthenticationSchemes = "JwtProvider2")]
[Route("api/controller2")]
public class Controller2 : ControllerBase
{
    // Controller actions
}

Validate Tokens: In your API endpoints or middleware, validate the incoming tokens against their respective providers.

public async Task<IActionResult> MyEndpoint()
{
    var authenticationResult = await HttpContext.AuthenticateAsync("JwtProvider1");
    if (!authenticationResult.Succeeded)
    {
        // Token validation failed
        return Unauthorized();
    }

    // Token is valid, proceed with endpoint logic
    // Access claims using authenticationResult.Principal.Claims
}

Handle Authentication Events (Optional): Optionally, you can handle authentication events to implement custom logic for token validation or error handling.

services.AddAuthentication()
    .AddJwtBearer(options =>
    {
        options.Events = new JwtBearerEvents
        {
            OnTokenValidated = context =>
            {
                // Custom validation logic
                return Task.CompletedTask;
            },
            OnAuthenticationFailed = context =>
            {
                // Custom error handling
                return Task.CompletedTask;
            }
        };
    });

By following these steps, you can configure authentication schemes to support multiple providers in your ASP.NET Core 8 application.

IdentityServerA

Description. IdentityServerA is an identity provider issuing JWT tokens signed with a specific key.

Example. Suppose you have an ASP.NET 8 API that needs to authenticate users using IdentityServerA. Here's how you can configure authentication for IdentityServerA,

services.AddAuthentication(options =>
{
    options.DefaultAuthenticateScheme = JwtBearerDefaults.AuthenticationScheme;
    options.DefaultChallengeScheme = JwtBearerDefaults.AuthenticationScheme;
})
.AddJwtBearer("IdentityServerA", options =>
{
    // Configure JWT validation parameters for IdentityServerA
    options.Authority = "https://identityserverA.com";
    options.Audience = "your_api_resource";
    options.TokenValidationParameters = new TokenValidationParameters
    {
        ValidateIssuer = true,
        ValidateAudience = true,
        ValidIssuer = "https://identityserverA.com",
        ValidAudience = "your_api_resource",
        IssuerSigningKey = new SymmetricSecurityKey(Encoding.UTF8.GetBytes("your_secret_key"))
    };
});

IdentityServerB

Description. IdentityServerB is another identity provider issuing JWT tokens with different validation parameters.

Example. For IdentityServerB, you might configure authentication similarly to IdentityServerA, but with different validation parameters.

services.AddAuthentication(options =>
{
    options.DefaultAuthenticateScheme = JwtBearerDefaults.AuthenticationScheme;
    options.DefaultChallengeScheme = JwtBearerDefaults.AuthenticationScheme;
})
.AddJwtBearer("IdentityServerB", options =>
{
    // Configure JWT validation parameters for IdentityServerB
    options.Authority = "https://identityserverB.com";
    options.Audience = "your_api_resource";
    options.TokenValidationParameters = new TokenValidationParameters
    {
        ValidateIssuer = true,
        ValidateAudience = true,
        ValidIssuer = "https://identityserverB.com",
        ValidAudience = "your_api_resource",
        IssuerSigningKey = new SymmetricSecurityKey(Encoding.UTF8.GetBytes("your_secret_key_for_B"))
    };
});

Custom Token Provider

Description. The custom token provider generates tokens in a proprietary format.

Example. For a custom token provider, you would typically need to implement a custom authentication scheme. Here's a simplified example of how you might do this,

services.AddAuthentication(options =>
{
    options.DefaultAuthenticateScheme = CustomTokenDefaults.AuthenticationScheme;
    options.DefaultChallengeScheme = CustomTokenDefaults.AuthenticationScheme;
})
.AddCustomToken(options =>
{
    // Configure authentication options for the custom token provider
    options.TokenValidationParameters = new CustomTokenValidationParameters
    {
        // Add validation parameters specific to your custom token format
    };
});

In these examples, each authentication provider is configured separately, specifying the necessary validation parameters and settings to authenticate users and validate tokens issued by each provider. This approach allows your ASP.NET 8 API to interact with multiple authentication providers seamlessly, accommodating different token formats and validation requirements.

Conclusion

Implementing authentication for multiple token providers in an ASP.NET API enables developers to secure applications while accommodating diverse authentication scenarios. By understanding core authentication concepts and leveraging authentication schemes, developers can build robust and flexible authentication solutions that meet the needs of modern applications.

FAQs

Q. Why Validate Multiple Tokens?

A. In modern web development, applications often interact with multiple authentication providers to accommodate diverse user bases or integrate with external services. Validating multiple tokens allows an ASP.NET 8 API to authenticate users from different sources securely.

Q. How Can ASP.NET 8 Handle Multiple Authentication Providers?

A. ASP.NET 8 offers a flexible authentication middleware system where developers can configure multiple authentication schemes, each tailored to a specific provider. This allows the API to validate tokens from different sources simultaneously.

Q. What Authentication Providers Can ASP.NET 8 Support?

A. ASP.NET 8 can support a variety of authentication providers, including identity servers like IdentityServerA and IdentityServerB, as well as custom authentication services. Each provider may issue tokens in different formats or with distinct validation requirements.

Q. How Do You Configure Authentication Schemes for Different Providers?

A. To configure authentication schemes for different providers, developers can use the AddAuthentication method to register authentication middleware and then use scheme-specific extension methods like AddJwtBearer for JWT-based providers. Each scheme is configured with its specific validation parameters.

Q. What Considerations Are Important When Validating Multiple Tokens?

A. When validating multiple tokens, it's crucial to ensure that each authentication scheme is properly configured with the correct validation parameters, including issuer, audience, and signing keys. Additionally, developers should handle authentication failures gracefully and consider implementing custom logic for scenarios like token refreshing or revocation.
