Use the Navigate Function for Seamless Transitions in Power Apps

Introduction

When building applications in Power Apps, one of the most important aspects of the user interface (UI) is the navigation between screens. A seamless and intuitive navigation flow is crucial to creating positive user experiences. The Navigate function in Power Apps allows you to control the flow of your app by moving from one screen to another with ease.

I still remember my first project where I was tasked with building an internal employee management app. My challenge was to make the app as user-friendly as possible, which meant ensuring that users could easily switch between different sections without any confusion. The Navigate function turned out to be the solution I needed. It enabled smooth transitions between screens, allowing users to interact with the app in a way that felt natural and intuitive.

In this article, we’ll dive deep into how the Navigate function works, where and when to use it, and provide step-by-step instructions on how to integrate it into your own Power Apps projects.

Features of the Navigate Function

The Navigate function is versatile and comes with several features that make it an essential tool for app development.

1. Screen Transition: It allows you to transition between different screens within your app.
2. Customization of Transition Effects: You can specify the type of transition effect when navigating, such as Fade, Cover, Uncover, etc.
3. Passing Context Variables: The Navigate function can also be used to pass parameters and context between screens, making your app dynamic.
4. Conditional Navigation: You can combine the Navigate function with conditions to trigger navigation based on user actions or certain states.

Advantages and Disadvantages

Advantages

1. Improved User Experience: Smooth transitions between screens make the app feel more like a native application, enhancing the overall user experience.
2. Flexibility: The Navigate function is highly customizable, allowing for different types of transitions and the ability to pass context (such as data or user preferences) between screens.
3. Easy to Implement: The formula for Navigate is simple and can be added to any control, making it easy to use.
4. Consistency: Using Navigate helps maintain consistency in how users move through the app, reducing confusion.

Disadvantages

1. Limited Transitions: While the Navigate function offers a few transition effects, they may be limited to more advanced animations or transitions.
2. Complexity in Large Apps: In larger applications, managing multiple screens with extensive navigation can sometimes become complex, requiring careful planning and organization.
3. Performance: In some cases, complex navigation scenarios can slightly impact performance, especially if you're passing large sets of data between screens.

Step-by-Step Guide to Implement the Navigate Function

Let’s go through the process of setting up a simple navigation between two screens in Power Apps.

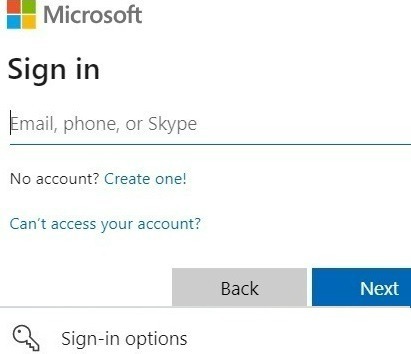

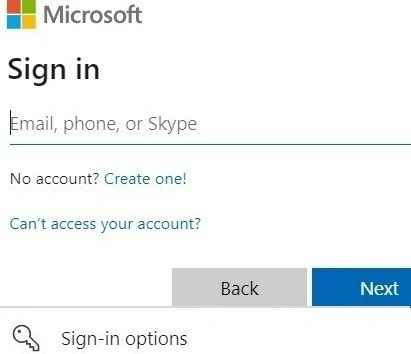

Step 1. Login to Power Apps.

• Open your web browser and go to the Power Apps website.
• Enter your login credentials to access the Power Apps environment.

Step 2. Create a New App.

1. On the Power Apps Home page, click on Create from the left sidebar.

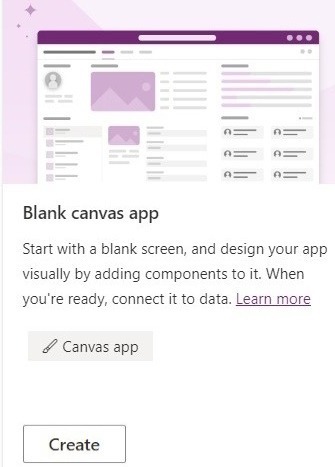

2. From the available options, select Blank App.
3. Choose Blank Canvas App and click Create to start building your app.

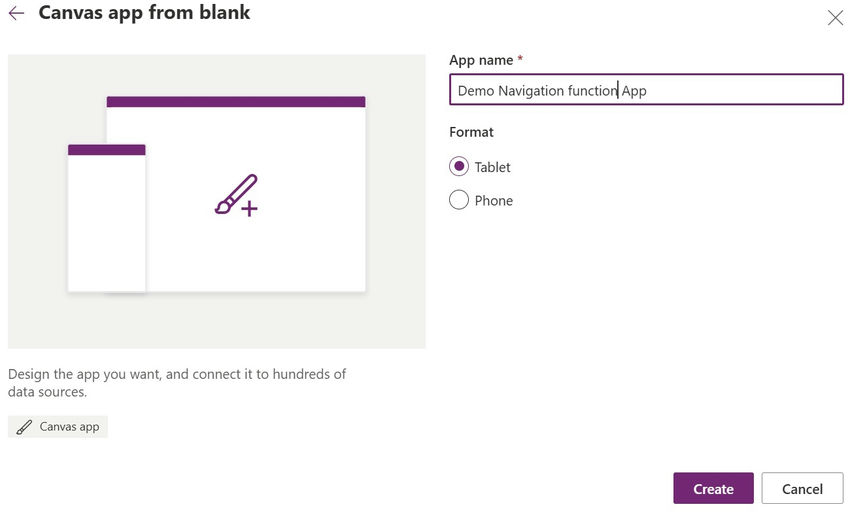

Step 3. Set App Format (Tablet or Phone).

1. Name your app (e.g., "Navigate Function Demo").
2. Choose the layout format—Tablet or Phone—based on your requirements.
3. Click Create to start the app.

Step 4. Add Screens.

Now, let’s add two screens to your app and enable navigation between them.

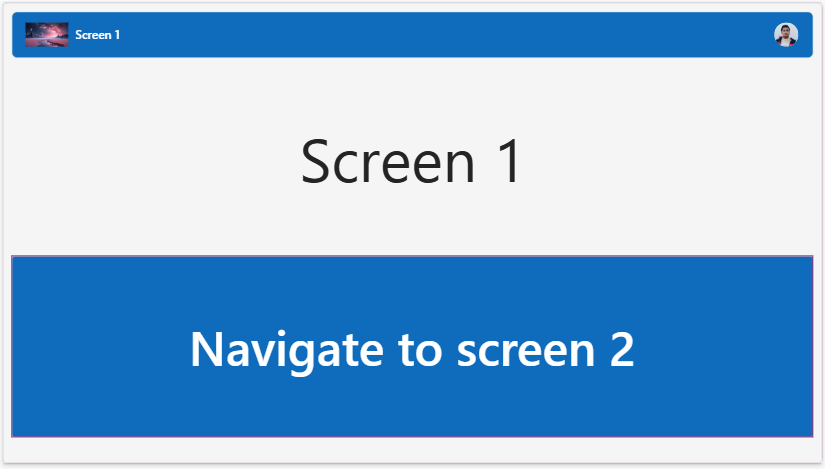

Add Screen 1

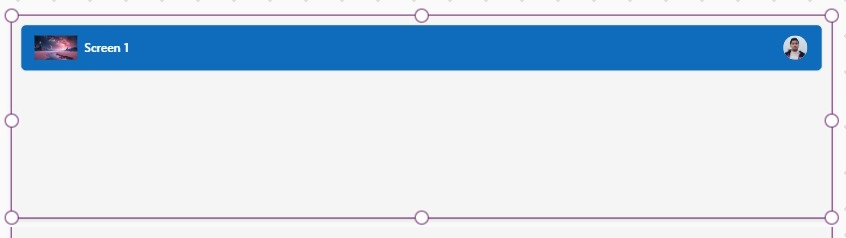

• On the left pane, click on New Screen and select a Blank screen.
• Rename the screen to Screen1.
• For the demonstration, add a Label with the text "Screen 1".

• Add a Button below the label with the text "Go to Screen 2".

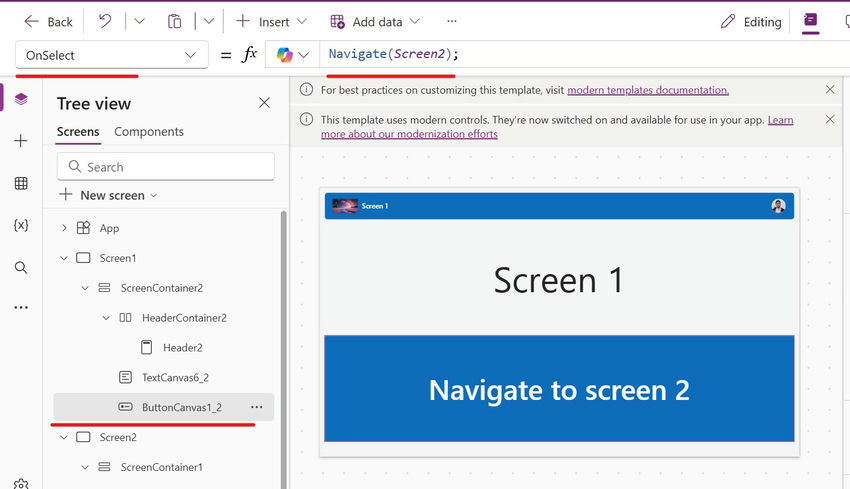

• Set the OnSelect property of the button to.

Navigate(Screen2);

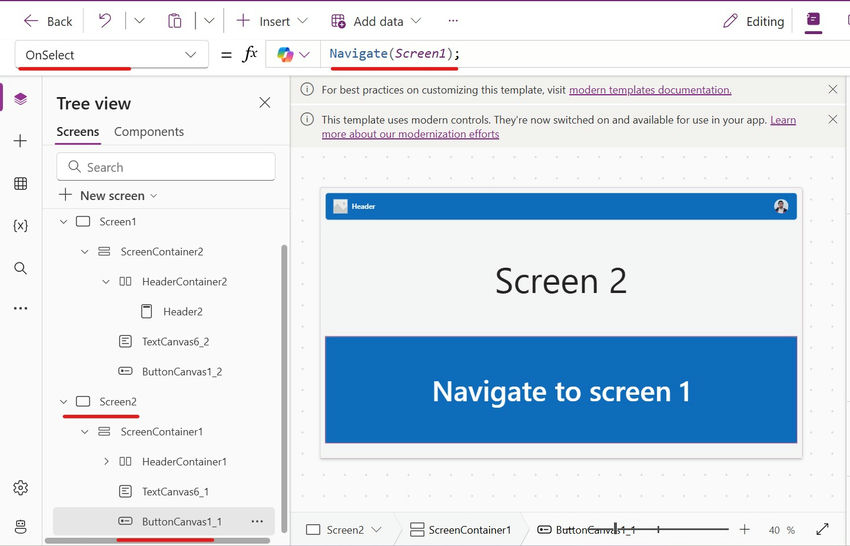

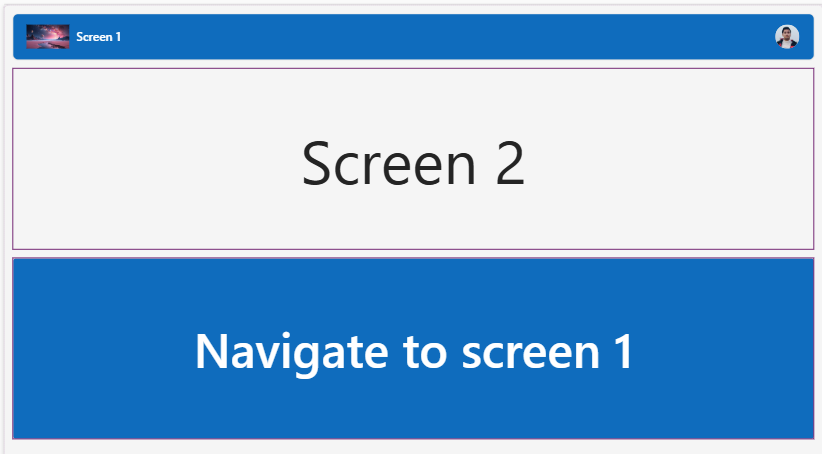

Add Screen 2

• Similarly, add another screen (screen 2).
• Rename it to Screen 2.

• Add a Label with the text "Screen 2".
• Add a Button below the label with the text "Go to Screen 1".

• Set the OnSelect property for this button.

Navigate(Screen1);

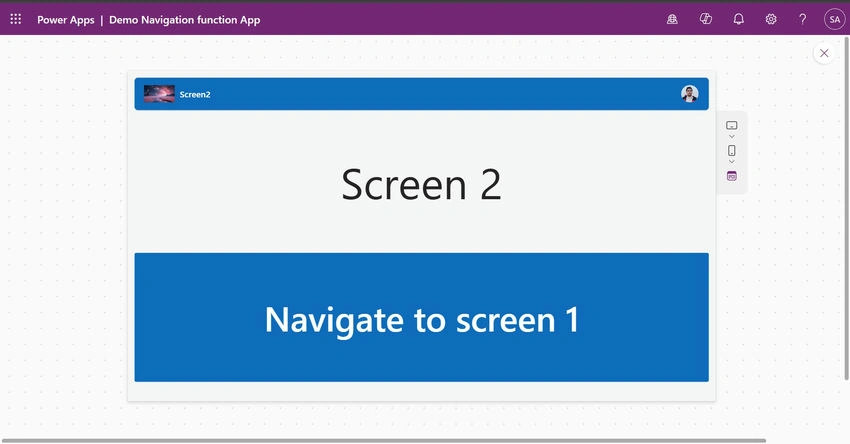

Step 5. Test the Navigation.

• Press the Play button (the triangle icon in the top-right corner) to test the navigation.
• You should be able to navigate from Screen1 to Screen2 and back with a button click.
• This is the basic use case for the Navigate function, but we can customize it further, for example by adding transitions or passing parameters.

Optional: Adding Transitions and Context

You can enhance the Navigate function by specifying a transition type or passing context between screens. For example, you can add a Fade transition or pass context like so.

Navigate(Screen2, ScreenTransition.Fade, {UserID: 123});

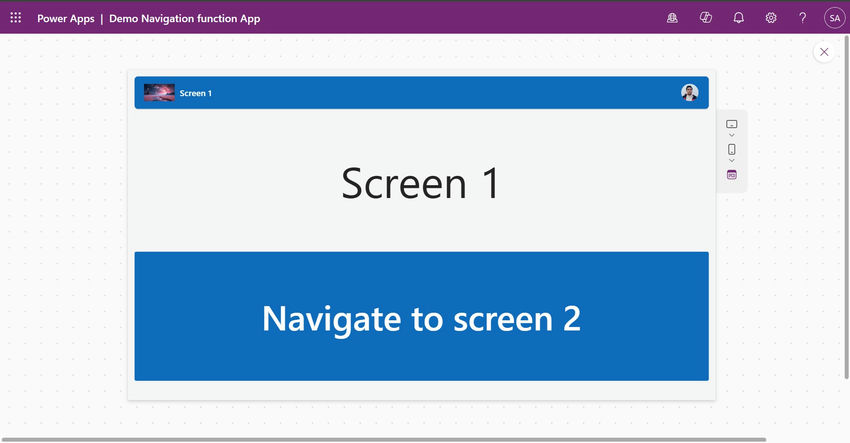

This would not only navigate to Screen2 but also pass a context variable (UserID = 123), which you could use on Screen2 to personalize the experience.

Conclusion

The Navigate function is one of the most essential and powerful functions in Power Apps for controlling screen transitions. It enables smooth and intuitive movement between screens, helping you create user-friendly, dynamic apps. By following the steps outlined in this article, you can easily incorporate screen navigation into your app and enhance the overall user experience.

In future articles, we’ll explore more advanced use cases, such as passing complex data between screens and working with dynamic navigation flows. Stay tuned for more tips and tricks!
