Usage Of HTML Table In Power Automate

Introduction

In Power Platform for certain scenarios data needs to be represented in HTML Table. In those cases, we can work with HTML Table Action, as an example, we will show list of contacts in an HTML Table.

Step 1

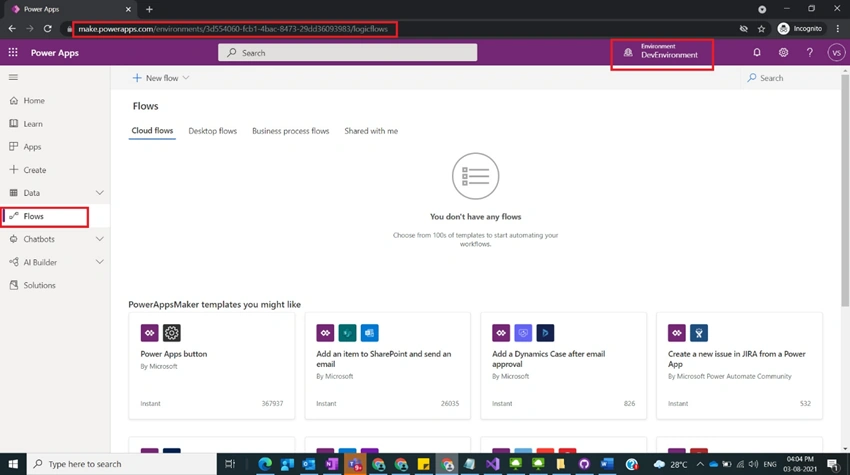

Login to the required Power Apps environment using URL make.powerapps.com by providing username and password and click on Flows on the left-hand side as shown in the below figure.

Usage of HTML Table in Power Automate

Step 2

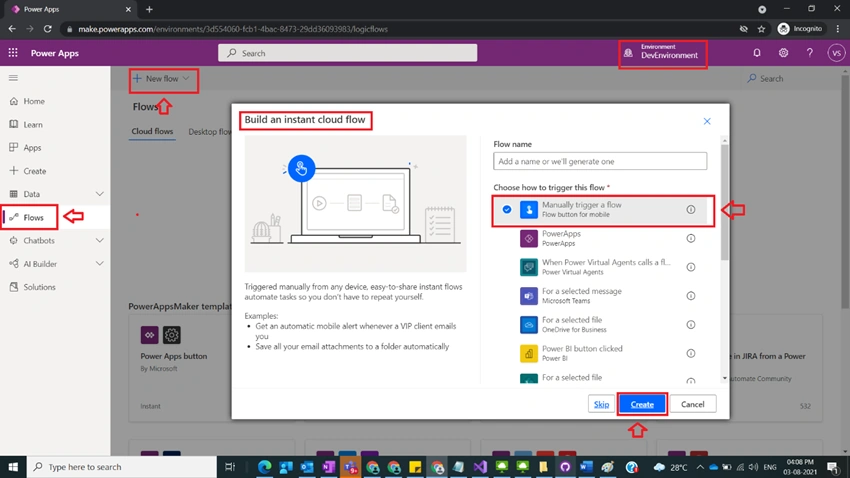

After Step 1, Click on New Flow and select instant cloud flow and provide the trigger as Manually trigger a flow and click on Create as shown in the below figure.

Usage of HTML Table in Power Automate

Step 3

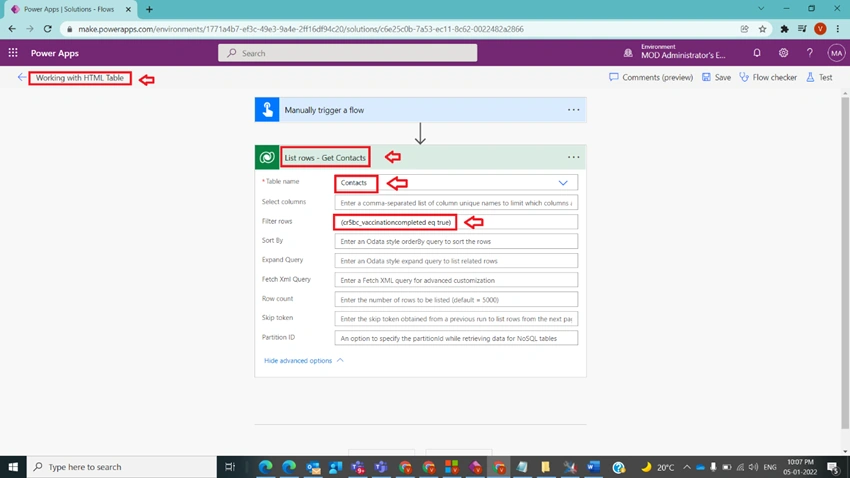

After Step 2, name the flow as Working with HTML Table take another step under Dataverse Connector, select List Rows action and name it as List rows - Get Contacts and provide the following inputs

Table name : contacts
Filter rows : (cr5bc_vaccinationcompleted eq true)

as shown in the below figure.

Usage of HTML Table in Power Automate

Step 4

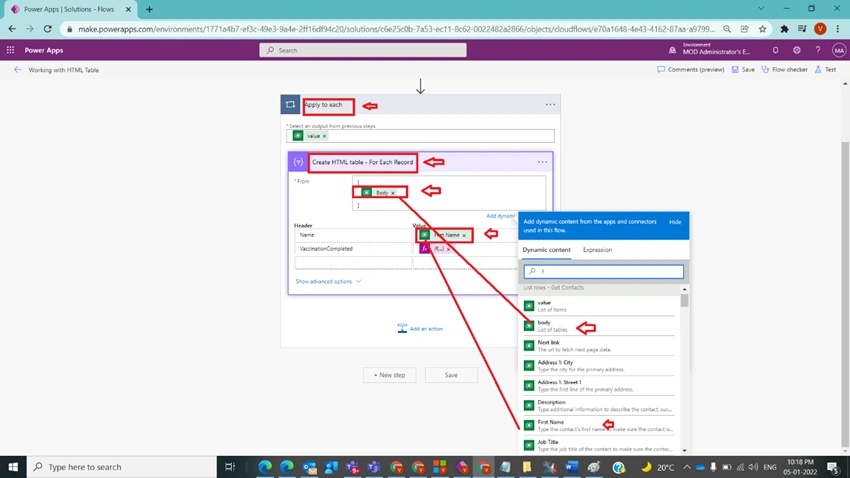

After Step 3, look for the action Create HTML table and name that Step as Create HTML table - For Each Record and select the following values

From : [@{body('List_rows_-_Get_Contacts_')}]
Columns : Custom

And provide

one set of Header and Value as

Name , items('Apply_to_each')?['firstname']

other set as

VaccinationCompleted, if(items('Apply_to_each')?['cr5bc_vaccinationcompleted'],'Yes','No')

where firstname and 'cr5bc_vaccinationcompleted' were taken from apply to each loop output value as shown in the below figure.

Usage of HTML Table in Power Automate

Step 5

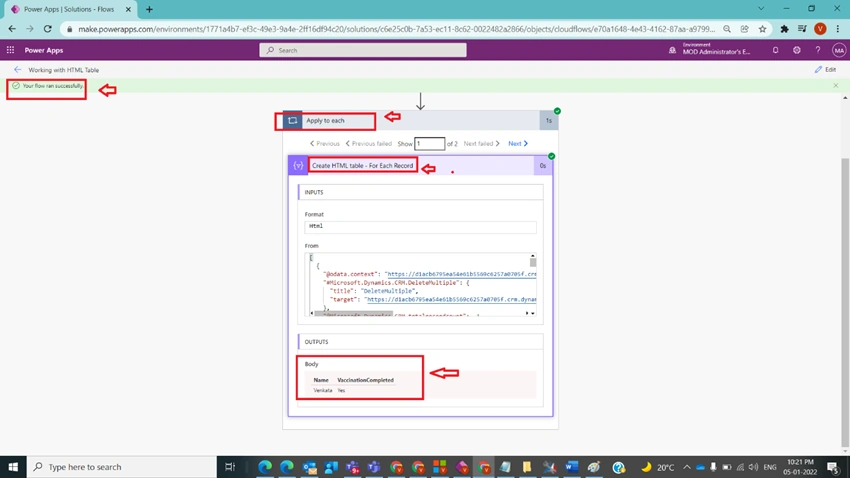

After Step 4, save and run the flow and observe the result and you can see HTML table in apply to each loop as shown in the below figure.

Usage of HTML Table in Power Automate

Note

  1. Make sure to keep enclosed body part of list table inside [] array.
  2. Select Custom in Step 4, to define which columns are needed, otherwise all columns will be shown.
  3. Always save flow and test it.
  4. Apply to Each automatically comes when firstname was selected in Step 4.

Conclusion

In this way, we can work on HTML Table easily that is present in Power Automate.
