Upload A File To SharePoint From PowerApps Using Flow

Introduction



In this article, we are going to see how to upload a file to SharePoint from PowerApps. Refer to my previous article for creating a PowerApps application:

• Introduction to PowerApps and Creating Template with it

Step 1

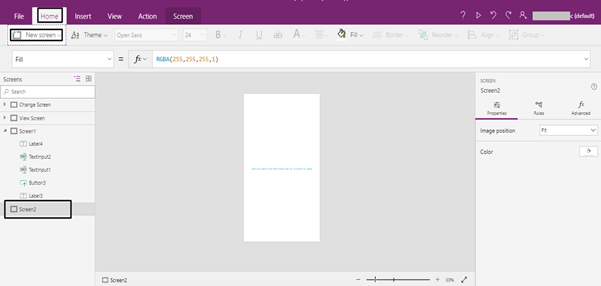

Create one new screen -> click Home -> select New Screen -> Screen Name(Screen -2)





Step 2

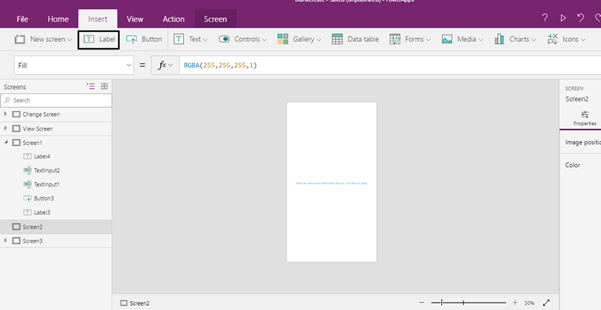

Create one new label -> click Insert and select label





Step 3

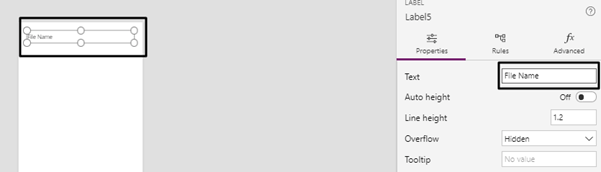

Selected label is shown in the below form. Label text name is changed under property control.



Step 4



Click Insert -> select Text Input -> Select Textbox for get file name from user.





Step 5



We can set a Textbox default value, I am leaving the default value is empty.





Step 6



Repeat steps 2 to 5 for placing the file content label and file content text box





Step 7

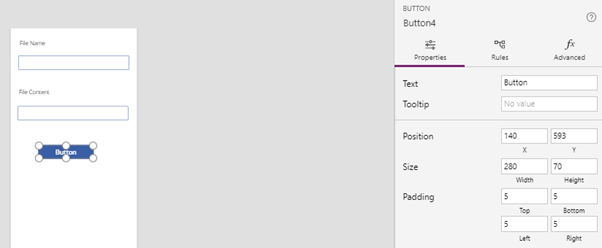

Click Insert -> choose Button





The button is placed in the form





Step 8

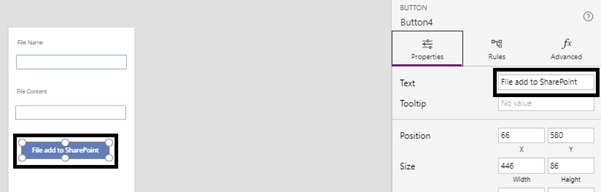

Change the button Name -> Properties -> Text





Step 9



In SharePoint create one document library





Step 10

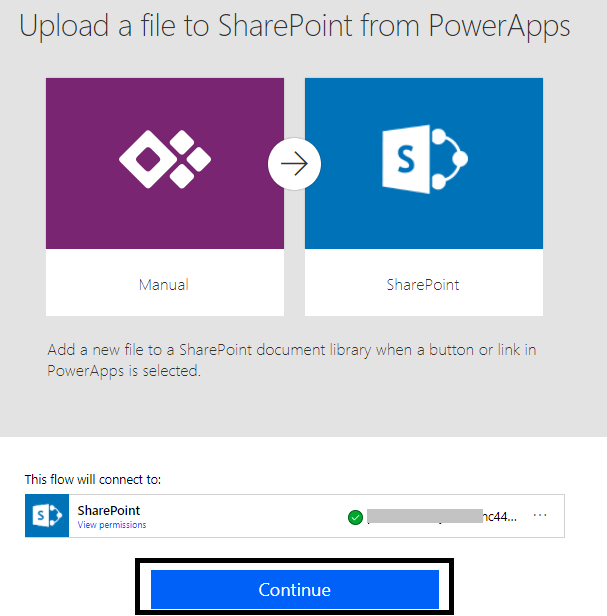

Flow template created for uploading the file to SharePoint from PowerApps





Step 11



The flow connects to SharePoint, and click to continue





Step 12

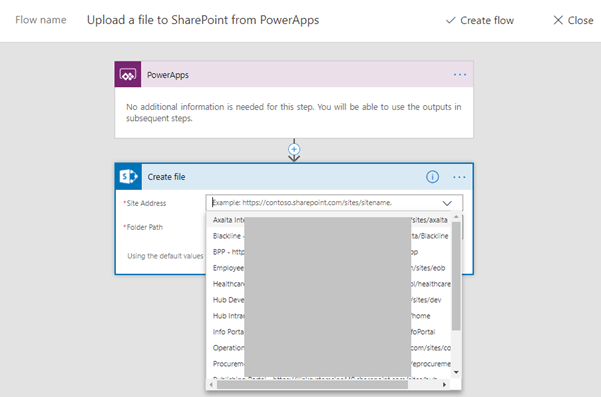

Choose site collection





Step 13

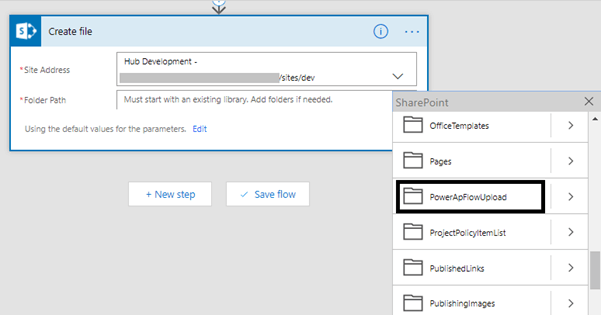

Choose the document library from the site collection





Step 14

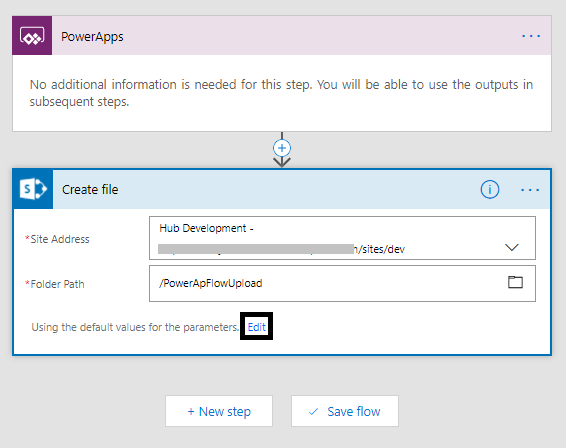

Click edit for integrating with PowerApps





After Edit, full details such as file name and content comes from PowerApps and gives flow name-> click save





Flow Name: My Flow uploads a file to SharePoint from PowerApps



Step 15



Integrate flow with PowerApps. There are two ways.

• First Way

  Comes to PowerApps Application Select Button -> Click Advanced -> on select event write below formula(code)

  MyFlowUploadafiletoSharePointfromPowerApps.Run(TextInput2_1.Text,TextInput3.Text)


• Second Way

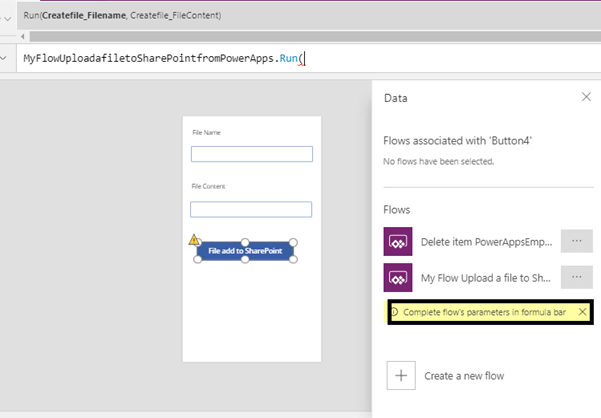

  Added flow to power apps button by clicking the flow


Flow Added Successfully





Formula bar



Parameters for flow MyFlowUploadafiletoSharePointfromPowerApps is (CreateFile_FileName, CreateFile_FileContent).

• CreateFile_FileName - TextInput2_1.Text
• CreateFile_FileContent - TextInput3.Text


Step 16

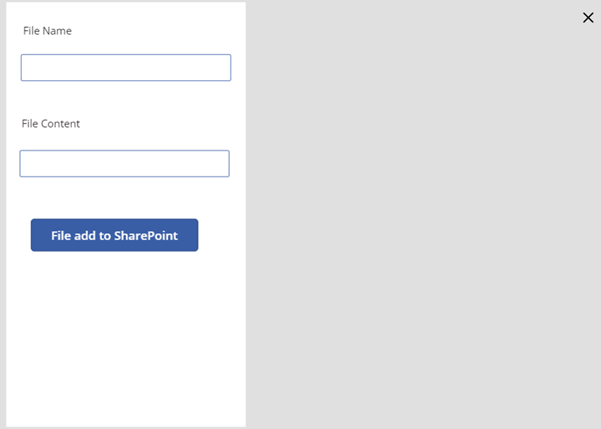

Run this app. Refer to my article (Introduction to PowerApps and Creating Template with it) Step 8 to run.

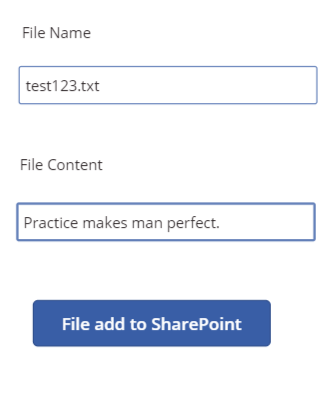

Fill in the name and content. Click button to upload in the document library.





Step 17

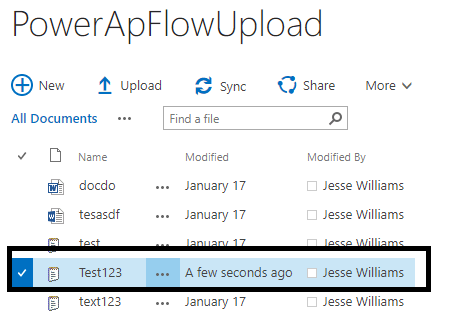

View the uploaded document





Step 18



Result



Open the document to see the file contents.



File Path:   ____________ev/PowerApFlowUpload/Test123.txt





In my next article, we will see how to create blank PowerApps with Excel as a data source.
