Understanding the Page Object Model (POM) in Test Automation

Introduction

The Page Object Model (POM) is a popular design pattern in test automation that improves code maintainability, readability, and scalability. It is particularly effective in automating web applications, as it simplifies the interaction between test scripts and web page elements. This article explores the POM concept, its advantages, and how to implement it effectively.

What is the Page Object Model?

The Page Object Model is a design pattern that creates an object repository for web UI elements. Each web page or part of a page is represented as a class in the code. The elements on the page are defined as variables (also called locators), and the interactions with these elements are implemented as methods within the same class. This abstraction helps to decouple test scripts from the underlying page structure.

For example, a login page might have a class called 'LoginPage' with variables for username and password fields, as well as a method to perform the login action.

Benefits of POM

  1. Improved Code Maintainability: Changes to the UI, such as updating element locators, require modifications only in the respective page class, not across multiple test scripts.
  2. Reusability: Page object classes can be reused across different test cases, reducing code duplication.
  3. Readability and Clarity: Test scripts focus on the test logic, making them easier to read and understand.
  4. Scalability: As the application grows, the POM structure scales easily by adding new page classes.

Key Components of POM

  1. Page Classes: Represent individual web pages or page sections.
    Contains locators and methods to interact with the page.
  2. Test Scripts: Contain the test logic and call the methods defined in page classes.
  3. Locators: Defined using strategies like ID, name, CSS selectors, or XPath.
  4. Utilities: Optional helper methods, such as wait utilities, for common actions like clicking or inputting text.

Implementing POM

Here’s a simple example of implementing POM using Selenium and Java:

Step 1. Create the Page Class

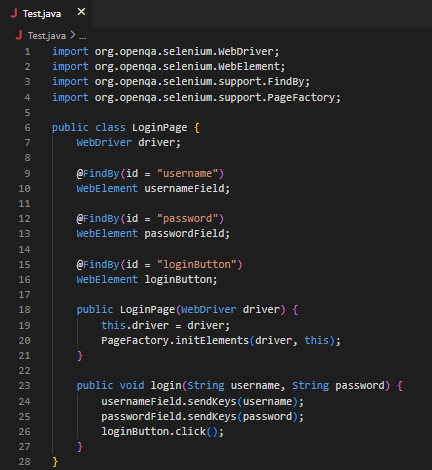

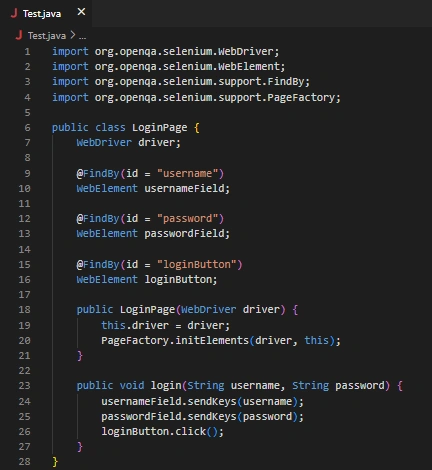

Page class

Output

The LoginPage class provides an easy-to-use abstraction for interacting with the login page. You can initialize this class in your test script and call its methods without worrying about the underlying locators.

Step 2. Create the Test Script

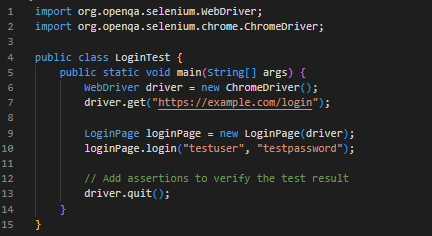

Test script

Output

When you execute the LoginTest script, the browser opens the login page, enters the credentials, and clicks the login button. The terminal outputs:

The login test was executed successfully.

Best Practices for POM

  1. Separate Test Data: Use external files (e.g., Excel, JSON, or properties files) to manage test data.
  2. Follow Naming Conventions: Use meaningful names for locators and methods to enhance code readability.
  3. Leverage Utilities: Create helper methods for common actions like waiting for elements, scrolling, or taking screenshots.
  4. Use Page Factory: Utilize frameworks like Selenium’s PageFactory for easier initialization and management of web elements.
  5. Avoid Overloading: Keep page classes focused. Avoid adding unrelated logic or test data directly into the classes.

When to Use POM

POM is best suited for projects with complex and frequently changing UI. It might not be ideal for small, simple applications where the overhead of creating and maintaining page classes may outweigh the benefits.

Conclusion

The Page Object Model is a powerful design pattern for test automation. It promotes better organization, reusability, and maintainability of test scripts. By adhering to best practices and tailoring POM to your project’s needs, you can significantly enhance the efficiency of your automation efforts.
