Understanding Database Sharding in Programming

In today’s world of rapidly growing data, applications often need to handle millions of transactions per second and massive amounts of data. Traditional single-instance databases are unable to meet these demands efficiently. This is where database sharding comes into play, allowing databases to scale horizontally and manage large data sets effectively.

In this article, we'll dive into the concept of database sharding, its benefits, challenges, and an example to help you understand how it works in practice.

What is Database Sharding?

Database sharding is a method of distributing data across multiple servers or instances. Each partition, known as a shard, contains a subset of the entire data set. The shards together make up the complete dataset, and each one operates as an independent database.

The purpose of sharding is to enable a database to scale horizontally, improving performance and making it easier to handle large amounts of data. Instead of having a single, monolithic database handling all requests, the data is split across different nodes, allowing for faster query execution and better load management.

Key Components of Sharding

• Shard: A single partition of data. Each shard holds a subset of the total data.
• Shard Key: A column or combination of columns used to determine how to split data across shards.
• Shard Map: A mapping system that identifies which shard contains a specific piece of data based on the shard key.

Why Shard a Database?

1. Scalability: Sharding enables horizontal scaling, meaning new servers can be added to handle growing traffic without overloading a single machine.
2. Performance: With data split across multiple servers, queries can run in parallel, reducing the load on individual servers and increasing overall throughput.
3. Availability: Sharding allows different shards to be distributed across data centers. Even if one shard goes down, the system can still function with the remaining shards.
4. Cost-Effectiveness: Instead of upgrading to a more expensive, high-performance server, sharding allows the use of cheaper, commodity hardware.

Types of Sharding


1. Range-based Sharding

In range-based sharding, data is divided based on a range of values. For example, a database containing user data could be shared by user ID, with each shard containing a specific range of user IDs.

Example

• Shard 1: Users with IDs 1 - 2,000,000
• Shard 2: Users with IDs 2,000,001 - 4,000,000
• Shard 3: Users with IDs 4,000,001 - 8,000,000

This approach is simple to implement but can lead to an uneven distribution of data if the range boundaries are not carefully designed.

2. Hash-based Sharding

In hash-based sharding, the shard key is hashed to distribute data more evenly across shards. This prevents the data skew often seen with range-based sharding.

Example. If we hash a user’s ID, the result determines which shard the user’s data will be stored in. The modulo operation (hash(key) % number_of_shards) is a common method for distributing data in this approach.

• Shard 1: Hash(user_id) % 3 == 0
• Shard 2: Hash(user_id) % 3 == 1
• Shard 3: Hash(user_id) % 3 == 2

Hash-based sharding is more balanced but can make range queries less efficient since the data is scattered across shards.

3. Geo-based Sharding

Geo-based sharding is used when the geographic location of data is essential. For example, if your application serves users in multiple regions, you might store data for users from Asia in one shard, Europe in another, and the Americas in a third.

Example

• Shard 1: Asia data
• Shard 2: Europe data
• Shard 3: Americas data

This type of sharding is common in distributed systems that require geographical proximity for faster data access.

Example of Implementing Database Sharding in Python

To give a practical perspective, let's walk through a simplified implementation of range-based sharding using Python and SQLite. We'll share user data by dividing users into two shards based on their user IDs.

Step 1. Setting Up Shards.

import sqlite3

# Create two shard databases
shard1 = sqlite3.connect('shard1.db')
shard2 = sqlite3.connect('shard2.db')

# Create user tables in each shard
shard1.execute('''CREATE TABLE IF NOT EXISTS users (
                    id INTEGER PRIMARY KEY,
                    name TEXT)''')

shard2.execute('''CREATE TABLE IF NOT EXISTS users (
                    id INTEGER PRIMARY KEY,
                    name TEXT)''')

# Commit and close connections
shard1.commit()
shard2.commit()
shard1.close()
shard2.close()

Step 2. Sharding Logic.

Next, we'll define a function that determines which shard to write data to based on the user’s ID. In this case, users with an ID ≤ 1000 will be written to shard1, and those with an ID > 1000 will be written to shard2.

def get_shard(user_id):
    if user_id <= 1000:
        return 'shard1.db'
    else:
        return 'shard2.db'

Step 3. Insert Data Into Shards.

Now, let's insert some data into the shards.

def insert_user(user_id, name):
    shard_db = get_shard(user_id)
    conn = sqlite3.connect(shard_db)

    # Insert user data
    conn.execute('INSERT INTO users (id, name) VALUES (?, ?)', (user_id, name))
    conn.commit()
    conn.close()

# Insert sample users
insert_user(500, 'Alice')  # Will be stored in shard1
insert_user(1500, 'Bob')   # Will be stored in shard2
insert_user(250, 'Charlie')  # Will be stored in shard1
insert_user(1750, 'David')   # Will be stored in shard2

Step 4. Query Data from Shards.

Finally, to retrieve data from the correct shard, we use a similar approach, connecting to the shard based on the user’s ID.

def get_user(user_id):
    shard_db = get_shard(user_id)
    conn = sqlite3.connect(shard_db)

    # Query user data
    cursor = conn.execute('SELECT id, name FROM users WHERE id = ?', (user_id,))
    user = cursor.fetchone()
    conn.close()
    return user

# Retrieve users
print(get_user(500))   # Output: (500, 'Alice')
print(get_user(1500))  # Output: (1500, 'Bob')
print(get_user(250))   # Output: (250, 'Charlie')
print(get_user(1750))  # Output: (1750, 'David')

Step 5. Query All Users in Each Shard.

You can also query all users in each shard to see the full dataset distribution.

def get_all_users_from_shard(shard_db):
    conn = sqlite3.connect(shard_db)
    cursor = conn.execute('SELECT * FROM users')
    users = cursor.fetchall()
    conn.close()
    return users

# Get all users from shard1 and shard2
shard1_users = get_all_users_from_shard('shard1.db')
shard2_users = get_all_users_from_shard('shard2.db')

print("Users in Shard 1:", shard1_users)
print("Users in Shard 2:", shard2_users)

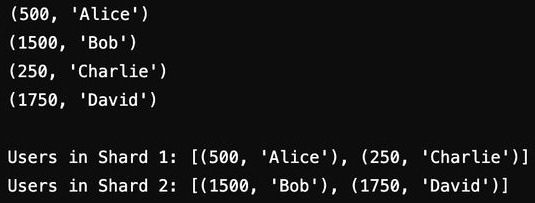

Expected Output

This code will create two shards (shard1.db and shard2.db), insert user data into them, and query the data to display the users distributed across the two shards. You can run this code in a Python environment to generate the actual SQLite output.

Challenges of Database Sharding

While database sharding offers many benefits, it also introduces several challenges.

1. Complexity: Sharding adds complexity to application logic, as you need to manage connections to multiple databases and distribute queries correctly.
2. Data Rebalancing: If the distribution of data changes (e.g., more users are added), you may need to rebalance your shards, which can be a difficult and resource-intensive process.
3. Cross-Shard Queries: Queries that require data from multiple shards (e.g., joins) can become much more complicated and slower.
4. Consistency: Ensuring data consistency across shards, especially in distributed environments, can be challenging.

Conclusion

Database sharding is a powerful technique to improve scalability, performance, and availability for applications dealing with large datasets. However, it requires careful planning and management to avoid common pitfalls like uneven data distribution and cross-shared query complexity. By understanding the different types of sharding and implementing them in a way that suits your application's needs, you can unlock significant benefits and enable your system to handle a growing user base more efficiently.

Happy Learning!
