Transfer Multiple File Formats Between Blob Containers with Logic App

Azure Logic Apps

Logic App is a cloud-based service that allows us to react to an event in one service (such as SharePoint online) and do something with the data from that event into another service (such as Twitter). It makes it practical and simple for business processes. The users build workflows that automatically perform some business tasks and processes across applications and services. We can connect our business-critical apps and services with Azure Logic Apps, automating our workflows without writing a single line of code.

Before reading this article, please go through some important article links mentioned below.

• Deep Dive Into Azure Logic Apps
• Connect OneDrive To Google Drive With Azure Logic Apps
• Connect Facebook To Twitter With Azure Logic App
• Save Specific Twitter Tweet To Excel Spreadsheet With Azure Logic App
• Save Only A Positive Tweet To Excel Spreadsheet Using Microsoft Cognitive
• Using Cognitive Service Face API with Azure Logic App
• Using Cognitive Service Computer Vision API, Text Analytics API With Azure
• Get Daily Weather Reports Delivered To Your Phone Using Azure Logic Apps
• How To Retweet A Specific Tweet With An Approval Email In Azure Logic App
• How to Mark an Email as Read When Logic App Performs an Action
• How to Delete a Specific Email using Azure Logic App
• Alert on Saving Email Attachment to Blob Storage Account
• Save specific Email to Excel File using Azure Logic App

Prerequisites

• Microsoft Azure Accountd

Here, we are going to see how to connect blob storage and oneDrive with approval-based automated workflow using Azure Logic App

Steps to build a Workflow using a template

Step 1

• Log into https://portal.azure.com/.

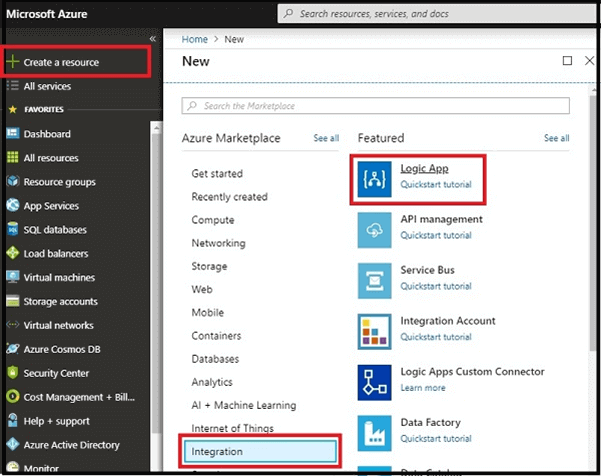

• In the dashboard, choose to create a resource and click on Integration. Now, select "Logic App".


Step 2

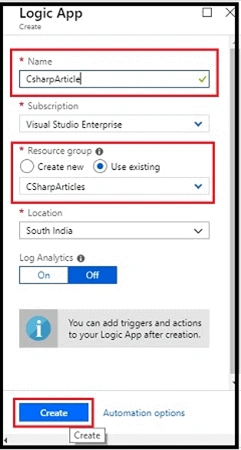

• Enter the name you want to assign to the logic. Select the subscription and resource group where you organize the related resources and location where your logic app is stored. Then, click on "Create".

• Here is the dashboard. Click "Logic App Designer".


Step 3

Now, click on the Blank Logic App.

Step 4

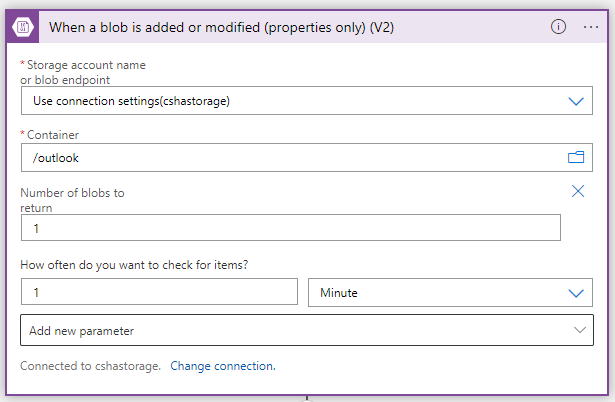

Configure the blob Storage.

• Search for blob storage in the search bar.

• Choose the Triggers as When a blob is added or modified.


Step 5

Configure Blob for get blob content.

• Search for Azure Blob Storage.

• Choose the action as Get blob content

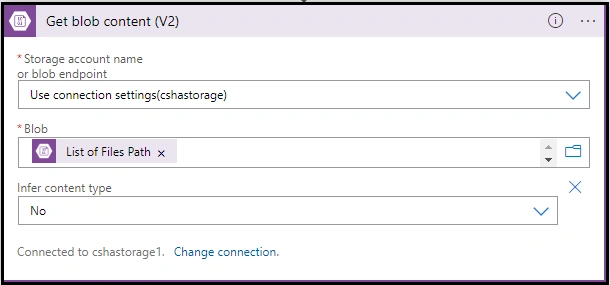

• Mapping Storage account, Blob.


Step 7

Initializes the variable.

Step 8

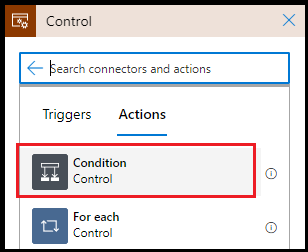

Configure Control for checking the condition.

• Search for Control operation

• Choose condition as actions

• Choose Selected options is equal to Approve


True

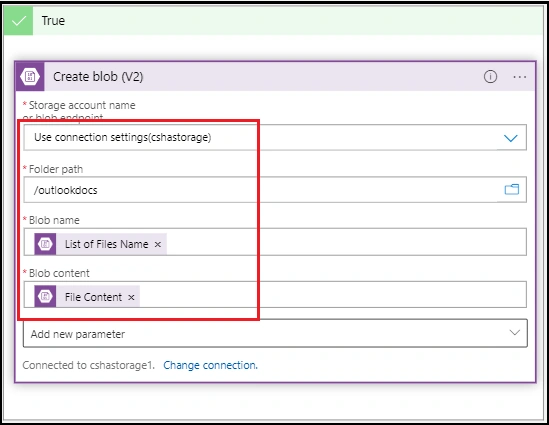

• Then, if true, choose an operation such as Blob Storage and choose the action as create blob. And map the folder as outlookdocs.

The final workflow will be like this.

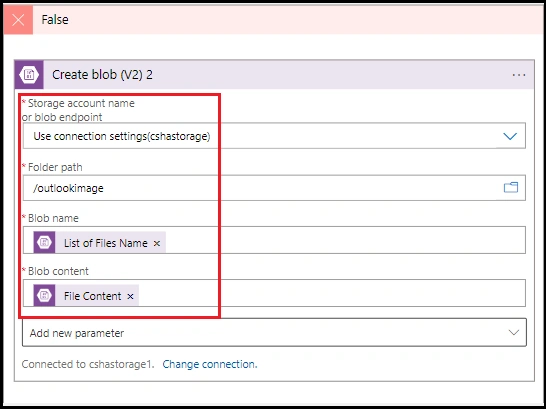

False

• Then, if true, choose an operation such as Blob Storage and choose the action as create blob. And map the folder as outlookimage

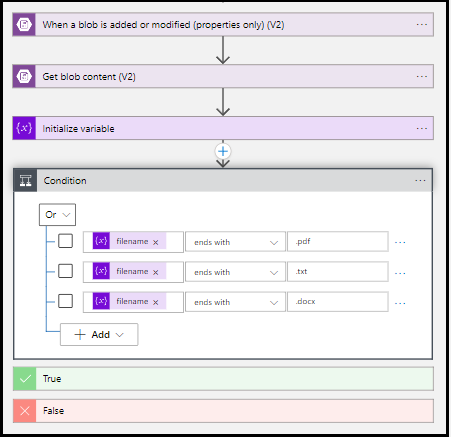

Final work flow

Now, let us save and run the workflow.

Output

Run the Logic App.

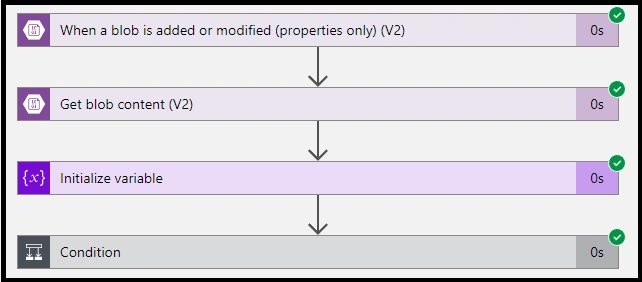

Its successfully run

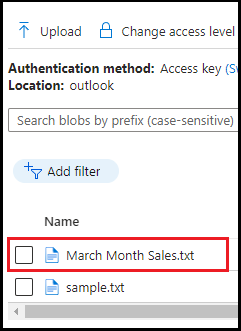

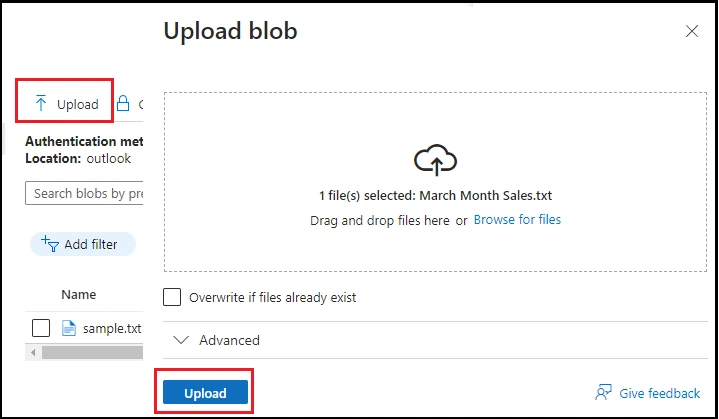

Upload blob in storage.

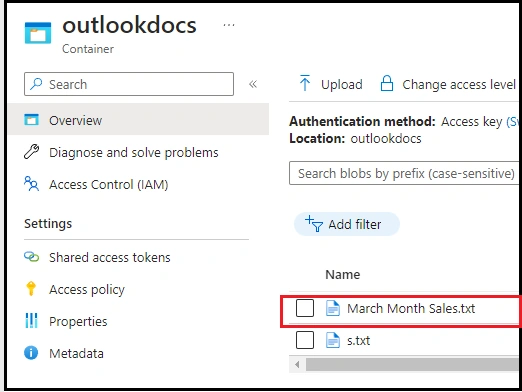

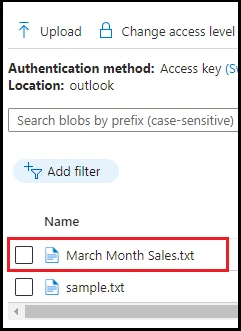

Finally, it successfully runs and save the file into outlookdocs container in blob storage.

Summary

I hope you understood how to connect blob storage and OneDrive with approval-based automated  workflow using Azure Logic App. Stay tuned for more Logic App articles.
