Table As Input Parameters For Stored Procedure

Note: this article is published on 02/21/2022.

This article was initially written in 2021, we try to make it done now.  The content is mainly based on the MS article Table-Valued Parameters with some understanding and explanation, and with some examples to demo the results.

I put this article into the series of articles about SQL Tables:

Introduction

Table-valued parameters were introduced to SQL Server in 2008. Table-valued parameters provide an easy way to marshal multiple rows of data from a client application to SQL Server without requiring multiple round trips or special server-side logic for processing the data.

This is the structure of this article,

  • Introduction
  • A - Passing Multiple Rows in Previous Versions of SQL Server
  • B - What Table-Parameters is
  • C - Passing a user-defined table type to a Stored Procedure in SQL Server
  • D - Passing a user-defined table type to a Stored Procedure from C# Code

A - Passing Multiple Rows in Previous Versions of SQL Server

Before table-valued parameters were introduced to SQL Server 2008, the options for passing multiple rows of data to a stored procedure or a parameterized SQL command were limited. A developer could choose from the following options for passing multiple rows to the server:

  • Use a series of individual parameters to represent the values in multiple columns and rows of data.
  • Bundle multiple data values into delimited strings or XML documents and then pass those text values to a procedure or statement.
  • Create a series of individual SQL statements for data modifications that affect multiple rows, such as those created by calling the Update method of a SqlDataAdapter.
  • Use the bcp utility program or the SqlBulkCopy object to load many rows of data into a table.

The disadvantages of all methods above at least include one that the server side processing is necessary for them.

B - What Table-Parameters is

Table-valued parameters provide an easy way to marshal multiple rows of data from a client application to SQL Server without requiring multiple round trips or special server-side logic for processing the data. You can use table-valued parameters to encapsulate rows of data in a client application and send the data to the server in a single parameterized command. The incoming data rows are stored in a table variable that can then be operated on by using Transact-SQL.

Column values in table-valued parameters can be accessed using standard Transact-SQL SELECT statements. Table-valued parameters are strongly typed and their structure is automatically validated. The size of table-valued parameters is limited only by server memory.

There are several limitations to table-valued parameters:

  • You cannot pass table-valued parameters to CLR user-defined functions.
  • Table-valued parameters can only be indexed to support UNIQUE or PRIMARY KEY constraints. SQL Server does not maintain statistics on table-valued parameters.

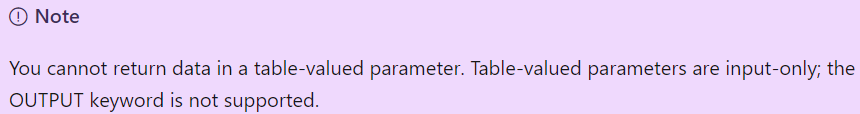

  • Table-valued parameters are read-only in Transact-SQL code.
  • You cannot use ALTER TABLE statements to modify the design of table-valued parameters.

C - Passing a user-defined table type to a Stored Procedure in SQL Server


1. Creating Table-Valued Parameter Types

Table-valued parameters are based on strongly typed table structures that are defined by using Transact-SQL CREATE TYPE statements. You have to create a table type and define the structure in SQL Server before you can use table-valued parameters in your client applications. We use database Northwind.

Use Northwind

CREATE TYPE dbo.CategoryTableType AS TABLE
    ( CategoryID int, CategoryName nvarchar(50) )

In the Microsoft SQL Server Management Studio, we can see the created type:

Database->Programmability->Types->User Define Table Types:

2. Creating Stored Procedures in SQL Server using the Table-valued Parameters Type

Table-valued parameters can be used in set-based data modifications that affect multiple rows by executing a single statement.

Update

CREATE PROCEDURE usp_UpdateCategories
    (@tvpEditedCategories dbo.CategoryTableType READONLY)
AS
BEGIN
	SET NOCOUNT ON
	UPDATE dbo.Categories
    SET Categories.CategoryName = ec.CategoryName
    FROM dbo.Categories INNER JOIN @tvpEditedCategories AS ec
    ON dbo.Categories.CategoryID = ec.CategoryID;
END

Note: that the READONLY keyword is required for declaring a table-valued parameter.

3. Run the Stored Procedure with Table-Valued Parameters (Transact-SQL)

Table-valued parameters can be used in set-based data modifications that affect multiple rows by executing a single statement.

Table Categories --- Before:

Run the Stored Procedure with Table-Valued Parameters:

DECLARE @tvpUpdateCategories AS dbo.CategoryTableType
INSERT INTO @tvpUpdateCategories([CategoryID], [CategoryName]) VALUES(8,'SeaFood1')
EXEC  dbo.usp_UpdateCategories @tvpUpdateCategories

Table Categories --- After

D - Passing a Table-Valued Parameter to a Stored Procedure from C# Code

We will skip this part, you may see the detailed implementation from the bottom on Table-Valued Parameters.

Note [ref]:

Normally we provide DbType of SqlParameter for a normal parameter like varchar, nvarchar, int, and so on as in the following code.

SqlParameter sqlParam= new SqlParameter();
sqlParam.ParameterName = "@StudentName";
sqlParam.DbType = DbType.String;
sqlParam.Value = StudentName;

But in the case of a Table parameter, we do not need to provide a DbType as the parameter data type. We need to provide SqlType rather than DbType, such as

SqlParameter Parameter = new SqlParameter;
Parameter.ParameterName = "@PhoneBook";
Parameter.SqlDbType = SqlDbType.Structured;
Parameter.Value = PhoneTable;
