T-SQL Script for Purging Tables with Foreign Key References

Introduction

In SQL Server, managing data integrity while purging data from tables can be a complex task, especially when dealing with foreign key relationships. A well-designed approach is essential for maintaining database consistency and ensuring that all related data is correctly handled. This article provides an in-depth guide on how to use a T-SQL script to purge tables, including those with foreign key references, from the AdventureWorks2022 database. This script is invaluable for SQL Developers, Data Engineers, and DBAs looking to streamline data purging operations in a relational database.

Understanding the Challenge

When purging data from tables that have foreign key dependencies, one must consider the order in which tables are processed. If tables with dependent relationships are not handled correctly, you might encounter errors related to foreign key constraints. For instance, trying to delete data from a parent table before removing data from its child tables will result in constraint violations.

Purging Strategy

To successfully purge data from tables with foreign key constraints, you must.

  • Identifying tables with foreign key dependencies.
  • Determining the correct order to purge tables.
  • Generating the appropriate T-SQL commands for purging data.

The T-SQL Script

Below is a comprehensive T-SQL script that facilitates the purging of tables in a SQL Server database, considering foreign key references. This script dynamically generates the necessary SQL commands to handle data purging based on the identified dependencies.

USE AdventureWorks2022
GO

-- Retrieve all tables with foreign keys, excluding those that are self-referencing
;WITH CTE_Get_Tables_With_FK AS (
    SELECT
        FK.[parent_object_id] AS [parent_object_id],
        SCM.[name] AS [Parent_SchemaName],
        TBL.[name] AS [Parent_TableName],
        FK.[referenced_object_id] AS [Ref_object_id],
        RSCM.[name] AS [Ref_SchemaName],
        RTBL.[name] AS [Ref_TableName]
    FROM sys.foreign_keys FK
    INNER JOIN sys.tables TBL ON TBL.[object_id] = FK.[parent_object_id]
    INNER JOIN sys.schemas SCM ON SCM.[schema_id] = TBL.[schema_id]
    INNER JOIN sys.tables RTBL ON RTBL.[object_id] = FK.[referenced_object_id]
    INNER JOIN sys.schemas RSCM ON RSCM.[schema_id] = RTBL.[schema_id]
    WHERE FK.[type] = 'F'
        AND FK.[parent_object_id] <> [referenced_object_id]
        AND TBL.type = 'U'
        AND RTBL.type = 'U'
),

-- Recursive CTE: Identify the sequence of each referenced table
-- For example, if Table1 references Table2, and Table2 references Table3, then assign the sequence as follows:
-- Table3 should be assigned a sequence of 1, Table2 a sequence of 2, and Table1 a sequence of 3.
CTE_Get_All_Ref_Table_In_Sequence AS (
    SELECT
        FK1.[parent_object_id],
        FK1.[Parent_SchemaName],
        FK1.[Parent_TableName],
        FK1.[Ref_object_id],
        FK1.[Ref_SchemaName],
        FK1.[Ref_TableName],
        1 AS [Iteration_Sequence_No]
    FROM CTE_Get_Tables_With_FK FK1
    LEFT JOIN CTE_Get_Tables_With_FK FK2 ON FK1.[parent_object_id] = FK2.[Ref_object_id]
    WHERE FK2.[parent_object_id] IS NULL

    UNION ALL

    SELECT
        FK.[parent_object_id],
        FK.[Parent_SchemaName],
        FK.[Parent_TableName],
        FK.[Ref_object_id],
        FK.[Ref_SchemaName],
        FK.[Ref_TableName],
        CTE.[Iteration_Sequence_No] + 1 AS [Iteration_Sequence_No]
    FROM CTE_Get_Tables_With_FK FK
    INNER JOIN CTE_Get_All_Ref_Table_In_Sequence CTE ON FK.[parent_object_id] = CTE.[Ref_object_id]
    WHERE FK.[Ref_object_id] <> CTE.[parent_object_id]
),

-- Retrieve the distinct parent tables along with their iteration sequence numbers
CTE_Get_Unique_Parent_Table_With_Ref AS (
    SELECT DISTINCT
        [Parent_SchemaName],
        [Parent_TableName],
        [parent_object_id],
        [Iteration_Sequence_No]
    FROM CTE_Get_All_Ref_Table_In_Sequence
),

-- Combine all tables, including those with foreign keys and those without foreign keys
CTE_Get_All_Tables AS (
    SELECT
        SCM.[name] AS [SchemaName],
        TBL.[name] AS [TableName],
        ISNULL(Prnt_Tbl_Ref.[Iteration_Sequence_No], (ISNULL(MITRN.[Max_Iteration_Sequence_No], 0) + 1)) AS [Iteration_Sequence_No],
        CASE
            WHEN EXISTS (SELECT 1 FROM CTE_Get_Tables_With_FK WHERE [Ref_object_id] = TBL.[object_id])
            THEN 1
            ELSE 0
        END AS [Table_Has_Ref]
    FROM sys.tables TBL
    INNER JOIN sys.schemas SCM ON SCM.[schema_id] = TBL.[schema_id]
    LEFT JOIN CTE_Get_Unique_Parent_Table_With_Ref Prnt_Tbl_Ref ON Prnt_Tbl_Ref.[parent_object_id] = TBL.[object_id]
    OUTER APPLY (SELECT MAX([Iteration_Sequence_No]) AS [Max_Iteration_Sequence_No] FROM CTE_Get_Unique_Parent_Table_With_Ref) MITRN
    WHERE TBL.[type] = 'U'
        AND TBL.[name] NOT LIKE 'sys%'
)

-- Output: SchemaName, TableName, and T-SQL script to purge the table data
-- TRUNCATE is used where there are no foreign key references, otherwise, DELETE is used
SELECT
    TBL_SEQ.[SchemaName],
    TBL_SEQ.[TableName],
    TBL_SEQ.[Iteration_Sequence_No],
    (CASE
        WHEN ROW_NUMBER() OVER (ORDER BY TBL_SEQ.[Iteration_Sequence_No] ASC) = 1
        THEN 'SET NOCOUNT ON;'
        ELSE ''
    END) + CHAR(13) + CHAR(10) +
    (CASE
        WHEN TBL_SEQ.[Table_Has_Ref] = 0
        THEN 'TRUNCATE TABLE ' + QUOTENAME(TBL_SEQ.[SchemaName]) + '.' + QUOTENAME(TBL_SEQ.[TableName]) + ';'
        ELSE 'DELETE FROM ' + QUOTENAME(TBL_SEQ.[SchemaName]) + '.' + QUOTENAME(TBL_SEQ.[TableName]) + ';' + CHAR(13) + CHAR(10) + 'GO' + CHAR(13) + CHAR(10) +
             'DBCC CHECKIDENT (''' + QUOTENAME(TBL_SEQ.[SchemaName]) + '.' + QUOTENAME(TBL_SEQ.[TableName]) + ''', RESEED, 1);'
    END) + CHAR(13) + CHAR(10) + 'GO' AS [TSQL_Query]
FROM CTE_Get_All_Tables TBL_SEQ
ORDER BY
    TBL_SEQ.[Iteration_Sequence_No] ASC,
    TBL_SEQ.[SchemaName] ASC,
    TBL_SEQ.[TableName] ASC
OPTION (MAXRECURSION 0)

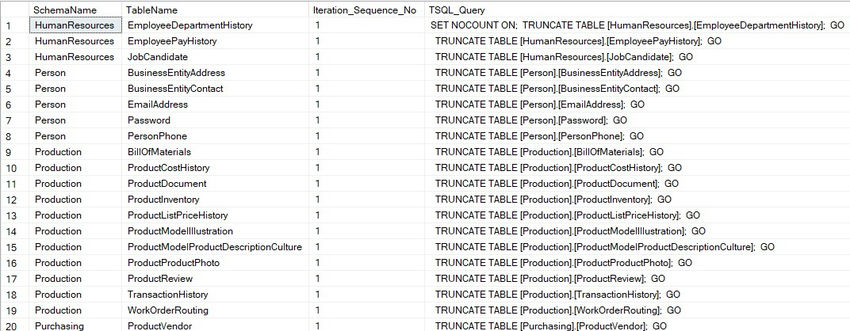

Output

Output

Script Explanation


Step 1. Identifying Tables with Foreign Keys

The first CTE, CTE_Get_Tables_With_FK, retrieves all tables with foreign key relationships, excluding self-referencing foreign keys. This step is crucial because self-referencing tables do not pose a problem in the context of data purging order.

Step 2. Sequencing Referenced Tables

CTE_Get_All_Ref_Table_In_Sequence is a recursive CTE that determines the sequence in which tables should be purged. This sequencing is based on the foreign key dependencies; for example, if Table1 references Table2 and Table2 references Table3, the sequence will ensure that Table3 is purged first, followed by Table2, and finally Table1.

Step 3. Combining Tables with and without Foreign Keys

The CTE_Get_All_Tables CTE combines tables with and without foreign keys. It assigns an iteration sequence number to each table based on its dependency. Tables without foreign key references are assigned a sequence number higher than the maximum sequence number of any referenced tables.

Step 4. Generating Purge Commands

The final SELECT statement generates the T-SQL commands needed to purge each table. The script uses TRUNCATE TABLE for tables without foreign key references and DELETE FROM for tables with foreign key references. It also includes commands to reseed identity columns using DBCC CHECKIDENT.

Practical Considerations

  • Backup Before Purging: Always ensure that you have a recent backup before executing data purge operations, especially in production environments.
  • Transactional Integrity: Wrap the purge commands in a transaction to ensure atomicity and rollback in case of errors.
  • Testing: Test the script in a development or staging environment to verify its behavior before deploying it in production.
  • Performance: For large datasets, consider the performance implications of using DELETE versus TRUNCATE and adjust the script as needed based on the specific requirements.

Conclusion

The provided T-SQL script is a powerful tool for SQL Developers, Data Engineers, and DBAs tasked with purging data from tables in a SQL Server database. By systematically identifying and handling foreign key dependencies, the script ensures data integrity and efficient operation. Proper testing and careful execution are key to leveraging this script effectively in real-world scenarios.
