Introduction

In this article, I will explain how to get the Task Hierarchy for a specific project in Project Server via T-SQL.

Scenario

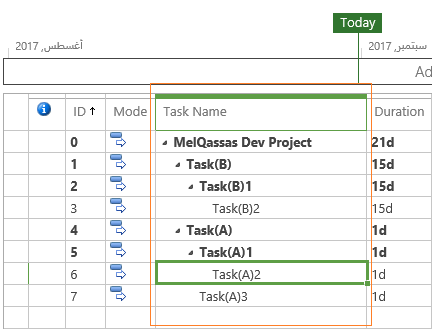

In Project Server, I have a project schedule with the summary task and subtasks, as shown below.

Task Structure

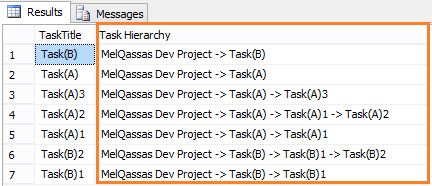

Based on the requirement, I would like to show the Task Hierarchy for each task in the Tasks View "[MSP_EpmTask_UserView]" for a specific project.

Task Structure output

Steps

To get the Task Hierarchy, we will use the Recursive Queries Using Common Table Expressions, as shown below.

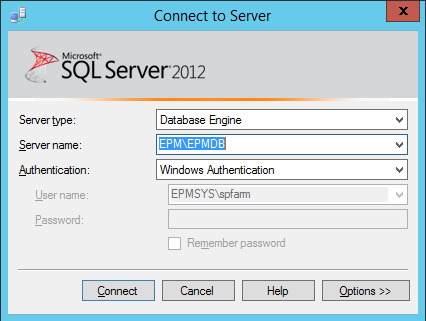

  • Create a "New Query" and make sure that you are using the Project Database (in this article, the project database name is "ProjectWebApp").

ProjectWebApp

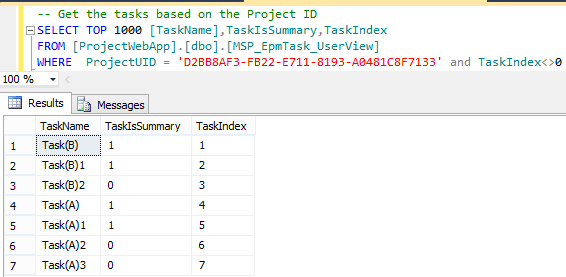

  • Get the Tasks for a specific project based on its ProjectUID from the form "[MSP_EpmTask_UserView]" View, as shown below.
    • Note. Change the ProjectUID with your ProjectUID.
      -- Get the tasks based on the Project ID
      SELECT TOP 1000 [TaskName],TaskIsSummary,TaskIndex
      FROM [ProjectWebApp].[dbo].[MSP_EpmTask_UserView]
      WHERE ProjectUID = 'D2BB8AF3-FB22-E711-8193-A0481C8F7133' and TaskIndex<>0

Get the tasks based on the ProjectUID

  • As we have mentioned, we will use the Recursive Queries Using Common Table Expressions to get the Task Hierarchy as the below query.
    • Note. Change the ProjectUID with your ProjectUID.
      WITH TasksRecursive(
        ProjectUID, TaskTitle,  TaskUID,
         TaskParentUID,  TaskName,  Level
      )    AS   (
           SELECT ProjectUID,
        TaskName as TaskTitle,
         TaskUID,
         TaskParentUID,
         CAST(
          TaskName AS NVARCHAR(MAX)
        ),
         0   FROM dbo.MSP_EpmTask_UserView WITH(NOLOCK)    WHERE TaskIndex  <>  0   UNION ALL   SELECT UV.ProjectUID,
        TasksRecursive.TaskTitle,
        TasksRecursive.TaskUID,
        UV.TaskParentUID,
        CAST(
          UV.TaskName ASNVARCHAR(MAX)
        )   +   ' -> '   +  CAST(
          TasksRecursive.TaskName AS NVARCHAR(MAX)
        )  ,
         TasksRecursive.Level  +  1   FROM TasksRecursive   Inner JOIN dbo.MSP_EpmTask_UserView UV WITH(NOLOCK)    ON TasksRecursive.ProjectUID  =  UV.ProjectUID AND TasksRecursive.TaskParentUID  =  UV.TaskUID   WHERE TaskIsSummary  =  1 AND TasksRecursive.TaskParentUID  <>  UV.TaskParentUID
      )    SELECT X.TaskTitle,
         (
        select TaskName from MSP_EpmTask_UserView where TaskIndex  =  0 and ProjectUID  =   'D2BB8AF3-FB22-E711-8193-A0481C8F7133'
      )   +   ' -> '   +  X.TaskName as  'Task Hierarchy'    FROM TasksRecursive X   INNER JOIN (
        SELECT ProjectUID,
         TaskUID,
         MAX(Level)  as  'Level'  FROM TasksRecursive GROUP BY ProjectUID,
         TaskUID
      )  Y   ON X.ProjectUID  =  Y.ProjectUID AND X.TaskUID  =  Y.TaskUID AND X.Level  =  Y.Level   WHERE X.ProjectUID  =   'D2BB8AF3-FB22-E711-8193-A0481C8F7133'


      Run the query to get the desired result.

Applies To

  • Project Server 2010 Reporting Database.
  • Project Server 2013 Database.
  • Project Server 2016 Content Database.

In Project Server 2016, a single database (SharePoint Content Database) holds the project data and the content.

Conclusion

In this article, I have explained how to show the Task Hierarchy for a specific project in Project Server Database using T-SQL.
