Swagger (1), for .NET MVC Web API

Swagger (OpenAPI) is a language-agnostic specification for describing REST APIs. It allows both computers and humans to understand the capabilities of a REST API without direct access to the source code. Swagger UI offers a web-based UI that provides information about the service using the generated OpenAPI specification. Swagger UI is an alternative to Postman.

I used Swagger more than several times in my articles, but just as a minor tool associated with other major topics. When I tried to get info on Swagger, I had to search from these articles, which was not convenient. So, I rewrote these two articles, especially about Swagger for .NET MVC Web API or .NET Core MVC Web API.

Introduction

This article is part of another article: Exception Handling (2); in ASP.NET MVC Web API, we got a Swagger-related part here. You can see details from there.

Step 1. Create an ASP.NET MVC Web API app

We use the version of Visual Studio 2019 16.8 and .NET Framework 4.7.2 to build the app.

  • Start Visual Studio and select Create a new project.
  • In the Create a new project dialog, select ASP.NET Web Application (.NET Framework) > Next.
  • In the Configure your new project dialog, enter ErrorHandlingWebAPI for Project name > Create.
  • In the Create a new ASP.NET Web Application dialog, select Web API > Creat

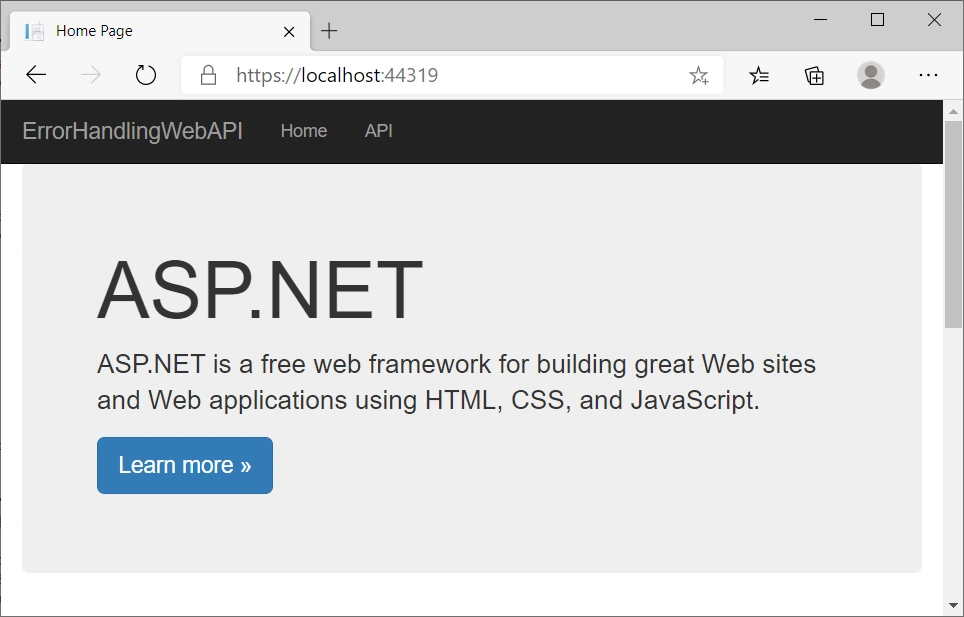

Build and run the app. You will see the following image shows the app,

Step 2. Add one empty ApiController

Add one empty apiController into the app, with the name ErrorHandlingWebAPIController:

  • Right-click Controllers > add > controller.
  • In the Add New Scaffolded Item dialog, select Web API in the left pane and
  • Web API 2 Controller - Empty > Add.
  • In the Add Controller dialog, Change ErrorHandlingWebAPIController for controller name > Add.

Step 3. Add code to the controller

We add the following code into the controller,

[Route("CheckId/{id}")]
[HttpGet]
public IHttpActionResult CheckId(int id)
{
    if (id < 10) // No error hanbdling at all:
    {
        int a = 1;
        int b = 0;
        int c = 0;
        c = a / b; //it would cause exception.
    }
    else if (id <20) // Error handling by HttpResponseException with HttpStatusCode
    {
        throw new HttpResponseException(HttpStatusCode.BadRequest);
    }
    else if (id < 30) // Error handling by HttpResponseException with HttpResponseMessage
    {
        var response = new HttpResponseMessage(HttpStatusCode.BadRequest)
        {
            Content = new StringContent(string.Format("No Employee found with ID = {0}", 10)),
            ReasonPhrase = "Employee Not Found"
        };

        throw new HttpResponseException(response);
    }

    return Ok(id);
}

Step 4. Add Swagger Client

Installing Swagger from NuGet Package Manager, from Visual Studio project,

  • Right-click Tools > NuGet Package Manager > Manage NuGet for Solution

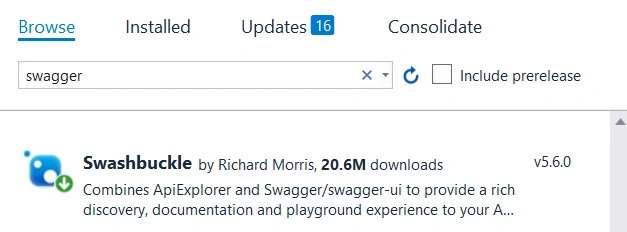

  • In the opened NuGet-Solution dialog, Click Browse, then Search Swagger
  • Install Swashbuckle v5.6.0

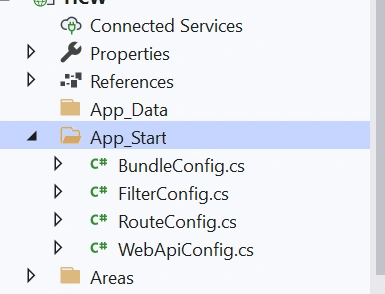

Before installation of Swagger, MVC usually has four config files in the folder App_Start,

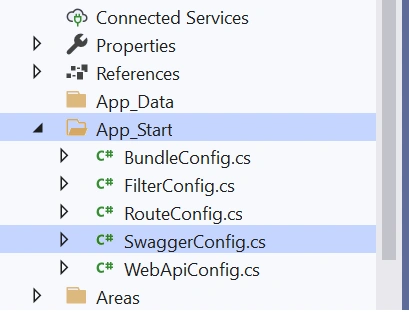

After installation, one more file, SwaggerConfig.cs, was added.

with code

public class SwaggerConfig
{
    public static void Register()
    {
        var thisAssembly = typeof(SwaggerConfig).Assembly;
        GlobalConfiguration.Configuration
          .EnableSwagger(c => c.SingleApiVersion("v1", "ErrorHandlingWebAPI"))
          .EnableSwaggerUi();
    }
}

Step 5. Change the default start page to the swagger

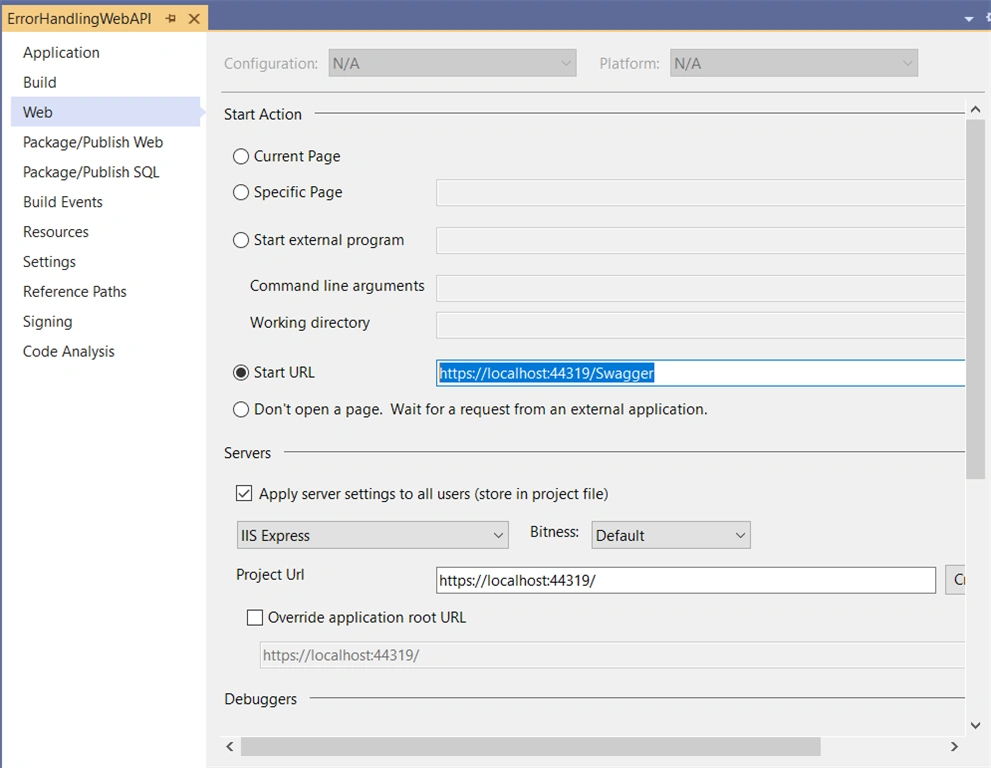

Right-click Project > Properties to open the properties page, then choose Web, in Start URL, add /swagger,

Step 6. Run the app
